HD 1080P PTZ Outdoor Speed Dome IP Cameras Home Security surveillance Pan Tilt
2MP H.265 23x Starlight&WDR Network High Speed Dome PTZ CameraMODEL: SE-WFRD16-STH23H.264/H.265/MJPEG encodingLow illumination 0.02Lux/F1.6(Color), 0.002Lux/F1.6(B/W), 0 Lux(IR on)23X Optical Zoom, Auto FocusIR distance up to 180mSupport 3DNR, WDR, defog, HLC, Anti shake etc.,Support 360°......
Send Inquiry
Product Description

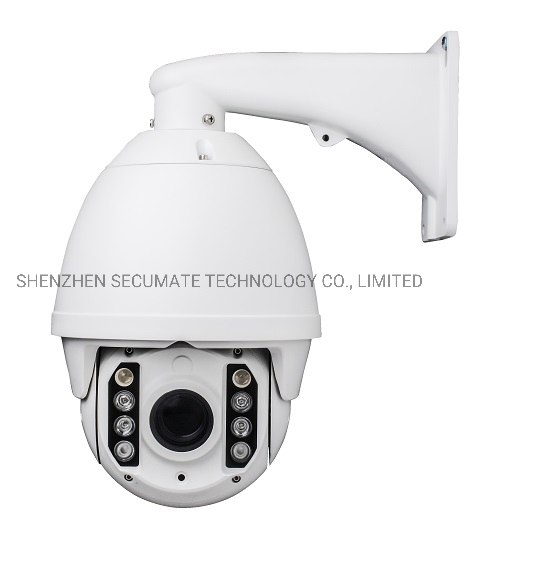

2MP H.265 23x Starlight&WDR Network High Speed Dome PTZ Camera
MODEL: SE-WFRD16-STH23
H.264/H.265/MJPEG encoding
Low illumination 0.02Lux/F1.6(Color), 0.002Lux/F1.6(B/W), 0 Lux(IR on)
23X Optical Zoom, Auto Focus
IR distance up to 180m
Support 3DNR, WDR, defog, HLC, Anti shake etc.,
Support 360°pan endless; tilt 0°-90°
Support manual speed: 0.1°-180°/S, preset:200°/S
256 presets, 4 pattern scan, 8 preset cruise
3D positioning, privacy mask, PTZ watch
Support target counting, objects inspection, area detection, line crossing detection
1CH audio input, 1CH audio output
2CH alarm input, 1CH alarm output, support alarm linkage
Support smart IR grouping control, IR distance up to 180m
Support max 128G Micro SD card
SDK, ONVIF, API, Slink
Lightning Protection, surging prevention,IP66
DC24V, POE+
MODEL: SE-WFRD16-STH23
H.264/H.265/MJPEG encoding
Low illumination 0.02Lux/F1.6(Color), 0.002Lux/F1.6(B/W), 0 Lux(IR on)
23X Optical Zoom, Auto Focus
IR distance up to 180m
Support 3DNR, WDR, defog, HLC, Anti shake etc.,
Support 360°pan endless; tilt 0°-90°
Support manual speed: 0.1°-180°/S, preset:200°/S
256 presets, 4 pattern scan, 8 preset cruise
3D positioning, privacy mask, PTZ watch
Support target counting, objects inspection, area detection, line crossing detection
1CH audio input, 1CH audio output
2CH alarm input, 1CH alarm output, support alarm linkage
Support smart IR grouping control, IR distance up to 180m
Support max 128G Micro SD card
SDK, ONVIF, API, Slink
Lightning Protection, surging prevention,IP66
DC24V, POE+
| Zoom Module | |
| Image sensor | 1/2.8" SONY Starvis CMOS Sensor |
| Min. illumination | Color: 0.02 [email protected]; B/W: [email protected], 0Lux(IR ON) |
| Effective pixels | 2 Megapixel |
| Resolution | More than 1000TVL |
| Optical zoom | 23X |
| Digital zoom | 16X |
| Focal length | f=4.7mm~108.1mm |
| Iris | F1.5(W)~F3.0(T) |
| Angle Of View | 55.8°(Wide)~3.2°(Tele) |
| Zoom speed | 3s ( wide angle-telescope) |
| Focus mode | Auto/ Manual/One push |
| S/N ratio | >50dB |
| Image adjust | Support brightness, contrast, saturation, Hue can be adjusted through web |
| White balance | Auto/Indoor/Outdoor |
| Image mode | Standard/gorgeous/natural |
| Iris control | Auto/ Manual |
| Electronic shutter | Auto/ Manual (1/5~1/5000) |
| Auto slow shutter | On/Off |
| Gain control | Low/Middle/High |
| BLC | Off/WDR/HLC/BLC |
| Dark compensation | On/Off |
| HLC | On/Off |
| WDR | Off, Low/Middle/High |
| Day/Night | Auto/Color/ B/W |
| Mirror | Normal/ Horizontal Mirror/Vertical Mirror/180º rotation |
| DNR | 3DNR, Off/Low/Middle/High |
| Defog | On/Off |
| Anti Shake | On/Off |
| Compression | |
| Video compression | H.265/H.264/MJPEG |
| H.265 encoding Type | Support |
| H.264 encoding Type | Base Line / Main Profile / High Profile |
| Frame rate | 1~30fps adjustable 1920×1080, 1280x1024, 1280×960, 1280x720, 720×576 |
| Main stream resolution | 1920×1080(1080p), 1280×1024(XVGA), 1280x720(720p), 1280x960(960p), D1 |
| Sub stream resolution | 720X576(D1), 640*480(VGA), 640*360(Q720)352X288(CIF), 320×240(QVGA) |
| Output format | PAL/NTSC adjustable |
| Max.resolution | 1920X1080 |
| Video bit rate | Constant bit rate, Variable bit rate(16kbps-8000kbps) |
| Stream type | Complex stream/ Video stream |
| Audio compression | G.711u |
| Audio bit rate | 64Kbps |
| Audio control | Input volume(0-100), Input volume(0-100) |
| ROI | 4 zones(1-6) |
| Watermark function | / |
| Function | |
| Pan range | 360° endless |
| Tilt range | 0°~ 90° |
| Manual control | 0.1°~180°/s |
| Preset speed | 200°/s |
| Preset accuracy | 0.1° |
| Preset | 256 |
| Cruise | 8 groups |
| Linear Scan | 8 groups |
| Pattern | 4 groups |
| Continuous scan | Support |
| Proportion zoom | Auto |
| PTZ watch | Off/ Preset/ Cruise/ Pattern/ Linear scan(1~15min) |
| Auto flip | Mechanical Flip |
| Power off memory | Support |
| 3D positioning | Support |
| Coordinate display | Support |
| IR irradiation angle | Automatically grouping adjusted, depending on the zoom ratio |
| IR distance | 180m |
| Smart IR | IR irradiation brightness and angle can be adjusted depending on the zoom ratio |
| Network | |
| Network protocol | IPv4,TCP,UDP,HTTP,HTTPS,SMTP,FTP,NTP,DNS,DDNS,DHCP,ARP,UPnP,RTSP,RTP, RTCP, IGMP,PPPoE,ICMP,SNMP |
| Access protocol | ONVIF, Slink |
| Browser | Support IE8 above |
| Video preview meanwhile | Max 4CH |
| User permission | User Add / Delete / Modify, Administrator/ Operator/Ordinary users |
| Safe mode | Authorized user name and password |
| Motion detection | Multi areas, multi-level sensitivity threshold optional |
| Tampering alarm | 1 zone |
| Privacy mask | 8 zones |
| Smart analysis | Target counting/objects detection/area detection/line crossing detection |
| Event linkage | Snapshot, TF card video, FTP upload or Email sending , alarm output linkage, Preset linkage |
| Multicast function | On/Off |
| ANR | Support, match with the NVR |
| Mobile surveillance | Support Android, Apple |
| Device exception | Support network disconnected, IP conflict, illegal access alarm |
| OSD | Title, time and date overlay, OSD color/size adjustable |
| DST | Support |
| System upgrade | Support online remote upgrade |

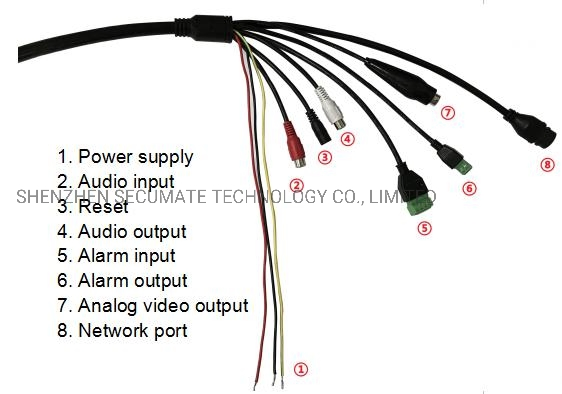

| Interface | |
| Network interface | RJ45 10M/100M Network Adaptive |
| Analog video output | 1.0Vp-p complex video output,75Ω |
| Audio | 1CH input/1CH output, monitoring or bidrectional talk |
| Alarm input | 2 CH input |
| Alarm output | 1CH output,support alarm linkage |
| Reset | Support |
| RS485 port | (Support optional) Half Duplex, support Pelco-P and Pelco-D |
| TF card | Support Max 128G, Support NFR |
| General | |
| Protection grade | IP66 |
| Operating temperature | Outdoor: -30ºC~60ºC(Support 30 minutes delay to boot up under low temperature ) |
| Operating humidity | 10%-90%RH ( No condensation) |
| Power supply | DC24V/1.5A(±10%) |
| POE | Support, (IEEE802.3at standard) |
| Power consumption | 36W |
| Dimensions(mm) | 380(H)*216(D)mm |
| Weight/PCS(g) | About 7kg |
