HD 4CH WiFi CCTV Surveillance System Kit with 4PCS Waterproof IR IP Camera All-in-One NVR Built in 11 Inches Display 720p 1080P 3.0MP Optional
HD 4CH WiFi CCTV Surveillance System Kit with 4PCS Waterproof IR IP Camera All-in-One NVR Built in 11 Inches Display 720P 1080P 3.0MP Optional Features of 4CH WIFI NVR KITS: *Build in 11inch High difinition LCD Screen (resolution:1280*1024)*One step connect to the Internet: With eseecloud service,......
Send Inquiry
Product Description

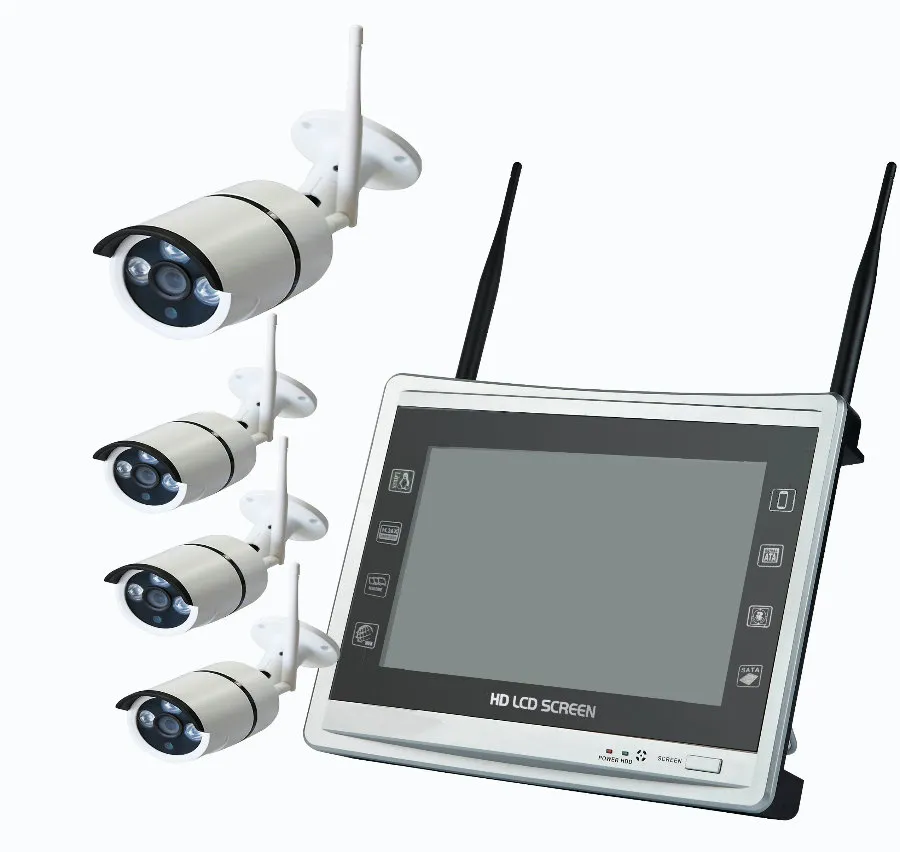

HD 4CH WiFi CCTV Surveillance System Kit with 4PCS Waterproof IR IP Camera All-in-One NVR Built in 11 Inches Display 720P 1080P 3.0MP Optional
Features of 4CH WIFI NVR KITS:

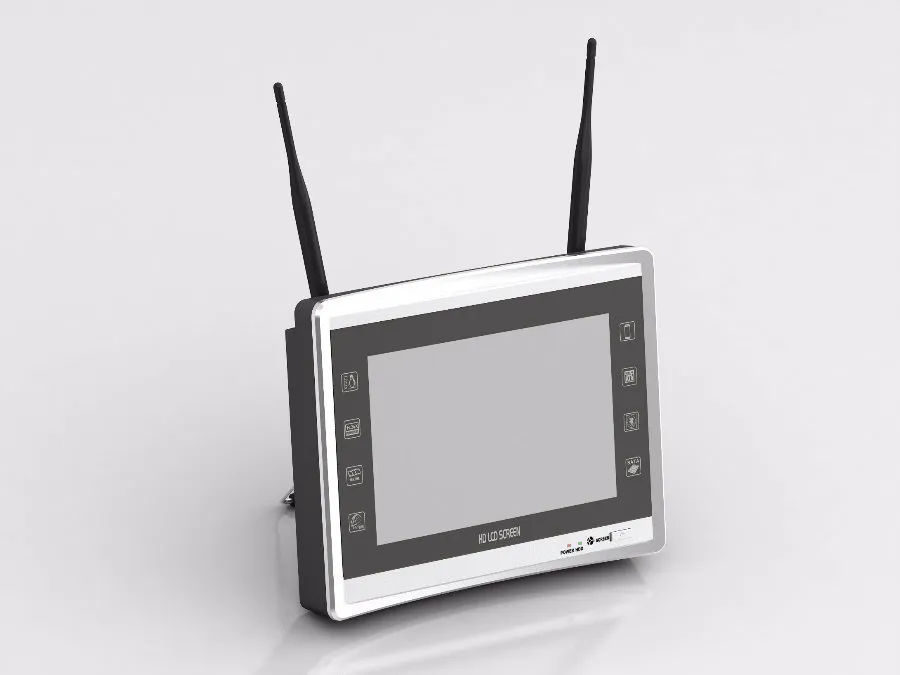

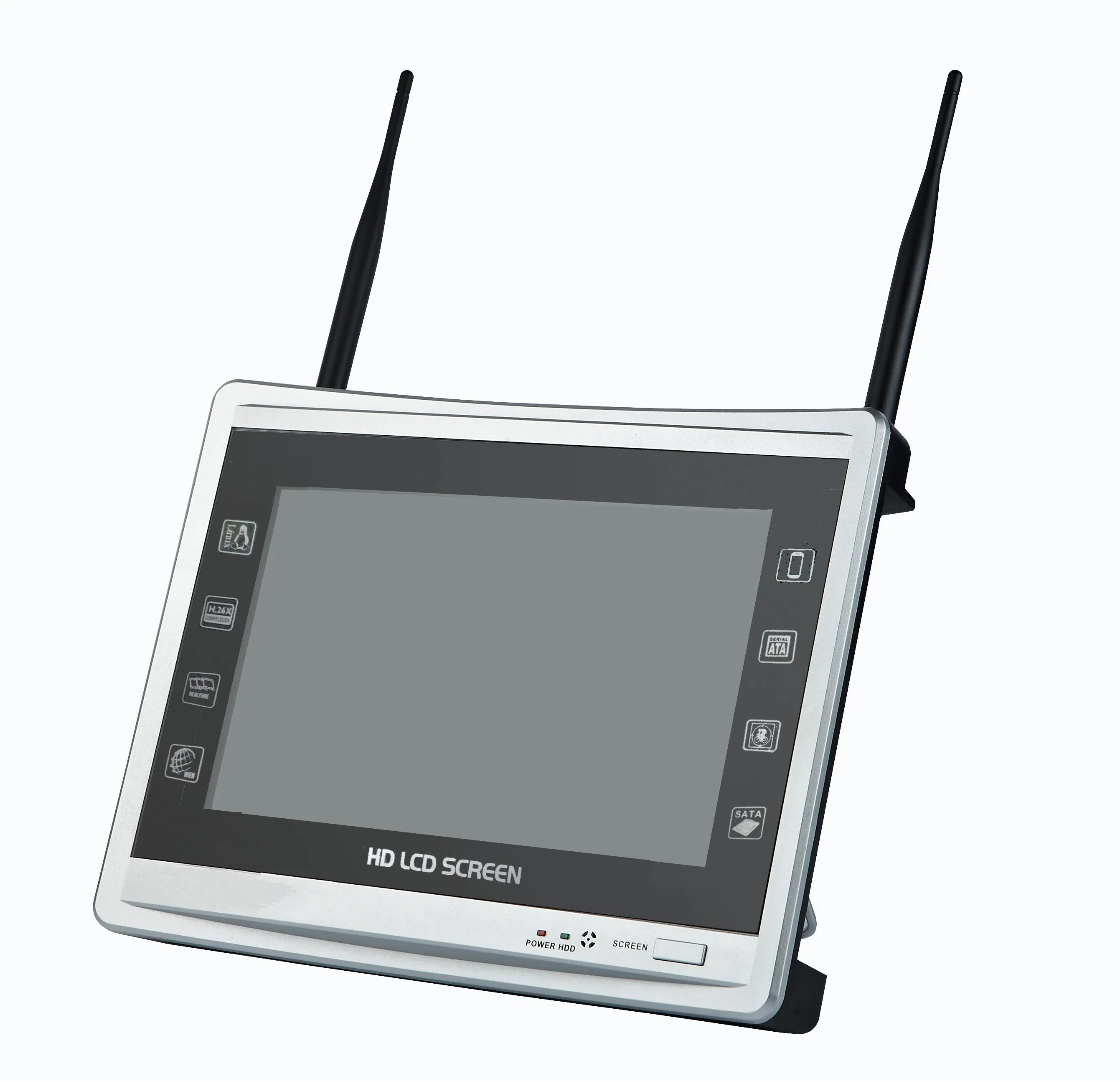

*Build in 11inch High difinition LCD Screen (resolution:1280*1024)

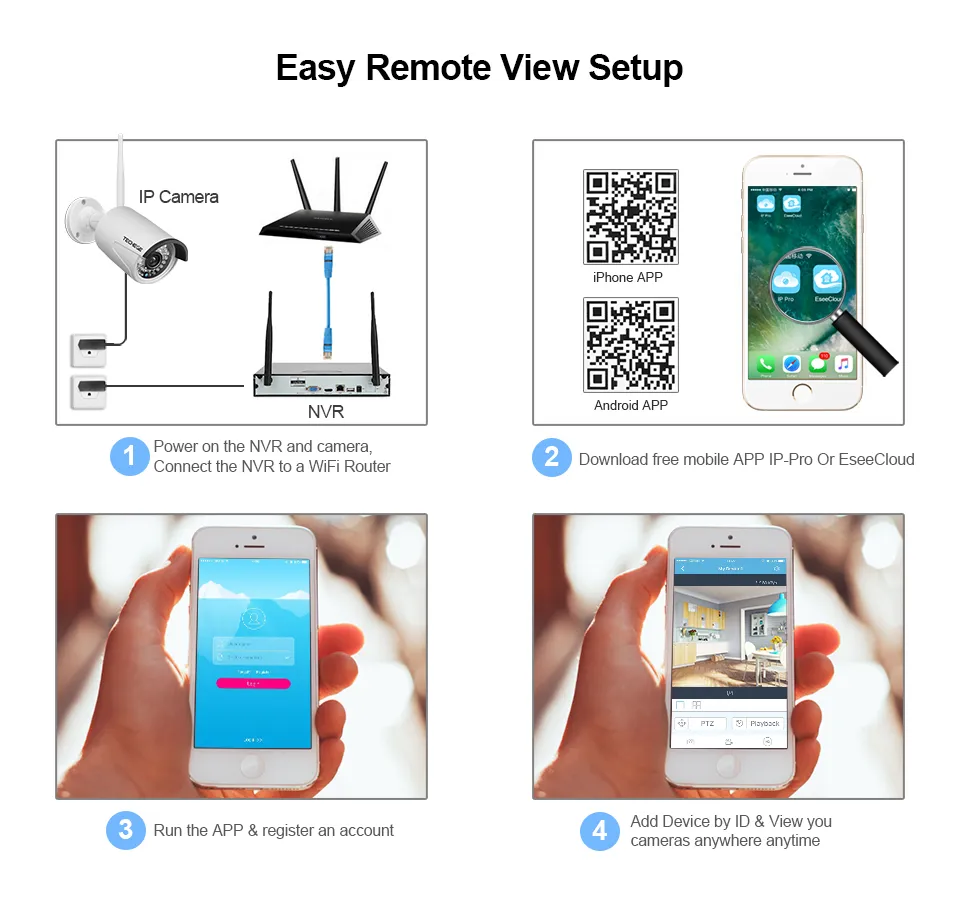

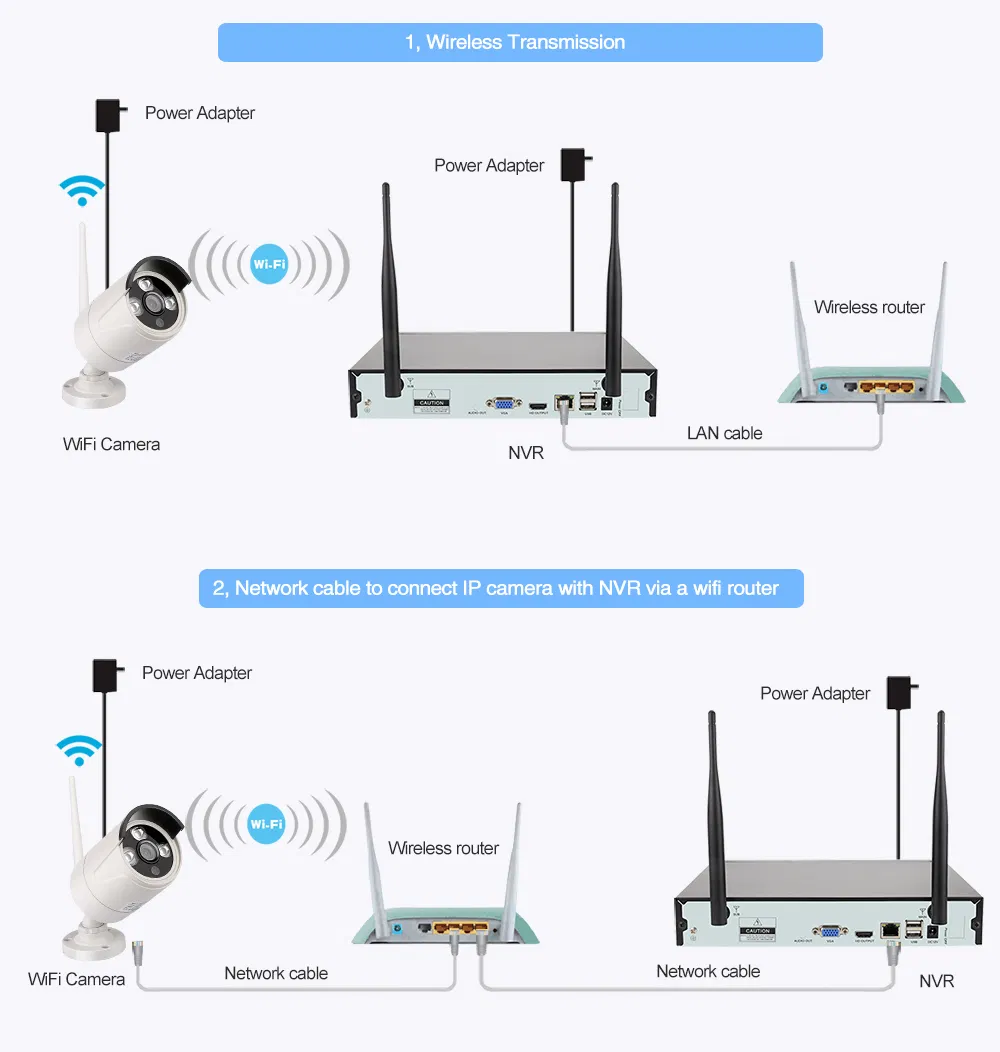

*One step connect to the Internet: With eseecloud service, easy to achieve a variety of network penetrations one step to remote monitoring, getting rid of various complicated networksettings, easy and simple to operate.
*Mobile monitor: Support various mobile monitoring(iPhone, Android)
*Display:support HDMI HD output.
*Compression algorithm ideal: H.264 High Profile compression algorithm.
NVR Specifications:
IP Camera Specifications:
How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ:
1. For the sample order, we have no limit for the quantity.
2. From the second order, the MOQ is 30pcs.
3. OEM MOQ is 300pcs/model, Special cases can be negotiated.
Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.
Lead Time:
1. Sample order can be delivered from our company in 3-4 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.
OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy:
We provide 1 years warranty for DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 300pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package: Standard Carton, well to protect the cameras during the shipping, good package well to help you selling the products.
*Build in 11inch High difinition LCD Screen (resolution:1280*1024)
*One step connect to the Internet: With eseecloud service, easy to achieve a variety of network penetrations one step to remote monitoring, getting rid of various complicated networksettings, easy and simple to operate.
*Mobile monitor: Support various mobile monitoring(iPhone, Android)
*Display:support HDMI HD output.
*Compression algorithm ideal: H.264 High Profile compression algorithm.
NVR Specifications:
| Wireless nvr | 4CH | |
| Network Video | 4CH | |
| AV (audio/video) output | Video input | 4ch 720P/960P/1080P |
| HDMI output | 1ch,resolution:1024x768,1366x768,1440x900,1920x1080p | |
| VGA output | 1ch,resolution:1024x768,1366x768,1440x900,1920x1080p | |
| AV CODEC Specification | Video Resolution | D1/720P/960P |
| sync-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |
| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
| DHCP (Automatically obtain an IP address), etc… | ||
| Others | Power Supply | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10ºC~+55ºC | |
| Working Humidity (%) RH | 10%~90% | |

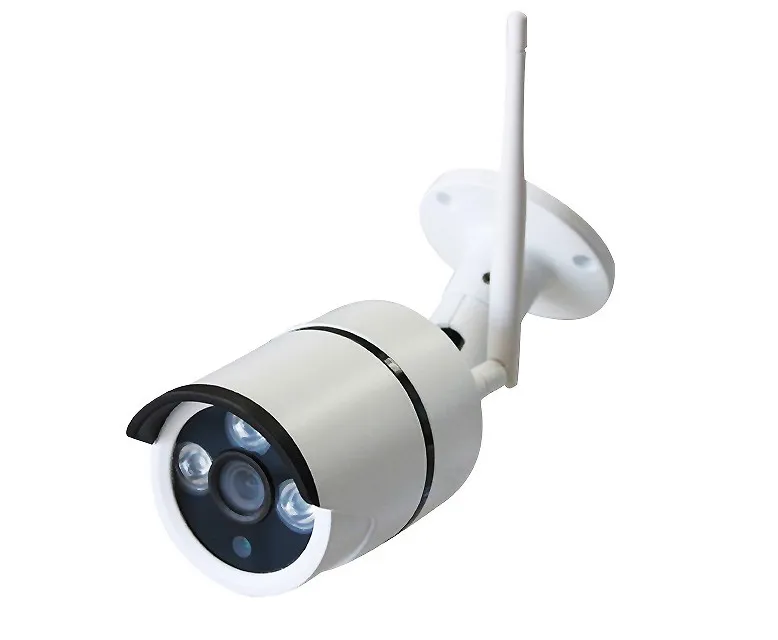

IP Camera Specifications:
| Model | 720P CAMERA | 960P CAMERA | 1080P CAMERA |
| Sensor | 1/4" Progressive Scan Sensor | 1/3" Progressive Scan Sensor | 1/3" Progressive Scan Sensor |
| S/N Ratio | > 39.1 dB | > 39.1 dB | > 39.1 dB |
| Resolution | 1280 x 720 16 : 9 | 1280 x 960 4 : 3 | 1920 x 1080 16 : 9 |
| Minimum illumination | Color: 0.1 Lux B/W: 0.01 Lux | Color: 0.1 Lux B/W: 0.01 Lux | Color: 0.1 Lux B/W: 0.01 Lux |
| Lens | 4/6mm | 4/6mm | 4/6mm |
| OSD | Date Time & Title | Date Time & Title | Date Time & Title |
| Day & Night | Auto / Color / BW | Auto / Color / BW | Auto / Color / BW |
| 3D-DNR | Auto | Auto | Auto |
| Mirror/Flip | On / Off | On / Off | On / Off |
| Privacy Regional Shelter | 4 Zone Selectable | 4 Zone Selectable | 4 Zone Selectable |
| Smart stream | Dual-stream: | Dual-stream: | Dual-stream: |
| 1280x720@15fps | 1280x960@15fps | 1920x1080@15fps | |
| 640x360@15fps | 640x360@15fps | 640x480@15fps | |
| Power | DC12V-1A | DC12V-1A | DC12V-1A |
| Power consumption | ≤6W | ≤6W | ≤6W |
| Port | RJ45 / WIFI 802.11b/g/n | RJ45 / WIFI 802.11b/g/n | RJ45 / WIFI 802.11b/g/n |
| Audio | Audio tail line output (Optional) | Audio tail line output (Optional) | Audio tail line output (Optional) |
| working temperature/ humidity | -10ºC to +50ºC / 30% to 80% RH | -10ºC to +50ºC / 30% to 80% RH | -10ºC to +50ºC / 30% to 80% RH |
| Storage temperature/humidity | -20ºC to +60ºC / 20% to 90% RH | -20ºC to +60ºC / 20% to 90% RH | -20ºC to +60ºC / 20% to 90% RH |
How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ:
1. For the sample order, we have no limit for the quantity.
2. From the second order, the MOQ is 30pcs.
3. OEM MOQ is 300pcs/model, Special cases can be negotiated.
Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.
Lead Time:
1. Sample order can be delivered from our company in 3-4 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.
OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy:
We provide 1 years warranty for DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 300pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package: Standard Carton, well to protect the cameras during the shipping, good package well to help you selling the products.
