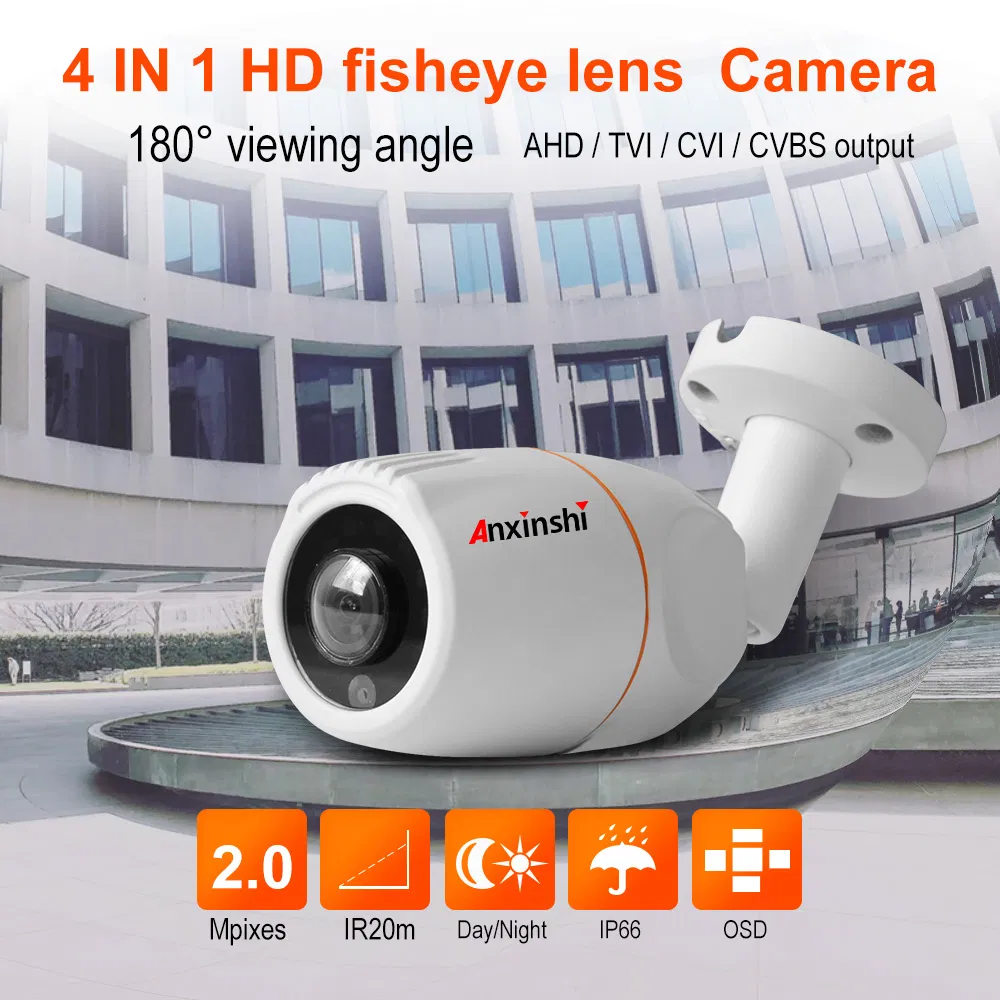

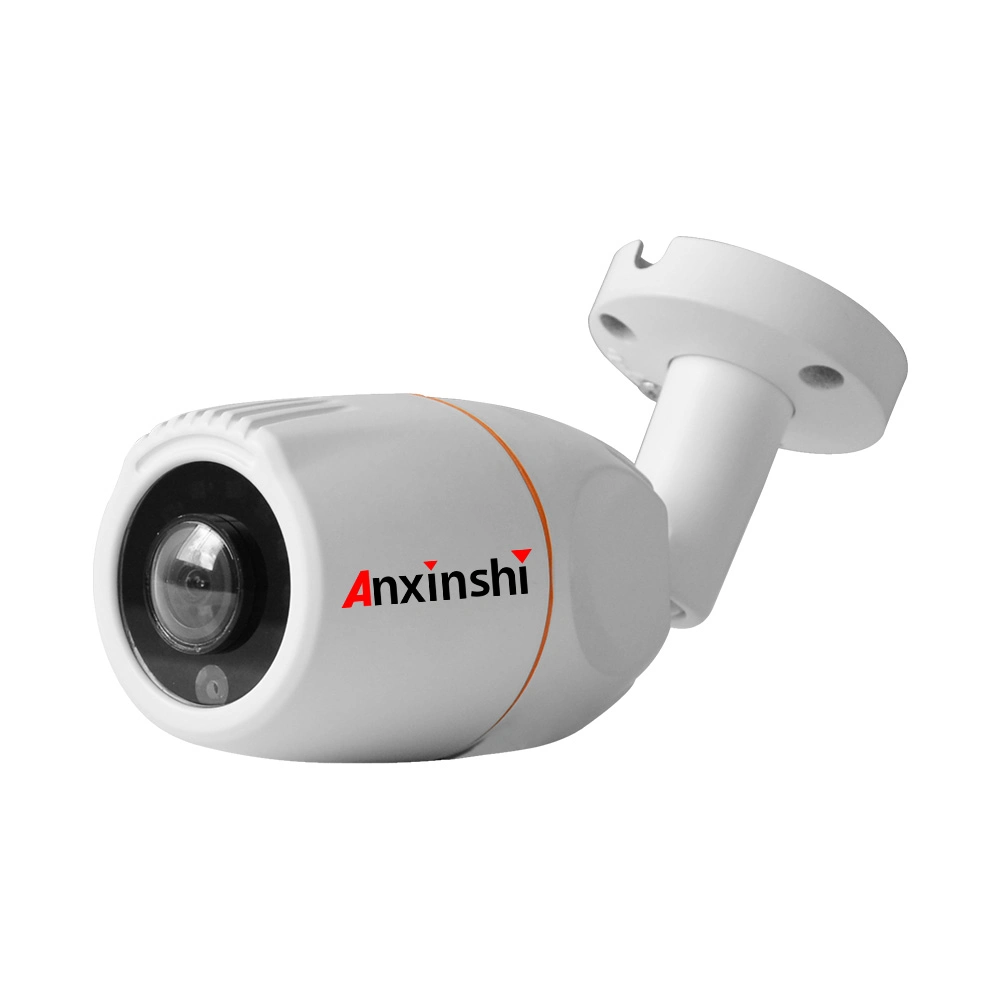

HD Fisheye Lens Bullet Camera 4 in 1 Bulet Camera 2.0MP Progressive Scan CMOS CCTV Camera

Product Description

Key Features:
1.Adopt Analog HD technology
2. Support 4 output modes , Full HD 1080P TVI/AHD/CVI video output or CVBS output
3.1/2.7" 2.0MP Progressive Scan CMOS
4.Min illumination color 0.01 Lux, 0 Lux with IR
5.Day/Night(ICR)& DNR&AWB&AGC&BLC
6.Support the OSD menu control, support UTC function

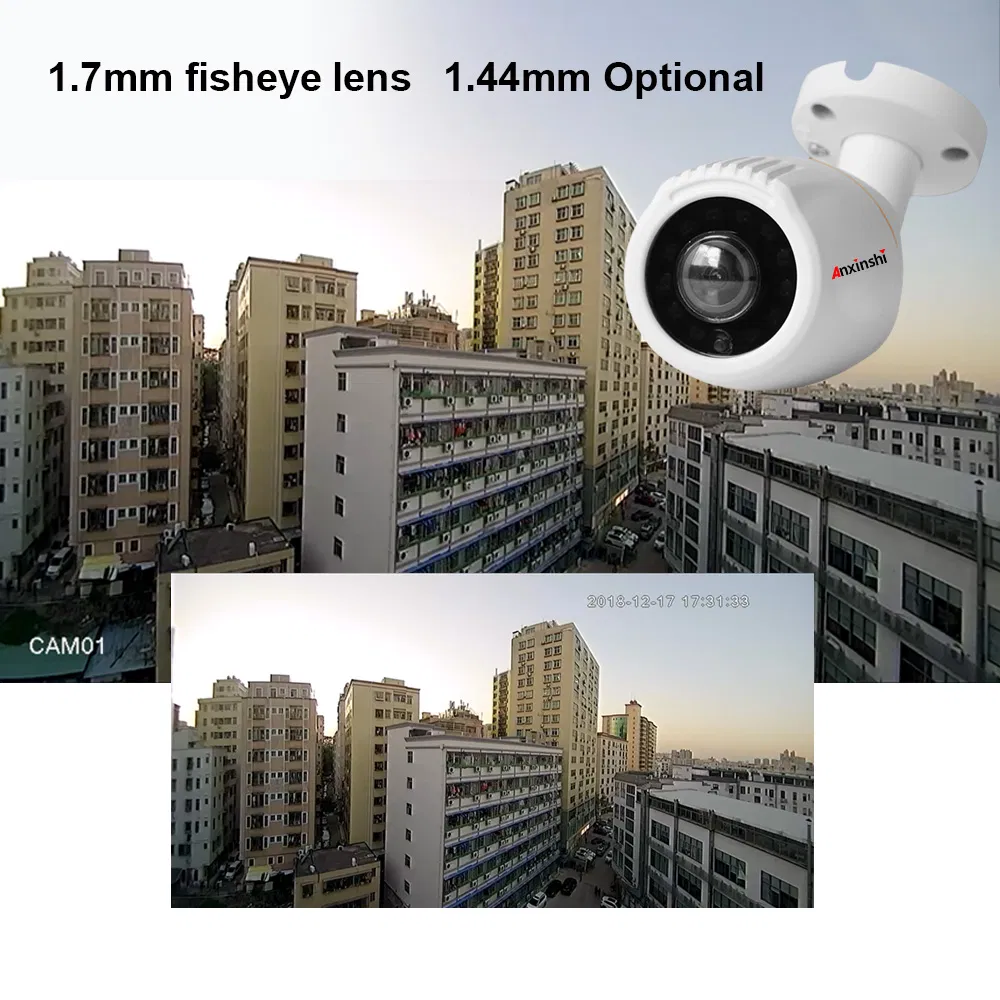

7.1.7mm Fisheye Lens

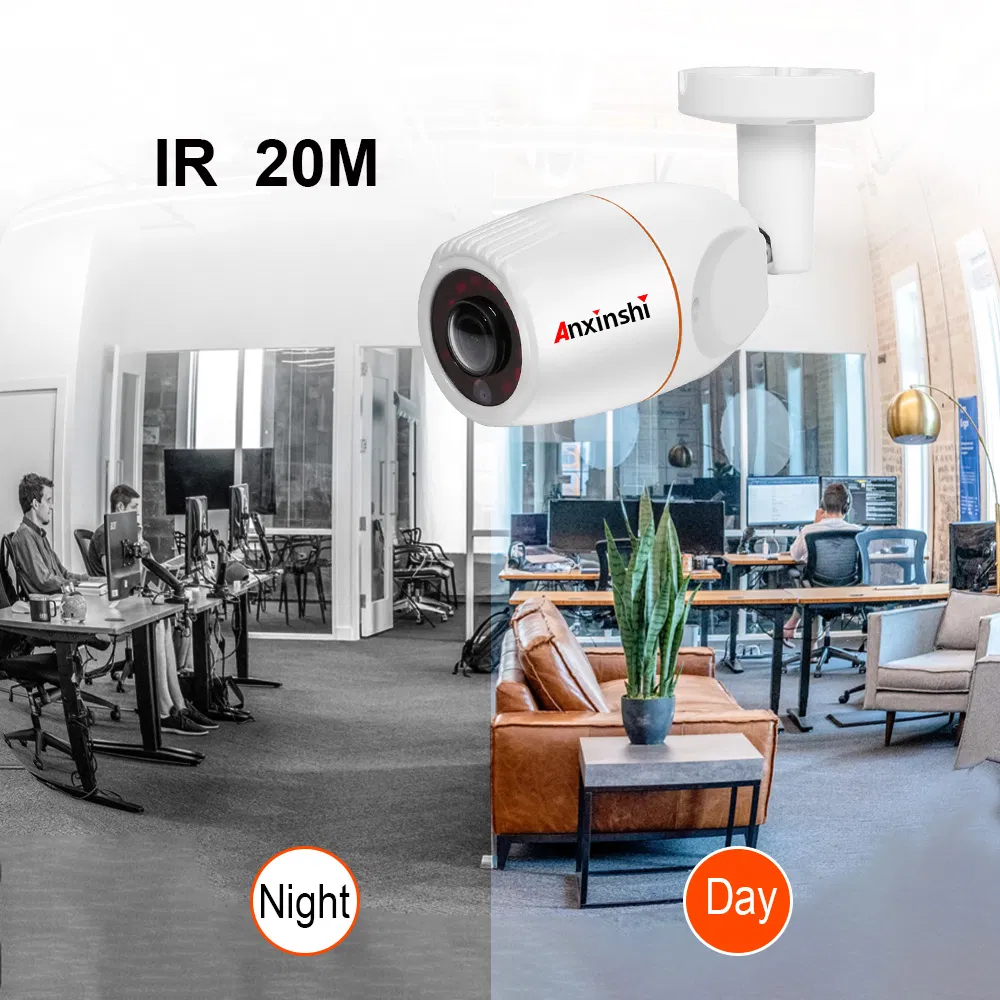

8.12pcs IR LEDs, up to 20m IR distance
9.metal housing

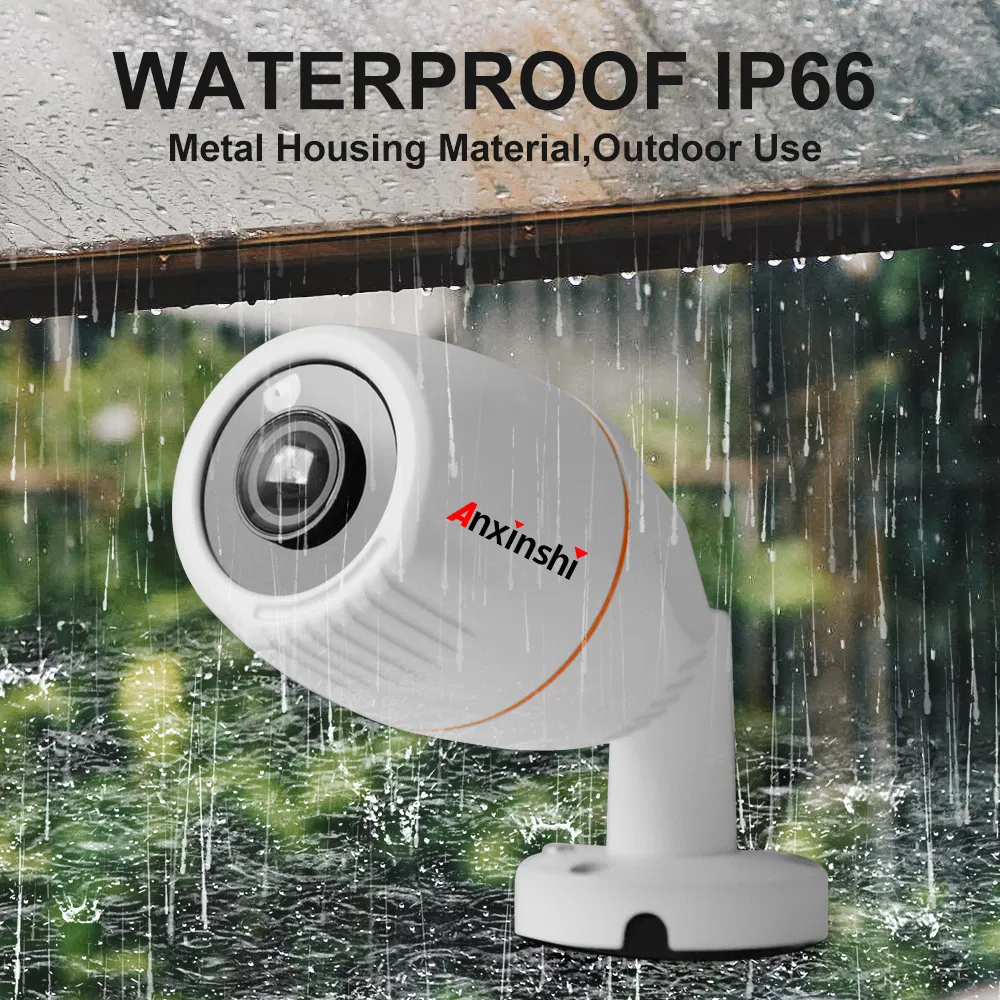

10.IP66 rating

Form parameters
Mode	Name and Description	2.0MP 4 In 1 High Definition IR Bullet Fisheye Camera
Mode	Name and Description	ASHD20-B22-6422
Camera	Media Processor	FH8536H+AR0237
	Image Sensor	1/2.7" 2.0MP Progressive Scan CMOS
	Effective Pixels	1920(H)*1080(V)
	Video Frame Rate	1080p@25fps (PAL)/1080p@30fps(NTSC)
	Signal System	PAL/NTSC
	Min. Illumination	0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
	Shutter Time	AUTO/ 1/50(1/60)-1/10,000sec
	Lens	1.7mm Fisheye Lens
	Lens Mount	M12 Mount
	Day& Night	Auto,dual IR-cut filter
	IR Distance	20m(12pcs IR LEDs)
	S/N Ratio	>41 dB
	Video Output	1 channel, TVI/AHD/CVI (1920×1080P) / CVBS (960H)
	Synchronization	Internal Synchronization
Menu	Auto Gain	Low/Middle/High
	BLC	BLC/HSBLC/OFF
	White Balance	AWB/ATW/Indoor/Outdoor/Manual
	D-WDR	ON/OFF
	Noise Reduction	2D/3D
	Private Mask	Support
	Motion Detection	Support
	Language	Chinese/English/German/French/Italian/Spanish/Polish/Russian/Portuguese/Dutch/Turkish
	Function	AWB, BLC , Mirror,D-WDR
General Parameters	Power Supply	DC12V
	Operation Temperature	-20ºC - +50ºC
	Operation Humidity	Less than 95%RH(no condensation)
	Weather Proof Rating	IP66
	Dimension	¢67×175mm
	Weight	0.3Kg
