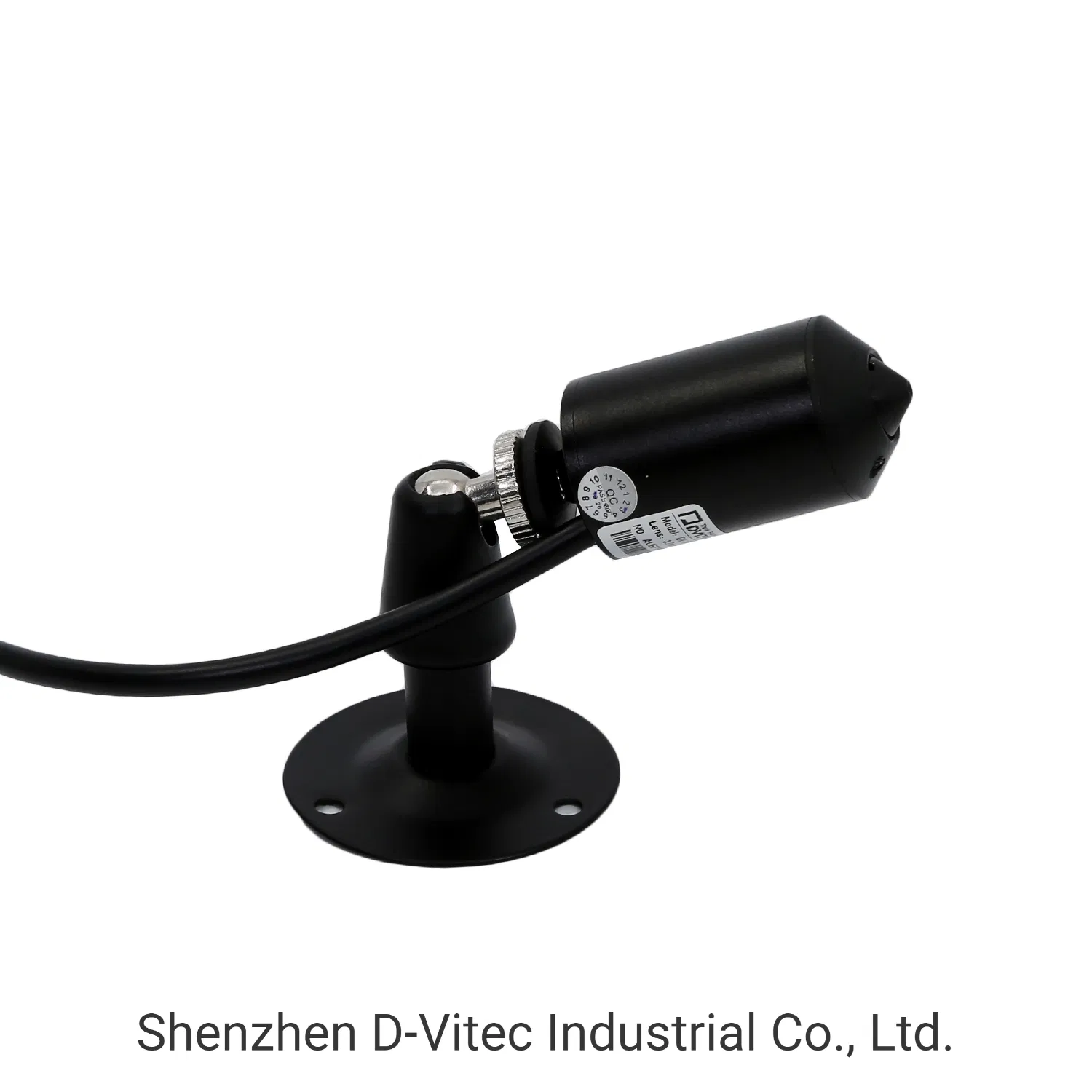

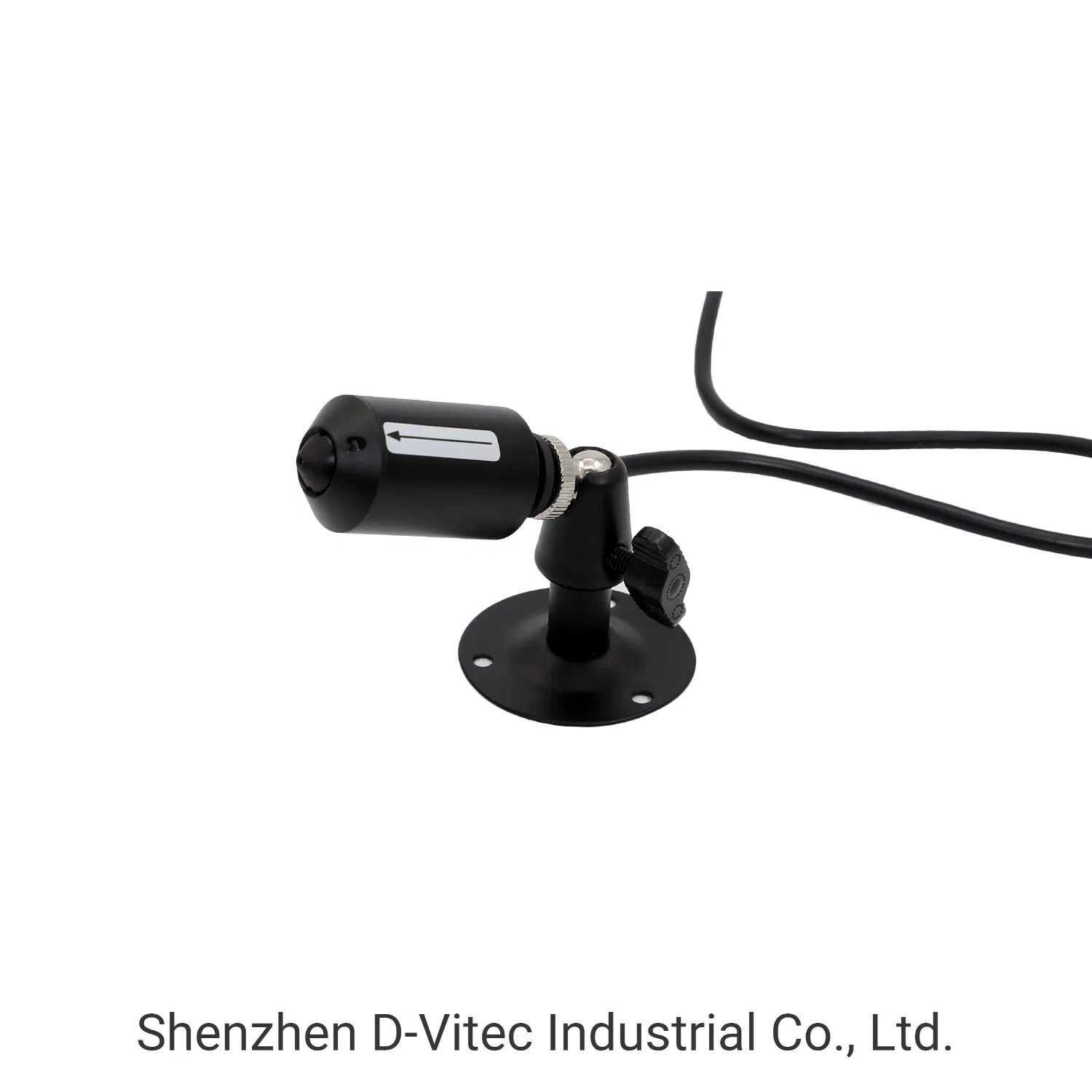

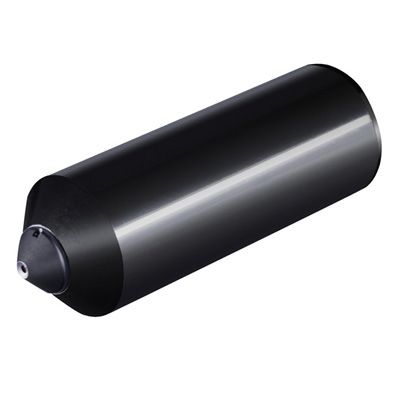

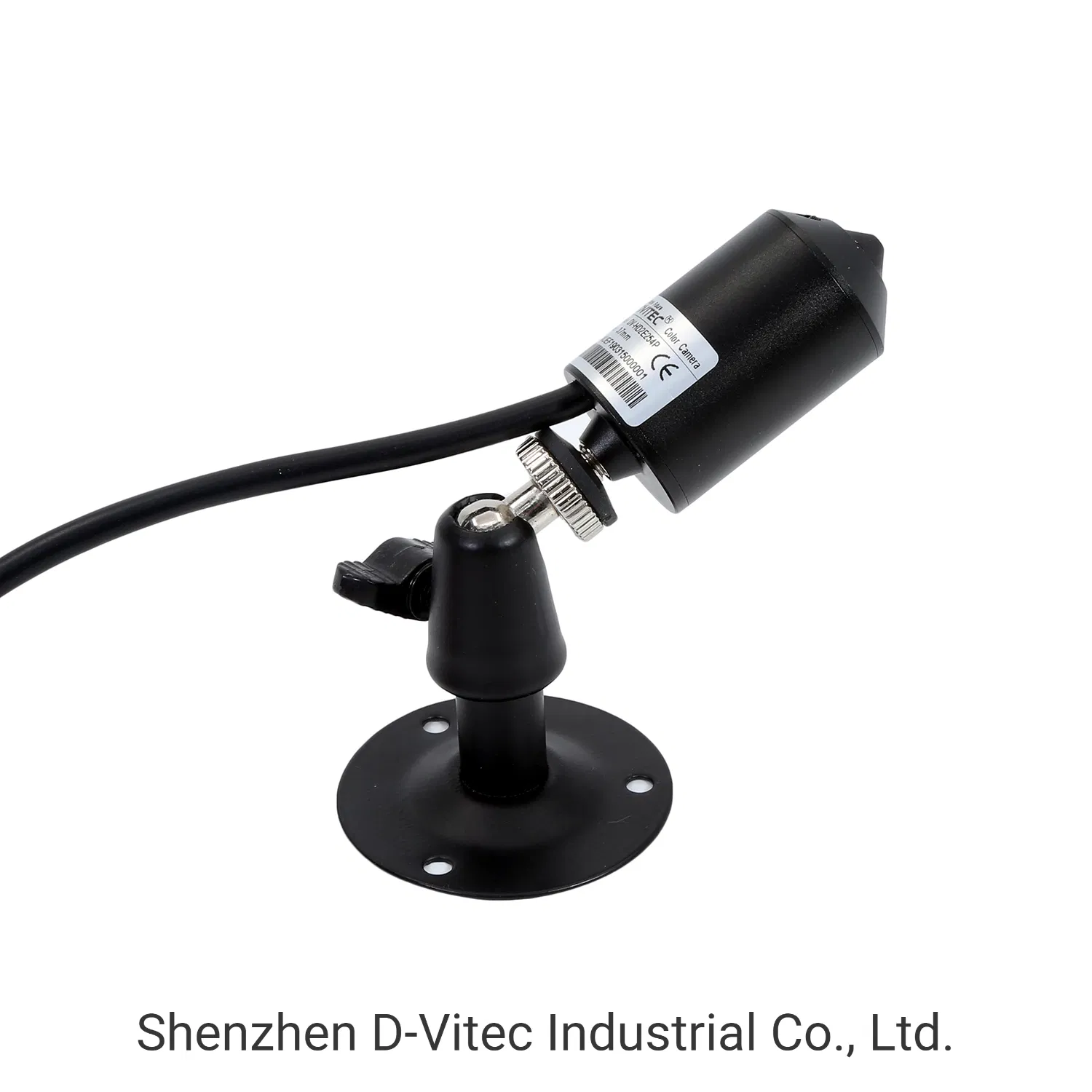

HD-SDI 1080P Bullet Head Camera
Product DescriptionDV-HD2254/P is the latest SDI Full HD megapixel (1080p) micro camera of D-Vitec company. It can provide excellent monitoring image quality for a wide range of places. DV-HD2254/P has the horizontal resolution of Max 1100tv line in color mode and OSD menu selection function. It can......
Send Inquiry
Product Description
DV-HD2254/P is the latest SDI Full HD megapixel (1080p) micro camera of D-Vitec company. It can provide excellent monitoring image quality for a wide range of places. DV-HD2254/P has the horizontal resolution of Max 1100tv line in color mode and OSD menu selection function. It can adjust camera parameters according to the actual situation. The upgraded WDR function can display better in backlight environment and clear picture quality images in low illumination environment.
It is especially suitable for banks, securities and other financial industry units.
Provide 2MP HD image per frame
Max 1100 line
CVBS and SDI are optional
Minimum illumination: 0.01 lux, f1.8
WDR wide dynamic function
3D digital noise reduction
DC12V power supply
| Model | DV-HD2254P | ||
| Imaging element | 1/2.8" SONY CMOS | ||
| Effective pixel | 1920(H) x 1080(V) | ||
| Scanning mode | progressive scanning | ||
| Synchronization mode | Internal synchronization | ||
| definition | Max 1100 line | ||
| OSD menu | support | ||
| Wide dynamic | Wide dynamic | ||
| Digital noise reduction | 3D | ||
| Day night conversion | support | ||
| gamma compensation | zero point five five | ||
| Signal to noise ratio | >50dB(AGC OFF) | ||
| Minimum illumination | 0.01Lux,F1.8 | ||
| focal length | Pinhole 3.7mm | ||
| automatic gain | Automatically adjustable | ||
| white balance | Automatic 3000 º k-8000 º K | ||
| backlight compensation | On / off | ||
| Video output | 1.0vpp, 75 ohm composite video / SDI | ||
| Power input | DC12V±10% | ||
| Power supply power | 1.5W(Max) | ||
| weight | 110g | ||
| working temperature | -10ºC~+60ºC | ||
| Working humidity | Below 90% RH | ||

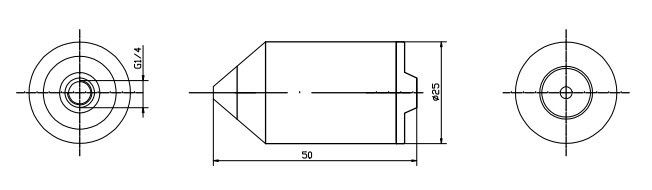

| size | ∮25x50mm | ||
