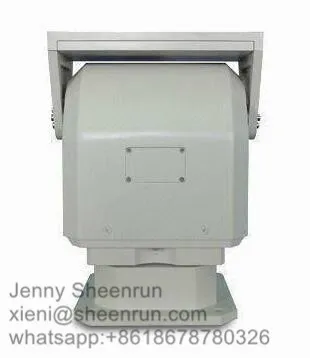

China Heavy-Duty Outdoor Pan Tilt Positioner (with OEM Service)

Product Description

-Aluminum Die Casting
-Analog or IP optional
-Alarm input/output function optional
-Powder coated
-Rotating angle 0 to 360 degree.
-Tilt is -45 to +45 degree
-Pan rotating speed: 0.01~20 degrees per second.
-Tilt rotating speed: 0.01~10 degrees per second
-Max Load: 35kg
-Pan and Tilt Electric Power: Less than 1 Watts
-Power Consumption: Less than 80 Watts
-Input Power: Either AC 24V or DC 28V
-Temperature: -25 degrees celcius to 65 degrees celcius
-Weight: 23kg
-IP66

Model	FY-SP5035
Rotating Speed	Pan:0.01º~20º/s Tilt:0.01º~10º/s
Rotation Angle	Pan:0º~360º continuous,Tilt:+45º~ -45º
Number of Presets	200
Preset Positioning Accuracy	±0.1º
Optional function	Pan tilt position data, focal length etc.
Auxiliary Switch	2 groups
Lens Preset	Support,with self-adaptive function
Lens control speed	Speed of zoom/focus can be adjustable continuously
Auto Cruising	8 tracks(each with 10 preset)
Homing	It can be set up within the scope of 1~60 min
Auto Scan	1 path
Protocol	Pelco-D/P
Baud Rate	2400/4800/9600/19200bps
Interface	RS485,supporting angle query returns(Or RS422,real-time returns)
Input Voltage	AC24V±20%,50/60HZ;DC28V±20%
Power Consumption	≤80W
Operation Temperature	Temp:-25~ +65 celcius,Humidity:90%±3% RH; without condensation(-40~ +65 celcius)
Storage Temperature	-40~ +70 celcius
Max Load	35 kg
Load Mode	Top-mounted/side-mounted
Driven	Worm gear driven
Protection Class	IP66
Weight	23 kg

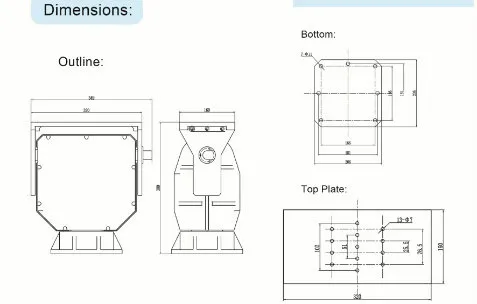

Dimensions	350mm206mm380mm(LWH)
