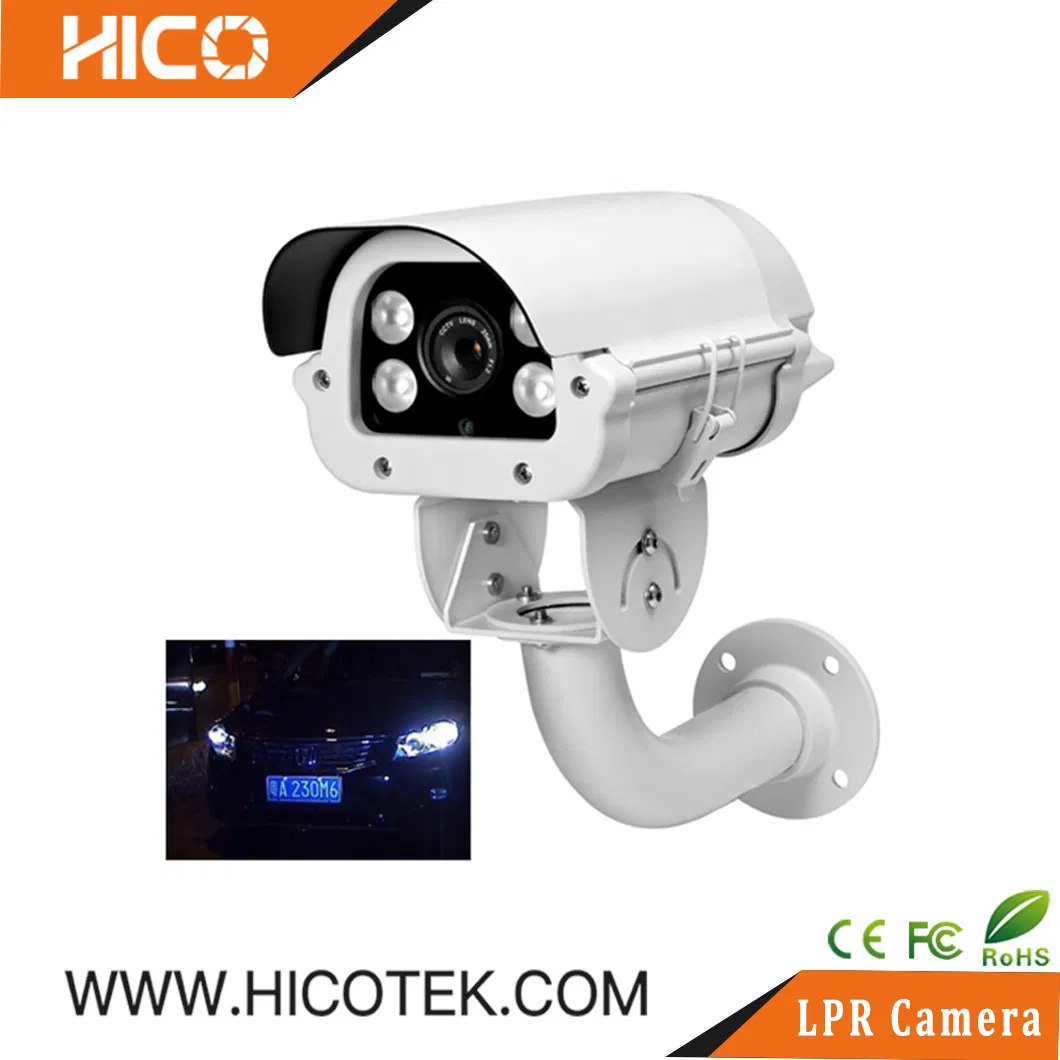

Hico Tech Anpr Lpr Poe IP Camera
Features:Waterproof License Plate Camera6-22mm Zoom Lens(2.8-12mm Zoom Lens Optional)IR LED: 4pcs IR Array80M IR RangeWater Resistant Rate:IP66ONVIF 2.4 Model NO. IPC-HLIV01M10IPC-HLIV01M13IPC-HLIV01M20 IPC-HLIV01M40IPC-HLIV01M50IPC-HLIV01M80ChipsetImage Sensor/1/3"Aptina1/2.8" Sony1/2.7&q......
Send Inquiry
Product Description
Features:
Waterproof License Plate Camera
6-22mm Zoom Lens
(2.8-12mm Zoom Lens Optional)
IR LED: 4pcs IR Array
80M IR Range
Water Resistant Rate:IP66
ONVIF 2.4
| Model NO. | IPC-HLIV01M10 | IPC-HLIV01M13 | IPC-HLIV01M20 | IPC-HLIV01M40 | IPC-HLIV01M50 | IPC-HLIV01M80 |
| Chipset | ||||||
| Image Sensor | / | 1/3"Aptina | 1/2.8" Sony | 1/2.7"OmniVision | / | / |
| Main processor | / | HI3518E | HI3516C | Hi3516D | / | / |
| Resolution | / | 960P | 1080P | 4MP | / | / |
| Effective Pixels | / | 1305(H)*977(V) | 1920(H)*1080(V) | 2688(H)*1520(V) | / | / |
| Compression | / | H.264/JPEG/AVI/ MJPEG | H.264/JPEG/AVI/ MJPEG | H.264/JPEG/AVI/ MJPEG | / | / |
| TV System | PAL/NTSC Adjustable | |||||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | |||||
| Speed | 0-180km/h; 0-30km/h | |||||

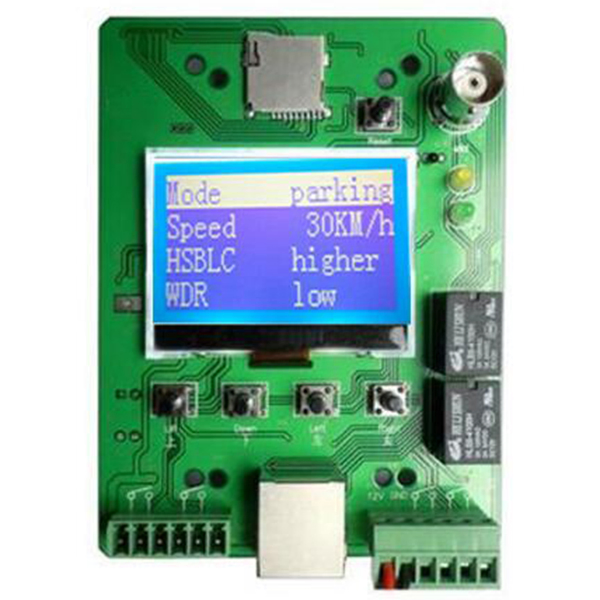

| Built-in LCD Monitor | YES | |||||
| Plate No. Extraction | NO/ Working with the Parking Background System | |||||
| S/N Ratio | ≥52dB | |||||
| Scanning System | Progressive | |||||
| Video Output | Network | |||||
| Lens | ||||||
| Focus Length | / | 6-22/2.8-12mm | 6-22/2.8-12mm | 6-22/2.8-12mm | / | / |
| Focus Control | / | Manual/Auto | Manual/Auto | Manual/Auto | / | / |
| Lens Type | / | Manual/Auto | Manual/Auto | Manual/Auto | / | / |
| Pixels | / | 2MP | 2MP | 5MP | / | / |
| Night Vision | ||||||
| Infrared LED | IR LED: 4pcs IR Array | |||||
| Infrared Distance | 80M | |||||
| IR Status | Under 10 Lux By CDS | |||||
| IR Power On | CDS Auto Control | |||||
| Network | ||||||
| Ethernet | RJ-45 (10/100Base-T) | |||||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | |||||
| ONVIF | Support ONVIF 2.4 | |||||
| P2P | YES, Support QR Code | |||||
| POE | Optional, Support IEEE 802.3af | |||||
| WIFI | Optional | |||||
| TF Card | Optional | |||||
| Video Bit Rate | Constant Bit Rate, Variable Bit Rate (16kbps~8000kbps) | |||||
| Video Type | Complex Stream/ Video Stream | |||||
| Audio Compression | G.711U (Optional) | |||||
| Main Stream 1 | / | 1280*960 @25fps | 1920*1080@15fps | 2560*1440@20fps | / | / |
| Main Stream 2 | / | / | / | 2304*1296@30fps | / | / |
| Main Stream 3 | / | / | / | 1920*1080@30fps | / | / |
| Sub Stream 1 | / | 720*480@25fps | 720*480@15fps | 720*480@30fps | / | / |
| Sub Stream 2 | / | / | / | / | / | / |
| Sub Stream 3 | / | / | / | / | / | / |
| Tri Stream | / | / | 352*288@15fps | 352*288@20fps 352*288@30fps | / | / |
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | |||||
| Smart Phone | iPhone, iPad, Android, Android Pad | |||||
| Intelligent Analysis | Optional (Support Target Counting, Area Detection, Left/Lost Prompt, Line Crossing Alarm ) | |||||
| Camera Features | ||||||
| Day/Night | Color/ B&W (IR-CUT ) | |||||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | |||||
| Corridor Pattern | / | / | Support | Support | / | / |
| Defog Mode | / | Support | Support | Support | / | / |
| BLC | / | Support | Support | Support | / | / |
| HDR | / | / | / | / | / | / |
| WDR | Support | |||||
| Motion Detection | Support | |||||
| Privacy Masking | 3 Rectangular Zone | |||||
| Recording Mode | NVR/NAS/CMS/Web | |||||
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands | |||||
| General | ||||||
| Housing | Metal ,IP66 | |||||
| Anti-cut Bracket | YES | |||||
| IR Cut Filter | YES | |||||
| Operation Temperature | -10ºC ~ +50ºC RH95% Max | |||||
| Storage Temperature | -20ºC ~ +60ºC RH95% Max | |||||
| Power Source | DC12V±10%, 950mA | |||||
| Dimension | 225(L)*105(W)*95(H) mm | |||||
| Weight | 2050g | |||||
