High Quality 1080P Dual Lens Camera Module CMOS Ar0230 USB Camera Modules Surport IR&RGB
High Quality 1080P Dual Lens Camera Module CMOS AR0230 USB Camera Modules Surport IR&RGB:1. 1/2.7 inch AR0230 Cmos Camera Module2. Doule 2Mega Face Recognition Cmos USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module wi......
Send Inquiry
Product Description
High Quality 1080P Dual Lens Camera Module CMOS AR0230 USB Camera Modules Surport IR&RGB:
0514 Lens Option
Model No. 7021 3420 6205 8009A 6150-F1
Optical Format 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7"
EFL 3.0 4.42 2.9 4.35 3.0
BEL 3.46 2.11 4.34 1.56 3.41
Construction 2G2P+IR 4E+IR 3G2P+IR 4P+IR 2G2P+IR
F/No 2.5 2.4 2.4 2.0 2.4
FOV1/2.7" 95/86/55 73.5/65.5/40 98/89/57 74.38/66.91/40.91 D95
FOV1/3" 89/76/60 90/76/60
IR Filter 650+850 650+850 650+850 650+850 650
MOD M12*P0.5 M8*P0.35 M12*P0.5 M8*P0.35 M12*P0.5
NOTE1: The M12 Lens kit for the USB Camera module,5 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boar

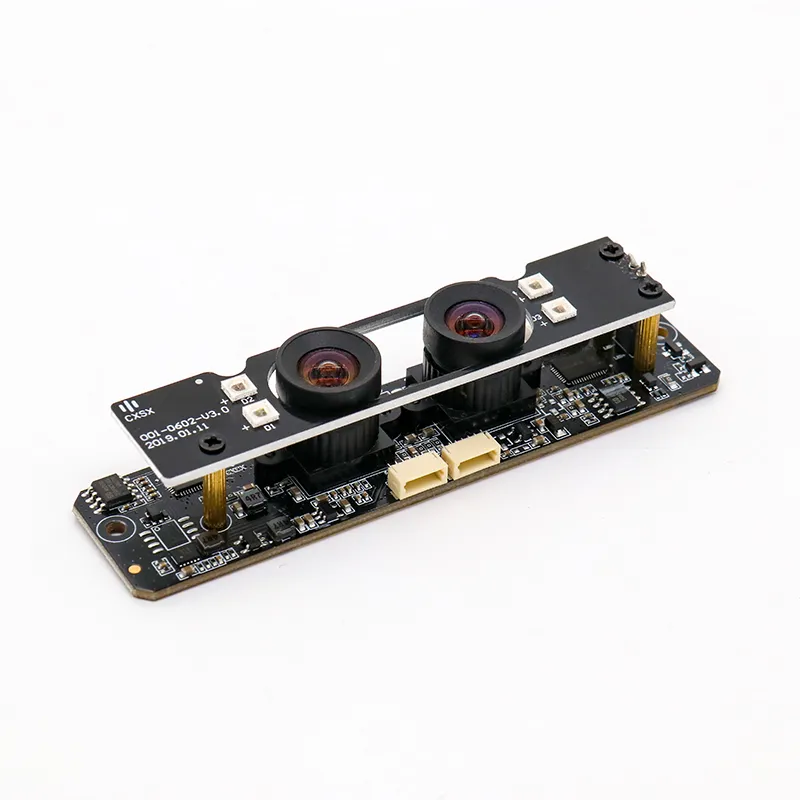

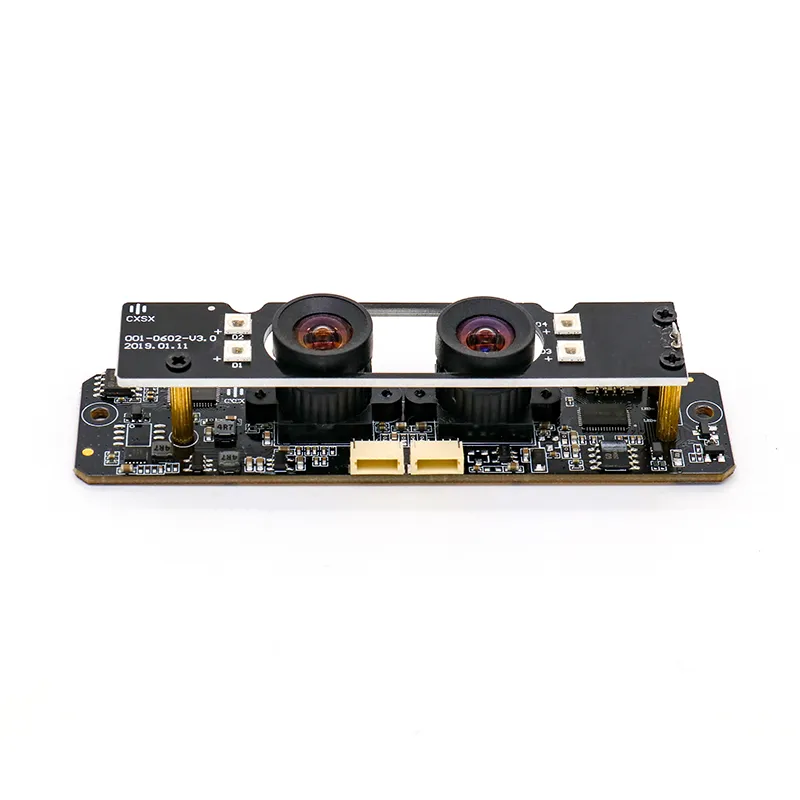

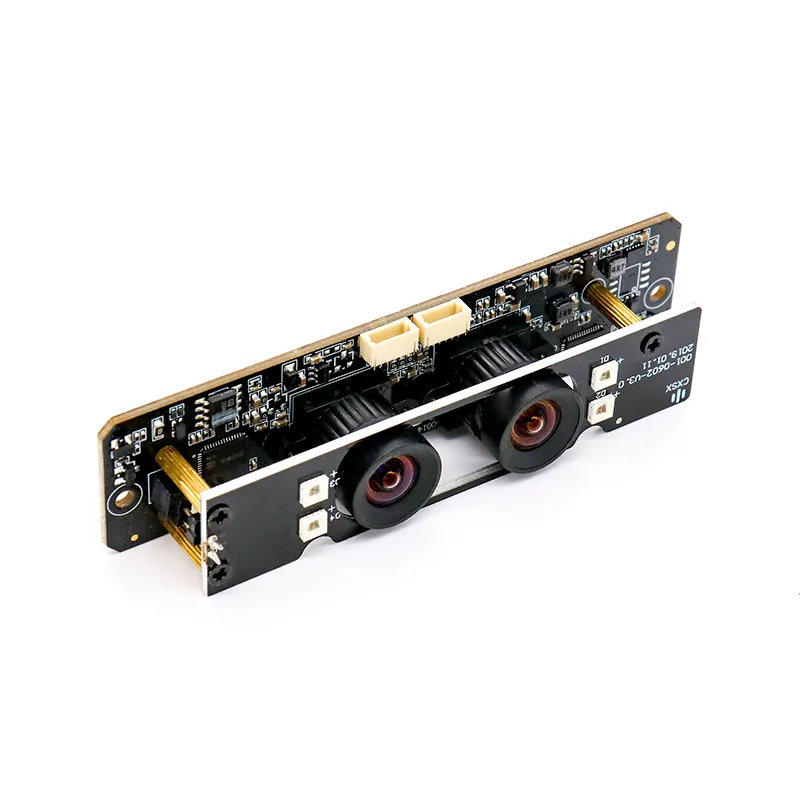

Pictures Display:
Quality Control:

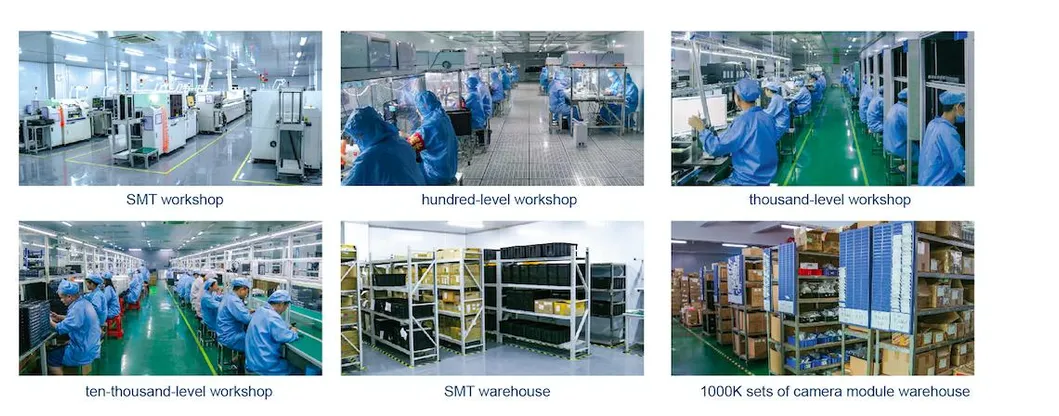

Company Information:
Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed ompanies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
1. 1/2.7 inch AR0230 Cmos Camera Module
2. Doule 2Mega Face Recognition Cmos USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 73.5 degree
5. 92*22*17mm mini micro USB board camera
Specification:
| Items | Parameters | |
| IR Camera | RGB Camera | |
| SENSOR | OV2710, color photosensitive chips | AR0230, wide dynamic color photosensitive chips |
| Lens Size | 1/2.7 inch | 1/2.7 inch |
| Maximum Effective resolution | 1920*1080 | 1928*1088 |
| Data Format | MJPG/YUY2 | MJPG/YUY2 |
| Pixel Size | 1920*1080,1280*720,640*480,320*240 | 1920*1080,1280*720,640*480,320*240 |
| Dynamic Range | Up to 69dB | Up to 105dB |
| Lens | FOV :D= 73.5° | |
| Optical length :8.61MM | ||
| lens construction:4E+IR | ||
| mount :M8*P0.35mm | ||
| Focusing | Fixed focus | |
| Frame Rate | 30fps | |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure | |
| Audio | \ | |
| Voltage | DC 5V | |
| Working Current | MAX 200mA | |
| USB Connector | USB2.0 | |
| Storage Temperature | -20ºC to +70ºC | |
| Working Temperature | 0ºCto +60ºC | |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 | |
| 2,Linux or OS with UVC driver | ||
0514 Lens Option
Model No. 7021 3420 6205 8009A 6150-F1
Optical Format 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7"
EFL 3.0 4.42 2.9 4.35 3.0
BEL 3.46 2.11 4.34 1.56 3.41
Construction 2G2P+IR 4E+IR 3G2P+IR 4P+IR 2G2P+IR
F/No 2.5 2.4 2.4 2.0 2.4
FOV1/2.7" 95/86/55 73.5/65.5/40 98/89/57 74.38/66.91/40.91 D95
FOV1/3" 89/76/60 90/76/60
IR Filter 650+850 650+850 650+850 650+850 650
MOD M12*P0.5 M8*P0.35 M12*P0.5 M8*P0.35 M12*P0.5
NOTE1: The M12 Lens kit for the USB Camera module,5 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boar
Pictures Display:
Quality Control:
Company Information:
Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed ompanies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
