High Quality OEM 3MP USB Camera Module
High quality OEM 3MP USB Camera Module:1. 1/3 inch AR0330 CMOS Camera Module2. Full HD 1080P USB Camera Module with speed 30 fps3. Full HD realtime usb webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 100 degree5. 38*38mm mini micro USB board ca......
Send Inquiry
Product Description
High quality OEM 3MP USB Camera Module:
1. 1/3 inch AR0330 CMOS Camera Module

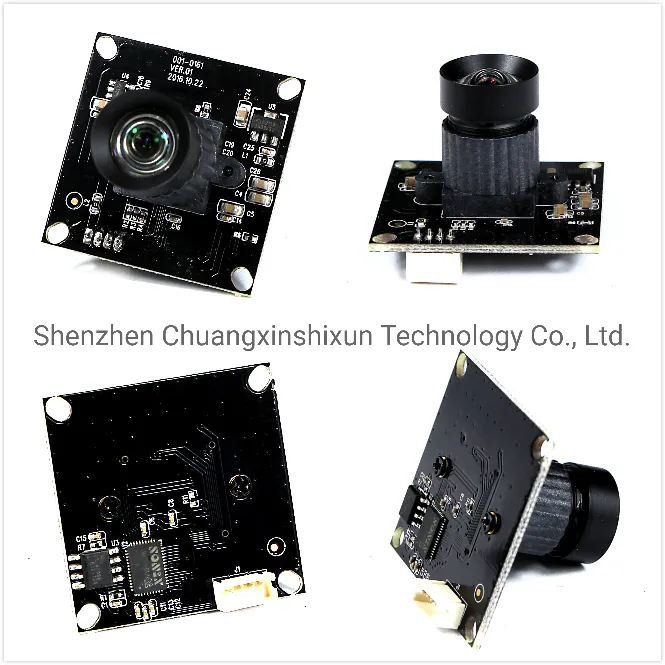

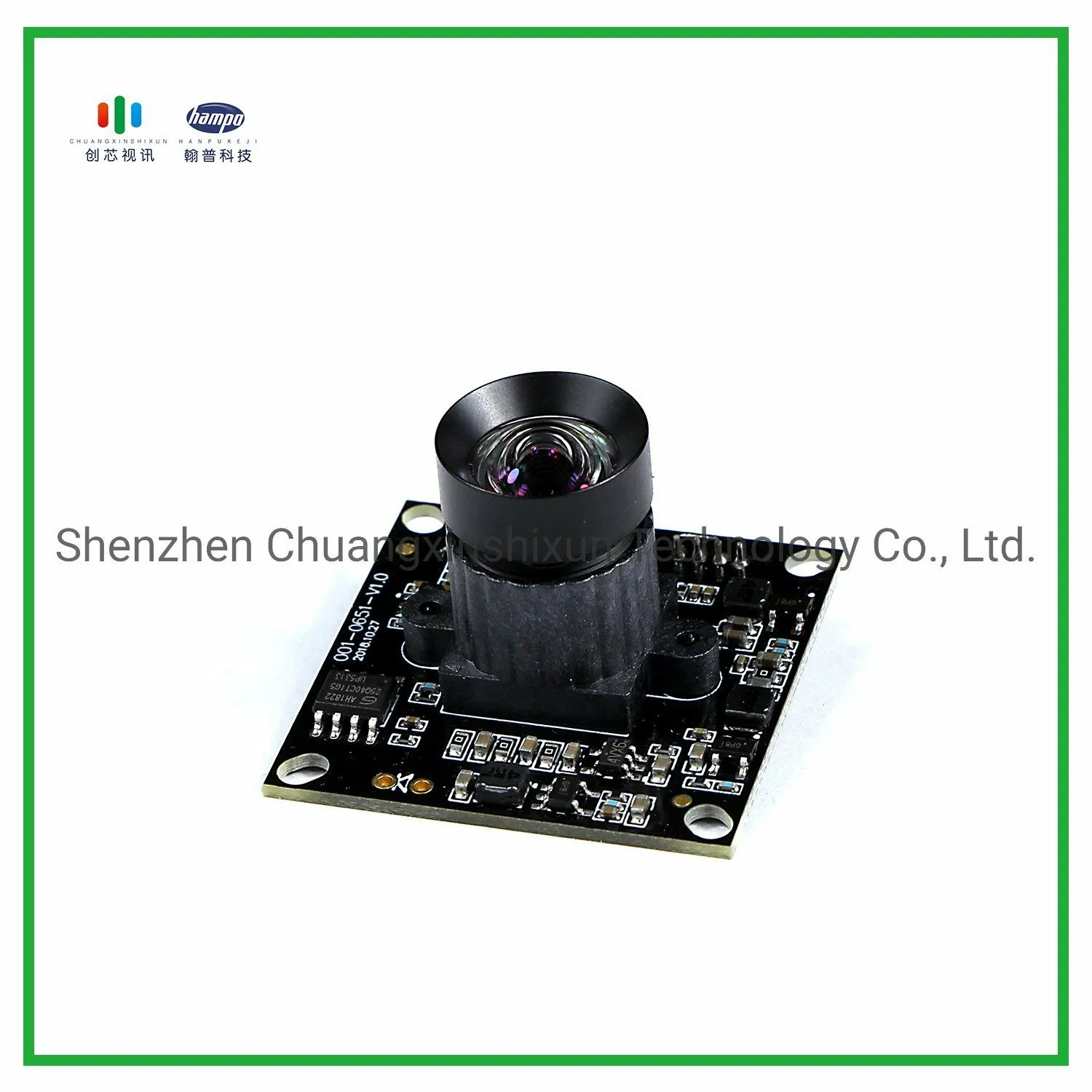

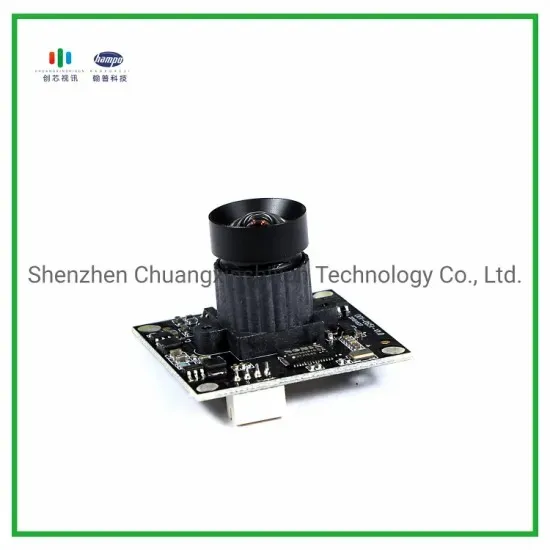

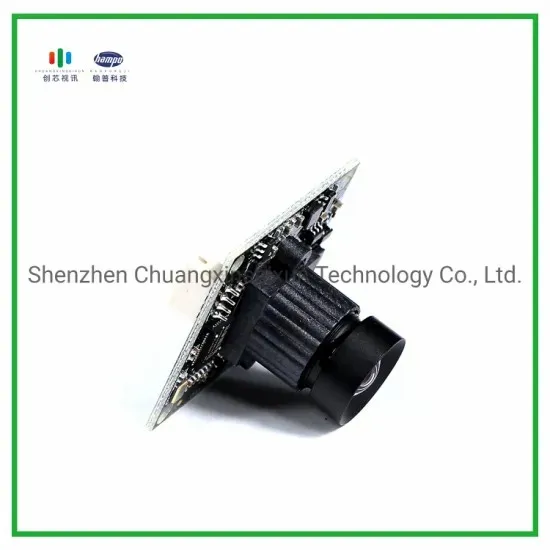

Pictures Display:

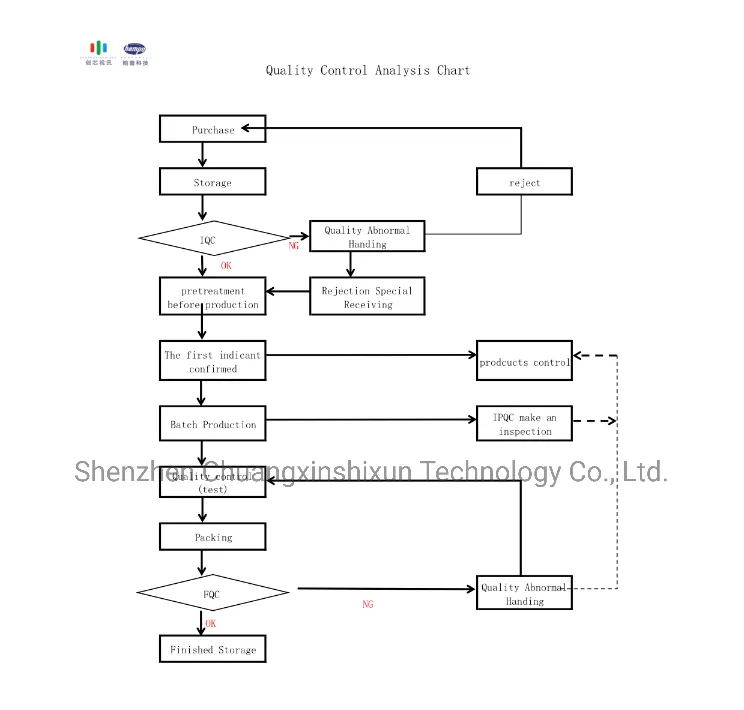

Quality Control:
Company Information:
1. 1/3 inch AR0330 CMOS Camera Module
2. Full HD 1080P USB Camera Module with speed 30 fps
3. Full HD realtime usb webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 100 degree
5. 38*38mm mini micro USB board camera
Specification:
| Items | Parameters | ||
| SENSOR | -AR0330- 6.28*6.65mm CSP | ||
| Most effective pixels | 2304(H) x 1296(V) | ||
| Lens Size | 1/3 | ||
| Pixel Size | 2.2um x 2.2um | ||
| Image Area | 3852μm*2174μm | ||
Output Parameters | Data Format | Resolution | Frame Rate |
| YUY2/MJPG/H.264 | <=1080P | 30FPS | |
| Input Clock Frequency | 6 - 64 MHz | ||
| Focusing | Fixed Focus | ||
| Max S/N ratio | 39 dB | ||
| Dynamic Range | 72.4 dB | ||
| Responsivity | 2.0 V/lux-sec | ||
| Interface Type | USB2.0 | ||
| Adjustable Parameter | Saturation,Contrast,Acutance,Tone, Definition, Gama, Gain, White balance,Exposure | ||
| Lens | FOV :D= 100° | ||
| Optical length :22MM | |||
| lens construction:6E=IR | |||
| mount :M12*P0.5mm | |||
| Audio Frequency | High quality digital MIC, single or dual channel is optional. | ||
| Power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 300mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | 32*32mm | ||
| Storage Temperature | -20°C to 70°C | ||
| Working Temperature | 0°C to 55°C | ||
| Wire rod | Optional | ||
| System Support | WINXP/XIN7/WIN8/WIN10/Linux/Android/0S X | ||
