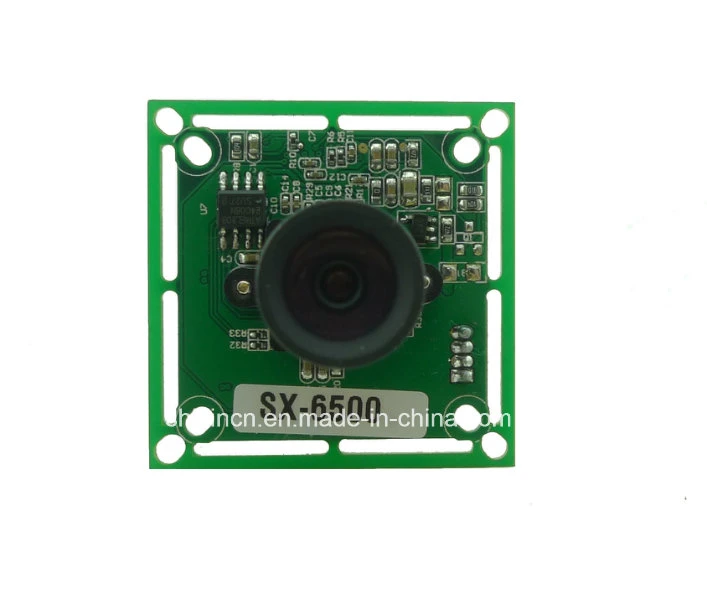

High Resolution Video Image Module Camera for USB Microscope with Ce
5.0MP USB Camera used in Microscope, Portable Scanner.Features:-- Adapting USB2.0 High Speed Interface-- Wide VGA-5Megapixels: Large field of view, smaller defect detection and improved precition-- universal computer support and user friendly plug and play intergration-- eliminates costly frame grab......
Send Inquiry
Product Description
5.0MP USB Camera used in Microscope, Portable Scanner.
Features:
-- Adapting USB2.0 High Speed Interface-- Wide VGA-5Megapixels: Large field of view, smaller defect detection and improved precition
-- universal computer support and user friendly plug and play intergration
-- eliminates costly frame grabber and simplifies cabling
-- snapshot shutter provides crisp images of moving objects
-- Apllication for High performance machine, used in HD machine such as microscope and medicine machine.
-- OEM supported, provide SDK for second development.
Specifications:
| SX-5MP Detailed Product Description: | |
| Sensor | 5 Mega Pixel /CMOS |
| Aarray size | 2592H× 1944V |
| Image area | 3673.6µ m x 2738.4µ m |
| Pixel Size | 1.4µ m x 1.4µ m |
| Size of sensor | 1/4 inch |
| Sensitivity | 680mV/(Lux. sec) |
| White balance/BLC | Auto |
| AGC | Auto |
| Output Video Format | YUY2 |
| S/N Ratio | 36dB |
| DynamicRange | 68dB |
| Interface type | USB 2.0 |
| Operating Temperature | -10 to 60(degree) |
| Power consumption | 1.0W |
| System requirement | WinXP/Vista/Win7(Win98/2000 use UVC Driver) |
