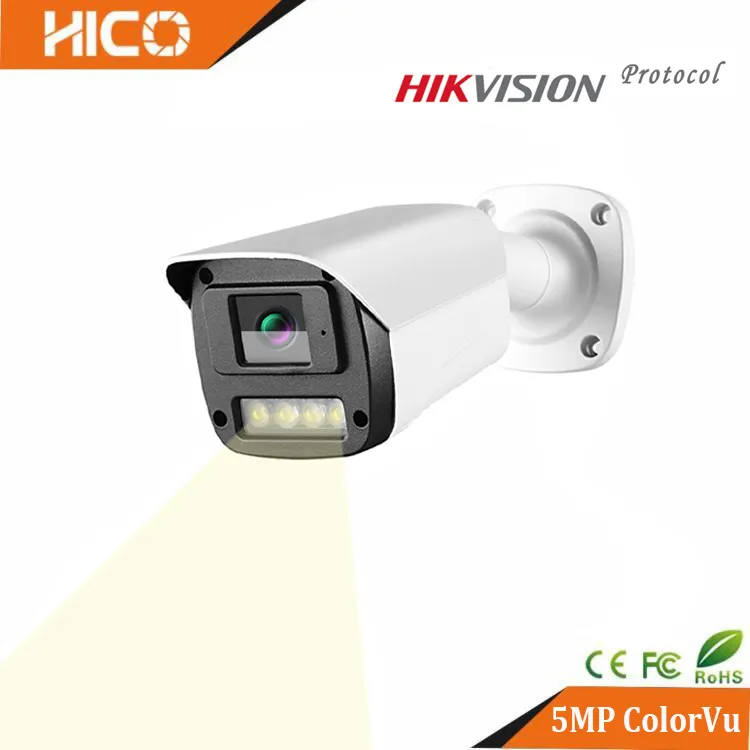

Hikvision Protocol Hicotek Colorvu Video Warm Light Full Color Night Vision Surveillance Security CCTV IP WDR Camera
Main Features:HICOTEK Unique Private ModelHousing: Metal IR BulletWide Angle View 2.8mm Lens4pcs Warm Lights ColorVuLed Range: 40MBuilt-in MicrophoneSupport Hikvision Protocol P2PWaterproof: IP67,IK10Working with HIKVIISON SystemSmart ColorVu FunctionAI Humanoid Derection4MP Day-time Color Image4MP ......
Send Inquiry
Product Description
Main Features:
HICOTEK Unique Private Model
Housing: Metal IR Bullet
Wide Angle View 2.8mm Lens
4pcs Warm Lights ColorVu
Led Range: 40M
Built-in Microphone
Support Hikvision Protocol P2P
Waterproof: IP67,IK10
Working with HIKVIISON System
Smart ColorVu Function
AI Humanoid Derection
4MP Day-time Color Image

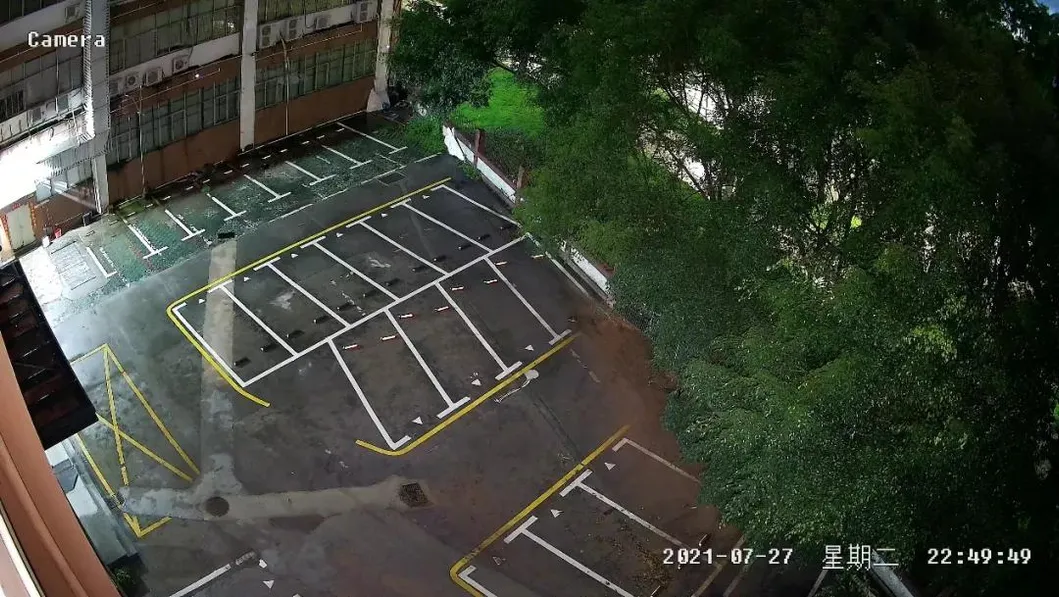

4MP Full Color Night Vision Image

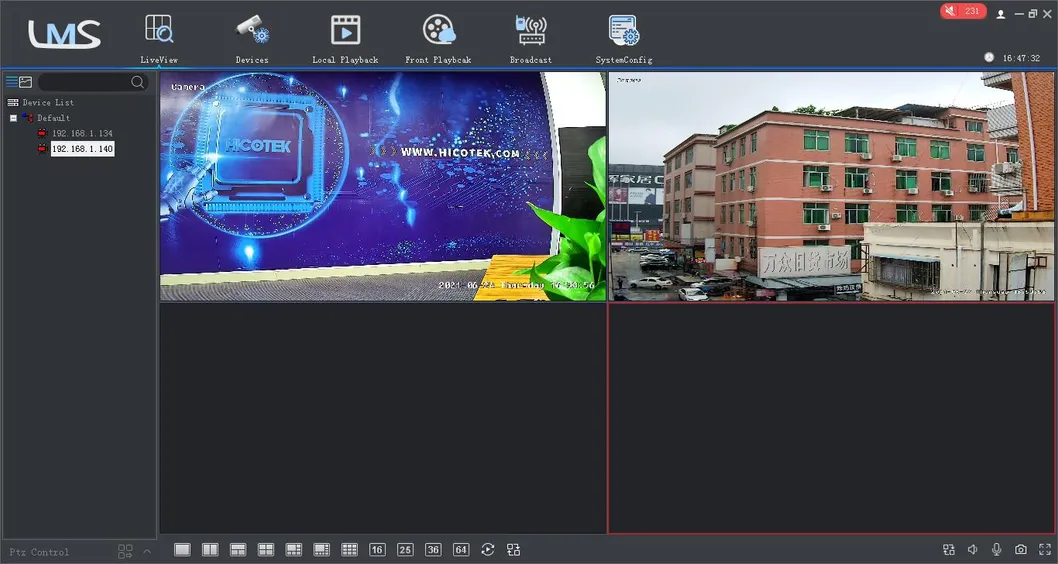

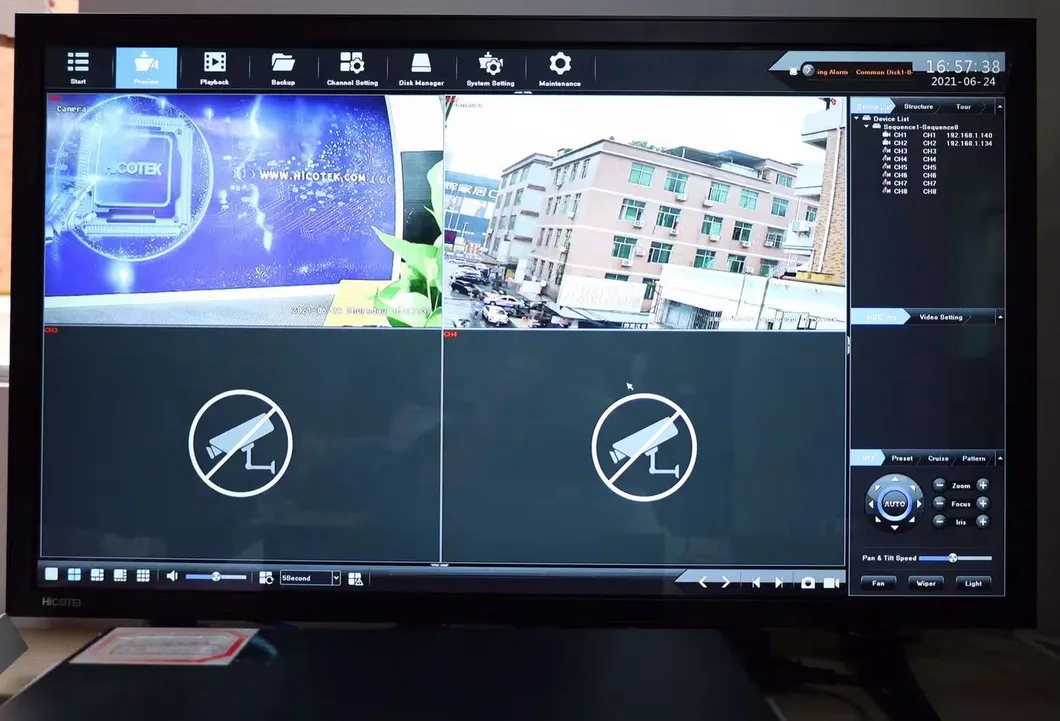

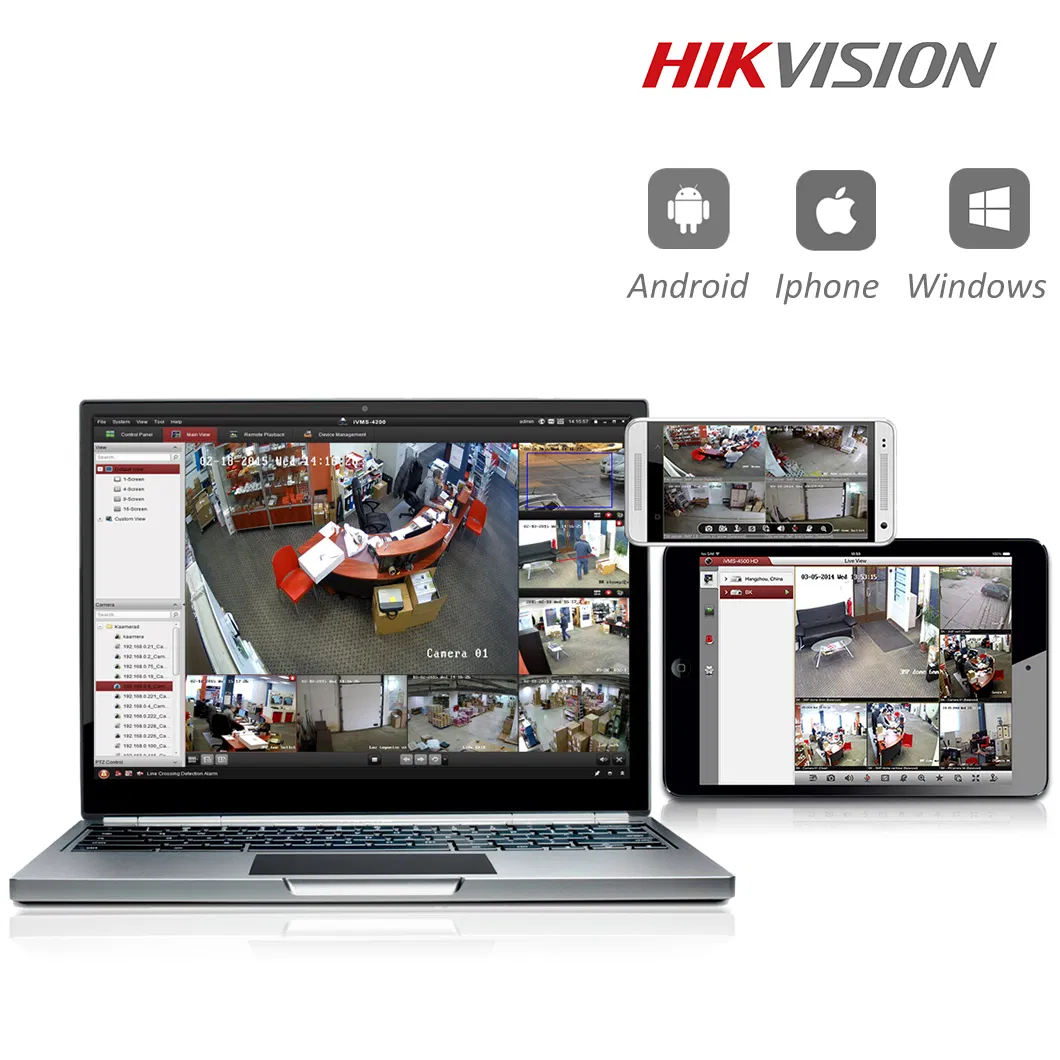

IPC Work with IE, CMS, NVR(ONVIF/HIKVISION)

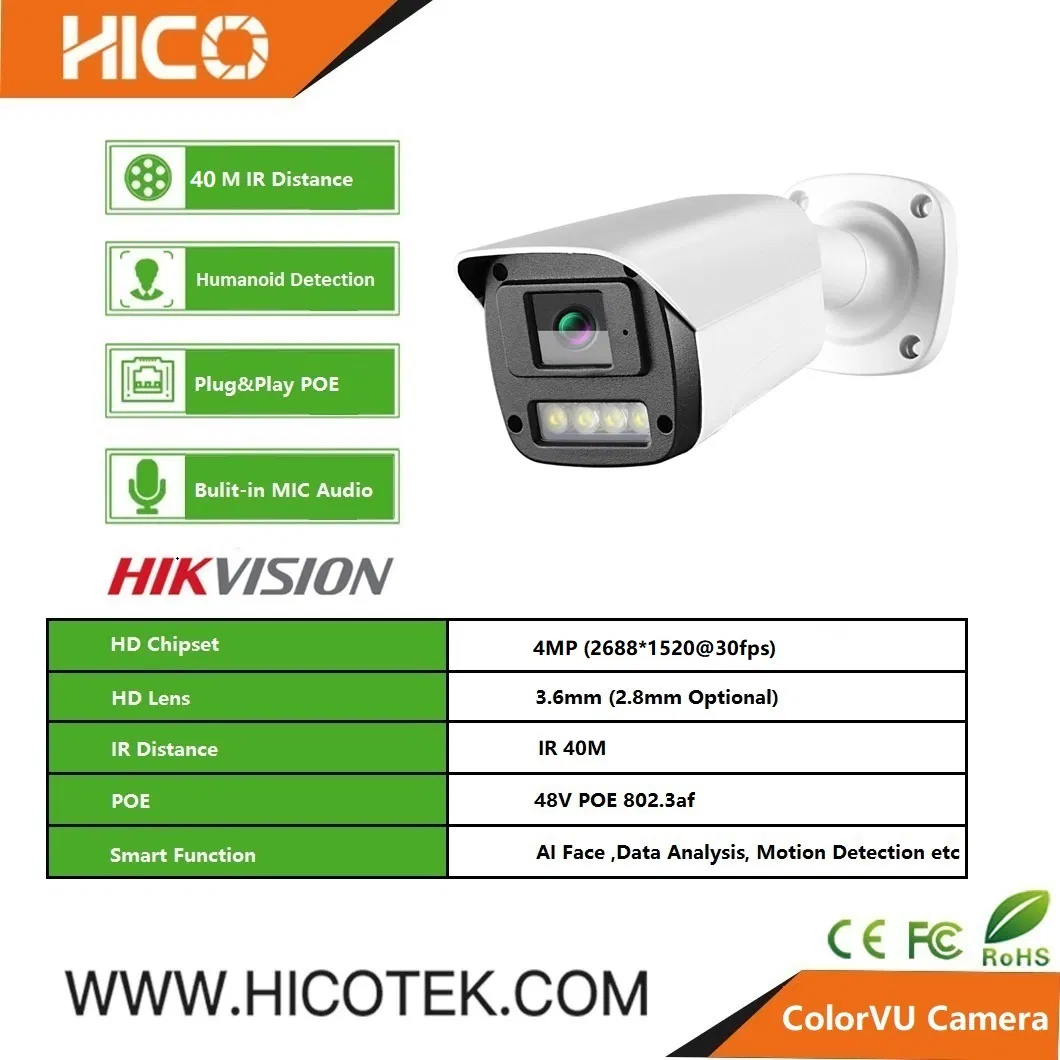

Camera Data Sheet
HICOTEK Unique Private Model
Housing: Metal IR Bullet
Wide Angle View 2.8mm Lens
4pcs Warm Lights ColorVu
Led Range: 40M
Built-in Microphone
Support Hikvision Protocol P2P
Waterproof: IP67,IK10
Working with HIKVIISON System
Smart ColorVu Function
AI Humanoid Derection
4MP Day-time Color Image
4MP Full Color Night Vision Image
IPC Work with IE, CMS, NVR(ONVIF/HIKVISION)
Camera Data Sheet

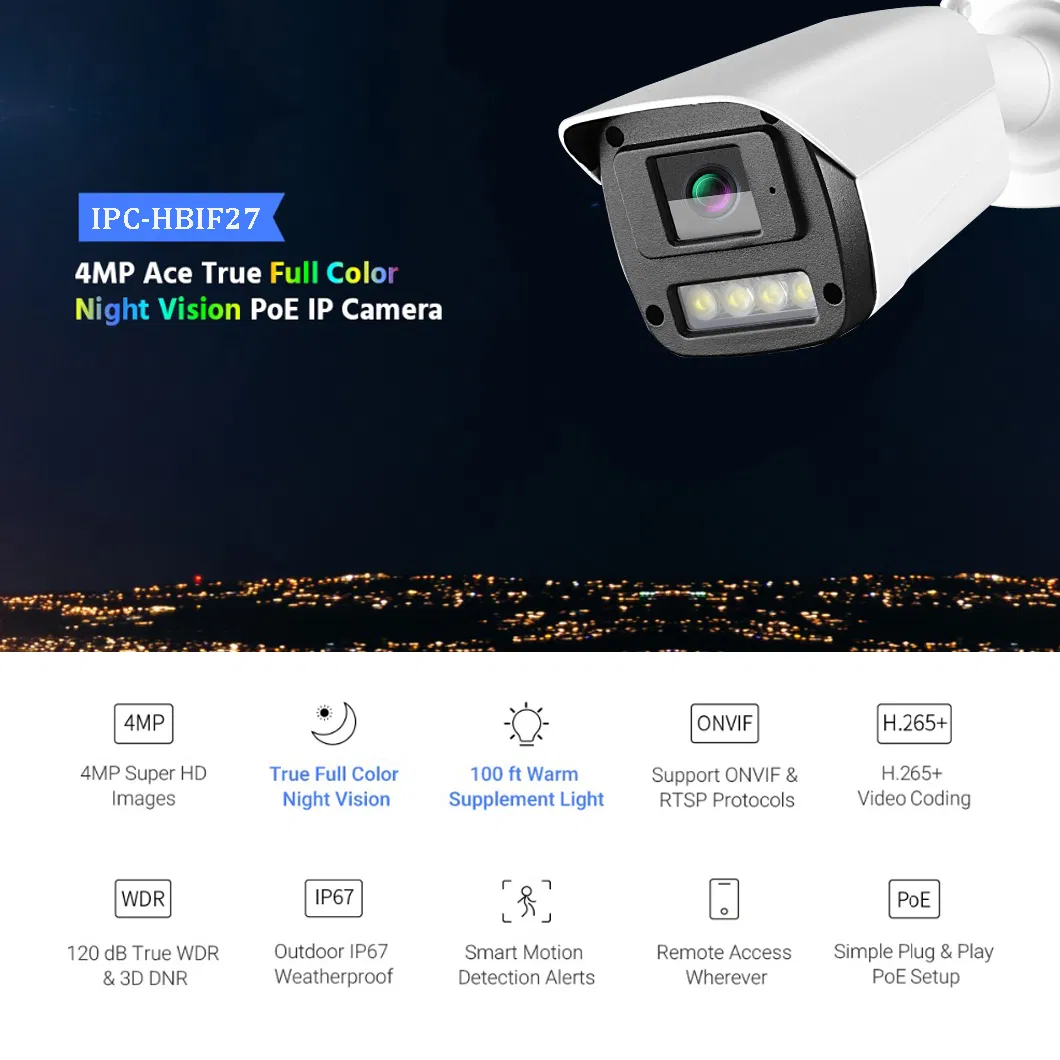

| Model NO. | IPC-HBIF27M40GM |
| Chipset | |
| Image Sensor | GC4653 |
| Main processor | Mstar 337DE |
| Resolution | 4MP |
| Effective Pixels | 2688(H)*1520(V) |
| Compression | H.265+/H.265/ H.264 JPEG/AVI/MJPEG |
| TV System | PAL/NTSC Adjustable |
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec |
| S/N Ratio | ≥52dB |
| Scanning System | Progressive |
| Video Output | Network |
| Lens | |
| Focus Length | 3.6/2.8mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| Pixels | 4MP |
| Night Vision | |
| Infrared LED | IR LED: 4pcs EXIR Array ColorVu |
| Infrared Distance | 40M |
| IR Status | Under 10 Lux By CDS |
| IR Power On | CDS Auto Control |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support ONVIF 2.4, Support HIKVISION P2P Protocol |
| P2P | YES, Support QR Code |
| POE | Optional, Support IEEE 802.3af |
| WIFI | N/A |
| TF Card | Support External SD Card Slot (Max128GB) |
| Video Bit Rate | Constant Bit Rate, Variable Bit Rate (16kbps~8000kbps) |
| Video Type | Complex Stream/ Video Stream |
| Audio Compression | G.711U (Optional) |
| Main Stream 1 | 2688*1520@30fps |
| Main Stream 2 | 2048*1520@30fps |
| Main Stream 3 | 1920*1080@30fps |
| Sub Stream 1 | 720*480@25fps |
| Sub Stream 2 | / |
| Sub Stream 3 | / |
| Tri Stream | 352*288@30fps |

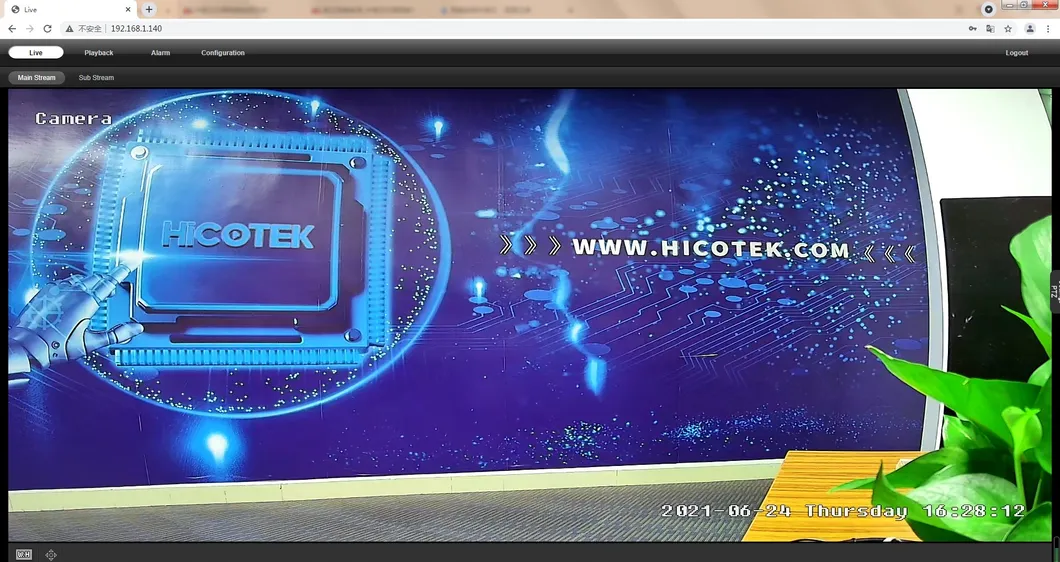

| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Intelligent Analysis | Optional (Support Target Counting, Area Detection, Left/Lost Prompt, Line Crossing Alarm ) |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) |
| Corridor Pattern | Support |
| Defog Mode | Support |
| BLC | Support |
| HDR | / |
| DWDR/WDR | Support |
| Motion Detection | Support |
| Privacy Masking | 3 Rectangular Zone |
| Recording Mode | NVR/NAS/CMS/Web |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian,Nederlands |
| General | |
| Housing | Metal ,IP67, IK10 |
| Anti-cut Bracket | YES |
| IR Cut Filter | YES |
| Operation Temperature | -10ºC ~ +50ºC RH95% Max |
| Storage Temperature | -20ºC ~ +60ºC RH95% Max |
| Power Source | DC12V±10%, 450mA |
| Dimension | 180(l)*95(W) *95(H)mm |
| Weight | 450g |
