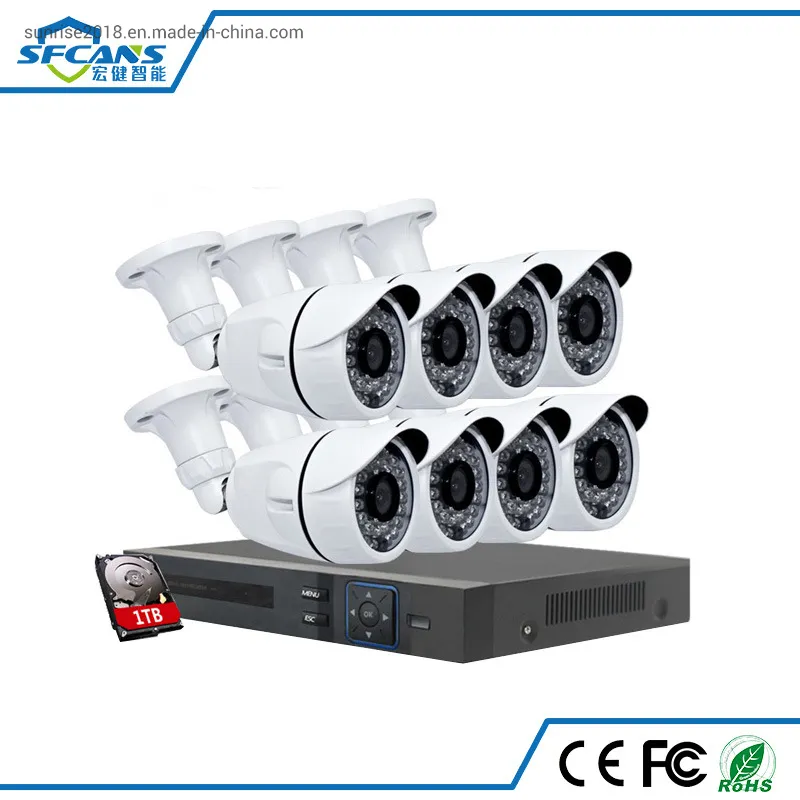

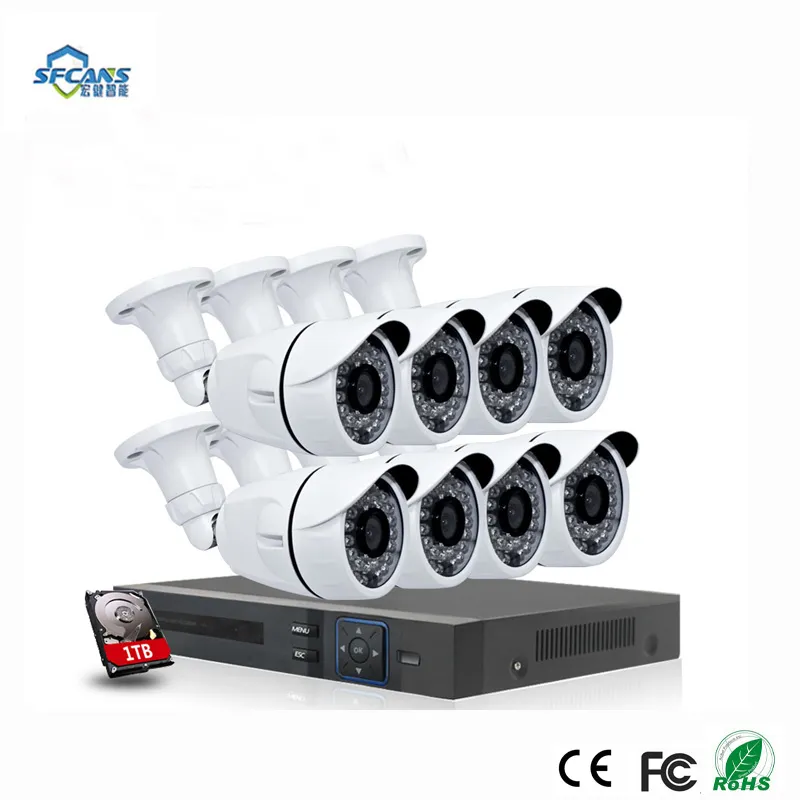

Home Waterproof Security Camera CCTV Complete Kit Systems
Home Waterproof Security Camera CCTV Complete Kit Systems Main Features:AHD Camera*2.0P;*Sensor:1/3" Aptina low illuminationCMOS Sensor/1MP/1080P, with IRCUT;*Chipset:AR0141+NVP2431;*3.6mm lens;*24pcs IR LED;*IR CUT:20m;*Waterproof :IP66;*Grey/White color optional ;AHD DVR* With P2P function;* ......
Send Inquiry
Product Description
Home Waterproof Security Camera CCTV Complete Kit Systems
FAQ:
About Us
Sunrise Security Tech is a market leader in providing security solutions and installation for home, business and vehicles. Located in Shenzhen, established in 2010. We serve our customers from all over the world.

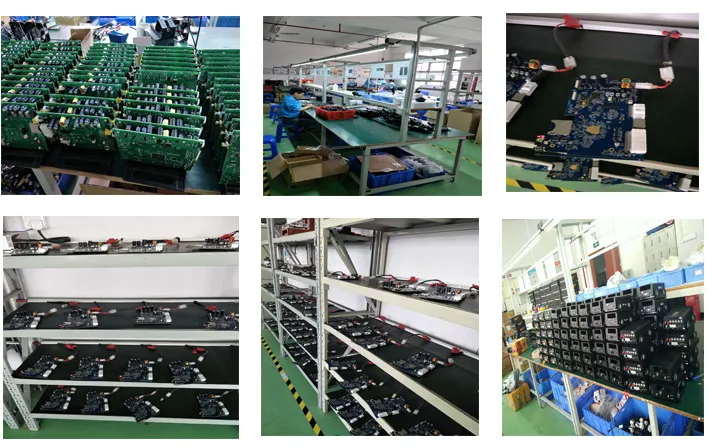

Till now has become one of Chinese leading companies in the research,design and manufacture of the high level digital security surveillance equipment. Our highly innovative products have received high levels of acclaim, and accreditation from our customers.
How to order from us
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, or email to us.
2. We will send you a Proforma Invoice to specify net cost of mentioned goods and other relevant charges once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by DHL,UPS ,Fedex , or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ for products
1. For the first order, we have no limit for the quantity.
2. From the second order, the MOQ is 10pcs.
Lead Time
1. Sample order can be delivered from our factory in 2 working days.
2. General order can be delivered from our factory in 3 - 7 working days.
3. Big order can be delivered from our factory in 7-15 working days at most.
OEM / ODM Service
1. If the total order quantities are above 100pcs, we can print customer's logo on the products.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy
We provide two-year warranty for CCTV Cameras and DVRs after the shipment date. Any product proves defective under normal usage, we will repair or replace it by free of charge.
1. If our customers could repair the products by themselves locally, we will supply necessary spare parts.
2. If the customers couldn't repair the products, the products will need to be sent back to us, and we repair and bear 50% freight charge. All of our products are 100% passed strictly quality inspection before delivery.
Technical Support
We have professional technical support team to support our customers, and if you have any question for the technology of our products, please email to us, and we will reply to you immediately. Also if you have any doubt for the information on our website or any feedback for the quality of our products, please email to us, and thanks for your all comments in advance.
Main Features:
AHD Camera
*2.0P;
*Sensor:1/3" Aptina low illuminationCMOS Sensor/1MP/1080P, with IRCUT;
*Chipset:AR0141+NVP2431;
*3.6mm lens;*24pcs IR LED;
*IR CUT:20m;
*Waterproof :IP66;
*Grey/White color optional ;
AHD DVR
* With P2P function;
* 4CH 1080p AHD input;
* 1/4CH playback;
* Supports dual stream;

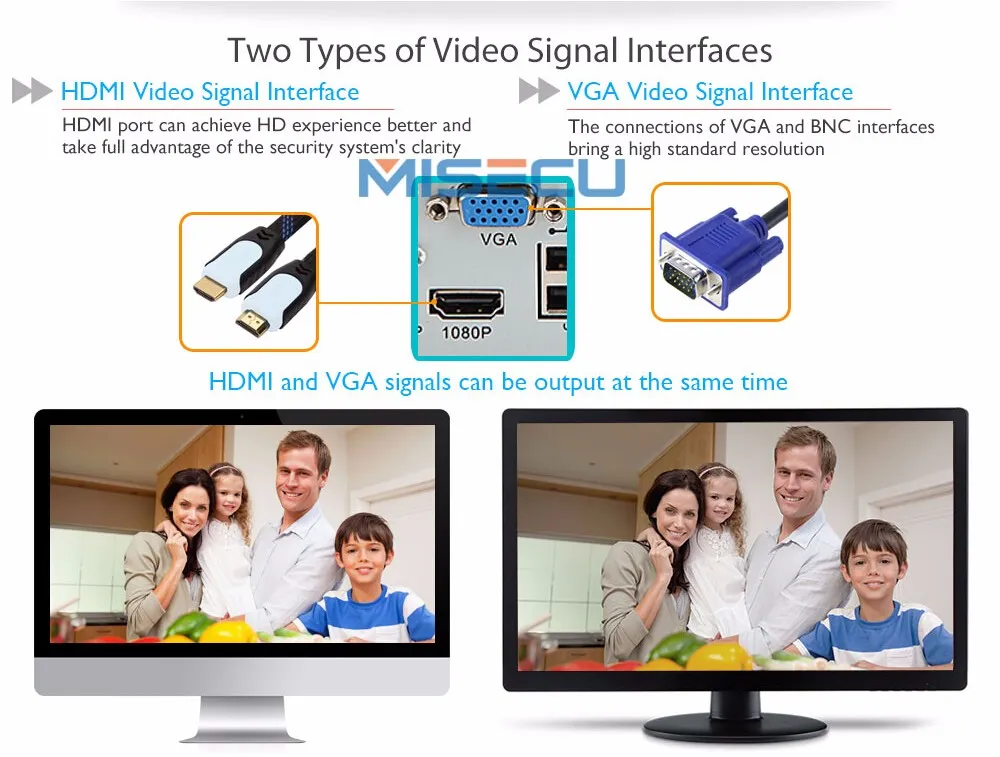

* Supports VGA (Maximum HD1080p) , HDMI (Maximum HD 1080p)output;
* 4CH audio input, 1CH audiooutput;
* 2 USB2.0 ports, 1 SATA2.0 HDDport(up to 4000G);
* Supports IR remote control;
* 1 RS-485 port;
* Supports smart phone real timeremotely monitoring, such asiPhone,Android;
* Provide IE Activex,CMS,StreamView APP management software
Parameters:
*2.0P;
*Sensor:1/3" Aptina low illuminationCMOS Sensor/1MP/1080P, with IRCUT;
*Chipset:AR0141+NVP2431;
*3.6mm lens;*24pcs IR LED;
*IR CUT:20m;
*Waterproof :IP66;
*Grey/White color optional ;
AHD DVR
* With P2P function;
* 4CH 1080p AHD input;
* 1/4CH playback;
* Supports dual stream;
* Supports VGA (Maximum HD1080p) , HDMI (Maximum HD 1080p)output;
* 4CH audio input, 1CH audiooutput;
* 2 USB2.0 ports, 1 SATA2.0 HDDport(up to 4000G);
* Supports IR remote control;
* 1 RS-485 port;
* Supports smart phone real timeremotely monitoring, such asiPhone,Android;
* Provide IE Activex,CMS,StreamView APP management software
Parameters:
| DVR Kit Model | SF-DVA4 |
| DVR Specification: | |
| Main Processor | Hi3520D V200 |
| Preview | 1/4 |
| Video | |
| Video Standard | PAL, NTSC |
| Video Compression | H.264 |
| Monitor Quality | VGA,HDMI: HD |
| Preview Ability | 4*1080P |
| Encode Ability | 4*1080P |
| Decode Ability | 1*1080P |
| Multi-mode Input | Analog: 4*1080P;4 *720P; 4*960H |
| Hybrid: 2*720P(analog)+2*720P(network) | |
| Network: 8*1080P;12*960P;8*720P; 4*1080P; 4*720P; 1*1080P | |
| Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
| Monitor Quality | VGA,HDMI: HD |
| Audio | |
| Audio Compression | G.711A |
| Intercom | Support |
| Recorder & Playback | |
| Record Mode | Manual>alarm>motion detection>timing |
| Local Playback | 4CH(analog input mode) |
| Search Mode | Search by time, calendar, event, channel |
| Storage & Backup | |
| Video Storage | HDD, network |
| Backup Mode | Network, USB hard disk, USB burner, SATA burner |
| External Interface | |
| Video Input | 4CH BNC |
| Video Output | 1CH VGA, 1CH HDMI |
| Loop Vout | N/A |
| Audio I/O | 1(Can be extended to 4CH)/1 |
| Alarm I/O | 0(Can be extended to 4CH)/0(Can be extended to 1CH) |
| Network Interface | RJ45 10M/100M self-adaption |
| PTZ Control | 0 or 1*RS485, Support kinds of PTZ protocols |
| USB | 2* USB 2.0 ports |
| HDD | 1 or 2*SATA ports (Max 6TB/per) |
| Wireless | 3G, WIFI (extend via USB) |
| General | |
| Power Supply | 12V/2A or 12V/4A |
| Power Consumption | <15W (without HDD) |
| Working Environment | Temperature: 0ºC-+55ºC, Humidity: 10%-90%, Atm:86kpa-106kpa |
| Camera Specification: | |
| Image Sensor | 1.0Megapxiel 1/4'' 1080P CMOS Sensor, ICR |
| S/N Ratio | ≥50dB |
| Video Output | 1.0Vp-p, 75Ω Composite, BNCx1 |
| Minimum Illumination | 0 LUX(IR ON) |
| Sync System | 2:1 interlace internal Sync. |
| Shutter | 1/50-1/100,000S |
| LED | 24 PCS ∮5 |
| IR Distance | Night vision up to 50ft(15m) |
| Lens Mount | lens 3.6/6mm |
| Operating Temperature | Indoor: -10ºC~50ºC outdoor: -20 º C to 50 º C |
| Power | 12V1A |

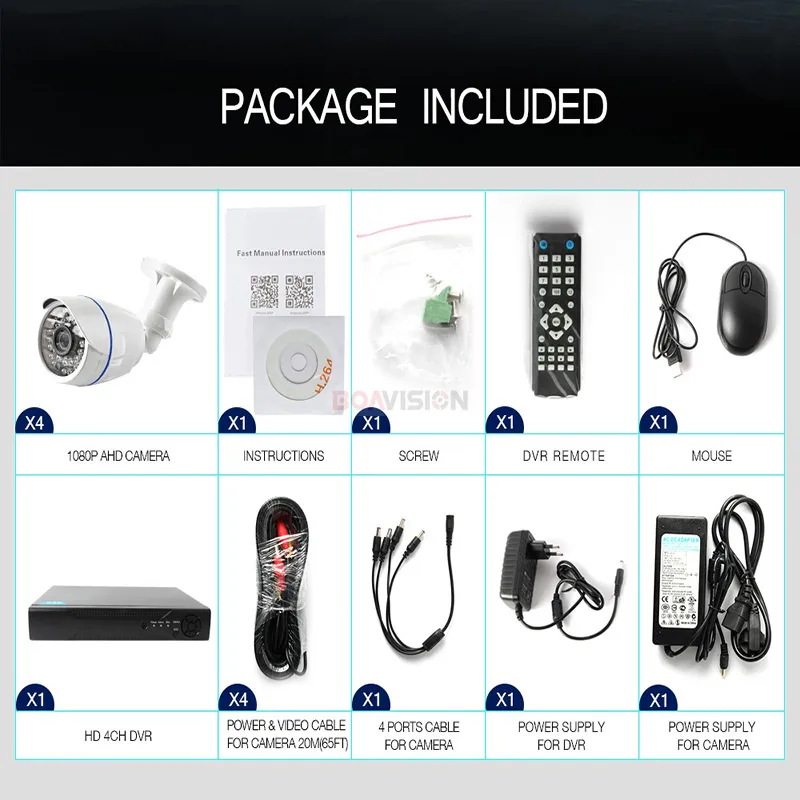

| Kits Accessories : | |
| 1x 4 channel H.264 5 in 1 DVR | |
| 4x 1080P 2.0 Megapixel AHD Camera | |
| 4x 18m BNC to BNC Cable | |
| 1x Power Supply Adaptor | |
| 1x 1 to 4 Power Splitter Cable | |
| 1x Remote Control | |
| 1x USB Mouse | |
| 1x Operating Manual | |
| Carton Dimension | 597*583*295MM (4kit) |
