Imx335 CMOS 5MP USB 2.0 Camera Module with 90degree Wide Angle for Industrial Machine Vision
Imx335 Cmos 5MP USB 2.0 Camera Module with 90degree Wide Angle for Industrial Machine Vision:1. 1/2.8 inch SONY IMX 335Cmos Camera Module2. 5 megapixel with speed 30fps USB camera3. Full HD realtime USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module wit......
Send Inquiry
Product Description
Imx335 Cmos 5MP USB 2.0 Camera Module with 90degree Wide Angle for Industrial Machine Vision:

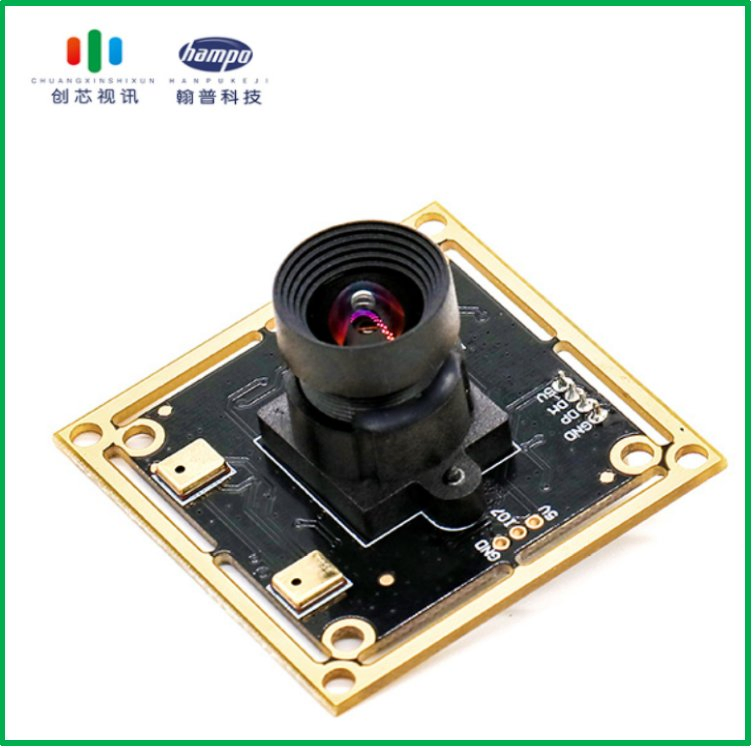

1. 1/2.8 inch SONY IMX 335Cmos Camera Module
0789 Lens Options
Model No. 3428-A1 6192-2A7 6205-2A6 6022-A1 6105-A5 C6003-B4 3922-A1 5019-A1
Optical Format 1/2.5" 1/2.7" 1/2.7" 1/2.7" 1/2.5" 1/2.8" 1/2.7" 1/2.8"
EFL 3.6 3.0 2.9 3.3 4.2 1 3 5
BEL 4.21 4.49 4.34 6.88 4.35 4.13 4.8 2.78
Construction 2G2P+IR 2P3G+IR 3G2P+IR 4G 4E+IR 5E+IR 2G3P+IR
F/No 2.8 2.4 2.4 2.2 3.2 2.0 2.4 2.4
FOV1/2.5" 96/80/65 D80
FOV1/2.7" 96/88/57 98/89/57 108/90/50 D220 100/85/66 65/52/39
FOV1/3" 125/100/54
IR Filter 650 650 650 650 650 650 650 650
MOD M12*0.5 M12*0.5 M12*0.5 M12*0.5 M12*0.5 M12*0.5 M12*0.5 M12*0.5
NOTE1: The M12 Lens kit for the USB Camera module,8 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boar

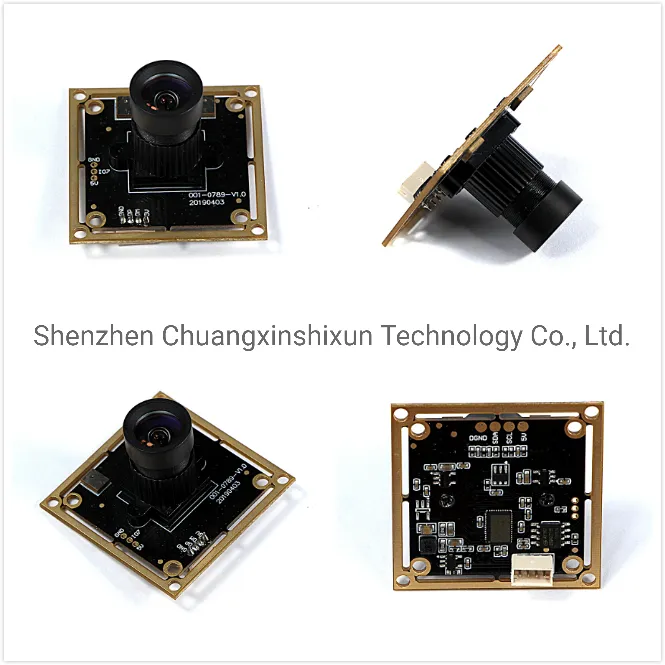

Pictures Display:

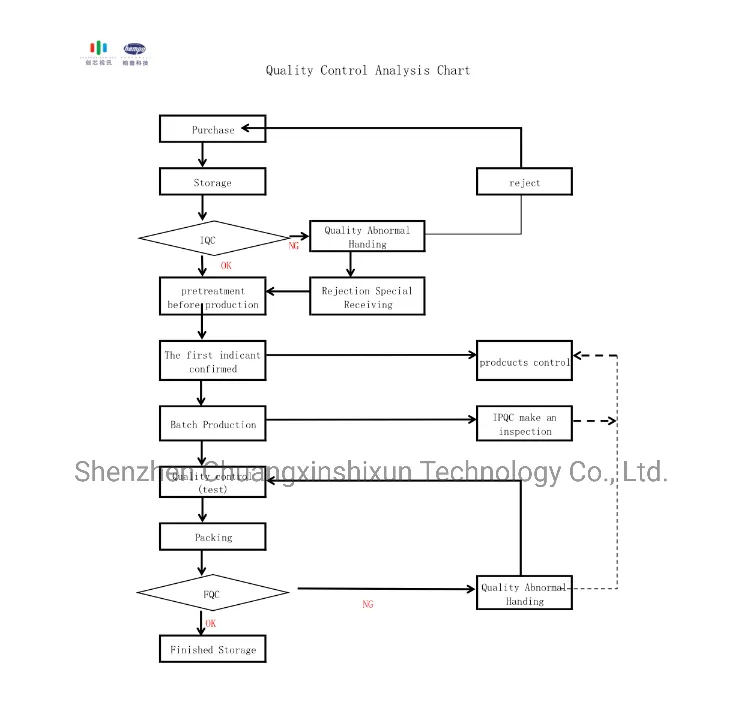

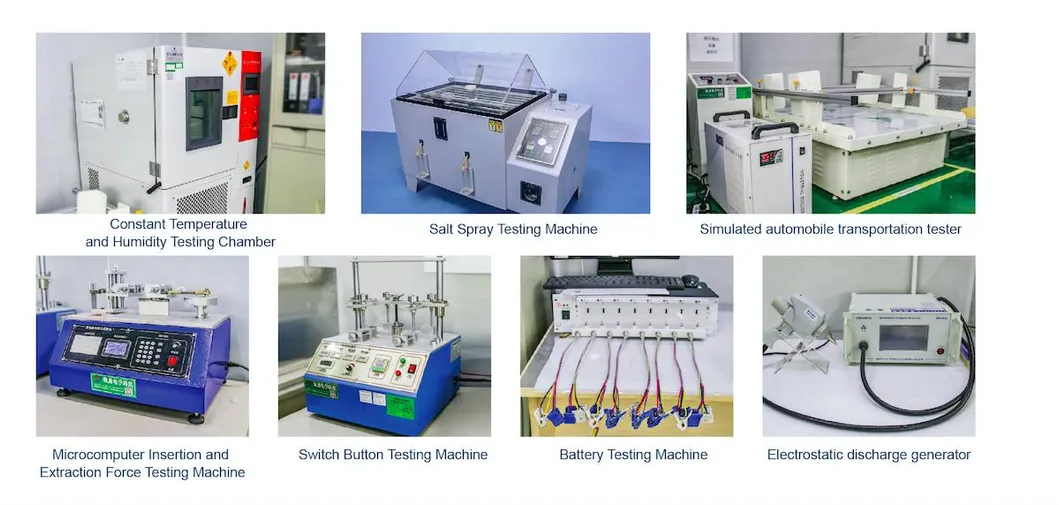

Quality Control:

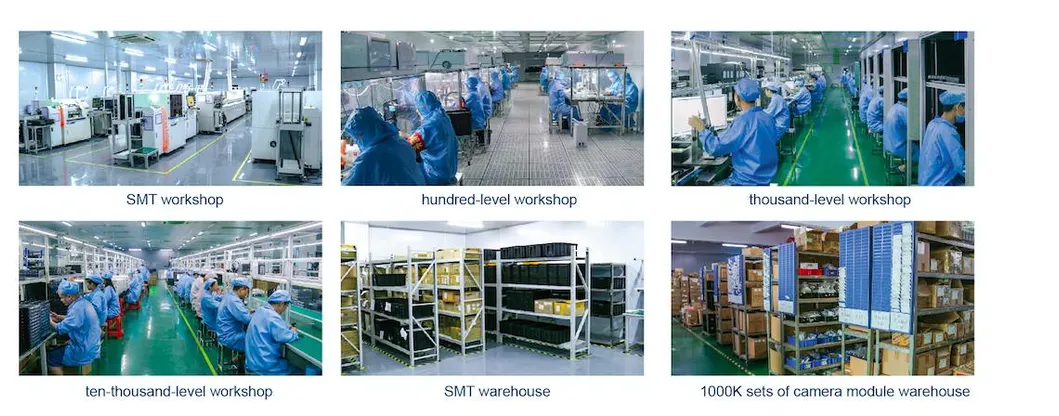

Company Information:
Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology
Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.

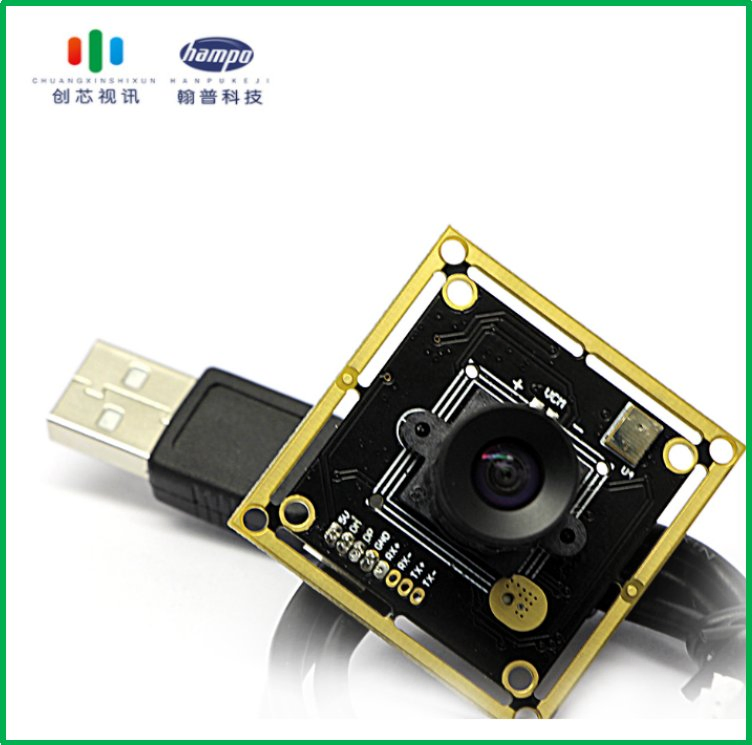

1. 1/2.8 inch SONY IMX 335Cmos Camera Module
2. 5 megapixel with speed 30fps USB camera
3. Full HD realtime USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 90 degree
5. 38*38/32*32mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | SONY IMX 335 |
| Lens Size | 1/2.8-inch |
| Maximum Pixels | 5 mega |
| Maximum Effective Resolution | 2,592H x 1,944V |
| Data Format | MJPG/YUY2 |
| Pixel Size | 2.0µm x 2.0µm |
| Dynamic Range | 72dB |
| Lens | FOV :D= 90 |
| Optical length :22MM | |
| lens construction:6E=IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20°C to +70°C |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
0789 Lens Options
Model No. 3428-A1 6192-2A7 6205-2A6 6022-A1 6105-A5 C6003-B4 3922-A1 5019-A1
Optical Format 1/2.5" 1/2.7" 1/2.7" 1/2.7" 1/2.5" 1/2.8" 1/2.7" 1/2.8"
EFL 3.6 3.0 2.9 3.3 4.2 1 3 5
BEL 4.21 4.49 4.34 6.88 4.35 4.13 4.8 2.78
Construction 2G2P+IR 2P3G+IR 3G2P+IR 4G 4E+IR 5E+IR 2G3P+IR
F/No 2.8 2.4 2.4 2.2 3.2 2.0 2.4 2.4
FOV1/2.5" 96/80/65 D80
FOV1/2.7" 96/88/57 98/89/57 108/90/50 D220 100/85/66 65/52/39
FOV1/3" 125/100/54
IR Filter 650 650 650 650 650 650 650 650
MOD M12*0.5 M12*0.5 M12*0.5 M12*0.5 M12*0.5 M12*0.5 M12*0.5 M12*0.5
NOTE1: The M12 Lens kit for the USB Camera module,8 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boar
Pictures Display:
Quality Control:
Company Information:
Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology
Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.
