Infrared Body Temperature Detection Thermal Camera
Long Range Thermal Camera for Board DefenseStability: Automatic temperature calibration function, good temperature stabilityIntelligent Alarm: Support temperature threshold setting and automatic screening warning mechanism, real-time alarm.Full-time work: 7 × 24 real-time rapid body tempe......
Send Inquiry
Product Description
Long Range Thermal Camera for Board Defense
Stability: Automatic temperature calibration function, good temperature stability
Intelligent Alarm: Support temperature threshold setting and automatic screening warning mechanism, real-time alarm.

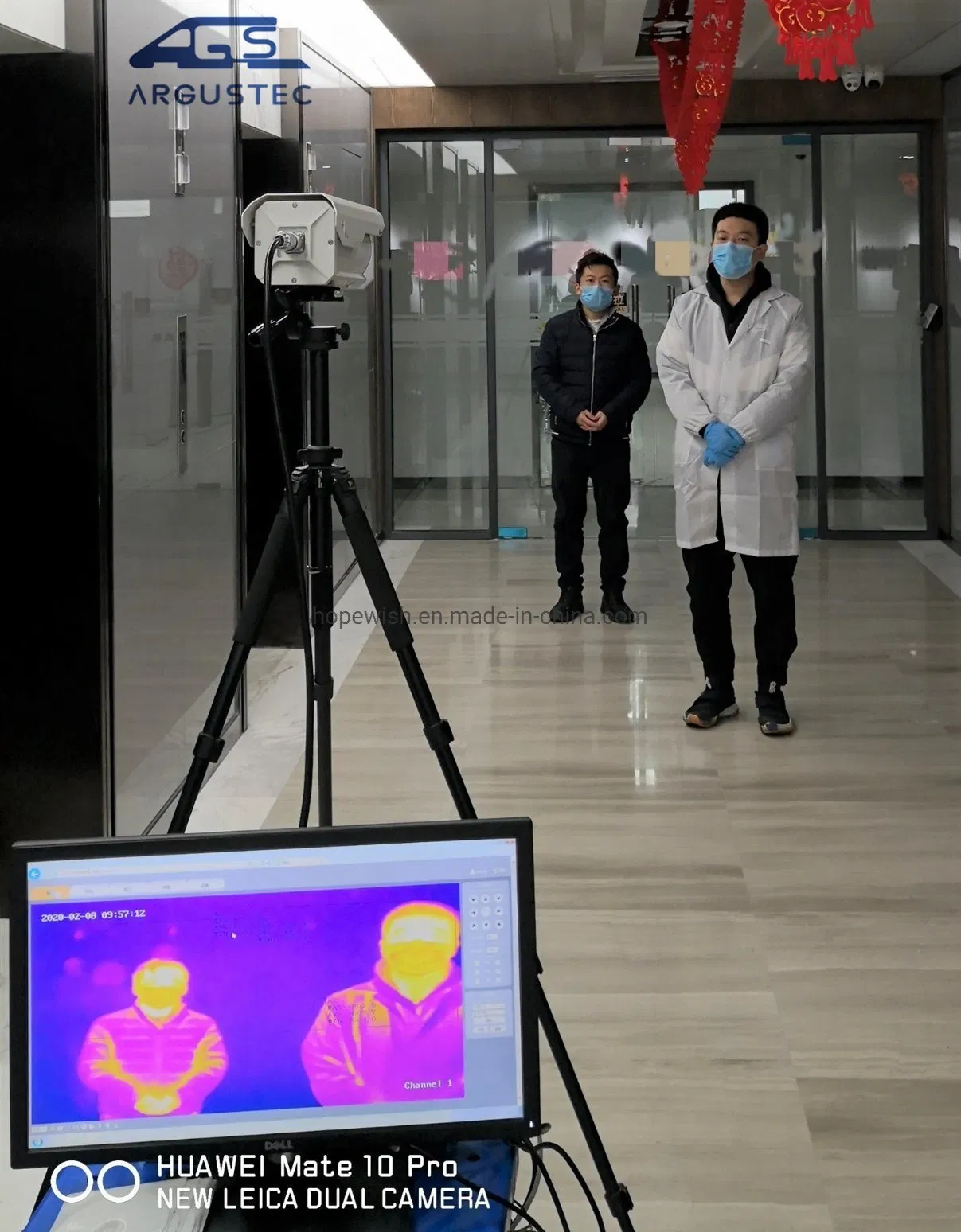

Full-time work: 7 × 24 real-time rapid body temperature screening
Feature
Easy deployment: One set thermal camera and one ordinary PC can constitutes a small temperature measurement station, supporting offline and online deployment
Environmental adaptability: It can be applied to small scenes such as entrances, stores, etc
Scalable: Can be linked with emergency command system to achieve rapid response and real-time processing
Traceability: Combined with the software, it can trace back, analyze, and mine historical data
Technical File For Thermal Camera
| Model | KTC4100 | |
| Measurement Range | 30ºC~45ºC | |
| Identification | ≤±0.3ºC | |
| Thermal Camera | ||
| Sensor | Uncooled VOx Sensor | |
| Resolution | 384 × 288 pixel | 640 × 512 pixel |
| Spectral range | 8~14μm | |
| NETD | ≤50mK@25ºC,F#1.0(≤40mK for option) | |
| Focal length | 12mm/20mm | |
| Pixel | 17μm | |
| Image process | DDE image enhancement/3D digital Noise Reduction/ Accurate blind elimination/ No bright spots and dark spots in the FOV | |
| Gain Control | Manual/Auto | |
| NUC correction | Manual/Auto | |
| Image Mirroring | Left-Right/Up-Down/Opposite Angles | |
| Digital zoom | 1.0~8.0X continuous zoom, digital zoom picture in picture eagle chart display | |
| Pseudo color | Support White/Hot, Black/Hot, and other 16 kinds pseudo color | |
| Full life management | Record function for health index of the thermal core | |
| Product Performance | ||
| Temperature display | Display the maximum temperature point | |
| Temperature calibration | Calibration indication | |
| Communication Interface | 1*RJ45, 1*RS485,1*RS422,1*RS232 | |
| Analog output interface | 1*CVBS output, BNC interface | |
| Alarm | 1*input, 1*output | |
| Video Compression | H.265/H.264/MJEPG | |
| Audio Compression | G.711 | |
| Motion Detection | Support video masking, support motion detection alarm | |

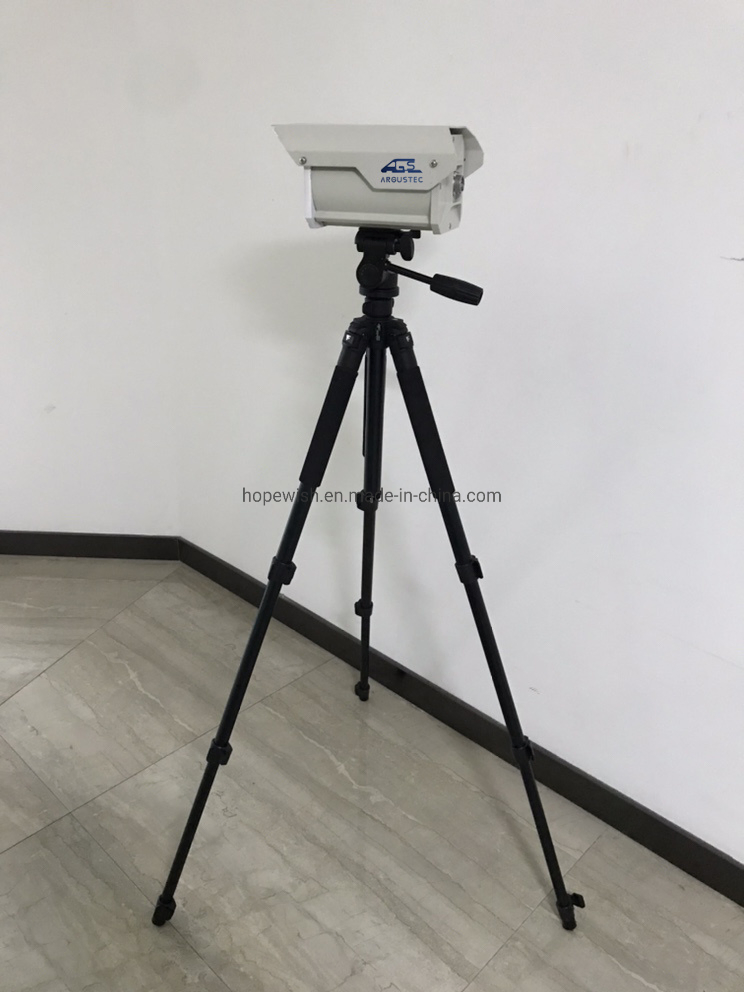

| Installation method | By bracket/By Pole/By tripod | |
| Recording | Built-in SD card slot, support Micro SD/SDHC/SDXC card (Max 128G), Support manual recording/ Alarm recording | |
| Network | ||
| Web | Support Web Configuration | |
| Network Protocol | Support HTTP;TCP;RTSP;RTP;UDP;RTCP;support ONVIF 28181 | |
| Environment Parameter | ||
| Operating temperature | -20ºC~+65ºC | |
| Protection Level | IP66, Anti-lighting TVS 6000V,Surge protection | |
| General | ||
| Total Consumption | ≤5W | |
| Power supply | DC12V | |
| Weight | ≤2kg | |
