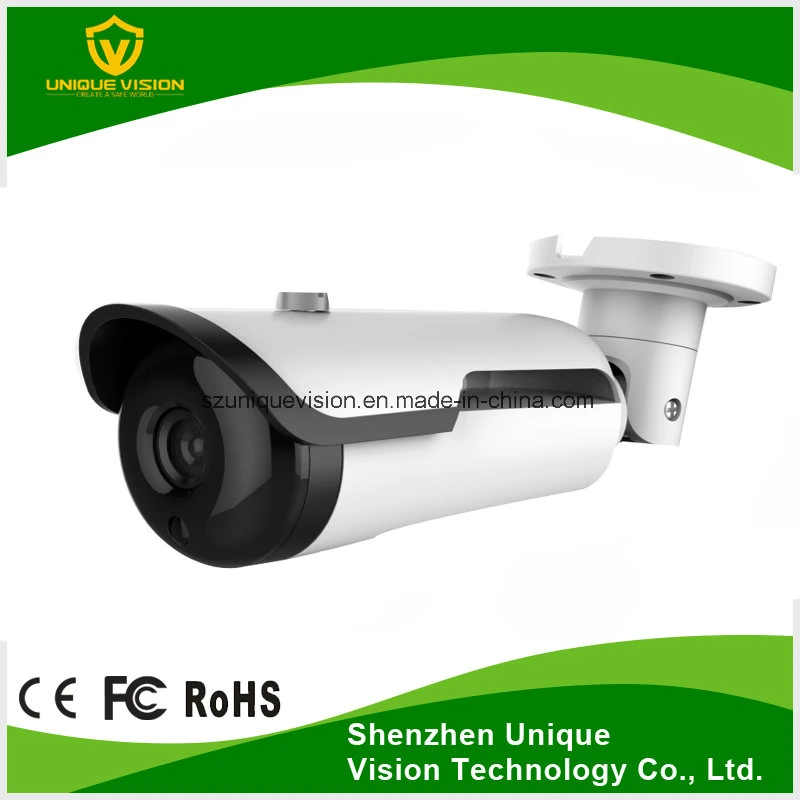

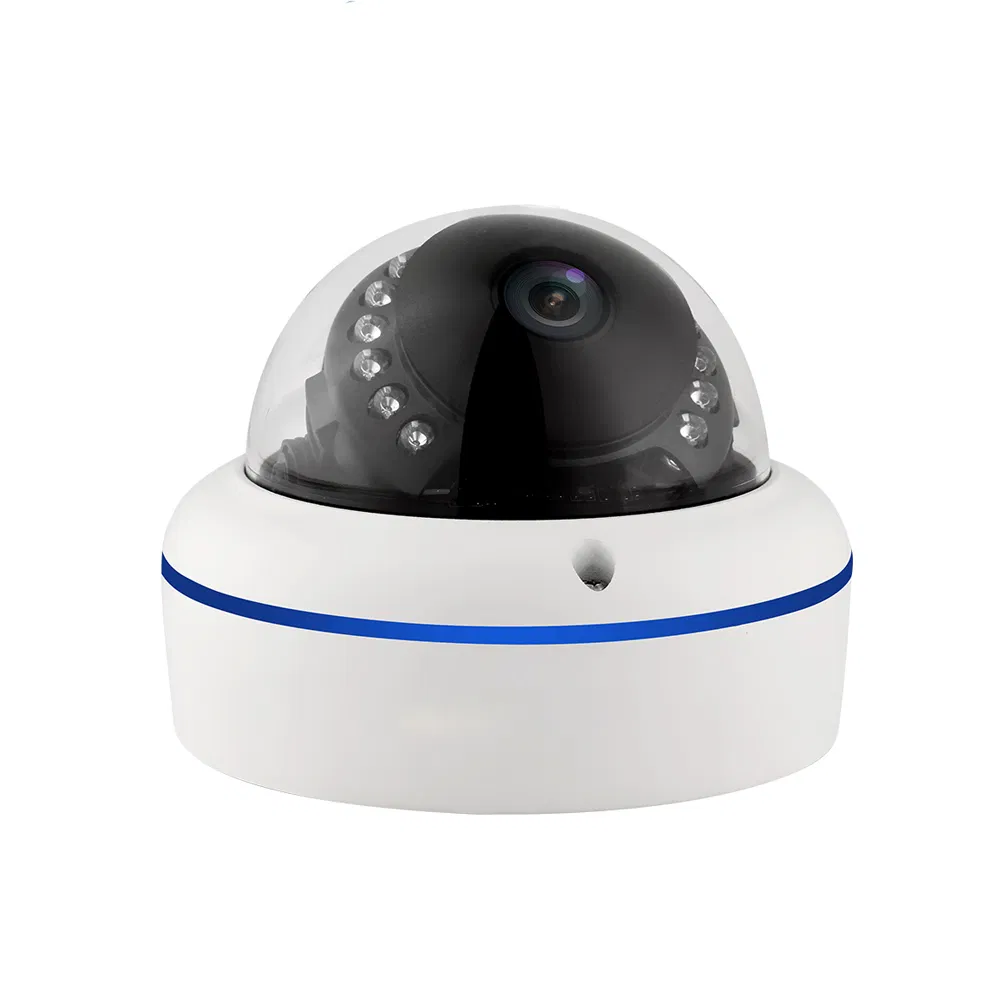

IP66 5MP Ahd Outdoor Waterproof Security Camera

Product Description

IP66 5MP AHD outdoor waterproof security camera

(1) Longer Transmission,Coaxial transmission common 75-3 cable up to 500 meters
(2) Zero Delay,Front-end data without coding compression to the back-end, real-time, high fidelity
(3) Good Compatibility,Compatible with ordinary D1/960 h, compatible with analog peripherals (including distributors, matrix, etc.)
(4) Easy Operation,Support OSD menu design, with what you want, you need
(5) Cheap Price and High Quality,common simulation, hd quality products
(6) High Integration,AHD front-end chip prices, high quality products
(7) Open Standards,,Third party open standards, compatible with AHD from other manufacturers products, accelerate the market progress

Model	UV-AHDBV520
Camera Type	Analog HD
Image Sensor	1/3" Megapixel CMOS
Effective Pixels	2592(H)×1944(V)
Electronic Shutter	1/50s~1/100,000s
Video Frame Rate	15fps
Synchronization	Internal
Mini. Illumination	0.01Lux F1.2(AGC ON), 0Lux IR on
Video Output	1-channel BNC HDCVI high definition video output
Camera Features
Max. IR LEDs Length	36pcs IR Leds, 20m, Smart IR
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D
Lens
Focal Length	3.6mm fixed lens
Mount Type	M12
General
Power Supply	DC12V±10%
Power Consumption	Max 1W
Working Environment	-30°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Ingress Protection	/
Weight	0.5Kg
