China Jelly2 Series USB2.0 Industrial Digital Camera 5MP High Resolution Camera with Buffer

Product Description

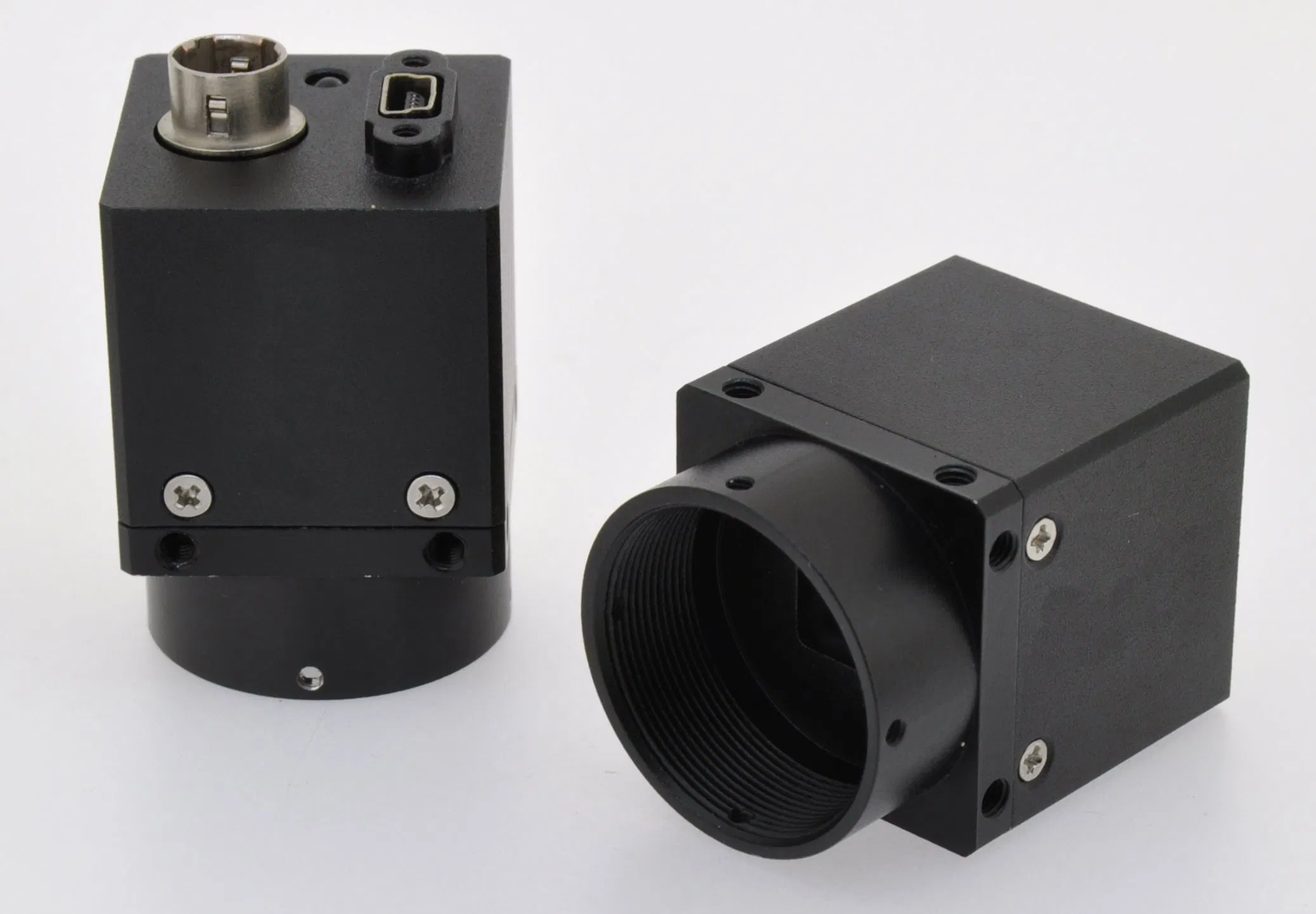

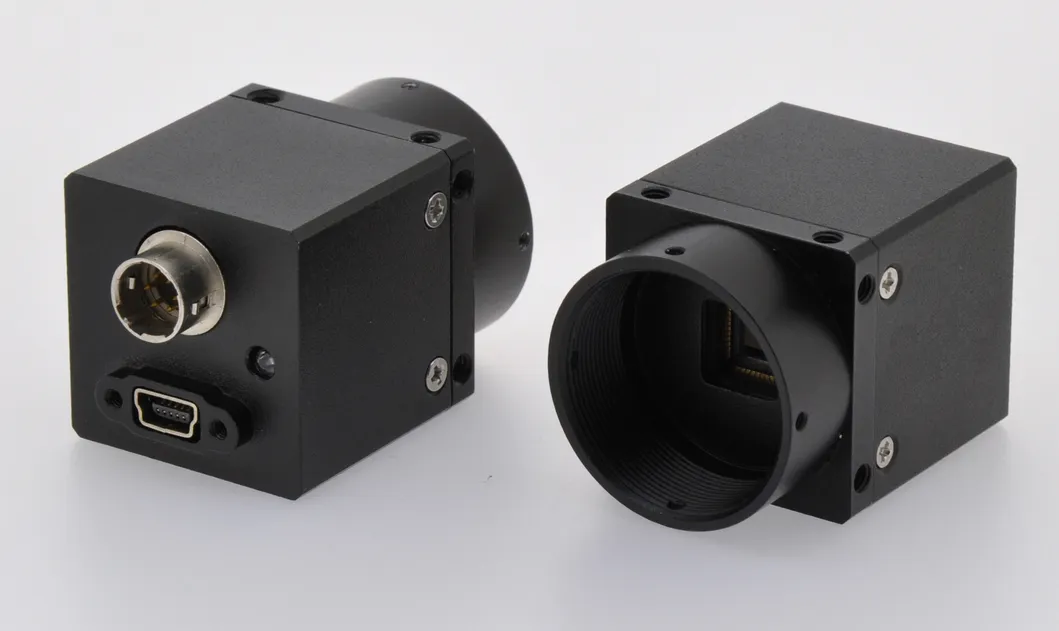

Jelly2 Series USB2.0 Industrial Digital Camera

Introduction
Jelly2 series smart industrial cameras are mainly designed for machine vision and various image acquisition areas. The cameras are very compact, occupy a very small space, can be used on machines or solutions which have limit space. Resolution from 0.36MP to 5.0MP, speed upto 110fps, support global shutter and rolling shutter, support opto-couplers isolation GPIO, support multi-cameras work together, compact and light.

Features
1. 0.36MP, 5.0MP resolution, total 6 models mono/color industrial digital camera;
2. USB2.0 interface, up to 480Mb/s, Plug and play, no need external power supply;
3. Provide completed API for users' secondary development, provide Demo Source Code, Support VC, VB, DELPHI, LABVIEW and other development language;
4. Support firmware upgrade on-line;
5. Support Windows XP / Vista / 7 / 8/10 32&64 bit Operation System, can customize for Linux-Ubuntu, Android Operation System;
6. CNC processed precision aluminum alloy shell, size is 29mm×29mm×30mm, net weight: 35g;
7. Board camera is available.

Application
Jelly2 series industrial cameras are mainly designed for machine vision and various image acquisition areas. They are mainly used for following areas:

Medical and life sciences Area

Microscope Imaging
Medical diagnosis
Gel Imaging
Live Cell Imaging
Ophthalmology and iris imaging

Industrial Area

Electronics and semiconductor inspection
Visual positioning(SMT/AOI/Glue dispenser)
Surface defect detection
3D scanning machine
Printing quality inspection
Food and medicine bottles inspection
Robot welding
Tag OCR/OCV identification
Robot arm visual positioning
Industrial production line monitoring
Vehicle wheel alignment machine
Industrial Microscope
Road toll and traffic monitoring
High speed vehicle plate image capture

Public security and investigation

Biometrics
Fingerprint, palm print image capture
Facial recognition
License image capture
Documents and notes image capture and identification
Spectroscopy testing equipment

Specification

Model	MUC500M/C(MRYYO)
Sensor Model	Aptina MT9P031/006
Color	Mono/Color
Image Sensor	CMOS
Sensor Size	1/2.5"
Effective Pixels	5.0MP
Pixel Size	2.2μm×2.2μm
Sensitivity	1.4V/lux-sec
Max. Resolution	2592 × 1944
Frame Rate	9fps
Exposure Mode	Rolling Shutter
Dot Frequency	48MHz
Dynamic Range	70.1dB
Signal Noise Rate	38.1dB
Frame Buffer	32MB Frame buffer
Scan Mode	Progressive Scan
Spectral Response	400nm~1000nm
Input & Output	Optocoupler isolation GPIO, 1 of external trigger input, 1 of flash light output, 1 of 5V input/output
White Balance	Auto / Manual
Exposure Control	Auto / Manual
Main Function	Image preview, image capture(bmp, jpg, tiff), Video record(compressor is optional)
Programmable Control	Preview FOV ROI, Capture FOV ROI, SKIP/Binning mode, Contrast, Brightness, Saturation, Gamma value, RGB color gain, exposure, dead pixels remove, focus evaluation, custom serial number (0 to 255)
Data Output	Mini USB2.0, 480Mb/s
Power Supply	USB2.0 Power Supply, 200-300mA@5V
Compatible Interface	ActiveX, Twain, DirectShow, VFW
Image Format	Support 8bit, 24bit, 32bit image preview and capture, save as Jpeg, Bmp, Tiff format
Operation System	Windows XP/VISTA/7/8/10 32&64 bit OS (can customize for Linux-Ubuntu, Android OS)
SDK	Support VC, VB, C#, DELPHI developing Language; OPENCV, LABVIEW, MIL thirty-parties' machine vision software
Lens Interface	Standard C-Mount ( CS and M12 mount are optional)
Work Temperature	0°C~60°C
Storage Temperature	-30°C~70°C
Camera Dimension	29mm×29mm×30mm((C-mount is not included))
Module Dimension	27mm×27mm×22mm
Camera Weight	35g
Accessories	Equipped with standard infrared filter(not available in mono camera), 2m USB cable with fix screws, 6-pin Hirose GPIO connector, 1 CD with software and SDK.
Box Dimension	118mm×108mm×96mm (length × width × height)
