China Jelly3 Industrial Camera for Robot Arm Visual Positioning 5MP Cameramu3c500m/C (MRYYO)

Product Description

Jelly3 Series USB3.0 Industrial Digital Cameras

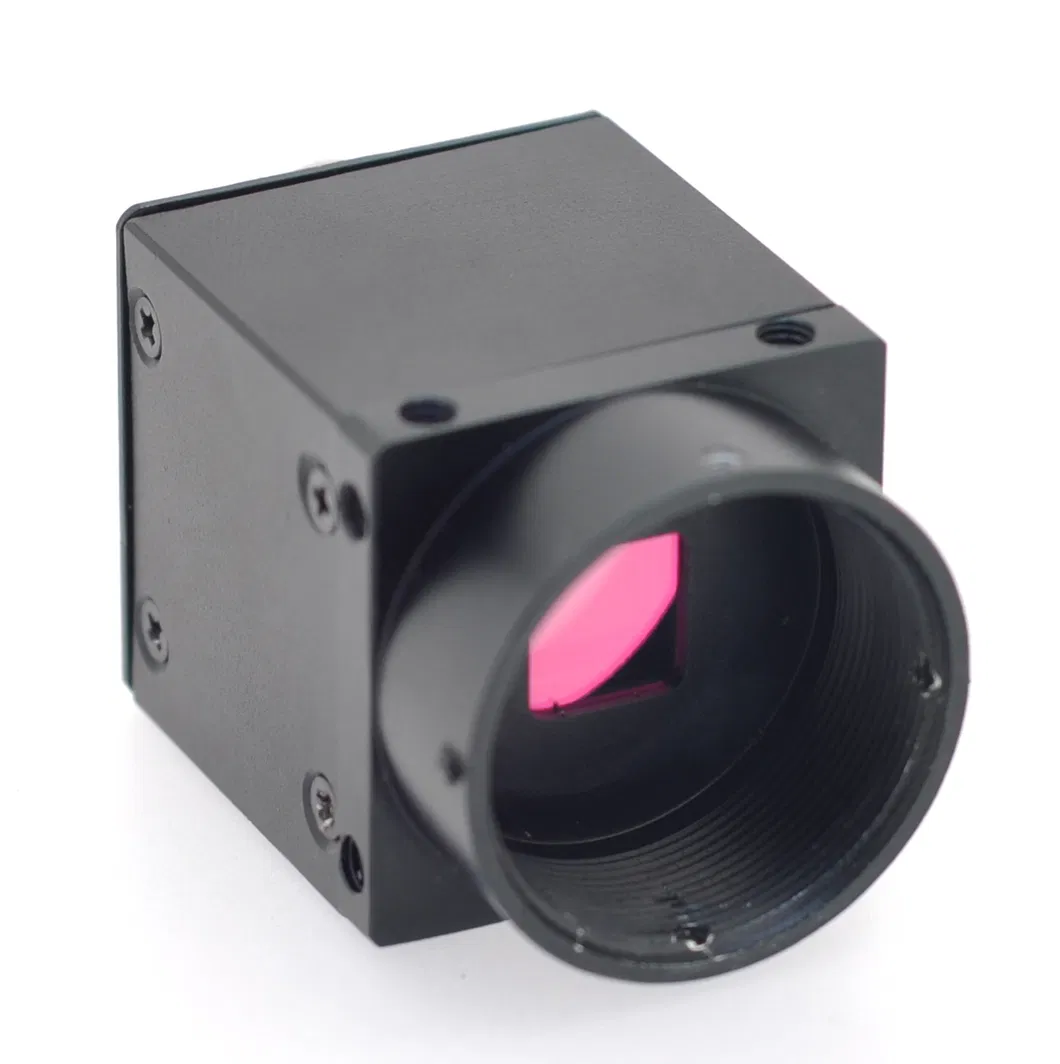

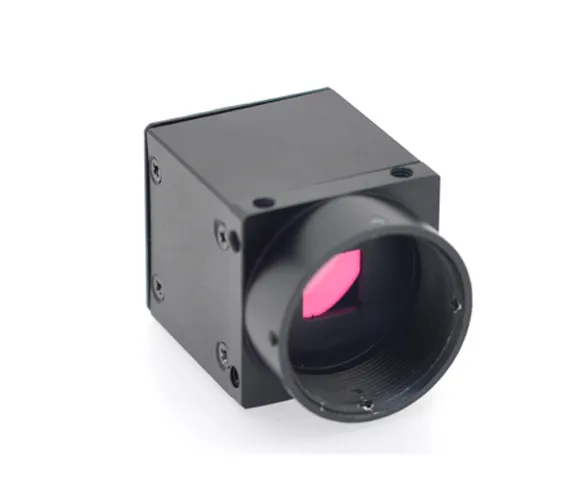

Jelly3 Industrial Camera for Robot Arm Visual Positioning 5MP Cameramu3c500m/C (MRYYO)

Introduction
Jelly3 series USB 3.0 industrial digital cameras adopt the latest USB3.0 technology, the speed is much faster than USB2.0 digital cameras, the resolution range from 1.2MP to 14.0MP. These cameras have high sensitivity, high dynamic range, hardware frame buffer and high-speed features. Jelly3 series digital cameras can be widely used in machine vision and a variety of image acquisition areas.
Features

Mirco USB3.0 High-speed interface, Bandwidth is 5Gb/s, plug and play, no need external power supply;
With 32M built-in hardware frame buffer, make sure no frame lost, support more cameras work together;
Support GPIO opto-isolated external trigger, External trigger delay setting does not affect the acquisition frame rate;
Provide completed API for users' secondary development, support VC, VB and other development language;
Support Windows XP, Win7, Win8, Win10, 32&64 bit operation systems, driver for Linux-Ubuntu & Android Operation System can be customized;
Precision aluminum alloy shell, small size 29×29×30mm, weight 45g.
3m USB3.0 cable comes with fix screws.

8. Support C-mount interface and customize lens interface.

Applications
Jelly3 series USB3.0 industrial cameras are mainly designed for machine vision and various high speed image acquisition areas. They can be used for Gel imaging, License image capture, Medical diagnosis, Microscopy imaging, Notes image capture, Industrial production line image capture, Fingerprint & palmprint image capture, Desktop image, High speed vehicle license plate capture, Outdoor Monitoring, iris capture and etc..

Specification

Model	MU3C500M/C (MRYYO)
Color/Mono	Mono/Color
Sensor Type	CMOS
Sensor Model	Aptina MT9P031
Shutter	Rolling
Sensor Size	1/2.5 inch
Pixel Size	2.2×2.2um
Max Resolution	2592 × 1944
Frame Rate	14fps
Point Frequency	96MHz
ADC Accuracy	12 bit
SNR	38.1dB
Dynamic Range	70.1dB
Scan Mode	Progressive Scan
Image Output	Micro USB3.0, Bandwidth 5Gb/s
Power Supply	USB3.0 Power Supply, 300~500mA@5V
Frame Buffer	32M Bit
Input/Output	Opto-isolated GPIO, 1 channel external trigger input, 1 channel flash output, 1 channel 5V power supply input / output
Main Function	Image display, image capture (bmp,jpg,tiff), video capture(compressor is optional)
Programmable Control	Preview and capture AOI, SKIP/Binning mode, Contrast, Brightness, Saturation, Gamma, Gain, Exposure, Bad pixel remove, Focus Evaluation, User-defined serial Number(0-255), Hardware LUT(lookup table), Hardware CCM (Color Correction)
White Balance	Auto / Manual
Exposure	Auto / Manual
Image Format	Support 8bit, 24bit, 32bit Image Preview and Capture, Save as "Jpeg", "Bmp", "Tiff" format
Driver Support	ActiveX, Twain, DirectShow,VFW
Operation System	Support Windows XP/7/8/10 32&64 bit Operation System (Linux and Android Operation System custom development)
SDK	Support VC, VB, C#, DELPHI developing language, support LABVIEW, OPENCV, HALCON, MIL Software
Lens Port	C-mount
Working Temperature	0°C~60°C
Storage Temperature	-30°C~70°C
Camera Dimension	29mm(height)×29mm( width)×30mm(length)
Camera Weight	45g(High-precision CNC aluminum alloy shell)
Accessories	Color cameras come with IR cut filter(mono camera does not have filter), 3m USB cable with fix screws, 6-pin Hirose GPIO connector, 1 CD with software and SDK.
