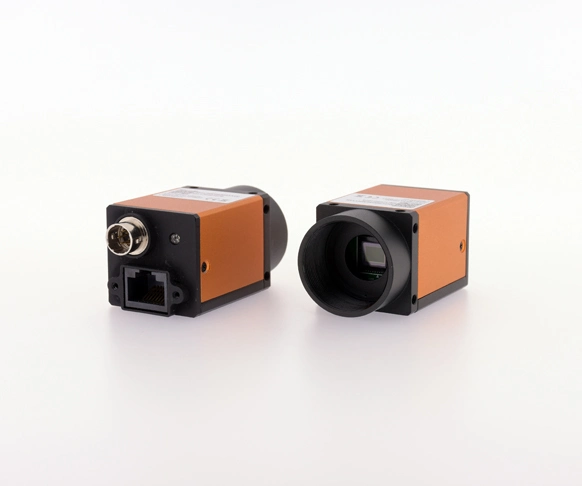

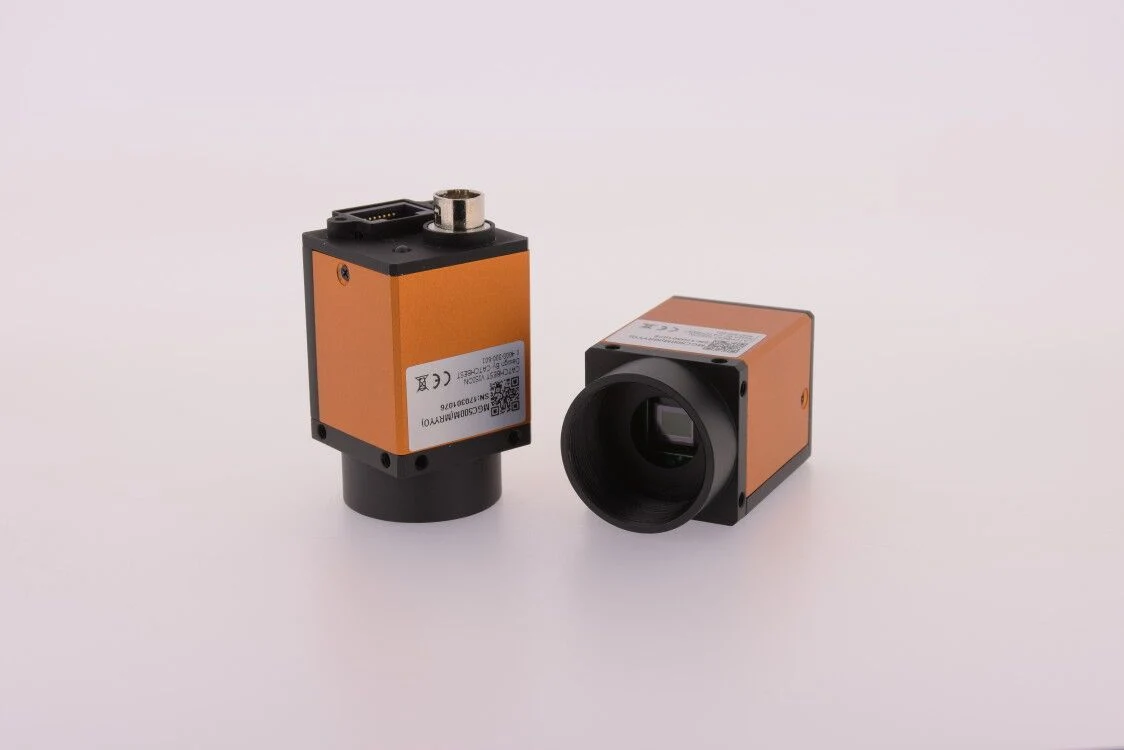

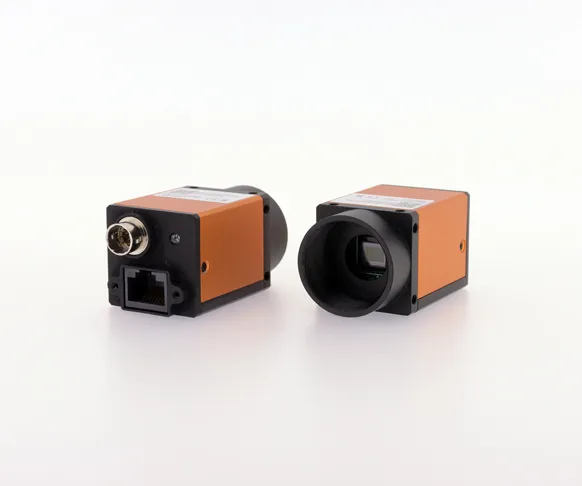

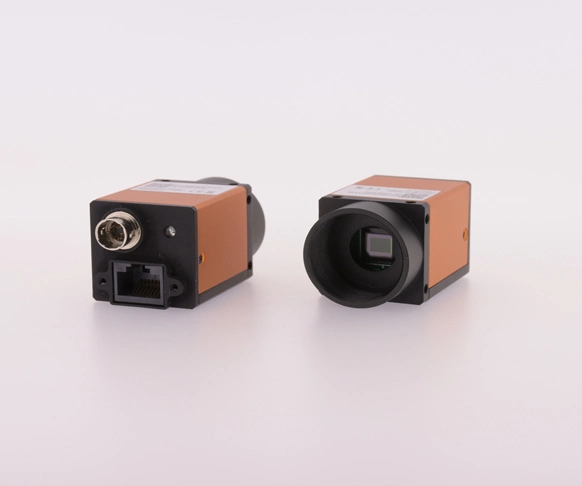

Jelly5 Gige Vision Industrial Camera 5MP 14fps for Machine Vision Mgc500m/C

Product Description

Jelly5 Series GigE Vision Industrial Digital Cameras

Jelly5 Gige Vision Industrial Camera 5MP 14fps for Machine Vision Mgc500m/C

Introduction
Jelly5 series GigE Vision industrial digital cameras adopt the latest GigE Vision technology, the cameras allow distant fast image transfer with low cost. The cameras support hot-plug, flash light, and external trigger. Jelly 5 series digital cameras can be widely used in machine vision and a variety of image acquisition areas.
Features

Adopt GigeE Vision interface, the utmost transmission distance can be up to 100 meters with Super 5 types network cable;
Mono and color cameras resolution from 0.4MP to 14.0MP;
Global shutter series [email protected], [email protected], [email protected];
Rolling shutter series [email protected], [email protected];
Support AOI, exposure adjustment, gain adjustment, GPIO Opto-isolated external trigger interface;
GigE Vision protocol, provide completed SDK for users' secondary development, support VC, VB, C# development language and LABVIEW, HALCON, VISIONPRO 3rd party software;
Support Windows XP, WIN 7, WIN 8, WIN 10 32&64 bit and Linux 32&64 bit operation systems;
CNC processed high precision aluminum alloy housing, size 29×29×37.5mm;
Support C-mount interface and customize lens interface;
12V external power supply, power <3w.

Application
Jelly5 series GigeE Vision industrial cameras are mainly designed for machine vision and various image acquisition areas. They can be used for Gel imaging, License image capture, Medical diagnosis, Microscopy imaging, Notes image capture, Industrial production line image capture, Fingerprint & palmprint image capture, Desktop image, High speed vehicle license plate capture, Outdoor Monitoring, iris capture and etc..

Specification

Model	MGC500M/C
Sensor Model	Aptina MT9P031
Mono/ Color	mono/color
Sensor Type	CMOS
Scan Mode	Progressive Scan
Shutter	Rolling Shutter
Effective Pixel	5.0MP
Sensor Size	1/2.5 inch
Pixel Size	2.2μm×2.2μm
Max Resolution	2592 × 1944
Frame Rate	14fps
Min. Exposure Time	35μs
SNR	38.1dB
Dynamic Range	70.1dB
Image Output	GigE interface, Bandwidth 1Gb/s
Power Supply	External Power Supply, 12V 1A
Frame Buffer	1GB
Input / Output	Opto-isolated GPIO, 1 of external trigger input, 1 of flashlight output, 1 of 12V power input
Main Function	Image preview, image capture, video capture
Programmable Control	Capture field of view AOI, SKIP/Binning mode, RGB Gain, Exposure, Fixed frame rate, External trigger capture
White Balance	Auto / Manual
Exposure	Auto / Manual
Image Format	Support 8bit, 24bit, 32bit Image Preview and Capture, Save as "Jepg", "Bmp", "Tiff" format (mono cameras support 8bit bitmap)
Supported Standard	GigE Vision
Operation System	Support Windows XP/7/8/10 32&64 bit, Linux 32&64 bit Operation System
SDK	Support VC, C#, VB, DELPHI developing Language, LABVIEW, OPENCV, HALCON, MIL software
Lens Interface	Standard C-mount (CS-mount and M12 mount is optional)
Working Temperature	0°C~60°C
Storage Temperature	-30°C~70°C
Camera Dimension	29mm(height)×29mm( width)×37.5mm(length)
Camera Weight	54g
Warranty	3 Years
Accessories	Color cameras come with IR cut filter(mono camera does not have filter), 3m GigE cable(5m is optional) with fixing screws, 6-pin Hirose GPIO connector, external trigger cable(2 pins for power supply), 1 CD with software and SDK.
