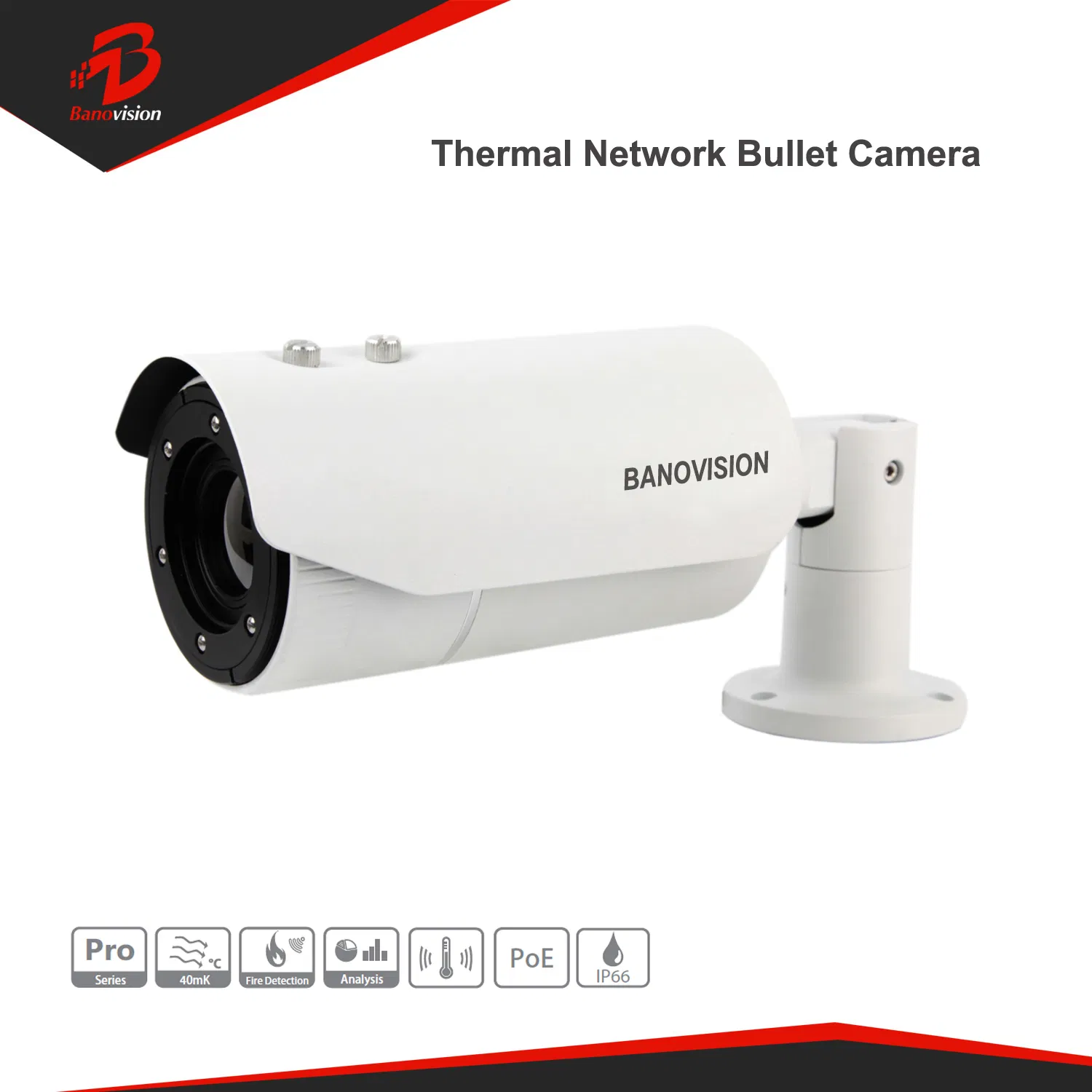

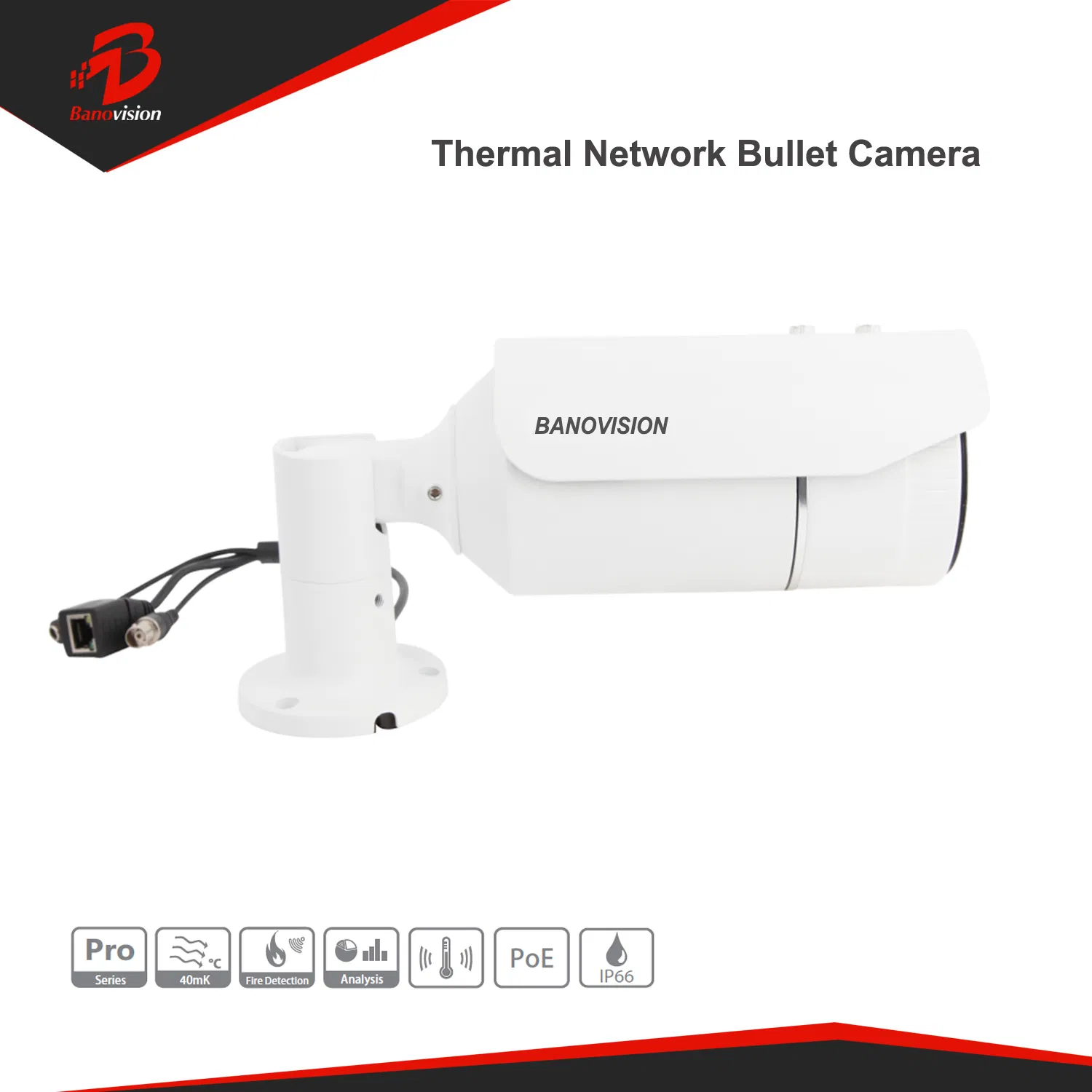

Product Description

Features:
• Passive infrared imaging technology
• 384×288 uncooled FPA
• The focal length of the athermal focus lens is not affected by the high and low temperature environment
• Pseudo color: this network camera can choose different color patterns, display the temperature of different objects in different colors.
• Intelligent fire detection function: multi-level fire point detection, efficient detection, reduce false positives
• Support for cross-border detection, regional intrusion detection, mobile detection
• Warning: when an event occurs, the picture is sent to the user's registered e-mail address or FTP server, or saved to the micro SD card.
• Web browser based surveillance: using the Internet Web browser to display images in a local network environment.
• Consistent with ONVIF: This product supports
• ONVIF Pro le-S. For more information, see banovision.en.made-in-china.com
• Outdoor IP66 protection level, lightning protection, anti surge, anti surge

Specification:

Model No.		BA-NT638D
Video	Detector type	Uncooled FPA
	Array Pixel	384×288
	Pixel pitch	25um
	NETD	< 100mK
	Spectral range	8-14μm
	Frame rate	50Hz
	Video output	CVBS : 1.0 Vp-p / 75Ω composite,720x480(N),720x576(P),
Lens	Lens focus length and FOV	50mm:11.0°×8.1°
	Focus method	Fixed athermal, lens water-proof,hard carbon film
	F	F1.1
Tilt	Tilt range	0-90 degree
Operation	Electric zoom	1X/ 2X/3X/4X
	Brightness/gain	Manual
	Denoise	Close/open
	Image enhancement	Close/open
	Pseudo color	12 mode switching
	Calibration	Manual, auto, timing
	Flip/mirror	Close/open
	Alarm triggering	Gray level alarm, mobile detection, area intrusion, cross boundary alarm, network disconnection, IP conflict, memory full, memory error
	Alarm event	upload the file via FTP
		inform via e-mail
		When an event occurs, local storage or record event
Network	Ethernet	RJ-45 (10/100BASE-T)
	Video compression format	H.264, Motion JPEG
	Resolution	720x576 / 720x480 / 640x480 / 384x288 / 320x240
	Maximum frame	H.264: maximum 30 fps
	Maximum frame	Motion JPEG:640x480: maximum 15 fps
	Video quality modulation	H.264:compressed level, target bit rate level control
	Bit rate control	H.264:CBR or VBR
	Audio compressed format	G.711A/G.711U/G.726
	IP	IPv4
	protocol	TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, FTP, ICMP, IGMP, ARP, DNS, DDNS
	Safety	HTTPS(SSL) validate logon
		Classified validate logon
		IP address filter
		User access log
		802.1X authentication method
	Storage	Micro SD- download the moving image recorded in SD
	Storage	NAS- support to record to NAS
	Application programming interface	OnVif Profile S
	Web viewer	Supported wed browser : Microsoft Internet Explorer (vision 9~11)
Environment	Working temperature	-20ºC~+50ºC scalable to -40ºC~ +60ºC
	Storage temperature	-45ºC~ +70ºC
	Input voltage/current	DC12V±10%
	Input voltage/current	PoE(IEEE802.3af, Class3)
	Consumption	6W(normal working)
	Consumption	6W(PoE, Class3) (normal working )
	Protection level	IP66
Machine	Color/material	Ivory/aluminum
	Dimension	Length :323mm
	Dimension	Maximum outside diameter:100mm
	Weight	1.24Kg
