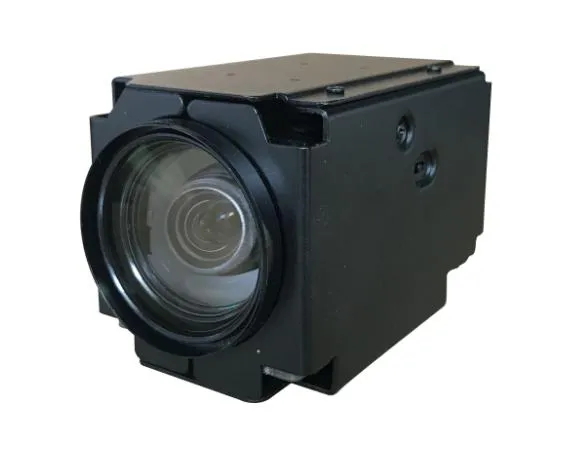

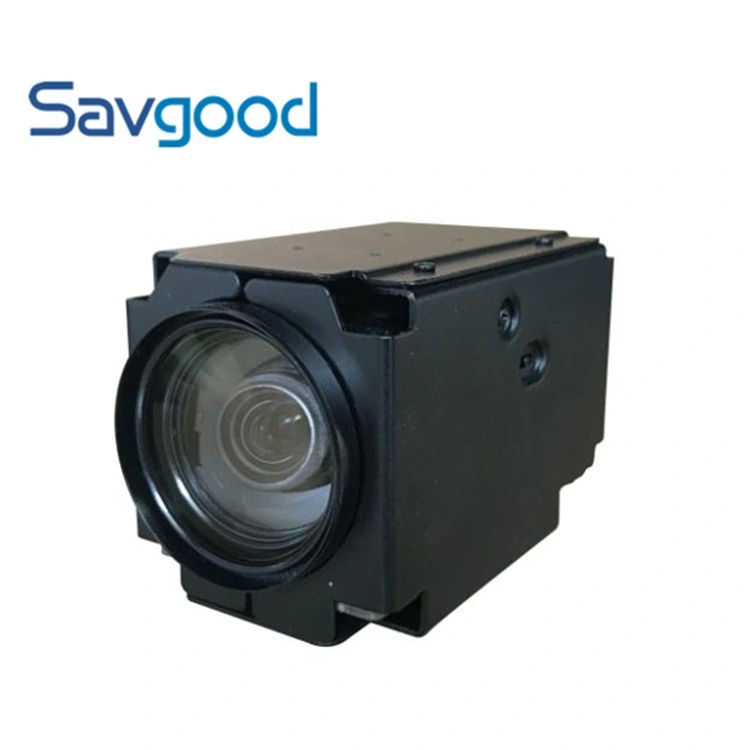

Low Illumination 23X Optical Zoom Digital Lvds Block Camera Module

Product Description

Model:

SG-ZCM2023DL

- 2Megapixel 23x Zoom Starlight Digital Camera Module

1. Features

> 1/2.8" Sony Exmor CMOS Sensor.

> Powerful 23x optical zoom (5~117mm).

> Max. 2Mp(1920x1080) Resolution

> Support Electronic Defog

> Accurate focus, high speed, great image effects, precise color reproduction, excellent night vision with low light effects.

2. Specification

Model		SG-ZCM2023DL
Sensor	Image Sensor	1/2.8" Sony Exmor CMOS
	Effective Pixels	Approx. 2.13 Megapixels
	TV Line	≥1100TVL
	Max. Resolution	1920×1080
Lens	Focal Length	5mm~117mm, 23x Optical Zoom
	Aperture	F1.5~F3.5
	Close Focus Distance	0.1m~1.5m (Wide~Tale)
	Angle of View	H: 58°~2.8°(N~F)
Resolution		50Hz: 25/50fps@2Mp(1920×1080) 60Hz: 30/60fps@2Mp(1920×1080)
S/N Ratio		≥55dB (AGC Off, Weight ON)
Minimum Illumination		Color: 0.001Lux/F1.5; B/W: 0.0001Lux/F1.5
EIS		Electronic Image Stabilization (ON/OFF)
Electronic Defog		ON/OFF
Day/Night		Auto(ICR) / Color / B/W
Zoom Speed		Approx 3.5s(Optical Wide-Tele)
White Balance		Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp
Electronic Shutter Speed		1/1~1/30000s
Backlight Compensation		Support
Wide Dynamic Range		DWDR
High Light Control(HLC)		Support
Digital Zoom		4x
2D Noise Reduction		Support
3D Noise Reduction		Support
Communication Interface		LVDS Interface
Focus Mode		Auto/Manual/Semi-automatic
Operating Conditions		(-30°C~+60°C/20% to 80%RH)
Storage Conditions		(-40°C~+70°C/20% to 95%RH)
Power Supply		DC 12V±15% (Recommend: 12V)
Power Consumption		Static power: 3.5W, Sports power: 4.5W
Dimensions(LWH)		Approx. 96mm52mm58mm
Weight		Approx. 300

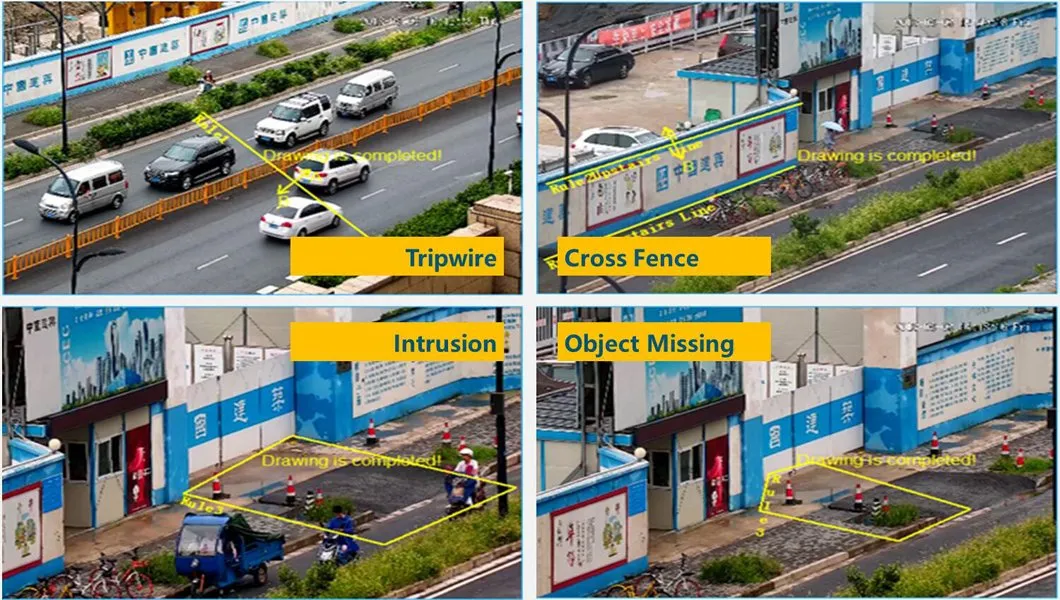

3. IVS (Intelligent Video Surveillance)

4. VS Others

5. Application Solution

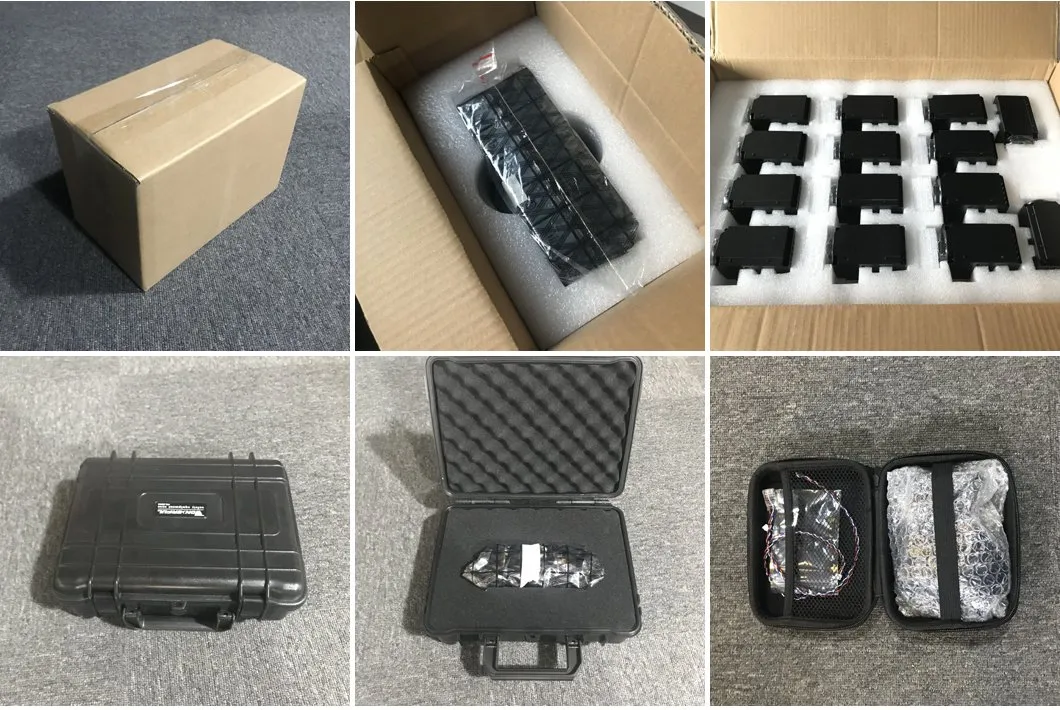

6. Packing
