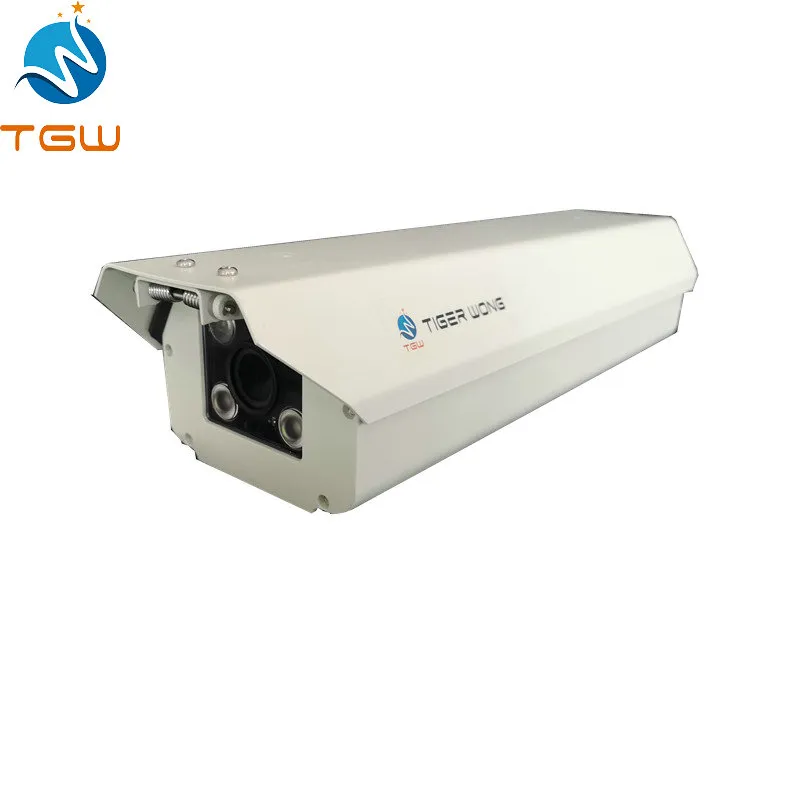

Lpr Automatic License Plate Recognition Security Camera Parking Management System Smart Parking System CCTV Camera Car Parking System Access Control

Product Description

ALPR Parking System Advantages

ALPR System Service for Parking lot Management.
Automatic identify vehicle license text and figures.
Reduce labor cost and management difficulty of parking lot system.
Improve vehicle traffic efficiency.
Ticketless/ card less parking lot management.

Model No.	TGW-LCVT
Applications	Parking lot, car washing, etc.
Pots	TCP.IP ports, Power supply ports

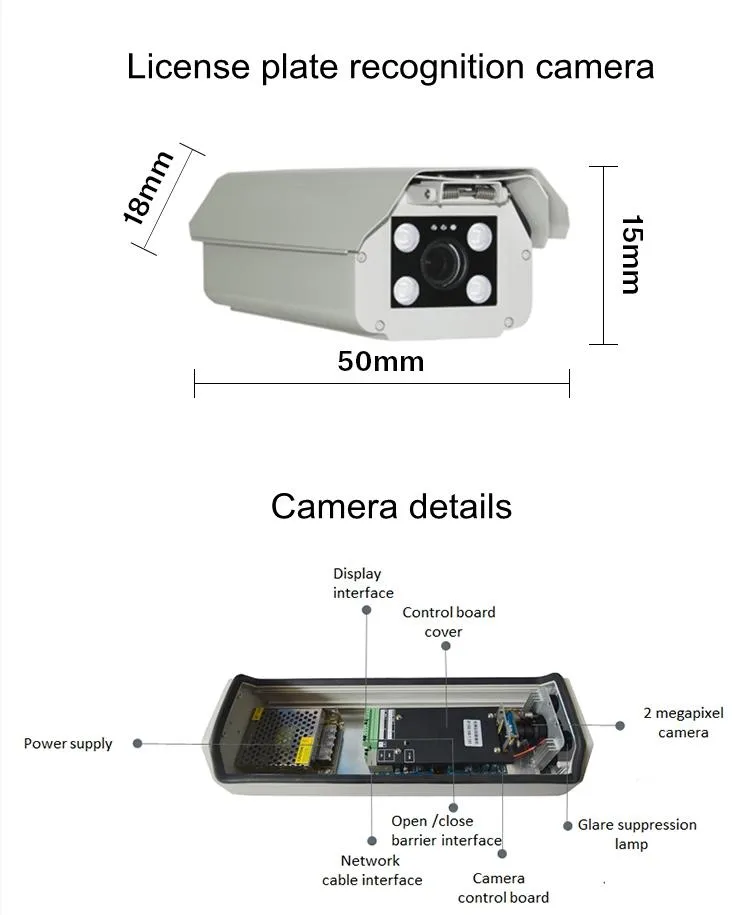

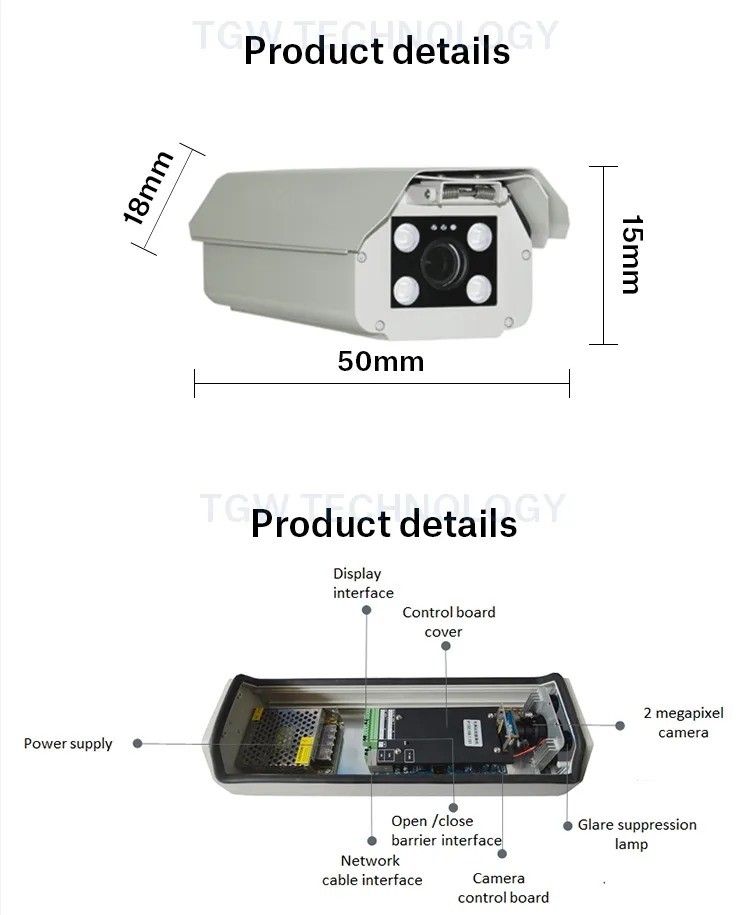

Hardware configurations	Lens (2.8-12mm) : 1pc Waterproof shell 15 inch : 1pc Power supply : 1pc
Video input	Sensor	1/2.8" CMOS
	Min illumination	0.1lux color
	Time of exposure	0-1ms or customize
	Lens	Variable lens,manual focus,2.8-12mm
Video compress	Compress standard	H264
	Compress bit rate	512-5000kbps
	Dual-stream	Main:1080P/720P/D1(704576)/CIF(352288)/640360 Sub:D1(704576),CIF(352288),640360
	Frame rate	1-25fps,default 25fps
Interface	Power supply	12V/2A,support 9-15V DC
	Internet	one RS485
	TF card	Default8GB SD/TF card,extend capacity to 128G
	Reset	Reset parameter
	USB	USB Type A
	IO interface	one in one out
	Audio	one in one out
	Fill light	Support external fill light
Realiability	Temperature	-20ºC~+70ºC
	IP class	IP66
	Power consumption	<7W
	Power supply	12V-2A
Image ISP	Image set	brightness,contrast,saturability,definition,exposure
	Low-light	Support
	2D/3D denoise	Support
	Wide dynamic	Support

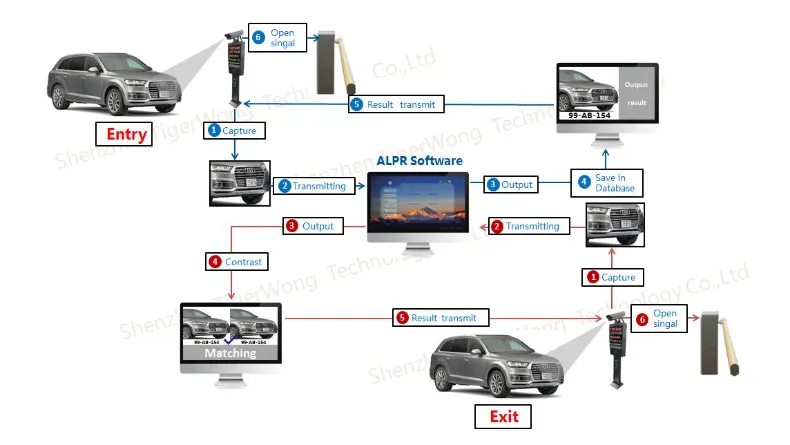

How Does the License Plate Recognition System works?

Entry:
The license plate recognition camera captures an image by means of vehicle head detection or loop coil trigger,
and the image is transmitted to the software. The software algorithm recognizes the image, writes the recognition
result into the database and returns it to the camera, and the camera sends the switchsignal to barrier switch.

Exit:
The license plate recognition camera captures an image by means of vehicle head detection or loop coil trigger,
and the image is transmitted to the software. The software algorithm recognizes the image,outputs the recognition result
and compares it with the entrance recognition result in the database. The comparison is successful and the result is returned to the camera.

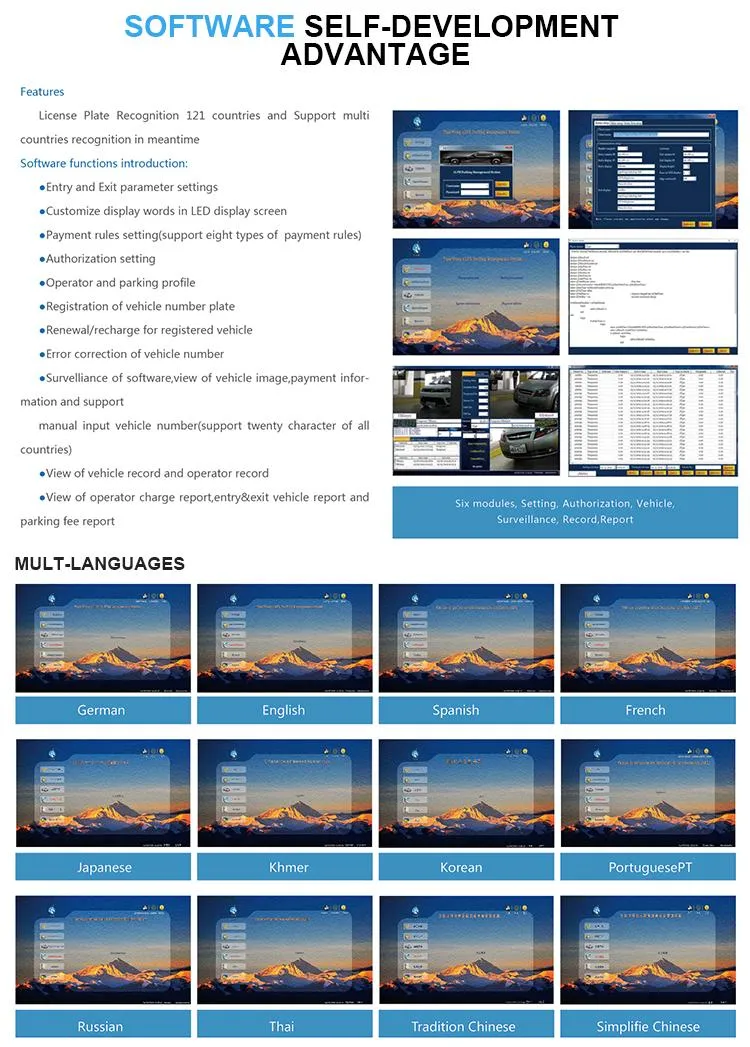

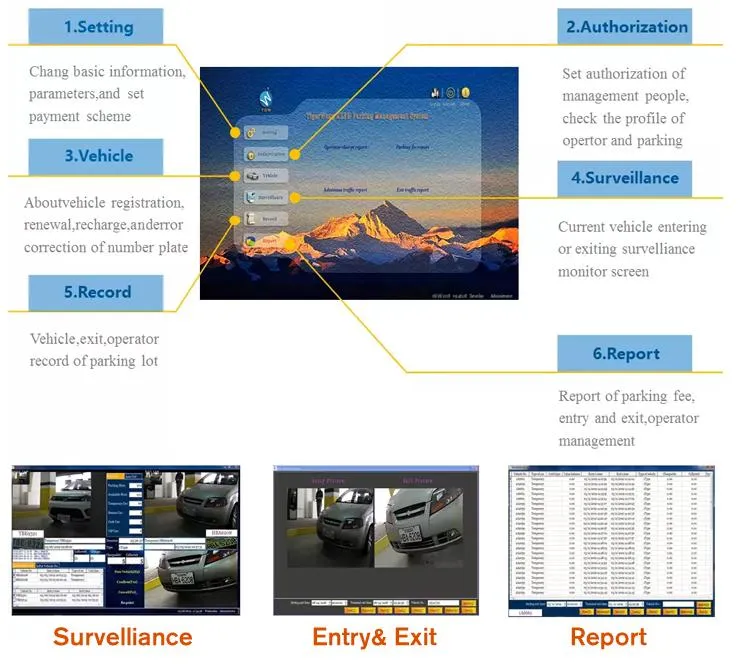

TGW LPR Software Functions

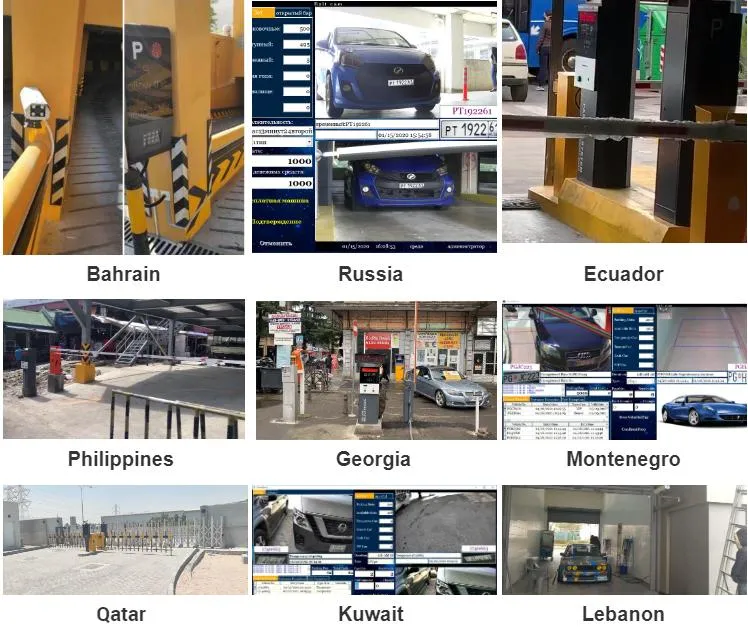

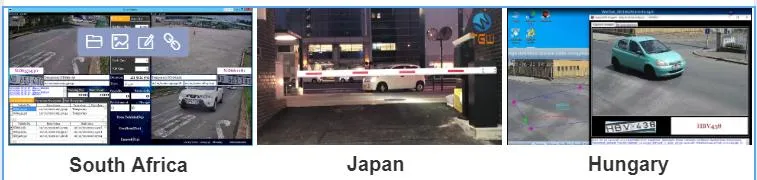

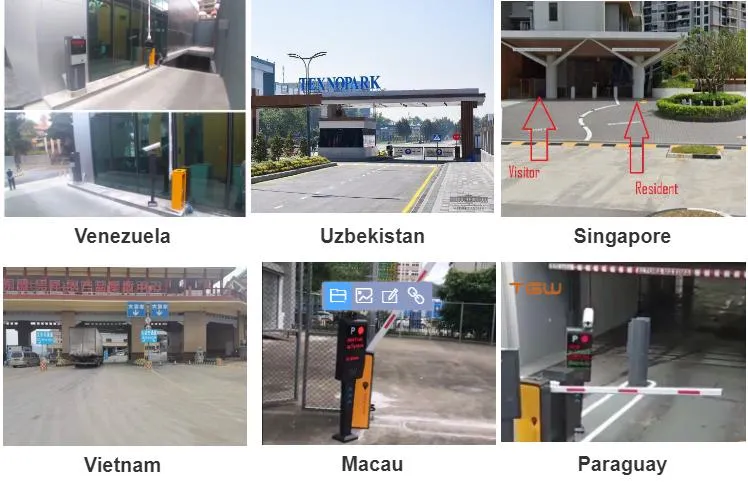

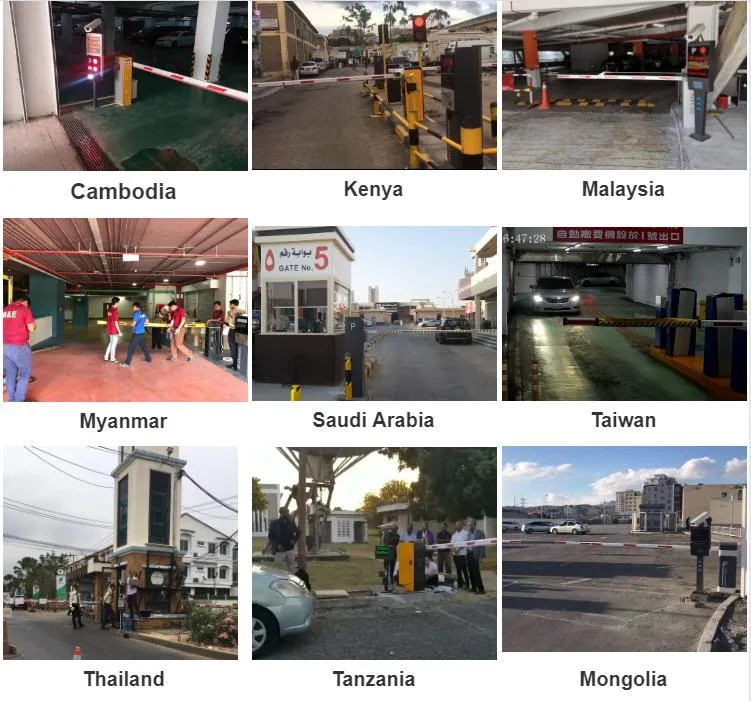

TGW Some Global Projects

Lpr Automatic License Plate Recognition Security Camera Parking Management System Smart Parking System CCTV Camera Car Parking System Access Control

Lpr Automatic License Plate Recognition Security Camera Parking Management System Smart Parking System CCTV Camera Car Parking System Access Control
1. Q: Are you a manufacturer or a trading company?
A: We are one of the TOP 5 company in LPR system industry with more than 17 years. All the LPR management software
are developed by our R&D team.

2. Q: What kind of technical support you can provide?
A: We have professional R&D team and technical department, they can assist you in any installation task and technical guide.
And if necessary, our engineer could fly to your country to provide service.

3. Q: Can you provide OEM service?
A: Yes we can. As we have our own R&D team, we can develop the software and manufacture the hardware per your request.

4. What countries license plate could be recognized by your LPR Software?
A: So far, our LPR System could recognize 128 countries license plate. You can provide a licence plate number picture to us
and we can test it and then send the recognition result video to you for review.
