Product Description

Middle Range Uncooled FPA Thermal Camera

1.Product

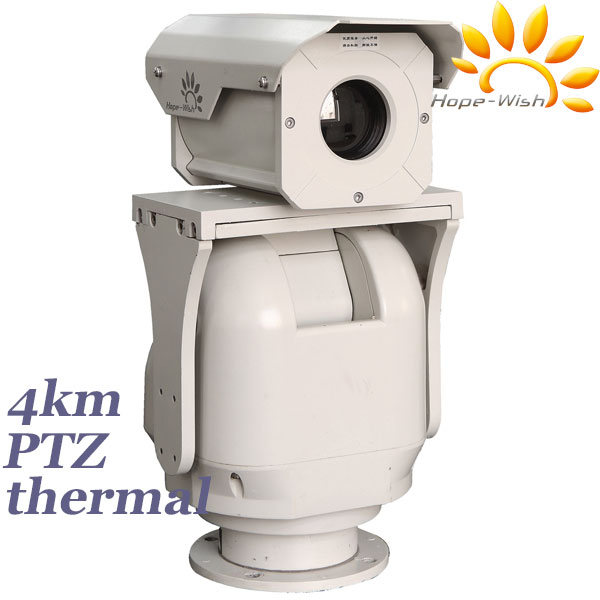

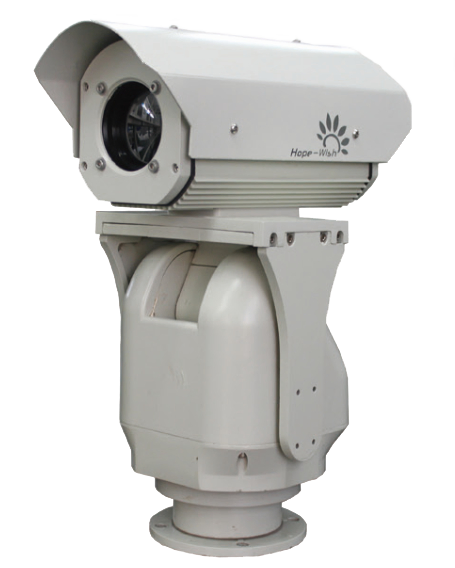

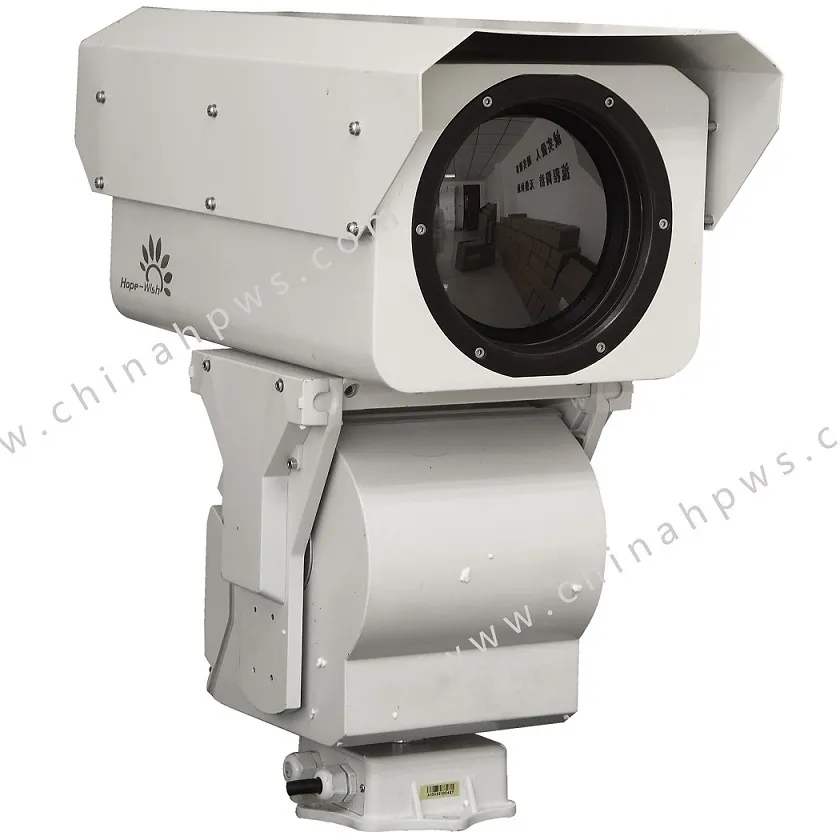

TC series long distance zoom thermal camera

2.Introduction

TC series thermal imaging camera is based on the latest uncooled IR sensitive technology and continuously IR optical zoom. User could get a best imaging details with 336*256/640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm. Special design of 5X optical zooming lens have detection distance 16km, suit for both seeking and watching. One integral aluminum alloy housing make sure the camera works well outdoor.

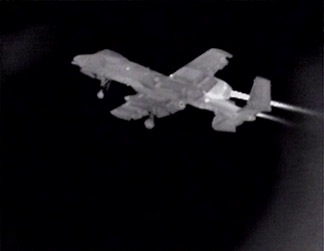

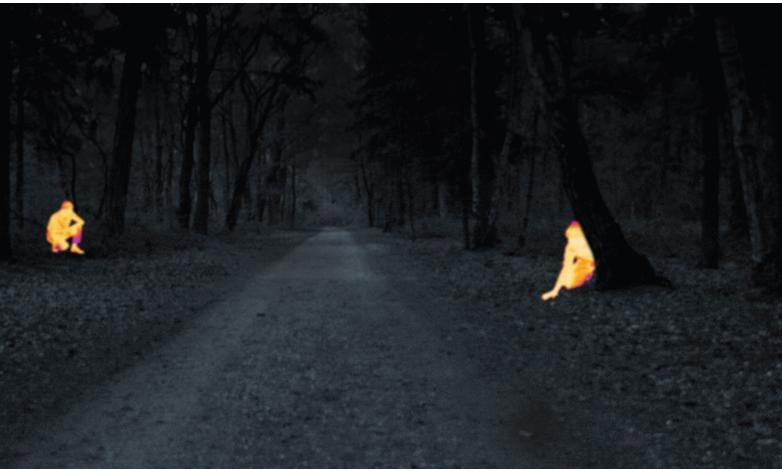

TC45 series thermal camera integrate high sensitive FPA sensor, electronic and optical systems, could penetrate fog/dirt/rain/snow and image 24 hours.

3.Application

Oilfield safety, railway&freeway security, river&airport security, border defense, forest fire prevention, city safety.

4.Feature

NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.
Special AS optical zooming lens and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.
Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W, B/W inverse.
One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.

5.Technical specification

Model	TC4307(PT)- S	TC4510(PT)- S	TC4515(PT)- S	TC4518(PT)- S
Detection	Vehicle:6500m Human:2500m	Vehicle:8600m Human:3400m	Vehicle: 13000m Human: 4800m	Vehicle: 16400m Human: 5800m
Identification	Vehicle:1800m Human:700m	Vehicle:2400m Human:900m	Vehicle:3400m Human:1300m	Vehicle:4200m Human: 1600m
Sensor	5th generation UFPA sensor
Resolution	336256 pixel (640512 optional)
Spectral response	7.5~14μm
NETD	50mK(@25ºC F1.0)
Focal length	21-75mm	21-105mm	31-155mm		37-185mm
FOV	13°~4.3°	18°~3.4°	11.2°~2.2°		9.5°~1.9°
Lens control	Motorized zoom and focus(optional auto focus)
Image processing	1. stable operational temperature without TEC, starting time less than 4 seconds 2. SDE digital image processing 3. 10 pseudo color and B/W, B/W inverse 4. AGC 5. 2X digital amplification
PT(optional)	1. Duty 20kg 2. Rotation, Pan: 0~355°, tilt: -60~+10° 3. Rotation speed, pan: 9°/S, tilt: 4°/S, 4. Preset 32(Optional variable speed PT)
Interface	1. RS-485(PELCO D protocol, baud rate 2400bps, RS-232(optional) 2. Remote OSD setting 3. PAL/NTSC video output 4. AC24V( DC12V optional) 5. Waterproof connector
Environment indicator	1. One integral aluminum alloy housing 2. Operational temp.: -35°~55°(-45° optional ) 3. Power consumption: common 8W, peak 36W(exclude PT consumption)
