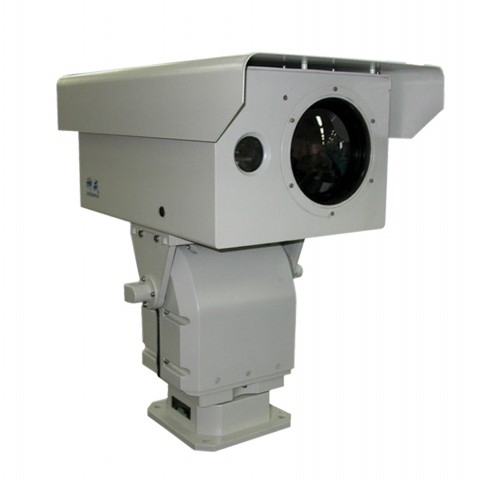

Military Grade Border Defense Day and Thermal Dual Sensor Thermal Imaging IP Camera
Product Features 1. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance2. Infrared detector with high temp sensitivity, with min temp resolution of 50mK3. Day and night 2 megapixels low illuminance color camera, ......
Send Inquiry
Product Description
Product Features
1. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
2. Infrared detector with high temp sensitivity, with min temp resolution of 50mK
3. Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring
4. Optional auto focusing function, realizing multiple focusing mode and triggering mode
5. Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency
6. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability
7. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain
Package
Exhibition
1. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
2. Infrared detector with high temp sensitivity, with min temp resolution of 50mK
3. Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring
4. Optional auto focusing function, realizing multiple focusing mode and triggering mode
5. Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency
6. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability
7. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain
Specification
| Operating distance | Visible light | 1000m | ||
| Thermal imaging | object | human(1.8m×0.5m) | Vehicle(2.3m×2.3m) | |
| Detection distance | 3600m | 9900m | ||
| Recognition distance | 900m | 2470m | ||
| Identification distance | 450m | 1200m | ||
| Camera and video coding | Sensor type | 1/2.8" Progressive Scan CMOS | ||
| Total pixels | 2.1MP | |||
| Lens focal length | f=4.5~135mm,30* optical zooming | |||
| Camera control | Auto gain control, auto white balance, auto backlight compensation, supporting manual and auto day and night mode switch | |||
| Coding format | H.264 | |||
| Video resolution | 1920x1080 | |||
| Video frame rate | 1~30f/s | |||
| Image adjustment | brightness, contrast ratio, saturation | |||
| Infrared lens | Focal length | 30~150mm,5* optical zooming | ||
| FOV | 3.1°×2.4°~15.2°×12.2° | |||
| F value | F1.0~F1.2 | |||
| Lens control | electric zooming, electric focusing(auto focusing optional) | |||
| Detector | Detector type | uncooled microbolometer focal plane array(VOx) | ||
| Effective pixels | 384×288 | |||
| Spectral range | 8~14μm | |||
| Temp sensitivity | ≤[email protected],300K | |||
| Frame rate | 25Hz | |||
| Image processing | DDE, pseudo color | |||
| Pan-tilt | Carrying capacity | 22kg(top load) | ||
| Angle | Horizontal 360°continuous rotation,pitching -45°~+45° | |||
| speed | Horizontal 0°~9°/s,pitching 0.1°~4°/s | |||
| Preset bits | 255 | |||
| Cruising | 8 paths,10 bits each path | |||
| Anti-lightning | 2000V | |||
| Interface | Power supply interface | AC24V | ||
| Network interface | 1×10Base-T/100Base-TX,RJ45 | |||
| Other interfaces | RS485,BNC video output | |||
| Environment indicators | Working temp | -25ºC~+55ºC | ||
| Storage temp | -40ºC~+65ºC | |||
| Protection grade | IP66 | |||
| Power supply | Whole machine power supply | 24VAC±10%,appendant 220VAC~24VAC/5A water proof power supply | ||
| Whole machine power consumption | ≤60W | |||
| Physical features | Whole machine weight | 21kg | ||
| Installation method | Outdoor pedestal mounting | |||
