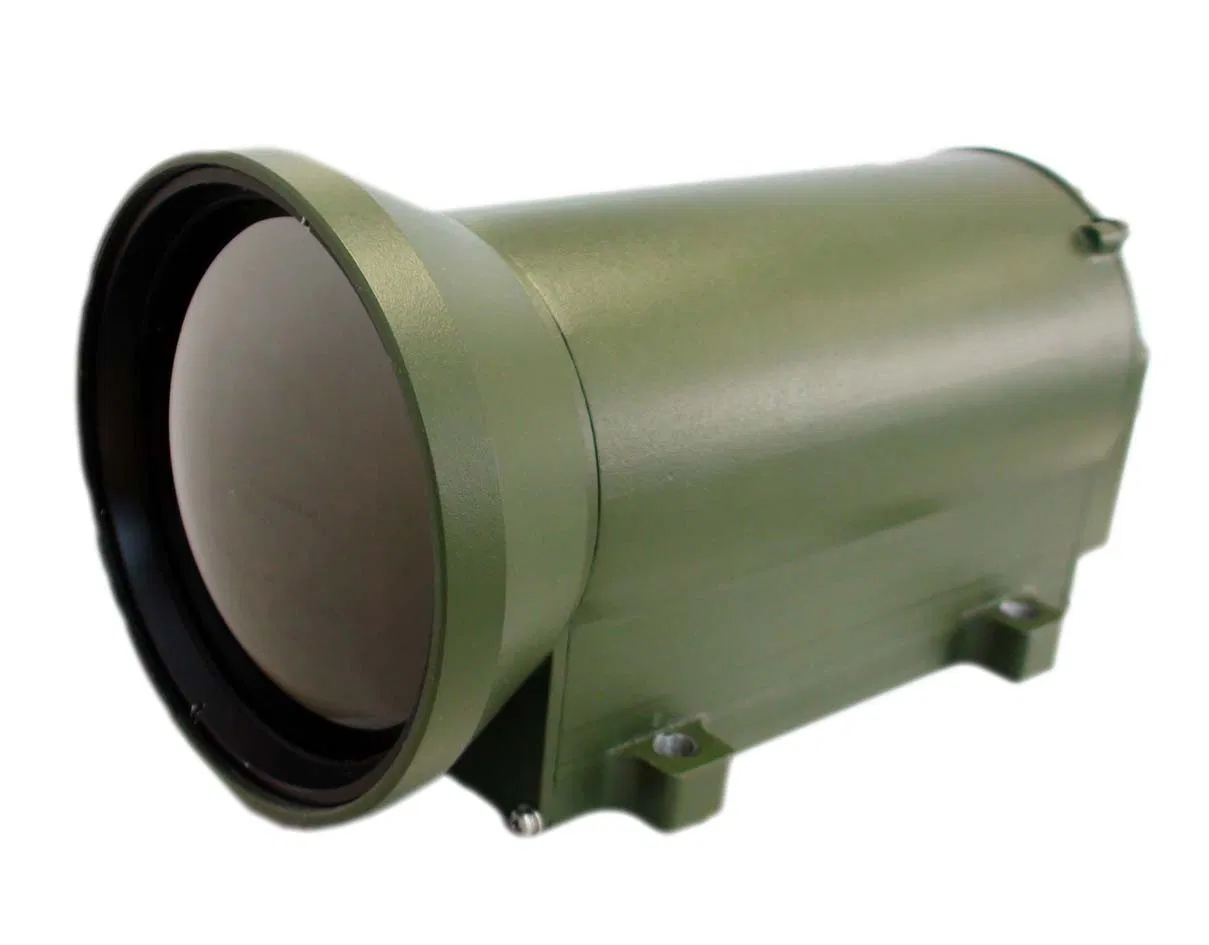

Product Description

Features

Uncooled microbolometer infrared focal plane arrays,vox
25µm pixel, image quality fine, observe small target more clearly, further detection distance
High sensitivity, NETD can reach 50mk and frame at 25Hz, good fog penetrate
Dual FOV lens, can expand the search scope, and also identify distant goals, do not lose the target, switch quickly
Advanced image noise reduction process, DDE(digital image details enhancement) function, outputting hot white/ hot black/ pseudo color image
Low power consumption, quick start, stable performance
Standard RS485 interface control, analog video signal output
Simple operation, easy to use and maintain

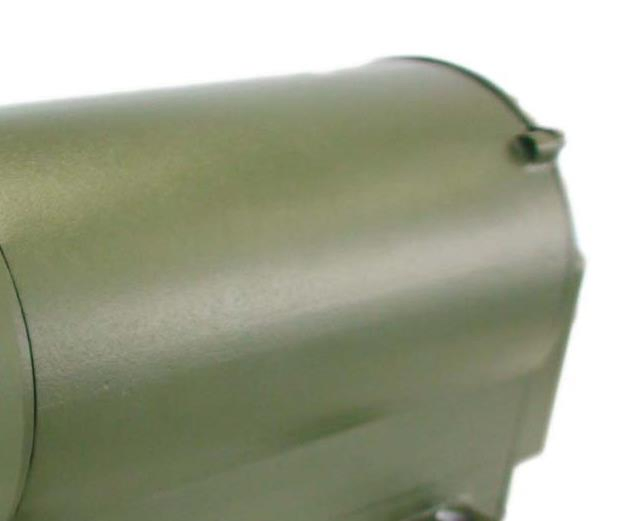

Precision cast aluminium alloy housing, seal waterproof, nitrogen inside, anti-harsh environment, super long work life

Technical data

Model		SHR-TIR30/90R
Monitoring Distance	Object	Human (1.8m×0.5m)	Vehicle (2.3m×2.3m)
	Detection	720/2160m	1980/5940m
	Recognition	180/540m	490/1480m
	Identification	90/270m	240/720m
Detector	Type	Uncooled microbolometer FPA (Vox)
	Resolution	324×256, pixel 25μm
	Spectrum	8~14μm
	NETD	≤50mK
	Frame	25Hz
	FFC	Auto/ manual/ background correction
	Image process	DDE/pseudo color
	Video output	PAL/NTSC

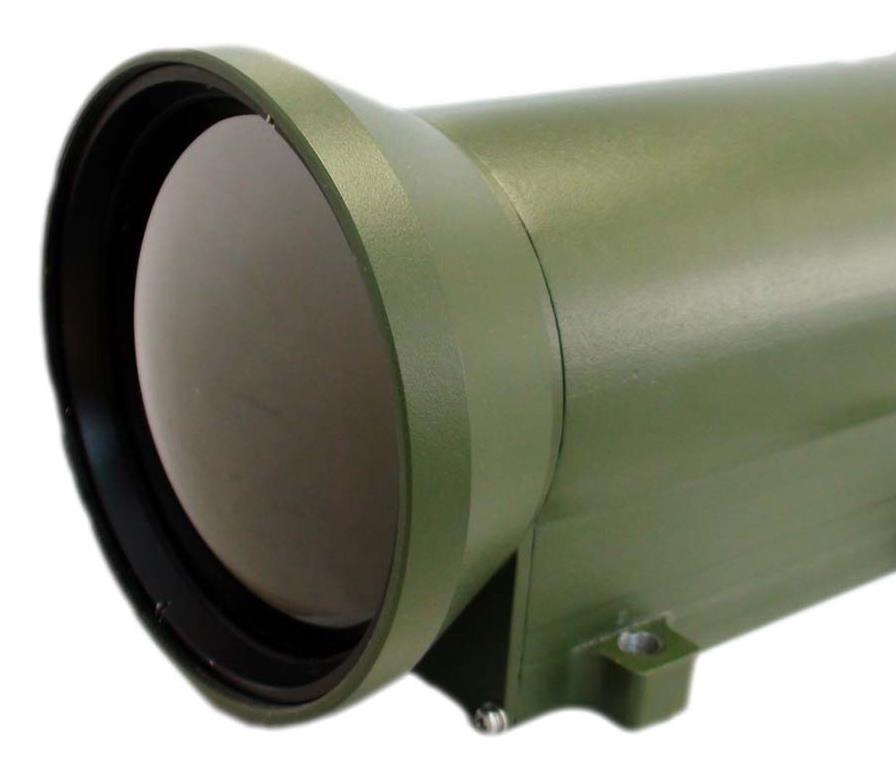

Lens	Focal length	30/90mm, dual FOV lens
	FOV	15.4°×12.2°/5.2°×4.1°
	F value	F1.0
	Lens control	E-zoom/focus
Interface	Power	DC12V
	Others	RS485, BNC video output
Environmental indicators	Operation temperature	-25ºC~ +55ºC(-40ºC~ +55ºC customized)
	Storage temperature	-40ºC~ +65ºC
	Protection	IP66
	Vibration	10~ 55Hz, 0.75mm
	Anti-impact	150m/s², 11ms
	Salt-fog proof	PH 6.5~7.2, continuously spraying 48 hours, surface with no change
Power	Whole power	DC12V(Equip with AC220V/DC12V power adapter)
	Power consumption	≤8W
Physical features	Weight	≤2kg
	Size	216mm x 106mm x 109mm
	Installation method	Outdoor base install
