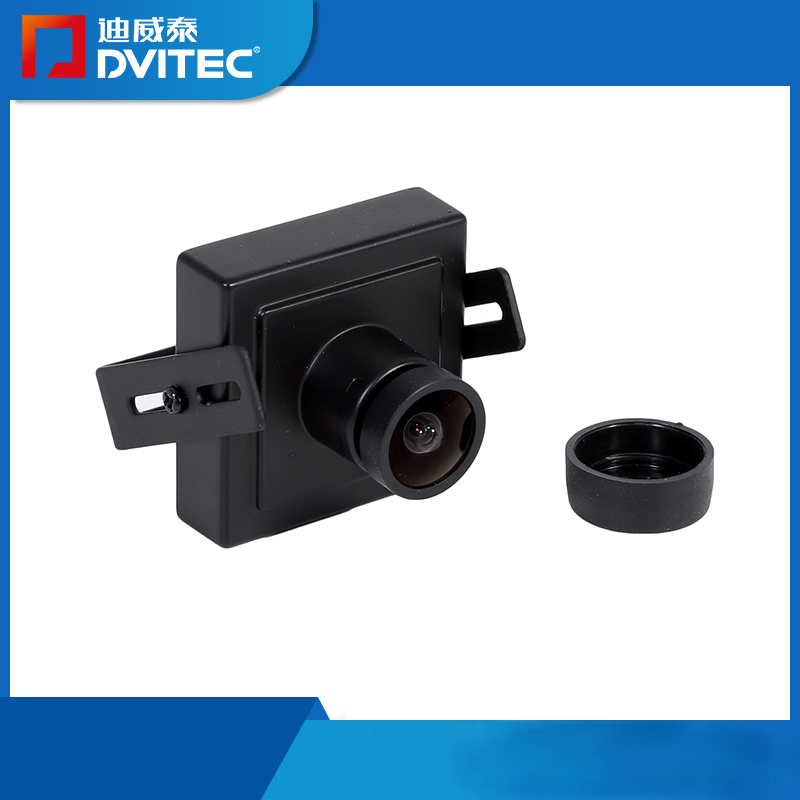

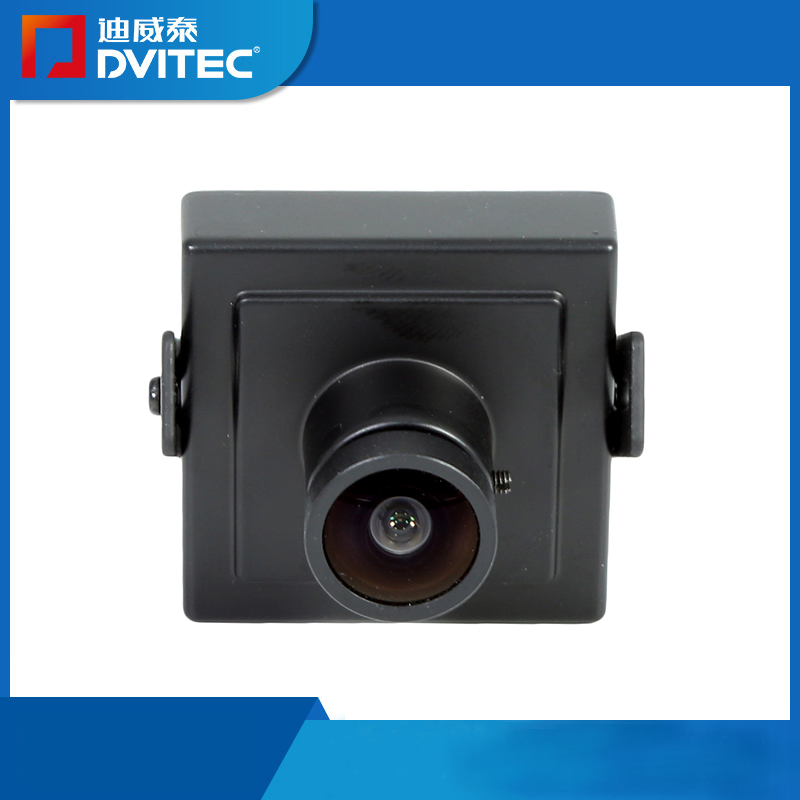

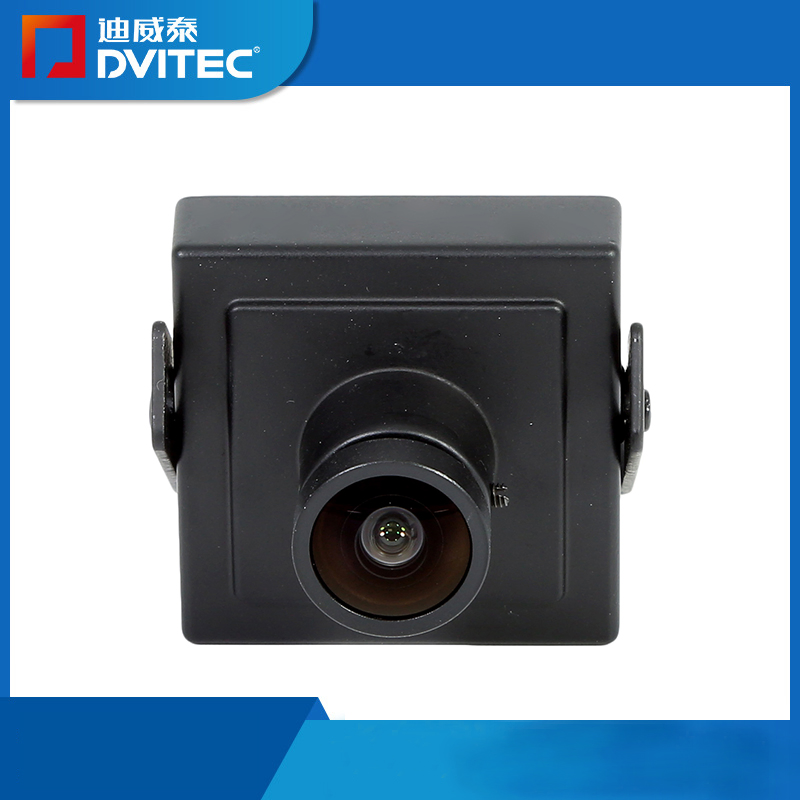

Miniature Camera HD WDR Camera

Product Description

·1/2.7 " Industrial WDR image sensor
·Clear imaging from 40CM to infinity
·Fixed 30 frames, no shadow
·0.1 Lux ultra low effect
·1.2W ultra-low power consumption
·Comply with professional USB-IF WHQL RoHS Ce (4KV / 8KV) certification
·-30ºC~+70ºC Wide temperature range and stable operation
·USB2.0 High speed transmission
·UVC architecture, compatible with Windows XP /7/8.1/10/vista/seven/Mac linux2.6.2(include UVC ) OS
·Zn-Mg alloy housing for high strength collision protection
·Basic: CPU 1.7GHZ 512MB Storage 40GB hard disk XP SP2 system

Signal	NTSC		PAL		REMARKS
Scanning System()	Progressive scan
Scanning Frequency(H)()	30HZ		25HZ
Scanning Frequency(V)	59.9HZ		50HZ
Image Sensor()	1/2.7 " WDR CMOS				Aptina
Effective Pixels()	1920X1080
Pixel size()	3.0umX3.0um
Image sensor Data output()	Raw Data 10bits
Video Comprossor()	MJPG/YUY2
Maximum Frame Rates ()	1920x1080 at 30fps 1280x960 at 30fps 1280x720 at 30fps 1024x768 at 30fps 960x540 at 30fps 800x600 at 30fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps				MJPG
Maximum Frame Rates ()	1920x1080 at 5 fps 1280x960 at 7fps 1280x720 at 9fps 1024x768 at 10fps 960x540 at 15fps 800x600 at 20fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps				YUY2
SNR max()	41dB
Dynamic range()	105dB
Min. Illumination()	0.5LUX at F1.2
Digital interface()	5-pin 1.25mm USB2.0
Transfer rates()	480Mb/S
Power requirements()	5V±5%
Power Consumption ()	Max 1.2W
Dimensions(PCBA)(PCBA)mm	31.8x31.8MM
Weight()	TBD
Operating temperature(ºC)()	-30~70 ºC
Storage temperature(ºC)(&)	-40~85 ºC/0~90RH
Compliance()	USB-IF WHQL CE RoHS
Warranty()	3 years
Lens Mount()	M12
Lens view ()	M12(3.5MM)
OS()	Windows XP /7/8.1/10/vista/seven/Mac linux2.6.2(include UVC )

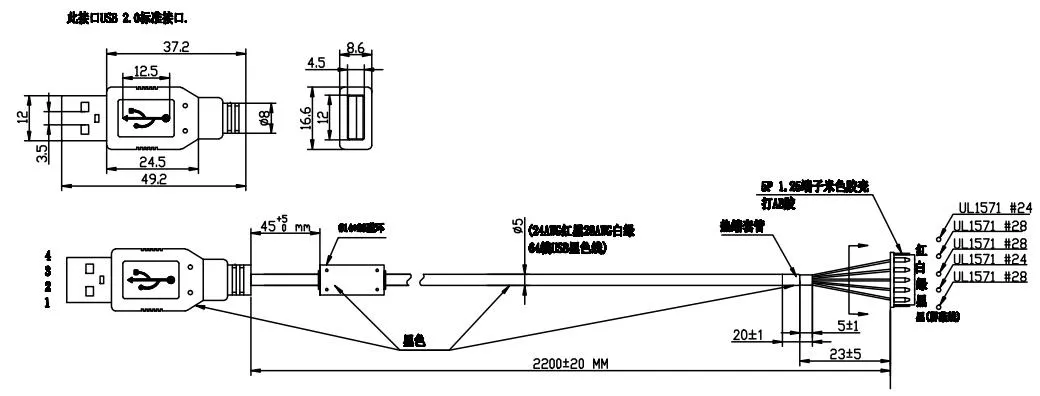

USB CONN(USB)	1	5V		USB POWER	500mA max
	2	DM		-	D-
	3	DP		-	D+
	4	GND		-	DGND
	5	COVER		-	shield
