              Miniature Camera High Speed HD ATM Camera
              • Miniature Camera High Speed HD ATM CameraMiniature Camera High Speed HD ATM Camera
              • Miniature Camera High Speed HD ATM CameraMiniature Camera High Speed HD ATM Camera

              Miniature Camera High Speed HD ATM Camera

              Product Features·1/2.7"2M image sensor·30 frames Max, no lag·1.0W low power consumption·0.1Lux low light effect·-30ºC~+50ºC Wide temperature range and stable operation·USB2.0 High speed transmission·U......

              Send Inquiry

              Product Description

              Product Features

              ·1/2.7"2M image sensor
              ·30 frames Max, no lag
              ·1.0W low power consumption
              ·0.1Lux low light effect
              ·-30ºC~+50ºC Wide temperature range and stable operation
              ·USB2.0 High speed transmission
              ·UVC architecture, compatible with Windows XP&7&8.1&LINUX&Android&MAC OS
              ·30,000 hours MTBF
              ·3-year warranty
              ·Zn-Mg alloy housing for high strength collision protection
              ·Basic:CPU 1.7GHZ 512MB Storage 40GB Hard disk XP SP2 OS

              Specification

              SignalNTSCPALREMARKS
              Scanning System()Progressive scan
              Scanning Frequency(H)()30HZ25HZ
              Scanning Frequency(V)59.9HZ50HZ
              Image Sensor()1/2.7 " CMOS Aptina
              Effective Pixels()1920x1080
              Pixel size()3.0umX3.0um
              Image sensor Data output()Raw Data 10bits
              Video Comprossor()MJPG/YUY2
              Maximum Frame Rates
              ()

              160x120 at 30fps,320x240 at 30fps,352x288 at 30fps,640x480 at30fps,800x600 at 30fps,1024x768 at 30fps,1280x720 at 30fps,1280x960 at 30fps,1920x1080 at 30fps,MJPG
              Maximum Frame Rates
              ()

              160x120 at 30fps,320x240 at 30fps,352x288 at 30fps,640x480 at30fps,800x600 at 20fps,1024x768 at 10fps,1280x720 at 10fps,1280x960 at 5fps,1920x1080 at 5fps,YUY2
              VID&PID(&)2C7F&4A60
              SNR max()41dB
              Dynamic range()Up to 105 dB
              Min. Illumination()0. 1LUX at F1.2
              Digital interface()5-pin 1.25mm USB2.0
              Transfer rates()480Mb/S
              Power  requirements() 5V±5%
              Power Consumption ()1.0W
              Dimensions(PCBA)(PCBA)mm32x32 ±5%
              Dimension(Product)()mm34X34
              Weight()TBD
              Operating temperature(ºC)()-30~85 ºC
              Storage temperature(ºC)(&)-40~80 ºC/0~90RH
              Compliance()USB-IF WHQL CE RoHS
              Lens Mount()M12
              Lens view ()3.5mm lens
              Warranty()3 years
              OS()Windows XP /vista/seven/8.1/Mac linux2.6.2(include UVC )

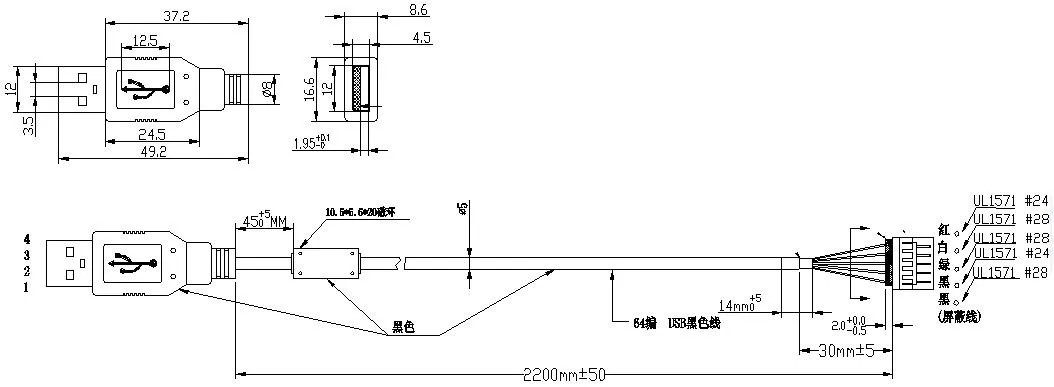

              USB CONN(USB)15VUSB POWER500mA max
              2DM-D-
              3DP-D+
              4GND-DGND
              5COVER-shield

              Sensor Size& Filter wavelength

              Miniature Camera High Speed HD ATM Camera
              S
              ensor Dimension

              Miniature Camera High Speed HD ATM Camera

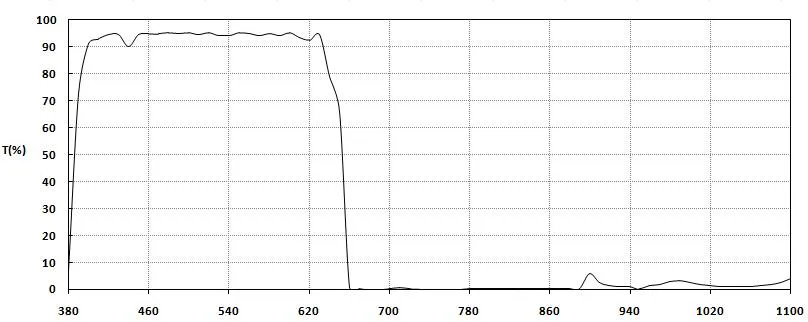

              Color-IR Filter wavelength

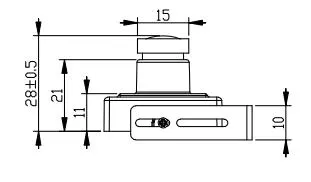

              Product Dimension
              Miniature Camera High Speed HD ATM Camera
              Miniature Camera High Speed HD ATM Camera
              Miniature Camera High Speed HD ATM Camera



              Miniature Camera High Speed HD ATM Camera

              Viewing Angle

              Miniature Camera High Speed HD ATM Camera

              Cover Proportion(mm)
              NO.component ProportionNOTE
              1ZN96.2000%
              2CU0.0160%
              3Aluminum 3.7000%
              4Fe0.0030%
              5Pb 0.0025%
              6Sn 0.0004%
              7Mg0.0030%

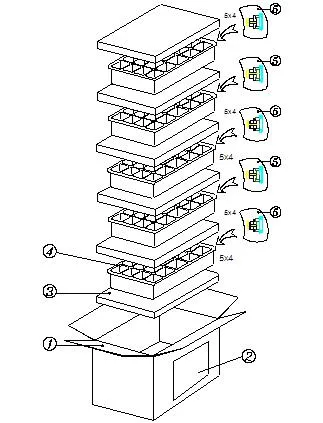

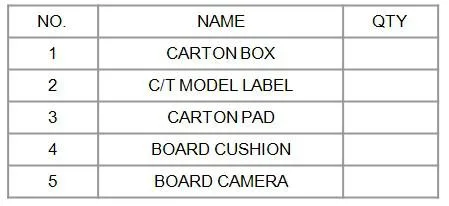

              Modes of Packing
              Miniature Camera High Speed HD ATM Camera
              Miniature Camera High Speed HD ATM Camera
