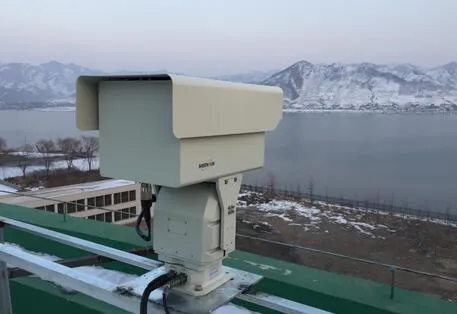

China Multi-Sensor HD IP Long Range Daynight Thermal Security Camera with Laser Range Finder

Product Description

Product Features

Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance

Infrared detector with high temp sensitivity, with min temp resolution of 50mK

Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring

auto focus function, realizing multiple focusing mode and triggering mode

Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency
3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability

Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

Technical Data:

Distance	CCTV camera	5000m
	Thermal camera	object	human(1.8m×0.5m)	vehicle(2.3m×2.3m)
		Detection	4320m	11880m
		Recognition	1080m	2970m
		Identification	540m	1440m
High definition lens	Focal length	12.5~750mm
	FOV	0.5°~28.7°
	Double lens	optional
	Fog penetration	optional
	Auto focus	support
HD CCTV Camera	Sensor type	1/2''Progressive Scan CMOS
	Coding format	H.264/MJPEG/MPEG4
	Video resolution	1080P,CIF,supporting three stream
	Video bit rate	32Kbps~16Mbps
	Video frame rate	1~25F/S(50Hz),1~30F/S(60Hz)
Thermal Lens	Focal length	36~180mm
	FOV	2.5°×2.0°~12.7°×10.2°
	F value	F1.0~F1.2
	Lens control	electric zooming, electric focusing, auto focusing(optional)
	Spatial resolution	0.69~0.14mrad
Thermal Detector	Detector type	uncooled microbolometer focal plane array(VOX)
	Effective pixels	324×256
	Spectral range	8~14μm
	Temp sensitivity	≤[email protected],300K
	Frame rate	25Hz
	Image processing	DDE, pseudo color
Pan-tilt	Carrying capacity	50kg(top load)
	Angle	Horizontal 360°continuous rotation,pitching -60°~+20°
	speed	Horizontal 0.01°~12°/s,pitching 0.01°~8°/s
	Preset bit	255
	Auto cruising	8 paths, 10 bits each path
	Auto scan	1 path
	Anti-lightning	2000V
interface	Power supply interface	AC24V
	Network interface	1×10Base-T/100Base-TX,RJ45
	Video controlling interface	RS422communication, BNC video output
Environment indicators	Working temp	-25ºC~+55ºC
	Storage temp	-40ºC~+65ºC
	Protection grade	IP66
Power supply	Whole machine power supply	AC24V±10%,appendant AC220V~AC24V/5A water proof power supply
	Whole machine power consumption	≤120W
Physical features	Installation method	Outdoor pedestal mounting
