Mwir Cooled 640X512 Infrared Thermal Imaging Camera Module

Product Description

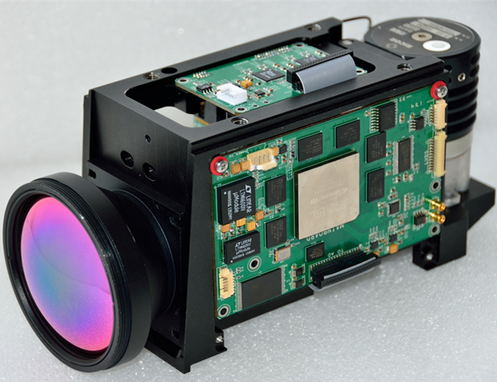

MWIR Cooled Infrared Thermal Imager Module JH202-640A

Application
We provide cooled thermal imaging modules to research institutes and
enterprises for the thermal camera development and system integration.
Apply to long distance target detection, recognization and warning in the
fields of military industry,aerospace industry,frontier guards,coast defense,
etc.

Feature
Cooled HgCdTe FPA Microbolometer, low noise and high sensitivity
Large area array,small pixel array,super-high IFOV
FPGA intelligent image processing platform, high frame frequency and clear image
Multiple control and image output interfaces, easy to integrate
Sterling cooling system, compact structure, small volume and light weight

Function
Manual background/shutter calibration
White/black heat polarity switch
2x electronic zoom
Manual/Auto image gain/brightness adjustment
Cross cursor display/hide and position adjustment
Image enhancement, smoothness, sharpen and space-ground mode algorithm
Mirror image and flip the image horizontally or vertically
Motor focusing, field switch and continuous zooming command drive
Sampling voltage auto-focusing signal
System parameters self-check/reset

Technical Specification

Detector: Cooled HgCdTe FPA
Pixel: 640x512
Spectral band: 3.7~4.8um
NETD: <20mK(F/2)
Frame frequency: 25Hz, 50Hz, 100Hz
Integration time: adjustable
Analog video: PAL/NTSC
Digital video: 16bit TTL/LAVDS/Cameralink
Communication interface: RS232/Rs422
Input voltage: DC+24V (dc8~42V optional)
Power dissipation: <20W (cooling), <14W (temperature controlling)
Starting time: 6min at 20deg, 8min at 50deg
Operating temperature: -40deg~+60deg
Storage temperature: -50deg~+70deg
Dimension: 145mmx76mmx88mm
Weight: 810g
