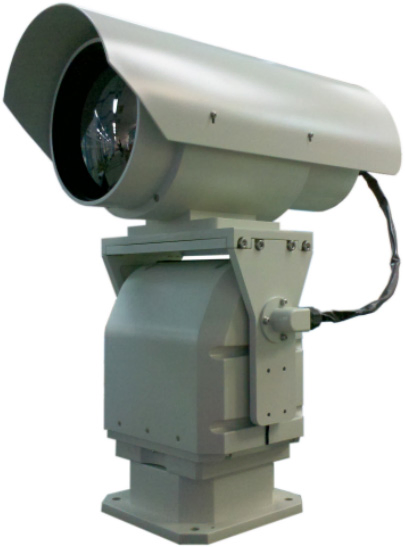

Oil Filed Long Range Infrared Thermal Camera with 10km
1 Main features- 324x256 resolution, uncooled Vox detector.(640*512 optional)- 25μm, can obtain clear details, and realize longer distance monitoring.- NETD 50mk.- First developed 36~180mm 5x continuous optical zooming, can realize large-scale search and also identify distant target.- Ad......
Send Inquiry
Product Description
1 Main features
- 324x256 resolution, uncooled Vox detector.(640*512 optional)
- 25μm, can obtain clear details, and realize longer distance monitoring.
- NETD 50mk.
- First developed 36~180mm 5x continuous optical zooming, can realize large-scale search and also identify distant target.
- Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors.
- Low power consumption, quick start, steady performance, clear and smooth images.
- RS485, analog signal.
- Easy to operate and maintain.
- High aluminum alloy shell with nitrogen inside, can work under harsh environment 24/7.
2 Technical indicators
3 Application
Our products are widely used for search and rescue and outdoor security / surveillance
such as police patrol surveillance, touriest sites monitoring, railway / freeway / airport

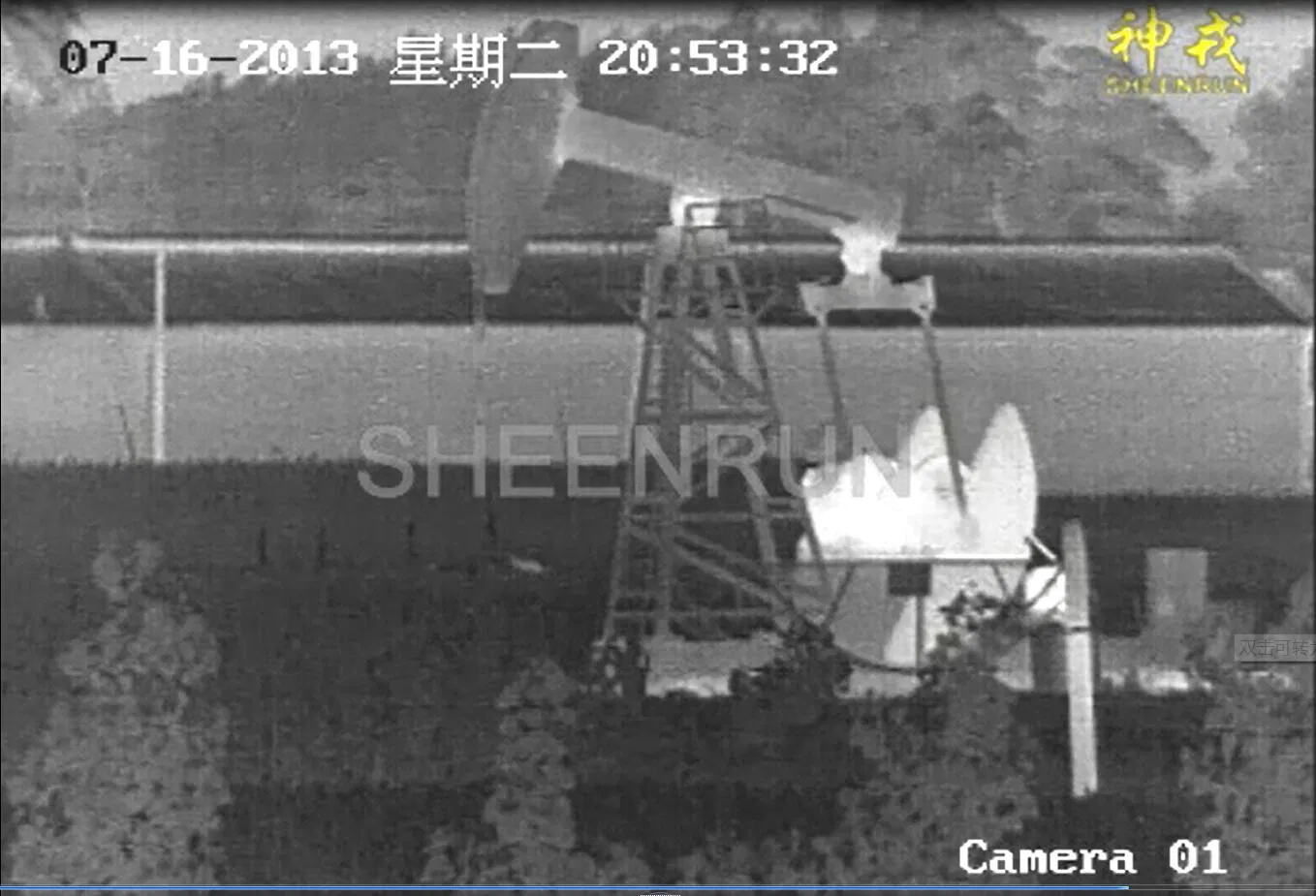

monitoring, oilfield monitoring, harbor monitoring, forest fire detection and frontier
defense etc.
4 Our service
- We offer one year warranty.
- Email/ Skype/ Trade manager online to support.
- Life-long technical support.
- Professional technical team and salesperson help you with troubleshooting procedures
via Internet and Phone any time when needed.
- Door-to-door service if necessary.
- 324x256 resolution, uncooled Vox detector.(640*512 optional)
- 25μm, can obtain clear details, and realize longer distance monitoring.
- NETD 50mk.
- First developed 36~180mm 5x continuous optical zooming, can realize large-scale search and also identify distant target.
- Adopts Image Denoising tech, DDE tech, output black hot/white hot/palette colors.
- Low power consumption, quick start, steady performance, clear and smooth images.
- RS485, analog signal.
- Easy to operate and maintain.
- High aluminum alloy shell with nitrogen inside, can work under harsh environment 24/7.
2 Technical indicators
| Effecting Distance | Objects | People (1.8mx0.5m) | Vehicle (2.3mx2.3m) |
| Detect distance | 4320m | 11880m | |
| Recognize distance | 1080m | 2970m | |
| Identification distance | 540m | 1440m | |
| IR Lens | Focal length | 36~180mm 5x continuous zooming | |
| FOV | 2.5°×2.0°~12.7°×10.2° | ||
| MRAD | 0.14~0.69mrad | ||
| Lens control | Electric zoom, electronic focus (auto focus is optional) | ||
Detector | Detector type | Uncooled focal plane infrared Vox detector | |
| Resolution | 320x256 | ||
| Spectrum range | 8~14μm | ||
| NETD | ≤50mK F1.0,300K | ||
| Non-uniformity correction | Manual/auto/background correction | ||
| Image process | DDE, palette colors | ||
| Video output | PAL/NTSC | ||
Interface | Power supply | DC12V | |
| Other interface | RS485, BNC video output | ||
| Environmental indicators | Working temperature | -25ºC~+55ºC | |
| Storage temperature | -40ºC~+65ºC | ||
| International protection | IP66 | ||
| Anti-vibration | 10~55Hz, 0.75mm | ||
| Anti-impact | 150m/s², 11ms | ||
| Anti-saltfog | under PH6.5~7.2, continuous spraying fog for 48 hours | ||
| Power supply | Power supply for whole device | DC12V | |
| Total power consumption | ≤8W | ||
| Others | Weight | ≤7Kg | |
| Size | 440mm×213mm×217mm(L×W×H, including shield) | ||
3 Application
Our products are widely used for search and rescue and outdoor security / surveillance
such as police patrol surveillance, touriest sites monitoring, railway / freeway / airport
monitoring, oilfield monitoring, harbor monitoring, forest fire detection and frontier
defense etc.
4 Our service
- We offer one year warranty.
- Email/ Skype/ Trade manager online to support.
- Life-long technical support.
- Professional technical team and salesperson help you with troubleshooting procedures
via Internet and Phone any time when needed.
- Door-to-door service if necessary.
