Original 8 Megapixel Auto Focus Camera Module USB Camera Module
USB Camera Module 5 Mega pixels USB Camera : 1. 1/2.5 inch OV2710 cmos camera module2. FULL HD 1080P Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB camera module with 55 degree 5. 38*38mm mini micro USB board camera Specification:It......
Send Inquiry
Product Description
USB Camera Module 5 Mega pixels USB Camera :
Pictures Display:
Quality Control:
Company Information:
1. 1/2.5 inch OV2710 cmos camera module
2. FULL HD 1080P Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB camera module with 55 degree
5. 38*38mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | MI5100 |
| Lens Size | 1/2.5-inch (4:3) |
| Maximum Pixels | 5 mega |
| Maximum Effective Resolution | 2,592H x 1,944V |
| Data Format | MJPG/YUY2 |
| Pixel Size | 2.2µm x 2.2µm |
| Dynamic Range | 70.1dB |
| Lens | FOV :D= 55 |
| Optical length :11.21MM | |
| lens construction:2G2P+IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |

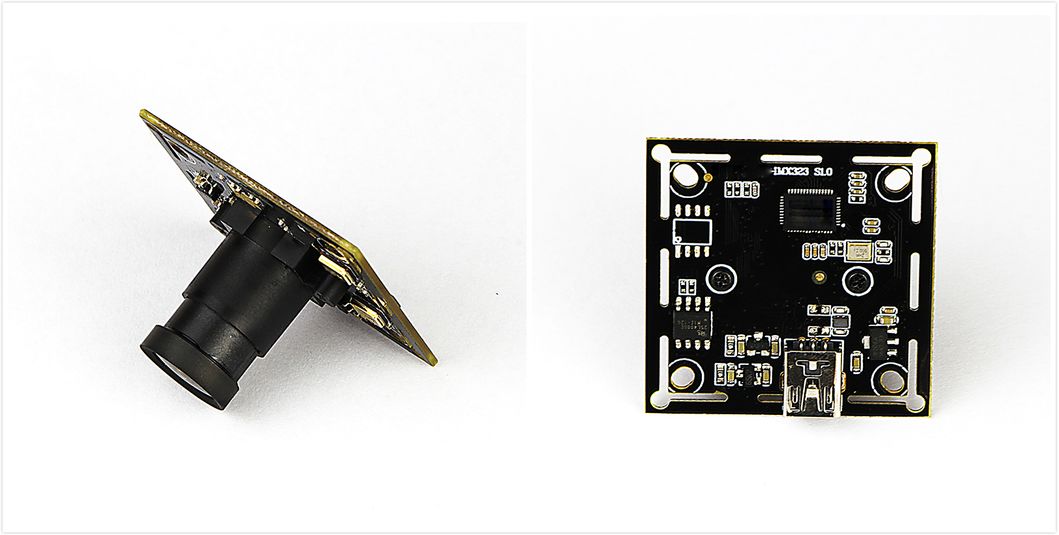

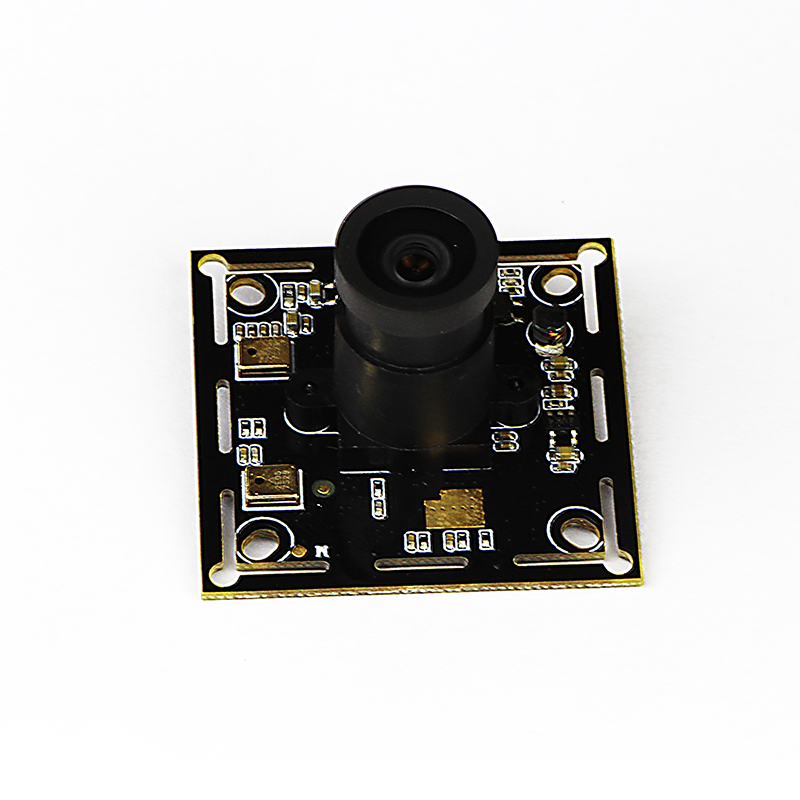

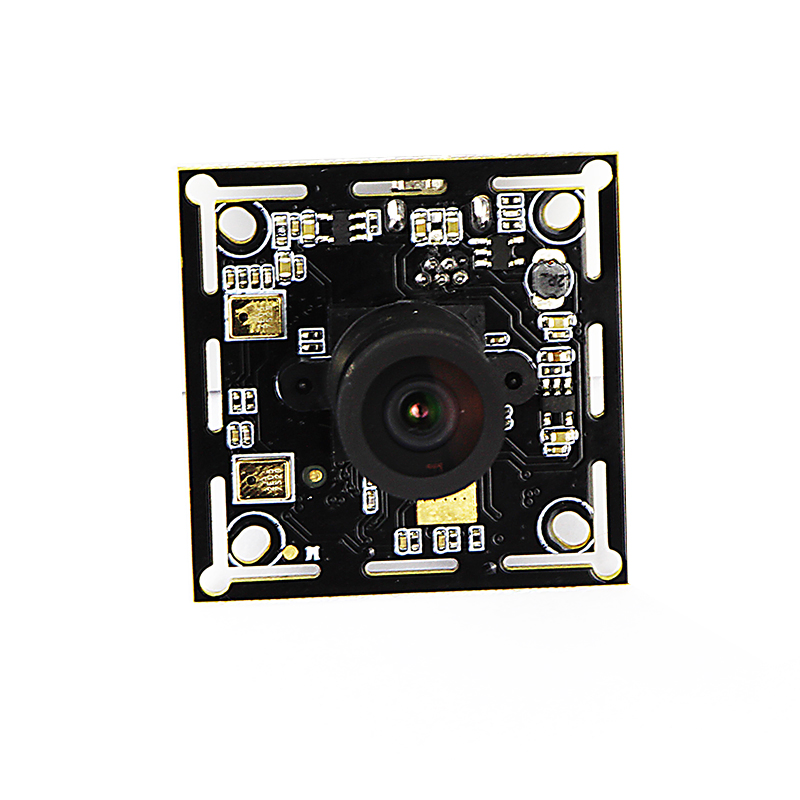

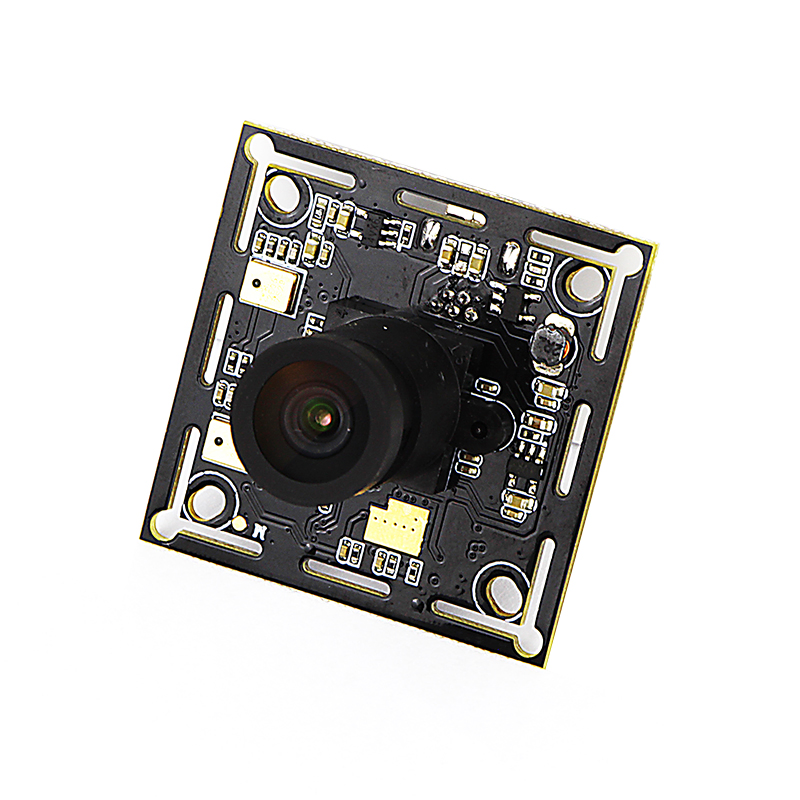

Pictures Display:

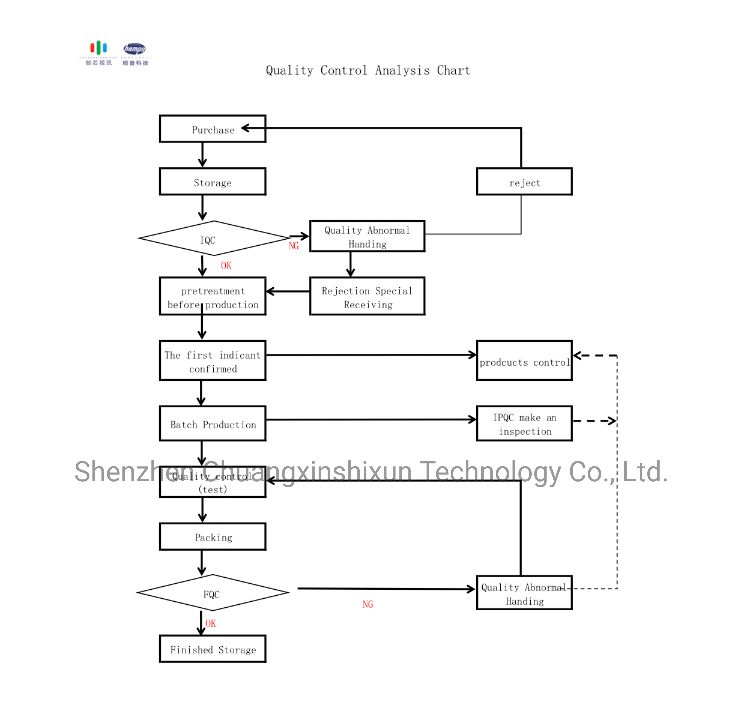

Quality Control:
Company Information:
