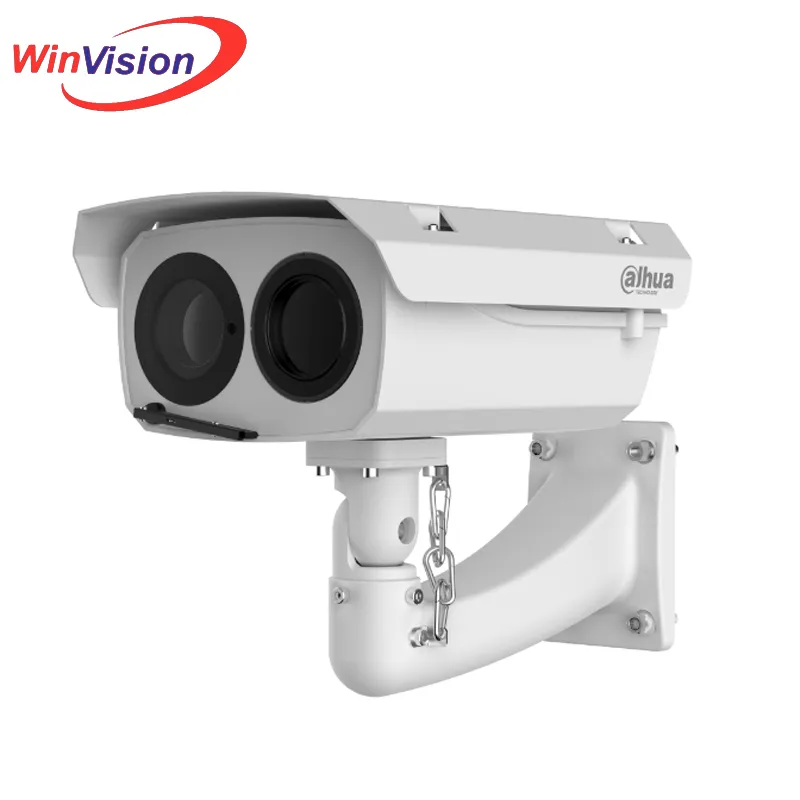

Original Dahua Thermal Imagining Camera Tpc-Bf8620A Thermal Infrared Camera

Thermal Camera

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

640(H)x512(V)

Pixel Size

17um

Thermal Sensitivity(NETD)

<40mK@f/1.0

Spectral Range

7~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

14(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Fixed

Focus Control

Athermalized, Focus-free

Focal Length

19mm

35mm

50mm

60mm

Angle of View

H:32°, V:26°

H:18°, V:14°

H:12.4°, V:9.9°

H:10.4°, V:8.3°

Effective Distance

Man(1.8m*0.5m)

D:640m

R: 160m

I : 80m

D:1300m

R:320m

I : 160m

D:1700m

R: 430m

I : 220m

D:2000m

R: 510m

I : 260m

Effective Distance

Vehicle(2.3m*2.3m)

D:2000m

R:500m

I : 250m

D:4000m

R: 1000m

I : 500m

D:5000m

R: 1400m

I : 700m

D:6000m

R: 1600m

I : 800m

Visible Camera

Image Sensor

1/1.9" Sony CMOS

Effective Pixels

1944(H)x1092(V)

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

[email protected](Color), [email protected](B/W)

S/N Ratio

More than 55dB

IR Distance

150m (492ft)

IR On/Off Control

Auto/Manual

IR LEDs

9

Visible Lens

Focal Length

6 ~ 180mm

Max Aperture

F1.5 ~ F4.3

Angle of View

H: 59° ~ 2.4°

Optical Zoom

30x

Focus Control

Auto / Manual

Close Focus Distance

100mm ~ 1000mm (0.33ft~3.28ft)

Video

Compression

H.264 / MJPEG

Frame Rate

Main Stream:

Thermal: 1280x1024(default) / 720P @1~25/30fps

Visible: 1080P(default) /720P @1~25/30fps

Sub Stream:

Thermal: 640x512(default) / 320x256 @1~25/30fps

Visible: CIF(default) / D1 @1~25/30fps

Bit Rate Control

CBR / VBR

Bit Rate

H.264: 640 ~8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR

White Balance

Auto / ATW / Indoor / Outdoor / Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 zone, Rectangle)

Region of Interest

Off / On (4 zone)

Electronic Image Stabilization

(EIS)

NA

Defog

Off / On

Digital Zoom

24x

Flip

180°

Mirror

Off / On

Privacy Masking

Off / On (4 area, Rectangle)

Audio

Compression

G.711A / G.711Mu / AAC

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Fire detection & alarm

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Interoperability

ONVIF Profile S&G, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users / 20 Users

Edge Storage

Micro SD (128GB)

Memory status display (Normal / Error / Active / Formatting / Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

Management Software

Smart PSS, DSS

Smart Phone

Android, Ios

Certifications

Certification

CE (EN 60950:2000) FCC (FCC Part 15 SubpartB )

Interface

Video Interface

1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional)

Audio Interface

1/1 In/Out

RS485

Support

Alarm

2/2 In/Out

Electrical

Power Supply

24V AC ±15%

Power Consumption

Max. 50W (24V AC, IR on, Heater on)

Environmental

Operating Condition

-40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Strorage Conditions

-40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

421 mm × 253mm × 307mm (16.57" x 9.96" x 12.09")

(With bracket)

Net Weight

6.5Kg (14.33 lb)

Gross Weight

11.5Kg (25.35 lb)
