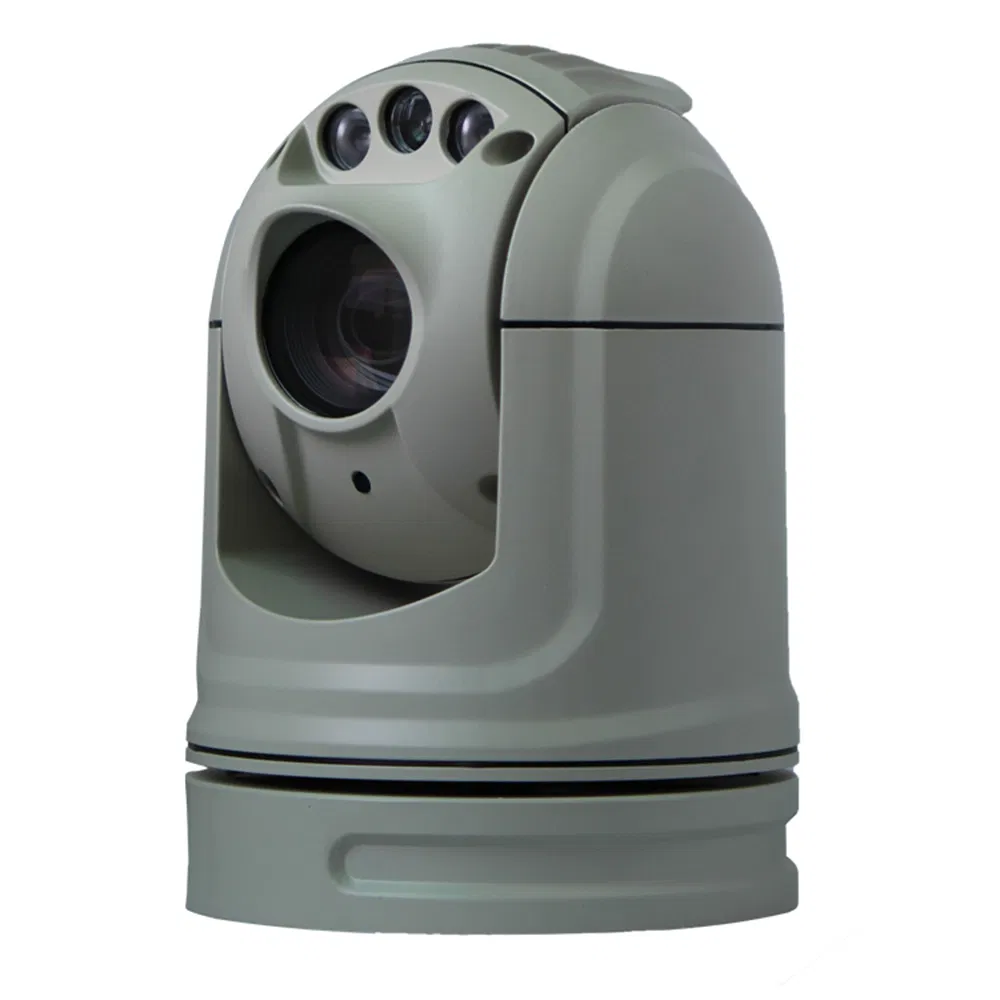

China Outdoor 1080P 33X Zoom 50m IR Night Vision Rugged Vehicle Security Network IP PTZ Camera

Product Description

Key Features

> 1920×1080 Progressive Scan CMOS, Day/Night monitoring

> 33X Optical zoom, 5.5~180mm
> IR LED Illumination for Night Vision, 50m IR distance
> 360°endless rotation
> Micro-Step, Accurate Pan/Tilt 0.05°
> Ip66 Design
> Operation Temperatures Ranging from −40° to +60°C
> Optional Magnetic Mount

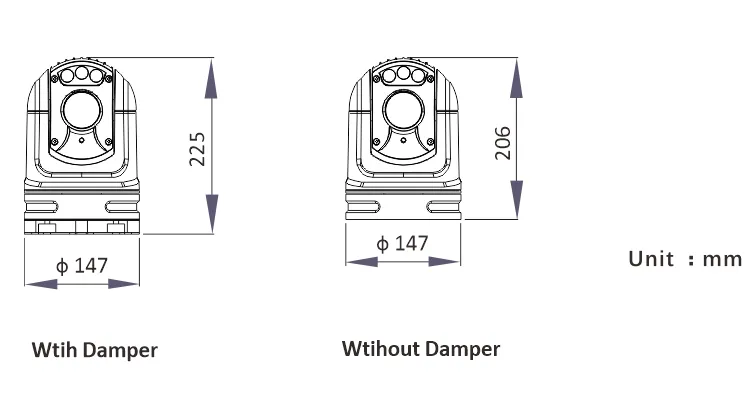

> Optional damper absorber
> Optional dual-sensor version, to be integrated with thermal camera

1. Specifications

Model No.	SOAR971-2133
Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Effective Pixels	1920(H) x 1080(V), 2 Megapixels;
Minimum Illumination	Color: [email protected]; W/B: [email protected] (IR on)
Lens
Focal Length	Focal Length 5.5mm~180mm
Optical Zoom	Optical Zoom 33x, 16x digital zoom
Aperture Range	F1.5-F4.0
Field of View	H: 60.5-2.3°(Wide-Tele)
	V: 35.1-1.3°(Wide-Tele)
Working Distance	100-1500mm(Wide-Tele)
Zoom Speed	Approx. 3.5 s (optical lens, wide-tele)
Video
Compression	H.265/H.264 / MJPEG
Streaming	3 Streams
BLC	BLC / HLC / WDR(120dB)
White Balance	Auto,ATW,Indoor,Outdoor,Manual
Gain Control	Auto / Manual
Network
Ethernet	RJ-45 (10/100Base-T)
Interoperability	ONVIF , PSIA, CGI
Web Viewer	IE10/Google/Firefox/Safari...
PTZ
Pan Range	360° endless
Pan Speed	0.05°~80° /s
Tilt Range	-25°~90°
Tilt Speed	0.5°~60°/s
Number of Preset	255
Patrol	6 patrols, up to 18 presets per patrol
Pattern	4 , with the total recording time not less than 10 mins
Power loss recovery	Support
Infrared
IR distance	Up to 50m
IR intensity	Automatically adjusted, depending on the zoom ratio
General
Power	DC 12~24V,36W(Max)
Working temperature	-40ºC~60ºC
Humidity	90% or less
Protection level	Ip66, TVS 4000V Lightning protection, surge protection
Mount option	Vehicle mouting, Ceiling/tripod Mounting
Weight	3.5kg

Model No.: SOAR971-2133

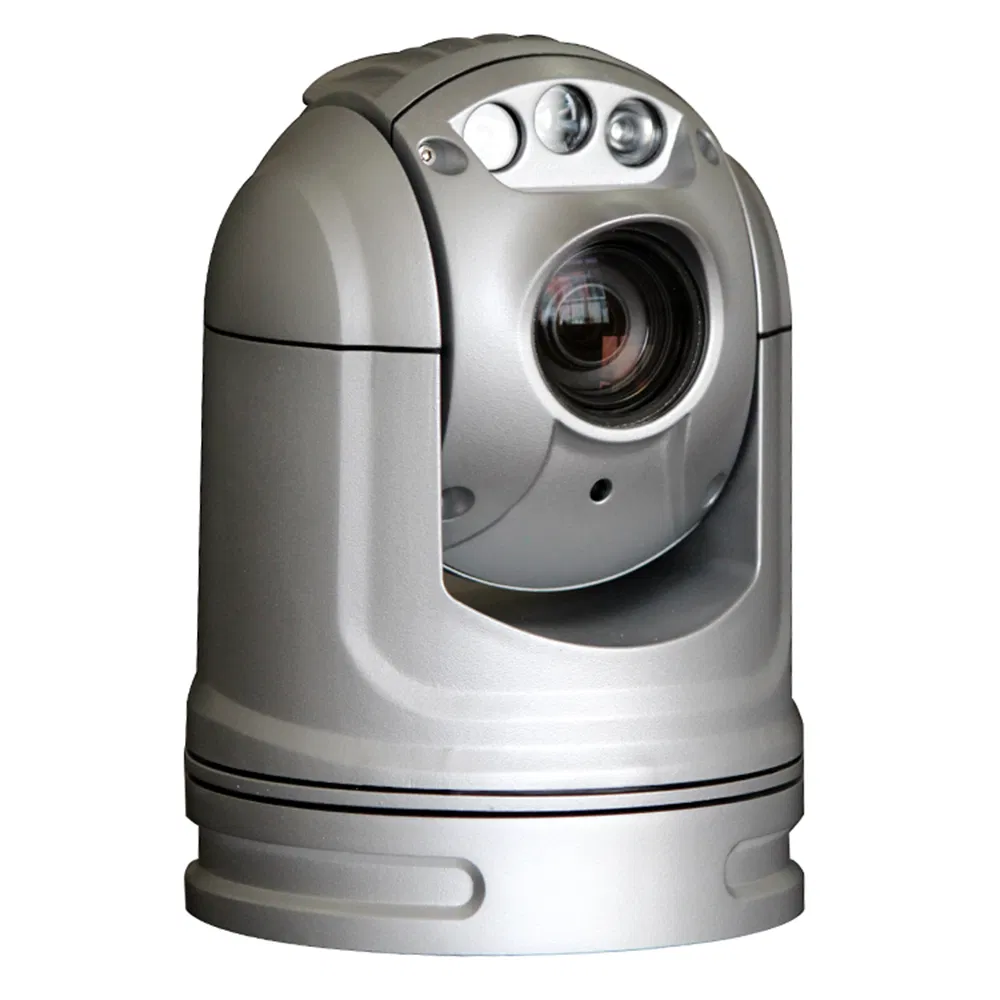

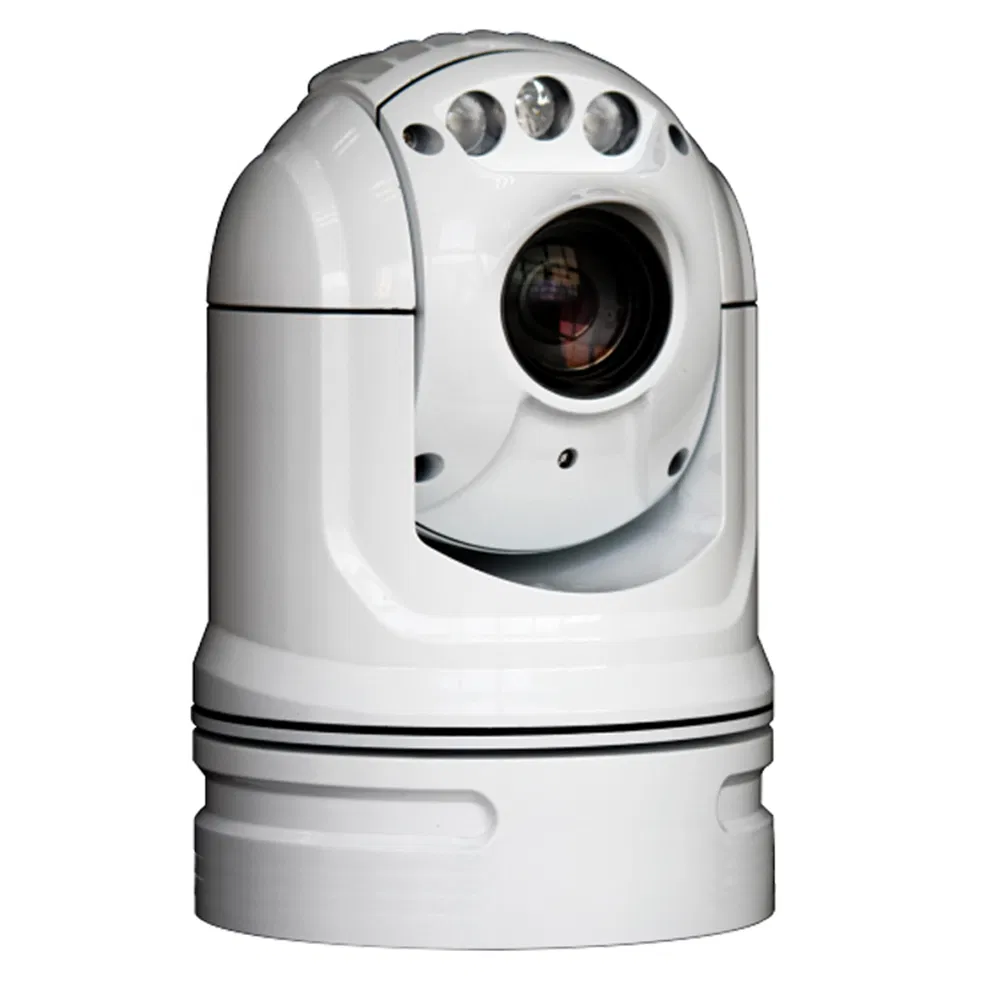

SOAR971 series mobile PTZ is designed for rough condition and mobile applications. This rugged, all weatherproof PTZ Camera is completely waterproof to IP66 standards and has an internal Heater that allow this PTZ Camera to work under the condition of temperatures down to -40° C. With compact design and light weighs, the PTZ is a ideal choice for marine and vehicle rapid deployment for vehicle, marine and militaries application around the world.

We just listed most standard/recommended configuration in above datasheet. As manufacturer, we are willing to design solutions based your application, and budget. We can customize the configuration in several ways, including offer different camera module option, private protocol implement, function customization, etc.

Applications:

> Car cctv
> Marine surveillance
> Robot cctv
> Patrol vehicle surveillance
> Mining monitoring
> Fire rescue camera

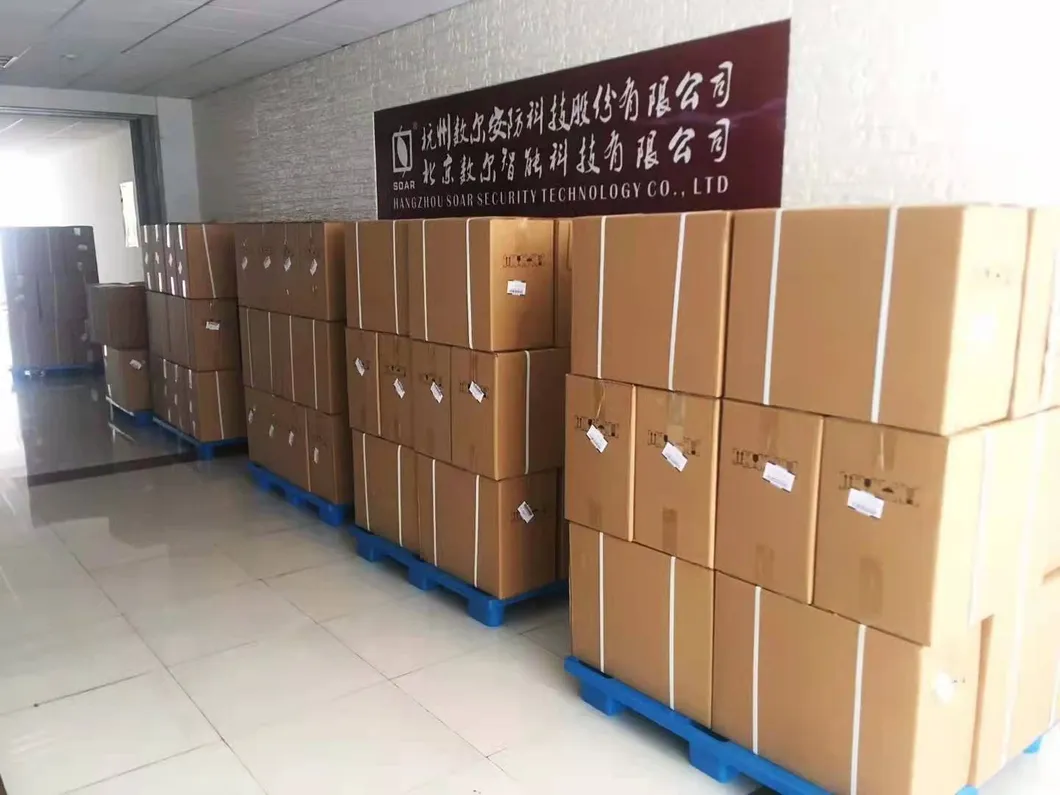

2.Packing & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

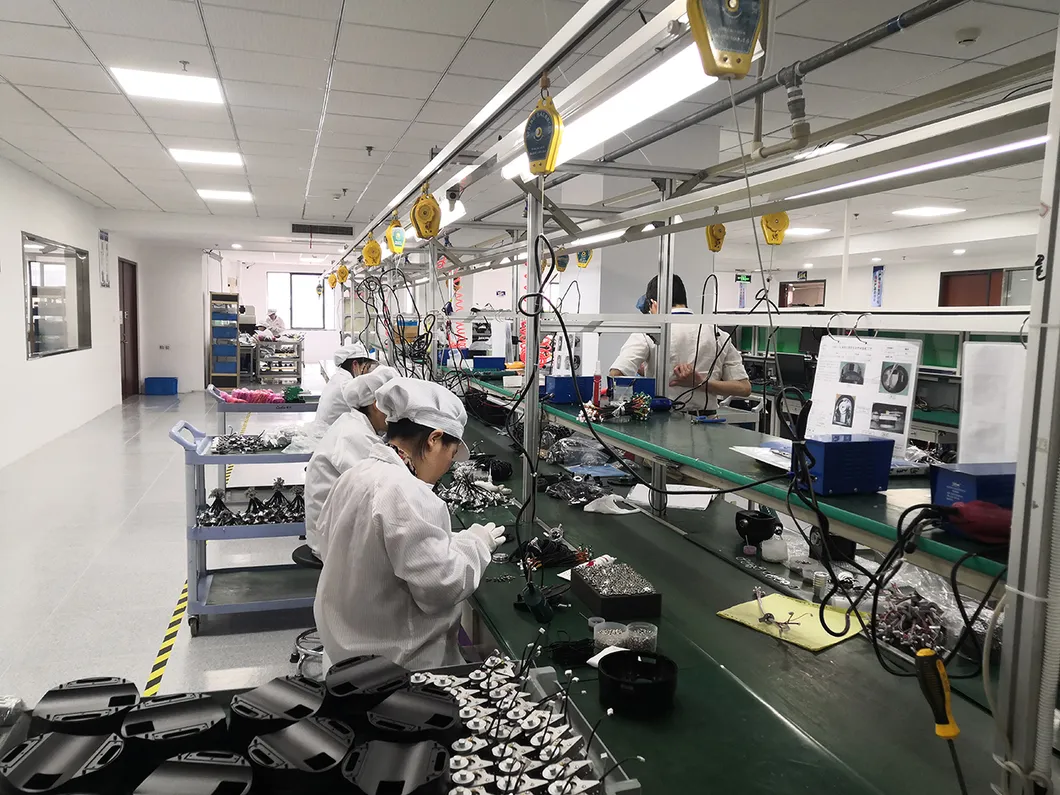

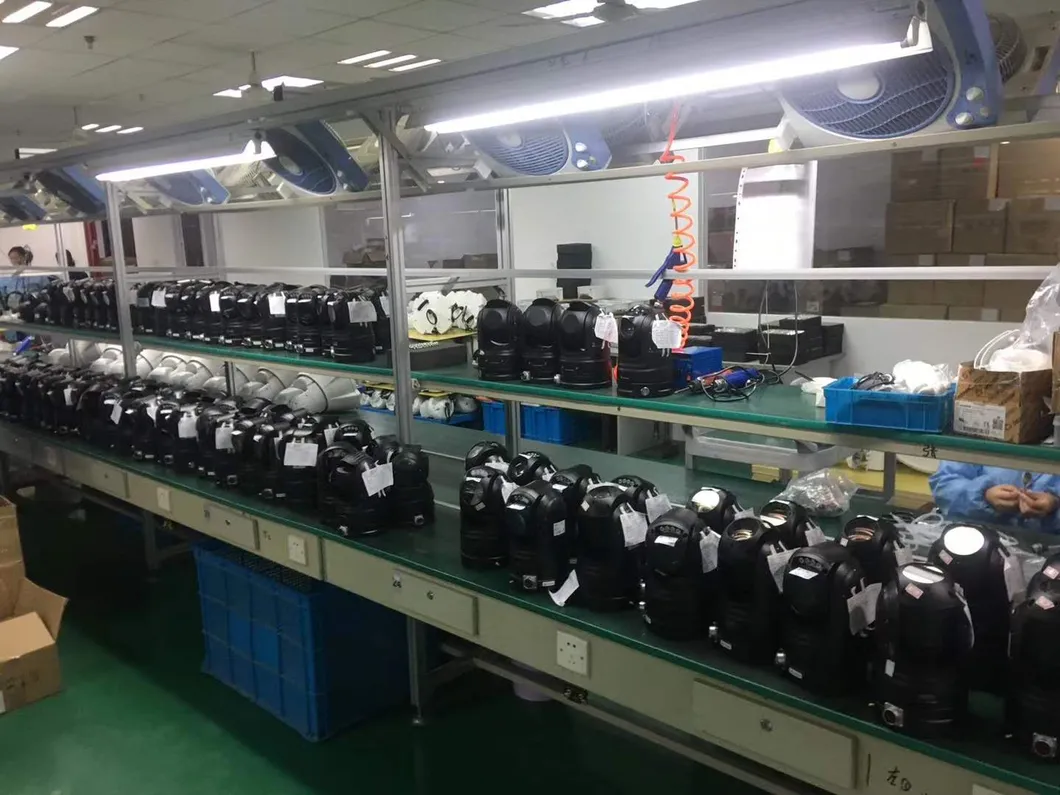

3.Company Profile

Hangzhou Soar Security Technology Co., Ltd is a professional video surveillance products provider, devoted in the front-end surveillance product design , manufacture and sales for more than 15 years, Since the foundation in 2005. We were honored as "national technical innovation enterprise" in 2015, and successfully listed in public Stock in 2016, stock code:839365.

Our R&D team consists of 60+ members of Masters and senior engineers majored in industrial design, FPGA, ISP, video analysis, AI algorithm, etc.

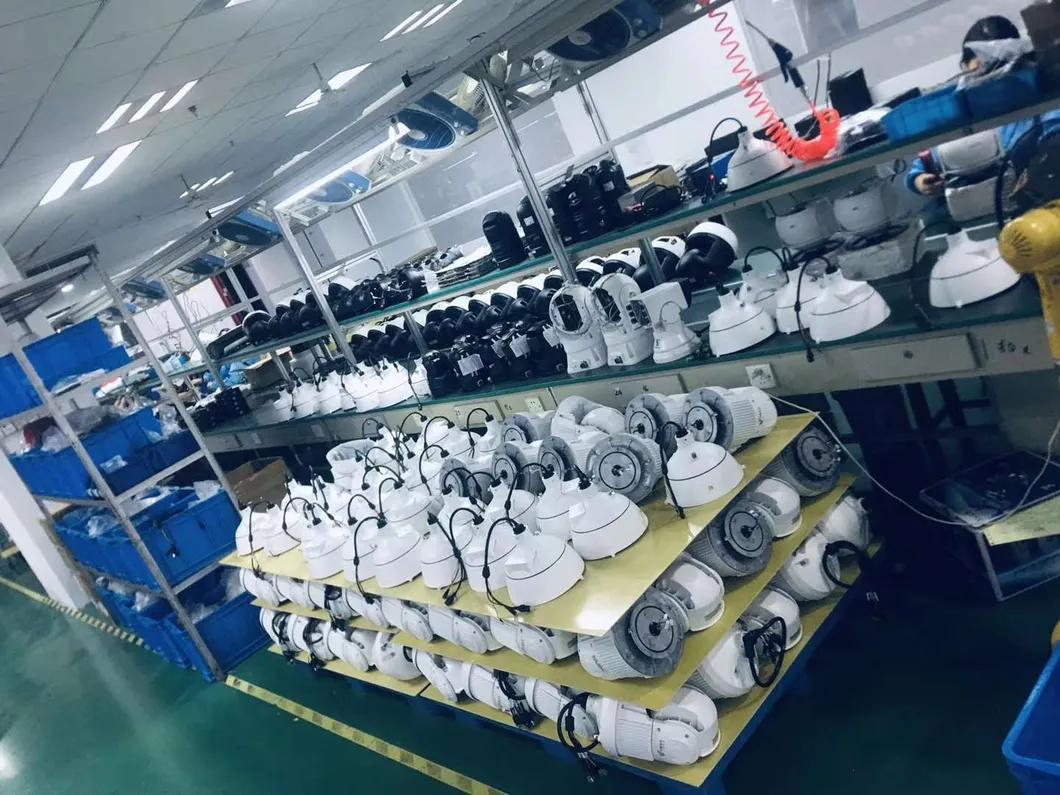

Our main products are various PTZ and Zoom camera module for vertical/niche market, passed ISO9001 quality certification.

Our products are widely sold all over the world. Meanwhile, we also provide OEM/ODM service. We focus on product innovation, to serve customers, create value for customers as the company's purpose.
