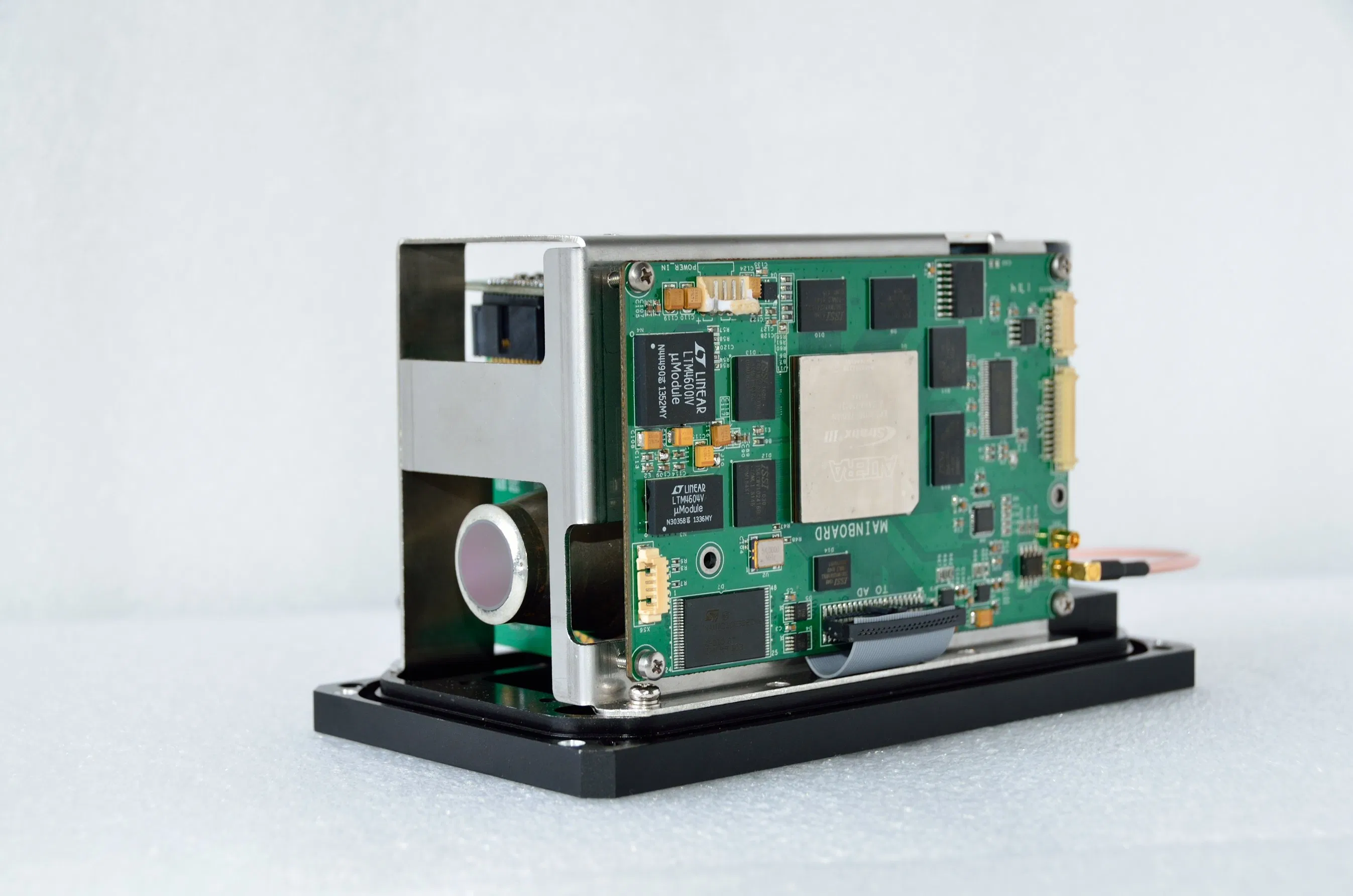

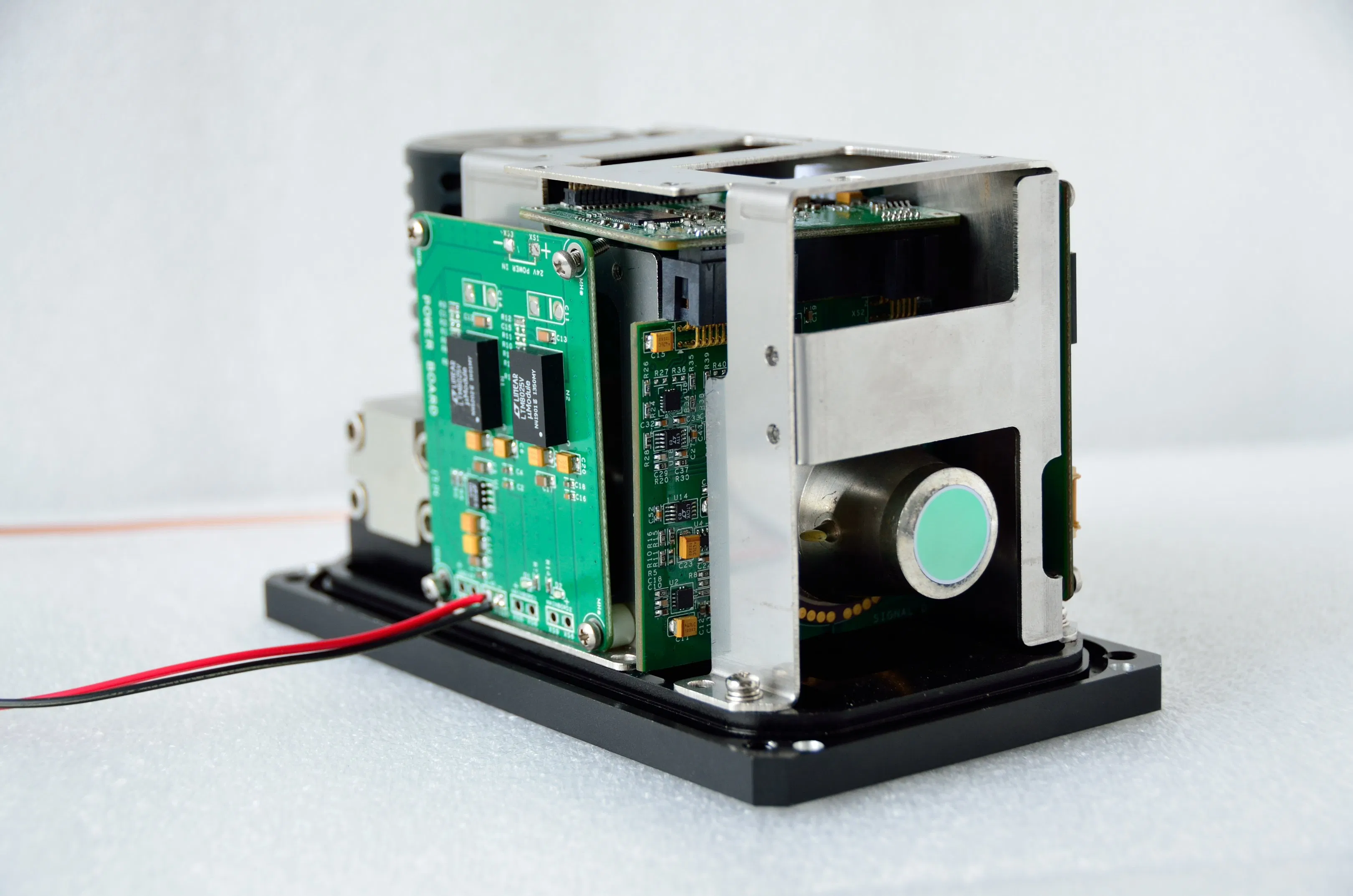

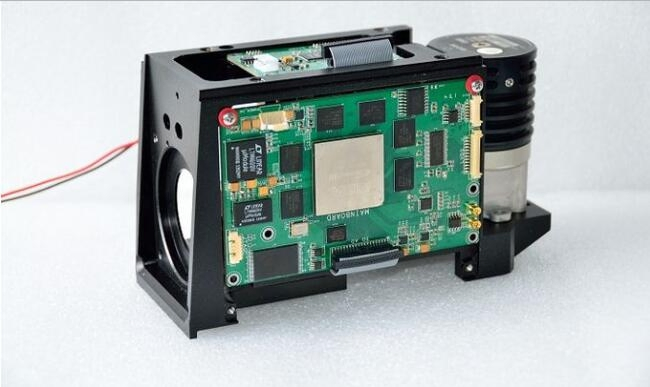

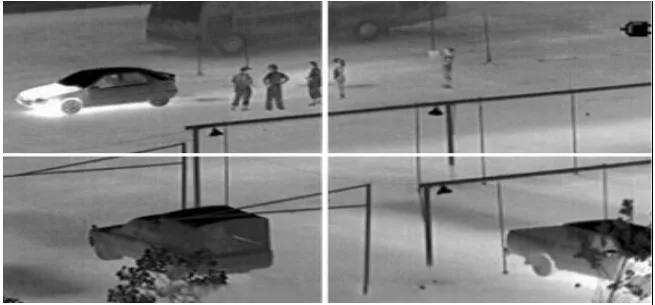

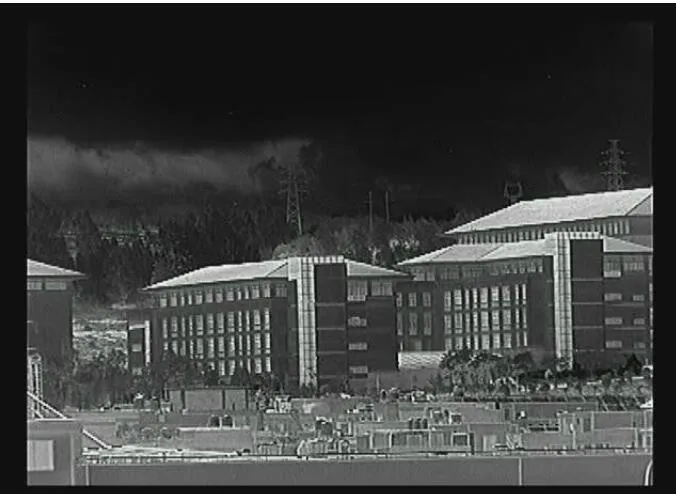

Cooled HgCdTe FPA Thermal Infrared Imaging Module

Description:

Medium wave cooled HgCdTe FPA thermal infrared imaging module is a cooling MCT thermal imaging module working in 3.7-4.8um (B mode: 7.7-11um) band, which provides a very compact and high-performance solution for OEM. Jh202-320a / b module provides 240mm / 60mm, 300mm / 75mm dual field of view and 600mm / 150mm / 22mm three field of view lens.

FEATURES

Working in the 3.7-4.8 μ M band, the cooled mercury telluride detector has high thermal sensitivity and low noise
Advanced image processing algorithms provide high quality images
Three field of view, two field of view, fixed lens and no lens configuration
High frame frequency
Easy integration, compatible with universal power and video interfaces

Technical Specifications

Detector
Detector material	Cooled MCT FPA
Pixels	320x256
Pitch	30µmx30µm
Spectral band	(A mode) 3.7~4.8µm (B mode) 7.7~11µm
NETD	< 15mK (F/2)
Cooling type	Stirling-cycle, Cooling temperature: < 100K Cooldown time: < 6min@20° C; < 8min@50° C
Fill factor	90%
Optical Parameters
Focus length (optional)	300mm/75mm, 240mm/60mm, 600mm/150mm/22mm
FOV	1.8°x1.4°/ 7.3°x5.8° ; 2.3°x1.8°/9.1°x7.3°; 0.92°x0.73°/4°x3.2°/24.6°x19.8°
Image presentation
Video output	Analog PAL/NTSC (Digital: Cameralink)
Integral time	programmable
Frame rate	25, 50Hz, 100Hz, 200Hz
Electric zoom	x2, x4
Polarity	BH & WH
Gain adjustment	Auto/Manual
Power system
Power supply	DC24V (DC8V~42V)
Power consumption	< 20W (cooling), <14W (steady operation)
Operating temperature	-40° C~60° C
Storage temperature	-40° C~60° C
Command & Control
Communication Interface	RS232 / RS422
Physical parameters
Weight	< 810g (lensless); <10.5kg (300mm/75mm); <9.8(240mm/60mm)
