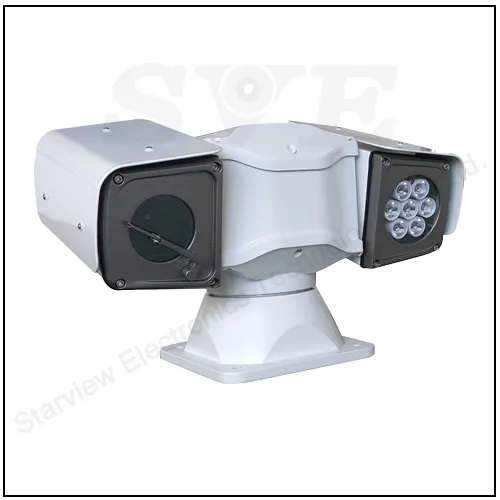

Portable 1080P 30X Zoom 80m IR Night Vision Rapid Deployment Rugged Vehicle IP66 Outdoor Waterproof Security Network IP PTZ Camera
Portable 1080P 30X Zoom 80m IR Night Vision Rapid Deployment Rugged Vehicle IP66 Outdoor Waterproof Security Network IP PTZ Camera30X 1080P@60fps Working Temperature:-35° ~ +65°360°continuous pan,-90°~90° tilt with"AUTO FLIP"0°~60°/s ......
Send Inquiry
Product Description
Portable 1080P 30X Zoom 80m IR Night Vision Rapid Deployment Rugged Vehicle IP66 Outdoor Waterproof Security Network IP PTZ Camera
30X 1080P@60fps
Working Temperature:-35° ~ +65°
360°continuous pan,-90°~90° tilt with"AUTO FLIP"
0°~60°/s pan speed, 0°~40°/s tilt speed
256 presets, ±0.1° preset accuracy
Fastest Speed-up & Speed-down for tracking
IR Night Vision Distance:60-80meters
6 Sequence with up to 18 presets
Built-in Wiper
30X 1080P@60fps
Working Temperature:-35° ~ +65°
360°continuous pan,-90°~90° tilt with"AUTO FLIP"
0°~60°/s pan speed, 0°~40°/s tilt speed
256 presets, ±0.1° preset accuracy
Fastest Speed-up & Speed-down for tracking
IR Night Vision Distance:60-80meters
6 Sequence with up to 18 presets
Built-in Wiper
| SVN-TW10YS | |
| Camera | |
| Image Sensor | 1/2.8 Progressive Scan CMOS Sensor |
| effective pixels | 1920*1080@60fps |
| min illumination | Colour:[email protected],B/W:[email protected] |
| White balance | AUTO/MANUAL/ATW/INDOOR/OUTDOOR |
| Focal length | F=4.5-135mm(F1.6 to 4.4) |
| Optical Zoom | 30X |
| view angle | 67.8°~2.77° |
| AGC | AUTO/MANUAL |
| S/N Ratio | ≥50dB |
| WDR | Support |
| Shutter time | 1/1~1/30000s |
| PTZ Function | |
| Pan preset speed | 100°/s |
| Tilt preset speed | 60°/s |
| Pan control speed | 0°~60°/S |
| Tilt control speed | 0°~40°/S |
| Pan range | 360°endless rotation |
| Tilt range | -90° ~ +90° |
| Preset positions | 256 positions 8 tracking |
| Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
| Relative Humidity | Less than 90% |
| IP Grade | IP66 |
| Working Temperature | -35° ~ +65° |
| Impact resistance requirements | ≥4G |
| Wiper | Support |
| Installation | Variety of installation according to the environment |
| Weight | 7kg |
| Network parameters | |
| Video Compression | H.264/H.265 |
| Audio Compression (Optional) | G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726 |
| Compression output rate | 32Kbps-12Mbps |
| Support Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UpnP, SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181 |
| Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
| Communication Protocol | PelcoD-P Protocol |
| Storage Function | Support MicroSD storage |
| Intelligent Arlarm | Motion detection, mask alarm, full memory, memory mistake |
| General function | Dual stream, heartbeat, password protection |
