Portable Fever Screening Thermal Imagining Equipment Thermal Imaging Camera Device
Portable fever screening thermal imagining equipment thermal imaging camera device I.introduction:UTi80 Series IR Thermal Imagers are designed with infrared detector (80*60 pixel , as the core and supported with high-quality optical lens, ease-of-use operating system. It is precise to measure, clear......
Send Inquiry
Product Description
I.introduction:

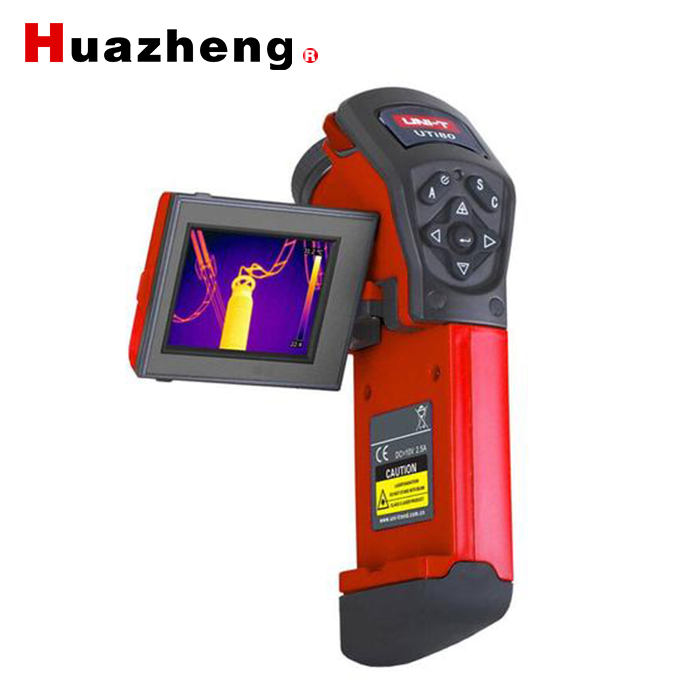

UTi80 Series IR Thermal Imagers are designed with infrared detector (80*60 pixel , as the core and supported with high-quality optical lens, ease-of-use operating system. It is precise to measure, clear to view on images, easy to carry with and offers a price you can totally afford. Choosing a UTi80 means a significant work effectiveness and high temperature measurement accuracy, which is especially a perfect choice for users who are already used to point-contact thermometers.
Applicable industries:electric power,construction,electronics,smelting,energy,railway,automobile,petrochemical.
II.parameter:
Specifications | |||
Model | UTi80 | UTi100 | UTi160A |
Sensor Type | Uncooled Focal Plane Arrays | ||
Resolution | 80 x 60 | 100 x 80 | 160*120 |
View of View / Minimum Focus Distance | 10°×7.5°/0.1m | 12°×9.4°/0.1m | 20°×15°/0.1m |
Spatial Resolution (IFOV) | 2.2mrad | ||
Image Mode | Infrared | ||
Focus | Manual | ||
Infrared Spectral Band | 8~14um | ||
NETD | ≤0.08ºC@30ºC | ||
Temperature Range | -20ºC~300ºC | ||
Accuracy | ±2°C or ±2% (whichever is greater) | ||
Features | |||
Display Type | 2.8"TFT LCD; Ratable | ||
Palettes | Iron, Iron-Invert, Rainbow, Feather, Grey, Grey Inverted | ||
Images Adjustable | Auto/Manual | ||
Image Format | *·UIR | ||
Video Output | Support: PAL(50Hz) or NTSC(60Hz) (socket selection required) | ||
Measurement Mode | Movable Spot, Area(MAX,MIN) | ||
Parameters Setting | Emissivity, Distance, Temperature, Relative Humidity | ||
Self Temperature Calibration | Every 60 Seconds | ||
High/Low Temperature Alarm | √ | ||
Laser Pointer | √ | ||
Image Capture | √ | ||
Image Storage | 2GB SD Card | ||
Temperature Units | ºC/ºF | ||
Support Languages | English/Simplified Chinese | ||
Factory Setting | √ | ||
Power Mode | Standard / Power Saving | ||
Analyzing Software | Standard Version | ||
Water Proof Rating | IP54 | ||
Impact/Vibration | 25G/2G | ||
III.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

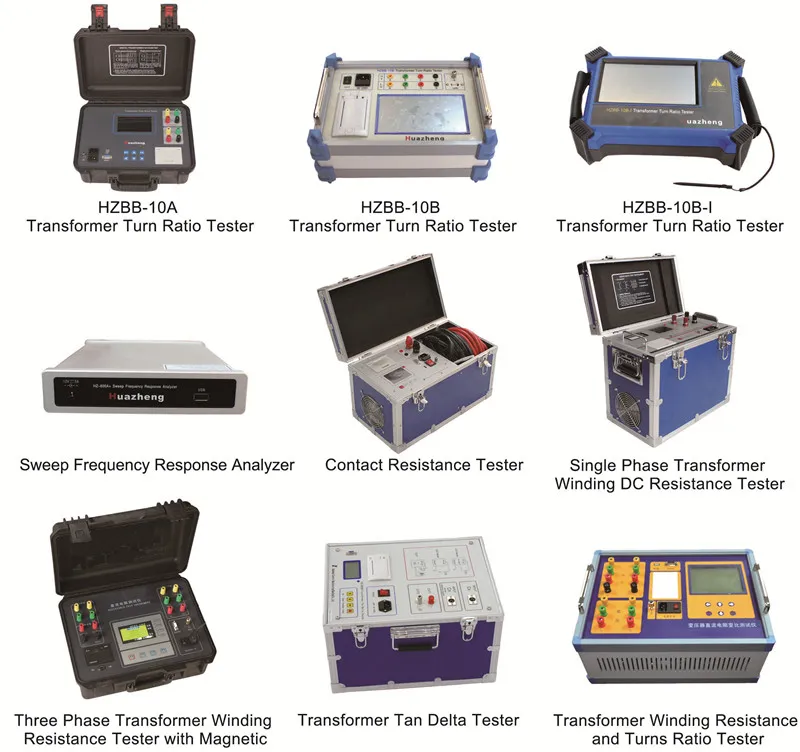

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
