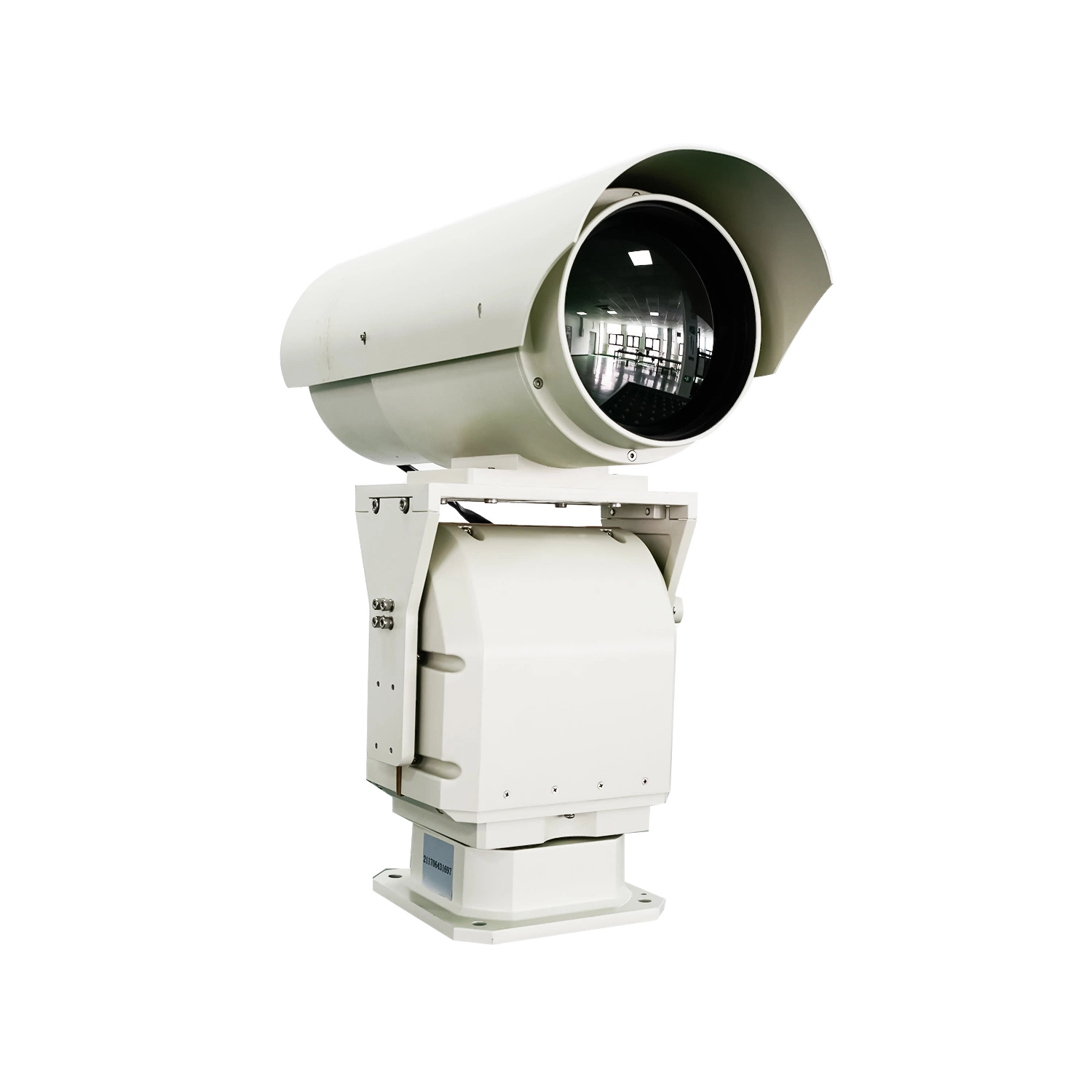

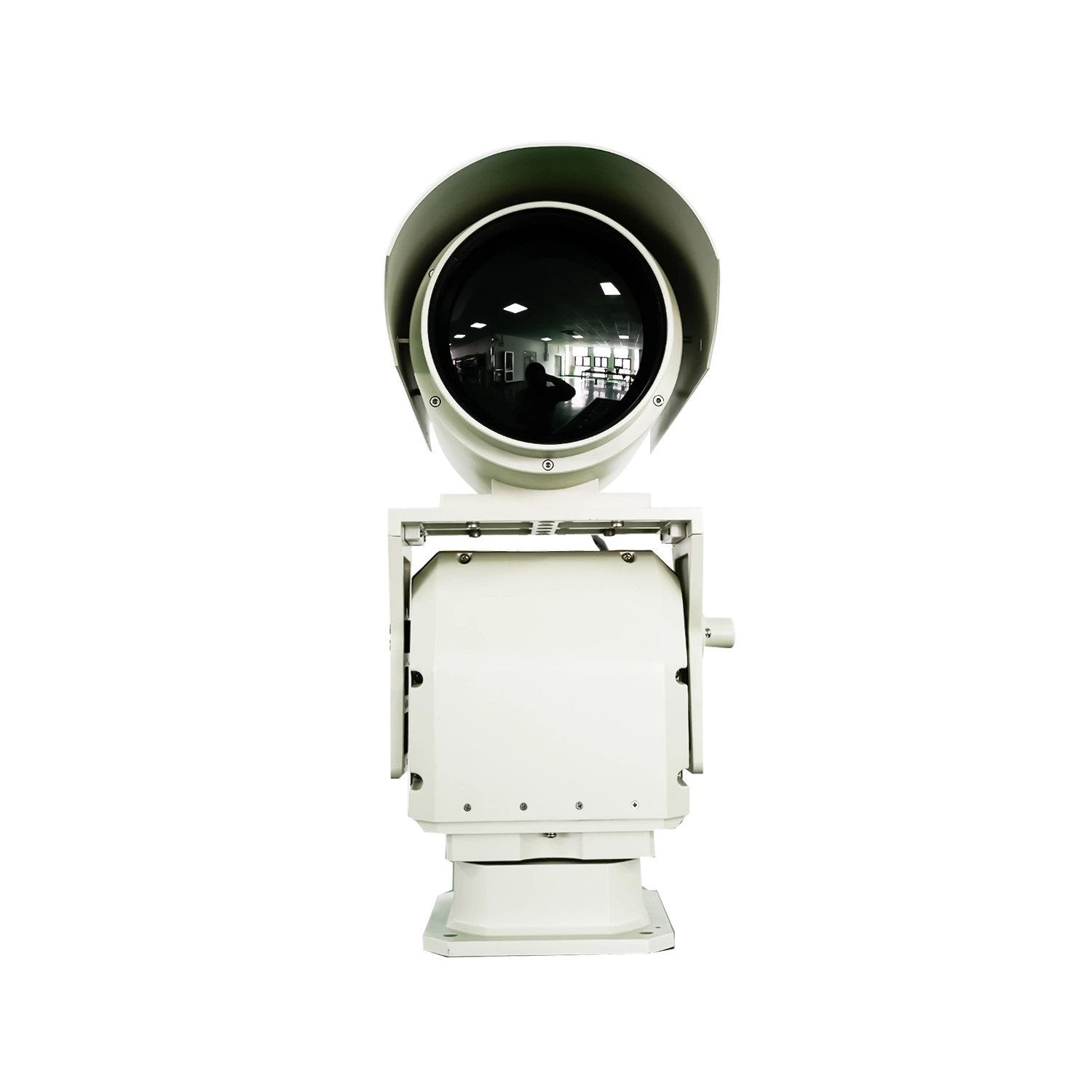

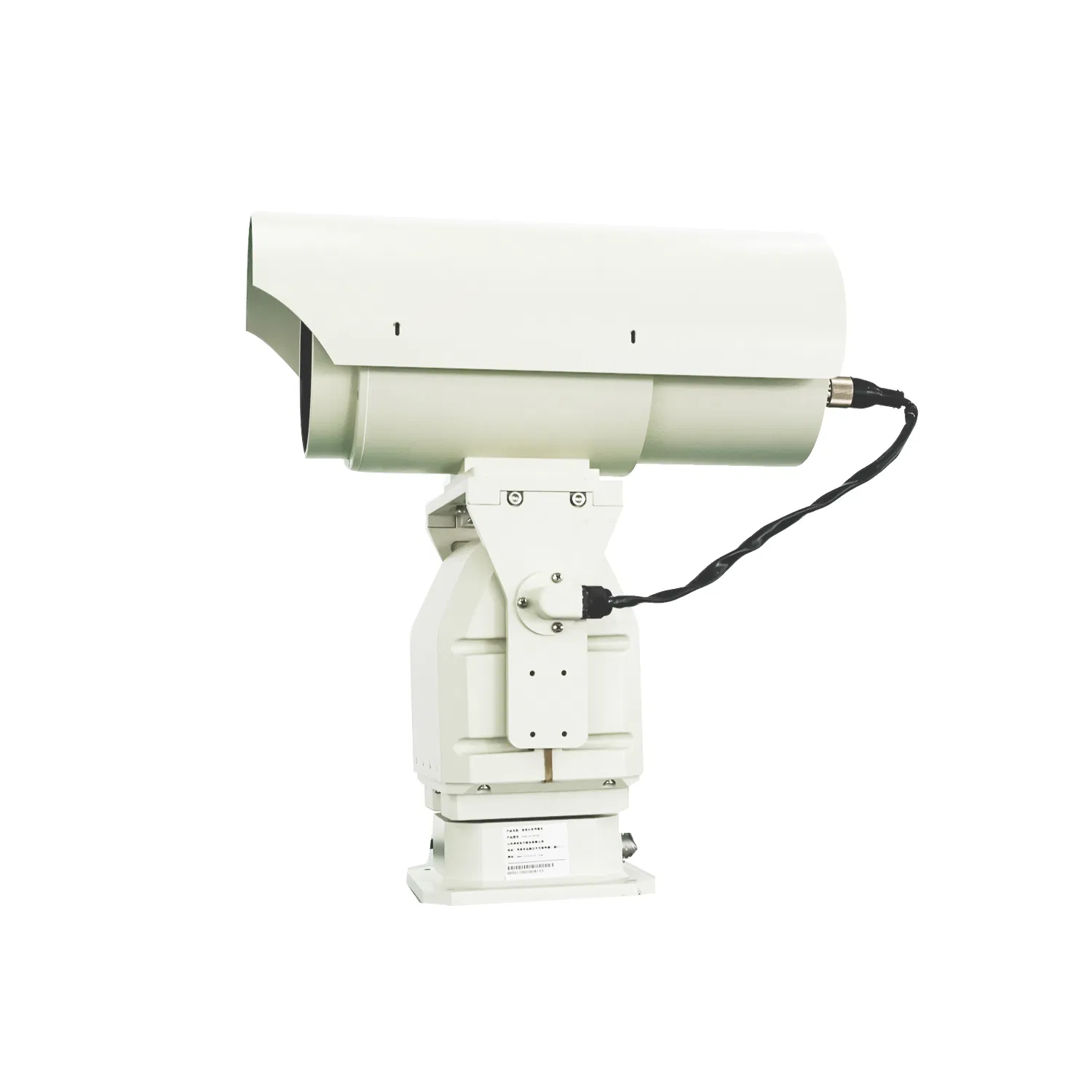

PTZ Thermal Imagining Infrared Camera for Drone Detection and Tracking
Main features1. High resolution uncooled microbolometer infrared focal plane arrays, vox2. 25µm or 17 µm pixel, image quality fine, observe small target more clearly, further detection distance3. High sensitivity, NETD can reach 50mk and frame at 25Hz4. Word originate 30~150mm co......
Send Inquiry
Product Description
Main features
1. High resolution uncooled microbolometer infrared focal plane arrays, vox
2. 25µm or 17 µm pixel, image quality fine, observe small target more clearly, further detection distance
3. High sensitivity, NETD can reach 50mk and frame at 25Hz
4. Word originate 30~150mm continuous zooming,can search in a wide range as well as identify target far, not lost target
5. Image noise reduction processing, add DDE function; output hot white/ hot black/pseudo color
6. Low power consumption, quick start-up, stable performance, image clearly with high uniformity
7. RS 485 interface control, analog video signal output
8. Simple operation, easy to use and maintain
9. Precision casting aluminium alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, overlength working lifetime
Technical indicators
Thermal Camera Series
Application
Sheenrun products are widely used for outdoor surveillance such as oilfield monitoring, city monitoring project,
frontier defense, shipboard / seaport / railway / highway / airport / reservoir / tourist sites monitoring etc.
Package & Delivery
production season and order quantity.
Our Services
1. We generally offer one year warranty. Extended warranty is also available.
2. Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
3. OEM available.
4. Customized product available.
Certification
Company Introduction
China Sheenrun Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment
supplier, Sheenrun adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom
infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom
thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
Exhibition photos
1. High resolution uncooled microbolometer infrared focal plane arrays, vox
2. 25µm or 17 µm pixel, image quality fine, observe small target more clearly, further detection distance
3. High sensitivity, NETD can reach 50mk and frame at 25Hz
4. Word originate 30~150mm continuous zooming,can search in a wide range as well as identify target far, not lost target
5. Image noise reduction processing, add DDE function; output hot white/ hot black/pseudo color
6. Low power consumption, quick start-up, stable performance, image clearly with high uniformity
7. RS 485 interface control, analog video signal output
8. Simple operation, easy to use and maintain
9. Precision casting aluminium alloy shell, sealed and waterproof, nitrogen inside, anti-harsh environment, overlength working lifetime
Technical indicators
| Monitoring distance | Object | People(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
| Detect | 4320m | 11880m | |
| Recognize | 1080m | 2970m | |
| Identification | 540m | 1440m | |
| Detector | Detector type | Uncooled FPA detector(vox) | |
| Resolution | 384×288, pixel 25µm (640×512 optional) | ||
| Spectrum | 8~14μm | ||
| NETD | ≤50mK | ||
| Frame | 25Hz | ||
| FFC | Auto/Manual/scene | ||
| Image process | DDE, pseudo color | ||
| Video output | PAL | ||
| Thermal lens | Focal length | 36~180mm, 5x optical zoom | |
| FOV | 2.5°×2.0°~12.7°×10.2° | ||
| F | 1.0 ~ 1.2 | ||
| Lens control | E zoom/focus(auto focus is optional) | ||
| Pan-tilt | Rotating angle | Pan:0°~ 360°continuous; Tilt:+30°~ -45° | |
| Rotating speed | Pan:0.1°~9°/S; Tilt:0.1~4°/S | ||
| Presets | 255 | ||
| Agreement | Pelco-D, Pelco-P Optional | ||
| Baud rate | 2400/4800/9600/19200 bps Optional | ||
| Interface | RS485 | ||
| Power supply | AC24V±10%, 50Hz | ||
| Power consumption | ≤30W | ||
| Working temperature | -25ºC~+55ºC | ||
| Storage temperature | -40ºC~+65ºC | ||
| Load capacity | 20kg | ||
| Weight | 10Kg | ||
| Size | 265mm×180mm×315mm(L×W×H) | ||
| Interface | Power supply interface | DC12V | |
| Other interface | RS485, BNC video output | ||
| Environmental indicators | Working temperature | -25ºC~+55ºC(-40ºC~+55ºC customized) | |
| Storage temperature | -40ºC~+65ºC | ||
| International protection | IP66 | ||
| Anti-vibration | GB/T 4857.10-2005 | ||
| Anti-impact | GB/T 15412-94 Free drop test method | ||
| Anti-thunder | 2000V | ||
| Power | Power supply | DC12V(equip AC220V/DC12V power adapter) | |
| Power consumption | ≤8W | ||
| Physical features | Weight | ≤7Kg | |
| Size | 440mm×213mm×217mm(L×W×H, contain sunshield cover) | ||
| Installation | Outdoor base installation | ||

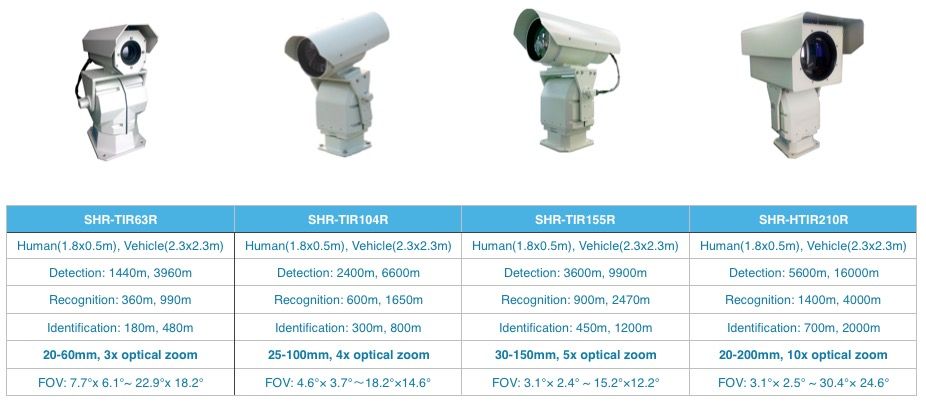

Thermal Camera Series

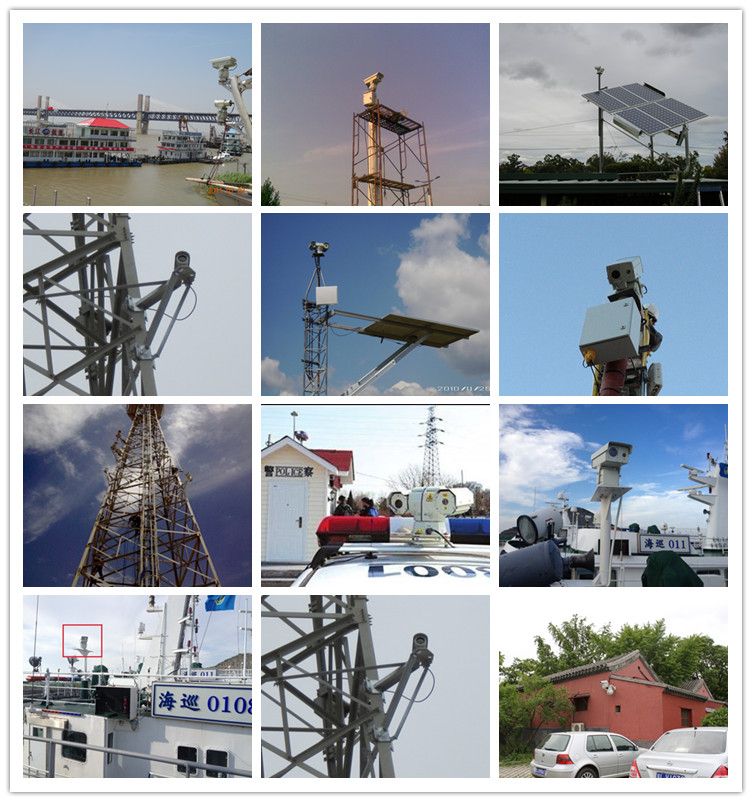

Application
Sheenrun products are widely used for outdoor surveillance such as oilfield monitoring, city monitoring project,
frontier defense, shipboard / seaport / railway / highway / airport / reservoir / tourist sites monitoring etc.
Package & Delivery
>>> Package
Standard Wooden or Carton cases>>> Delivery
7-20 days after order confirned, detail delivery should be decided according toproduction season and order quantity.
Our Services
1. We generally offer one year warranty. Extended warranty is also available.
2. Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
3. OEM available.
4. Customized product available.
Certification

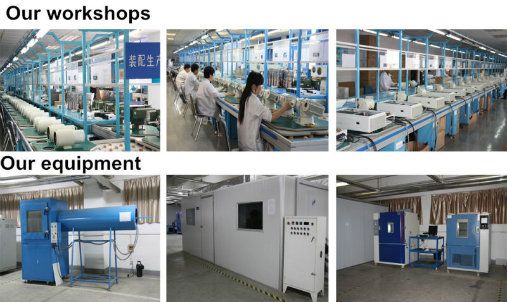

Company Introduction
China Sheenrun Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment
supplier, Sheenrun adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom
infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom
thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
Exhibition photos
