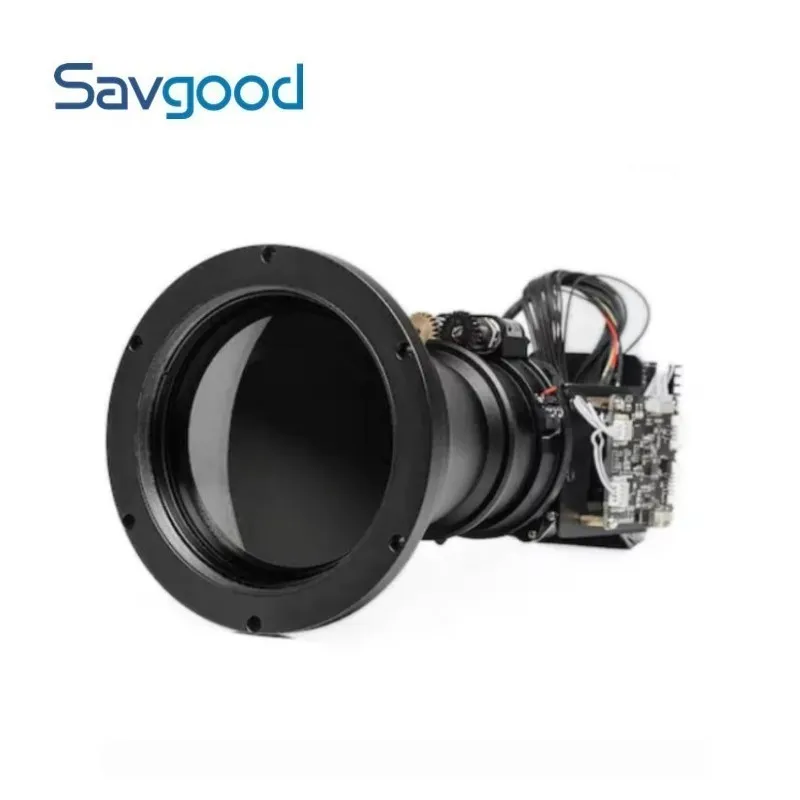

Savgood Sg-Tcm06n2-M30150 12um 640*512 11km Vehicle Detection Long Distance Border Security Lwir Thermal Imaging IP Camera Module
1. Features> 640x512 Resolution, high sensitivity sensor> 12um Pixel pitch.> 25~225mm (30~150mm, 20~100mm, 25~75mm Optional) Motorized Thermal Lens> Support fast Auto Focus> Support various IVS functions> Support Fire Detection> Modular design, better to do function extension2. ......
Send Inquiry
Product Description
1. Features
> 640x512 Resolution, high sensitivity sensor
> 12um Pixel pitch.
> 25~225mm (30~150mm, 20~100mm, 25~75mm Optional) Motorized Thermal Lens
> Support fast Auto Focus
> Support various IVS functions
> Support Fire Detection
> Modular design, better to do function extension
2. Specification
| Model | SG-TCM06N2-M25225 | SG-TCM06N2-M30150 | SG-TCM06N2-M20100 | SG-TCM06N2-M2575 | |
| Sensor | Image Sensor | Uncooled VOx microbolometer | |||
| Resolution | 640 x 512 | ||||
| Pixel Size | 12μm | ||||
| Spectral Range | 8~14μm | ||||
| NETD | ≤40mK@25ºC, F#1.0 | ||||
| Lens | Focal Length | 25~225mm motorized Lens | 30~150mm motorized Lens | 20~100mm motorized Lens | 25~75mm motorized Lens |
| Optical Zoom | 9x | 5x | 5x | 3x | |
| Digital Zoom | 8x | 8x | 8x | 8x | |
| F Value | F1.0~F1.5 | F0.9~F1.2 | F0.8~F1.1 | F1.0~F1.2 | |
| FOV | 17.5°~1.7° | 14.6°~2.9° | 21.7°~4.4° | 17.5°~5.9° | |
| Video | Compression | H.265/H.264/H.264H | |||
| Snapshot | JPEG | ||||
| Pseudo color | Support: White Hot, Black Hot, Iron Red, Rainbow 1, Fulgurite, Rainbow 2, Fusion, Bluish Red, Amber, Arctic, Tint | ||||
| Streams | Main Stream: 25fps@(704x576), 25fps@(352x288) Sub Stream: 25fps@(704x576), 25fps@(352x288) | ||||
| Network | Network Protocol | IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, PPPoE, 802.1X, IP Filter | |||
| Interoperability | ONVIF Profile S, Open API, SDK | ||||
| Max. Connection | 20 | ||||
| Intelligence | Normal Event | Motion Detection, Audio detection, IP address conflict, Illegal Access, Storage anomaly | |||
| IVS functions | Support intelligent functions: Tripwire, Cross Fence Detection, Intrusion, Loitering Detection. | ||||
| Fire Detection | Support | ||||
| Interface | Ethernet | 4PIN Ethernet port, 10M/100M self-adaption | |||
| Alarm In/Out | 1/1 | ||||
| RS485 | Support | ||||
| Resolution | 50Hz: 25fps@(704x576) | ||||
| Storage Capabilities | Micro SD card, up to 256G | ||||
| Power Supply | DC 9~12V (Recommend: 12V) | ||||
| Operating Conditions | -20°C~+60°C/20% to 80%RH | ||||
| Storage Conditions | -40°C~+65°C/20% to 95%RH | ||||
| Dimensions(L*W*H) | Approx. 318mm*200mm*200mm | Approx. 289mm*183mm*183mm | Approx. 224mm*152mm*152mm | Approx. 194mm*115mm*115mm | |
| Weight | Approx. 6.4kg | Approx. 4.3kg | Approx. 2.1kg | Approx. 1.6kg | |

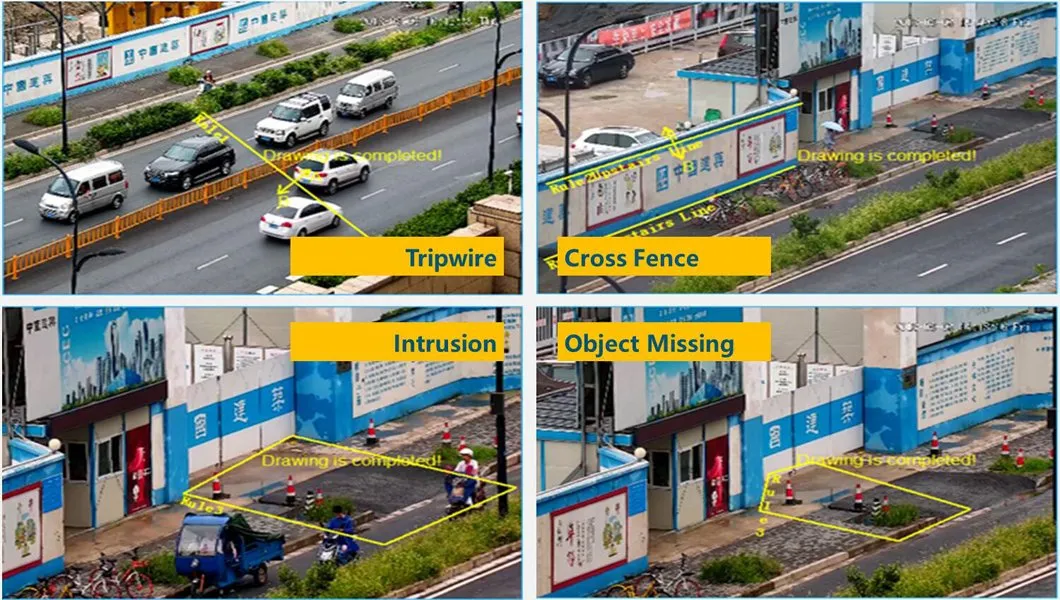

3. IVS (Intelligent Video Surveillance)

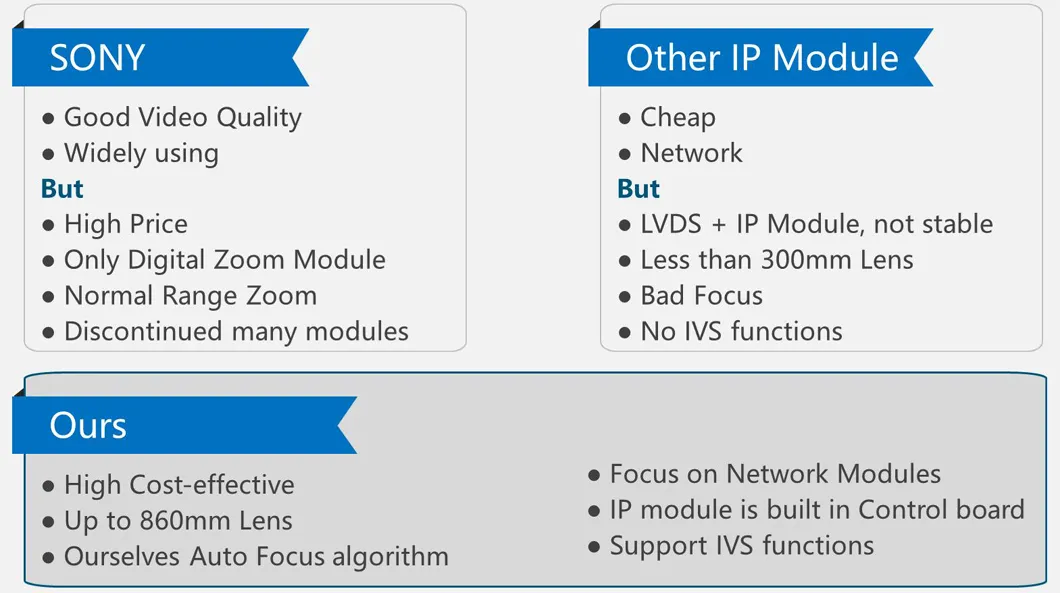

4. VS Others
5. Application Solution
6. Packing

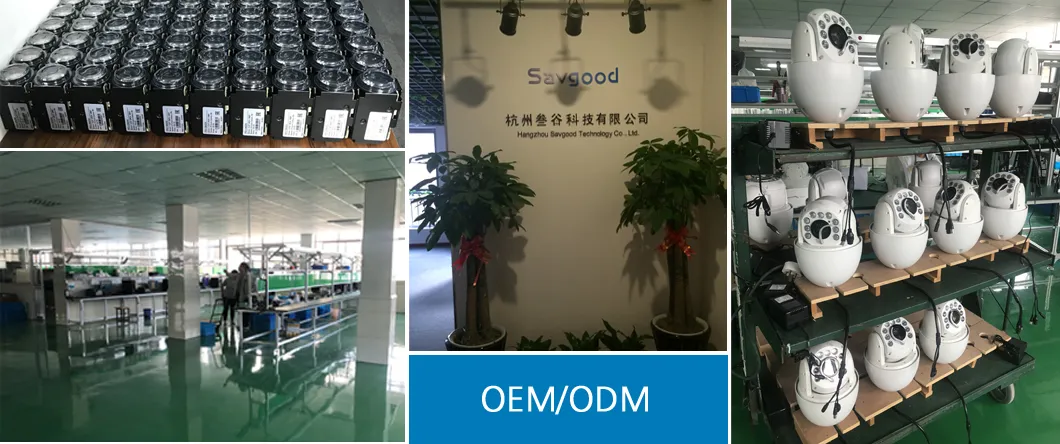

7. Company
8. Contract us
