Product Description

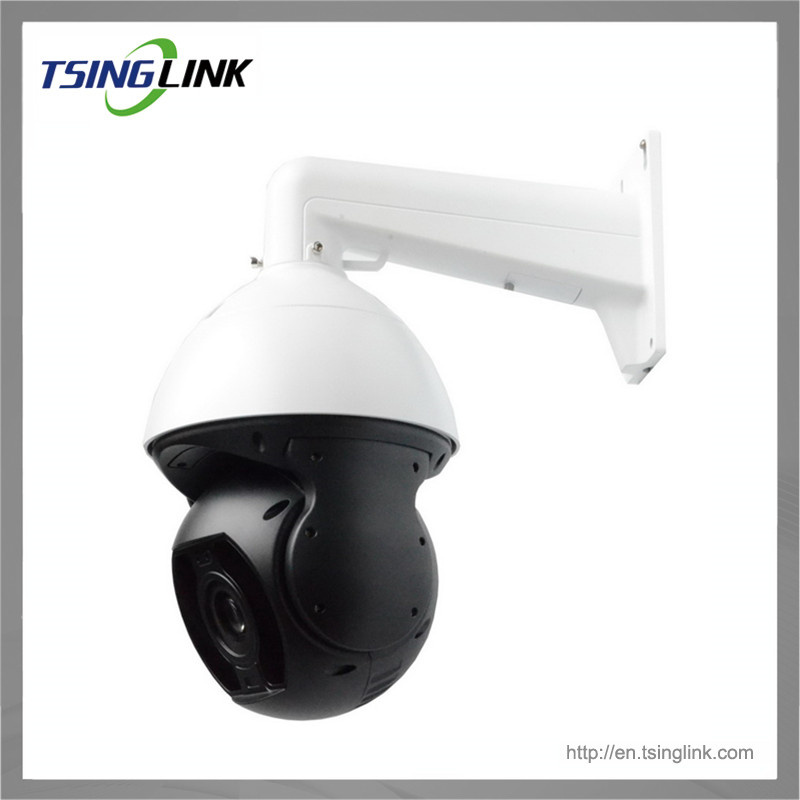

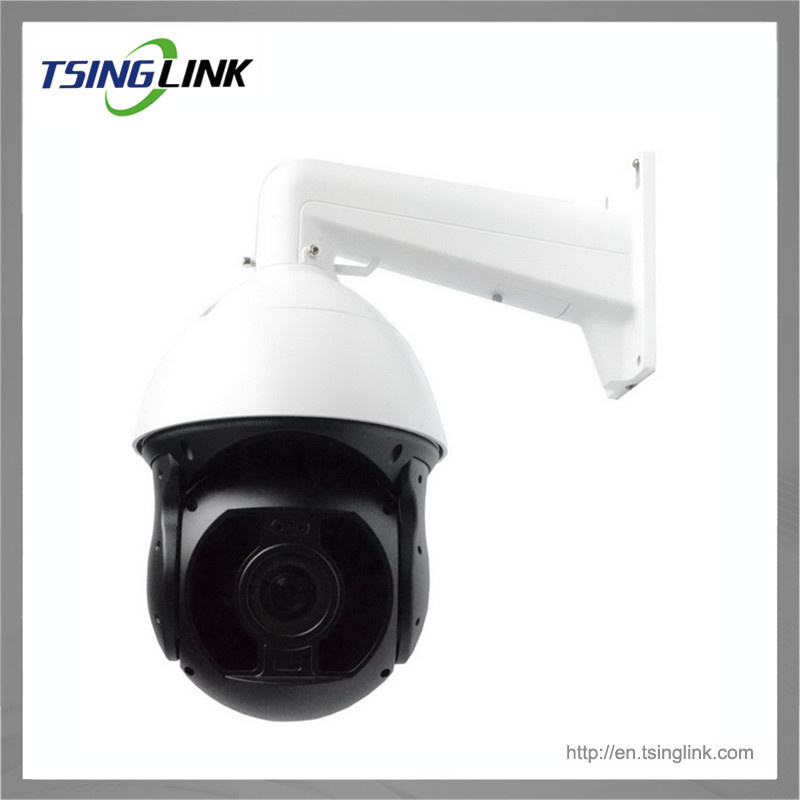

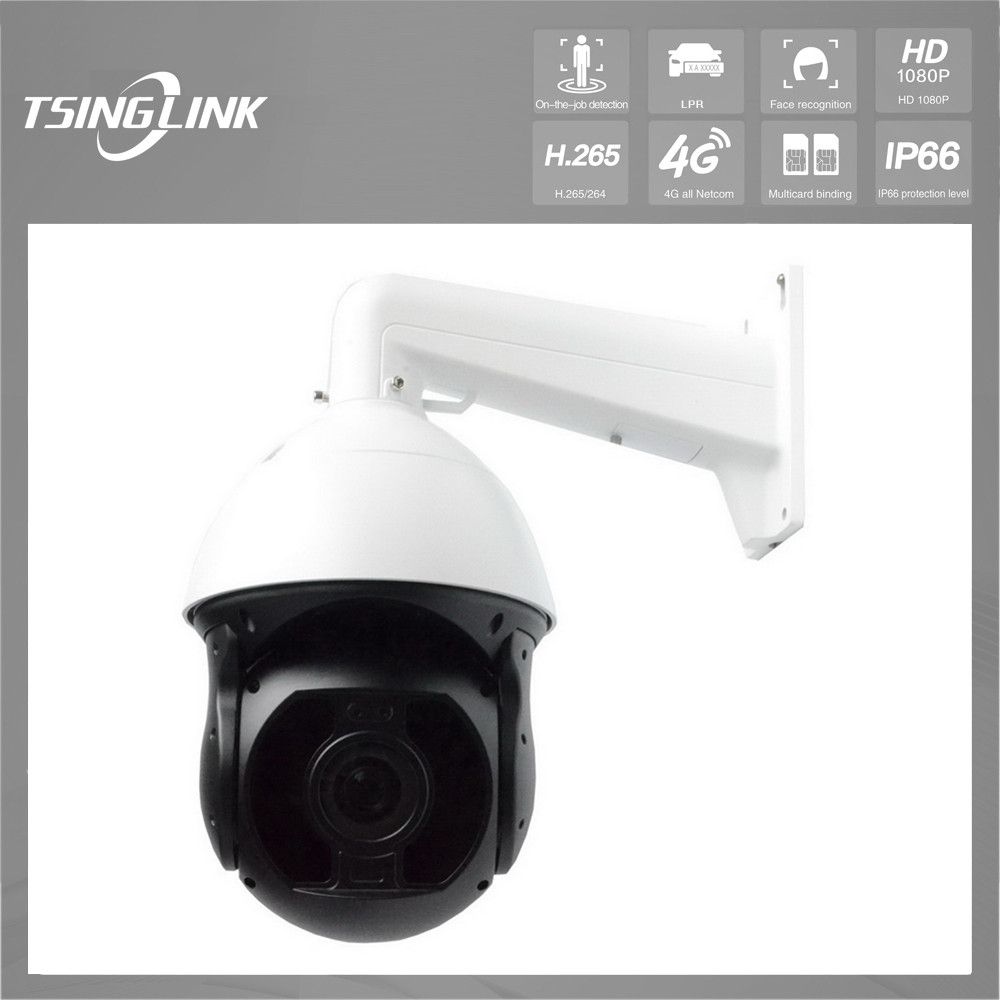

4G HD IR high-speed network ball camera is a product that includes modules of HD camera, IR lighting lamps, video encoding, wireless transmission, and local storage.

Key features

- 2.3 megapixel HD low illumination integrated movement
- Dual filter auto switch, 18×optical zoom, 10×digital zoom
- Intelligent dimming IR night vision, the maximum distance is 100m
- Omnidirectional high-speed PTZ, support 256 presets, 8 patrols, 4 patterns
- H.264 high profile, or H.265 coding, support dual stream and 128G TF card recording
- Supports intelligent mode: 3D noise reduction, digital WDR, lens correction, defogging, corridor surveillance
- Supports Tsinglink iCVS cloud video management platform, iCAP, and ONVIF protocols
- Supports audio and alarm input/output
- Protection level: IP66
- Supports DC 12V/AC 24V, power consumption is less than 35W

Industry application

It applies to the occasions where there is no network or costly for network construction but large-scale high-speed surveillance is required meanwhile, such as the river, forest, highway, railway, airport, harbor, sentry, plaza, park, scenic region.

Specifications

Video
Coding	H.264 High Profile/H.265
Sensor	1/2.8" SONY Exmor CMOS, Progressive scanning
Backlight compensation	Support
Wide Dynamic	Support
SNR	≥50db
Zoom	Support 20-32x optical zoom
Output	1 channel CVBS output
Resolution	1080P/720P/D1/CIF
Frame Rate	1~25 fps adjustable
Stream	Support double stream , 64kbps~6Mbps adjustable
Audio
Input	One channel
Output	One channel
Storage
Recording Format	AVI
SD Card	Support micro SD card storage
IR
IR Distance	120m
Wireless Net
3G/4G Net	WCDMA,EVDO,TD-SCDMA, TDD-LTE,FDD-LTE
Interface
Wired Net	Support
Alarm Input	Support
Alarm Output	Support
Power Supply
Input	12V
General SPC
Size	Φ230mm×348mm(H)
Working Temp./Humidity	-20ºC~50ºC,10%~90%

Security 1080P CMOS HD Onvif H264 Network PTZ Dome Camera

1. Are you a factory or a trading company?
We are professional factory with nearly two decades experience, with 4000 square meters workshop and over 150 employees. We have the independent right to operate import and export to provide service to overseas customers directly, so there's no need to pay additional commission to agency and we could skip some steps to save more time.
We have our own research and development of terminal and platform software, customization and secondary development is welcomed. Tsinglink has independent brand and provide OEM, ODM production as well.

2. What is your pricing strategy?
Discount will be provided upon large quantity. For overseas markets, we will offer competitive price to support long-standing customers and distributors.

3. What is your minimum order quantity?
Our minimum order quantity is 10 pcs for each model, but we accept small order as trial order.

4. How could I get a sample?
Sample fee and freight charge will be listed on sample PI. Once our finance team confirms received your payment, sample and tracking number will be sent.

5. What's the payment terms?
We accept TT (Telegraphic Transfer), Western Union etc as payment term for small order and L/C for larger order.

6. What's the delivery time?
Usually 7-15 working days after received payment, but it depends on the order quantity. Estimated delivery time will be informed by sales before final payment.

7. What type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea.

8. How about quality control?
ISO systems help our factory improve management level, ERP system can help us control the cost of procurement links effectively, so we can provide competitive price, new test equipments can do uninterrupted fatigue testing to ensure products using life.
Pre-shipment inspection and third-party supervision are available.

9. Do you have agency for after-sales service?
Sure. Our sales will instruct the installation of products and software. Please feel free to contact us if you meet any technical questions, we will help you work it out.

10. How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales to get related files.

Any further questions, welcome to contact our sales.
