Security IP CCTV Body Camera Support One-Button- Recording
SpecificationModelDSJ-B03RecordingSensor5MP CMOSChipsetAmbarella A7LA50Top pixel21 M(6144x3456 16:9) (5M/8M/10M/12M/16M/21M)Video ResolutionMultiple Recording Resolution 2304x1296 30p/ 1920x1080 30p /1280x720 60p /1280x720 30p /848x480 60p 16:9Video FormatH.264 /MPEG4Fast forward2X, 4X, 8X, 16X, 32X......
Send Inquiry
Product Description
| Specification | |
| Model | DSJ-B03 |
| Recording | |
| Sensor | 5MP CMOS |
| Chipset | Ambarella A7LA50 |
| Top pixel | 21 M(6144x3456 16:9) (5M/8M/10M/12M/16M/21M) |
| Video Resolution | Multiple Recording Resolution 2304x1296 30p/ 1920x1080 30p /1280x720 60p /1280x720 30p /848x480 60p 16:9 |
| Video Format | H.264 /MPEG4 |
| Fast forward | 2X, 4X, 8X, 16X, 32X, 64X |
| REW | 2X, 4X, 8X, 16X, 32X, 64X |
| Audio | High Quality Build-in Microphone. |
| Audio Format | WAV |
| Water Mark | User ID, Time and date Stamp Imbedded into Video. |
| Camera | 21 Megapixel Camera option with optional burst shot(3 or 5 photos) |
| Camera Format | JPEG |
| Snap Shot | Capture Photos During Video Recording |
| Recording Time | Continuous recording time: 600 minutes (battery full charged, IR closed, resolution ratio 640*480) |
| Storage Capacity | 32G(16G/64G) usually the customer need 32 G or more, as 16G is can not meet their record request |
| Storage Level | Visual Indicator |
| Record Led | Red |
| One Button Recording | Support One Button Record |
| Activation prompt | Audible, Visual, and Tactile Vibration Confirm Activation of Record and Stop |
| Pre-record function | ≥10s pre-record. |
| Last-record function | ≥10s last-record |
| Video quality | Best/better/normal |
| Video section | 5min/10min/15min/30min/45min |
| Burst | 2/3/5/10/15/20 Shot burst picture taking |
| Red IR switch | Auto/manual |
| Motion detection | Auto/manual |
| Audio guide | Support |
| Chime | Support |
| GPS | Do not support |
| Language | Chinese/English/Korean/Polish/Russian/Portuguese/Spanish/Others(OEM) |
| Screen protection | 30s/1min/3min/5min |
| Timing photography | 5/10 Seconds |
| Brightness | Low/high |
| Screen Saver | 30s/1min/3min/5min |
| Key tone | Support |
| Sound volume | Support |
| File type | control/criminal inspection/public security |
| Slide | Support |
| Video/Image review | |
| LCD Screen | 2 inch TFT-LCD High-Resolution Color Display |
| Audio Playback | Yes |
| Video Output | Not support |
| Video Transfer | USB 2.0 |
| Camera | |
| Recording Angle | Wide Angle 140 degrees |
| Night Vision | Up to 10 Meters with Visible Face Detection |
| Waterproof | IP67 |
| Clip | High Quality Metal Clip with 360 degrees Rotation |
| PTT | Not support |
| Battery | |
| Type | Built-in 2900mAH Lithium |
| Charging Time | 180 minutes |
| Battery Life | 10 Hours |
| Battery Level | Visual Indicator |
| Others | |
| Unique ID number/unit | Include 5 digit device ID and 6 digit ID |
| Password protect | To set an administrator password to allow deletion via software. User can only view the videos but cannot delete it. |
| Dimension | 85mm *62 mm *33mm |
| Weight | 135g(4.76oz) |
| Working Temperature | -40~60 degrees Celsius |
| Storage temperature | -20~55 degrees Celsius |

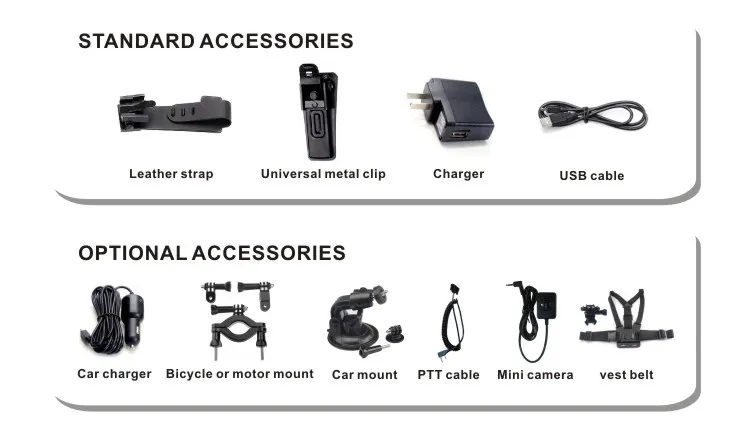

| ACCESSORIES | |
| Standard Accessories | USB cable, Charger, Manual, Universal metal clip,leather strap |
| Optional Accessories | shoulder belt mount,car mount, car charger,bicycle mount |
