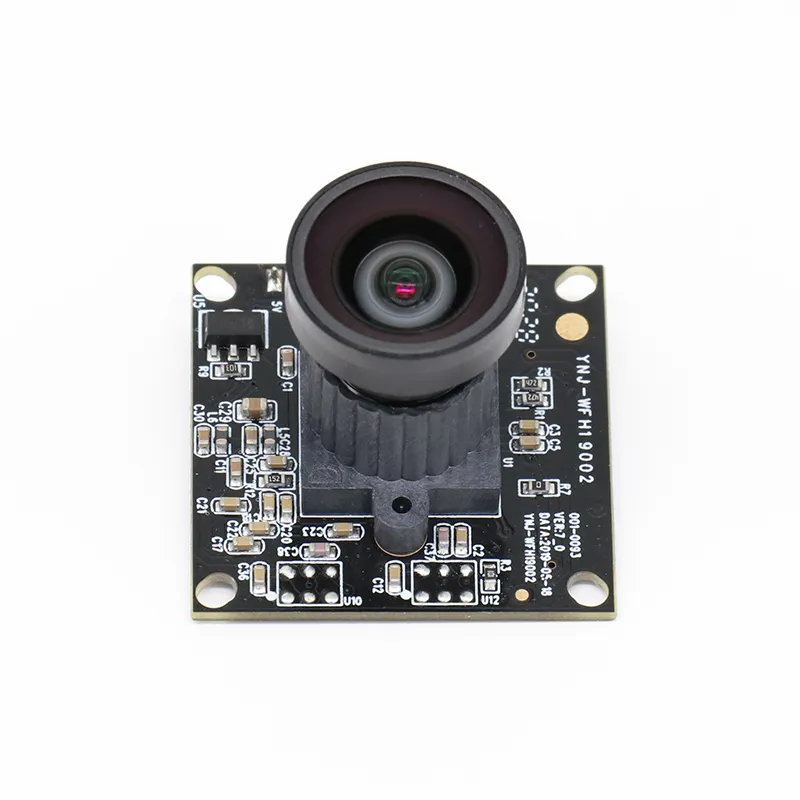

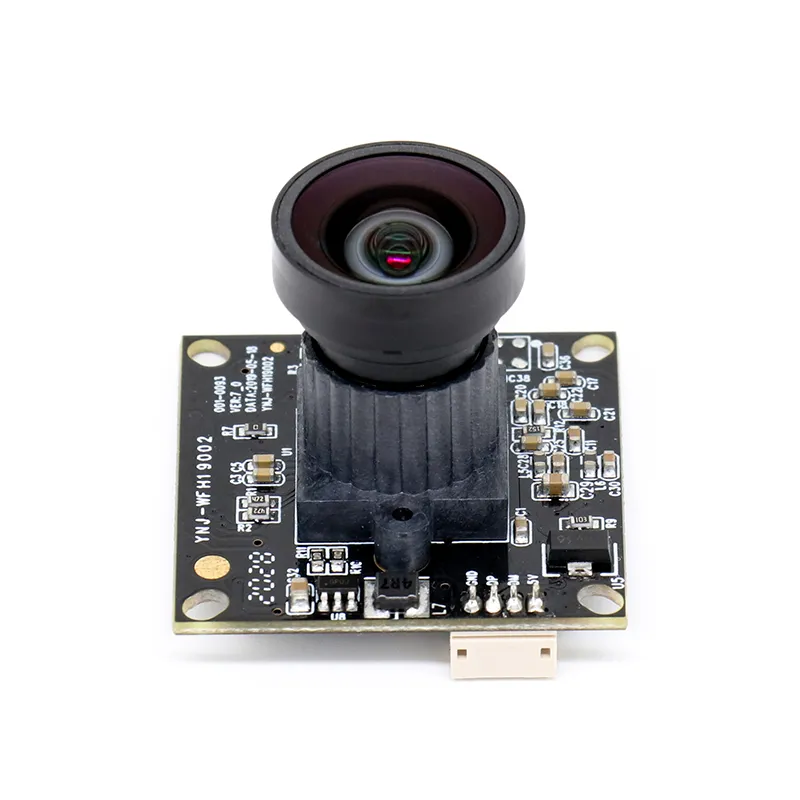

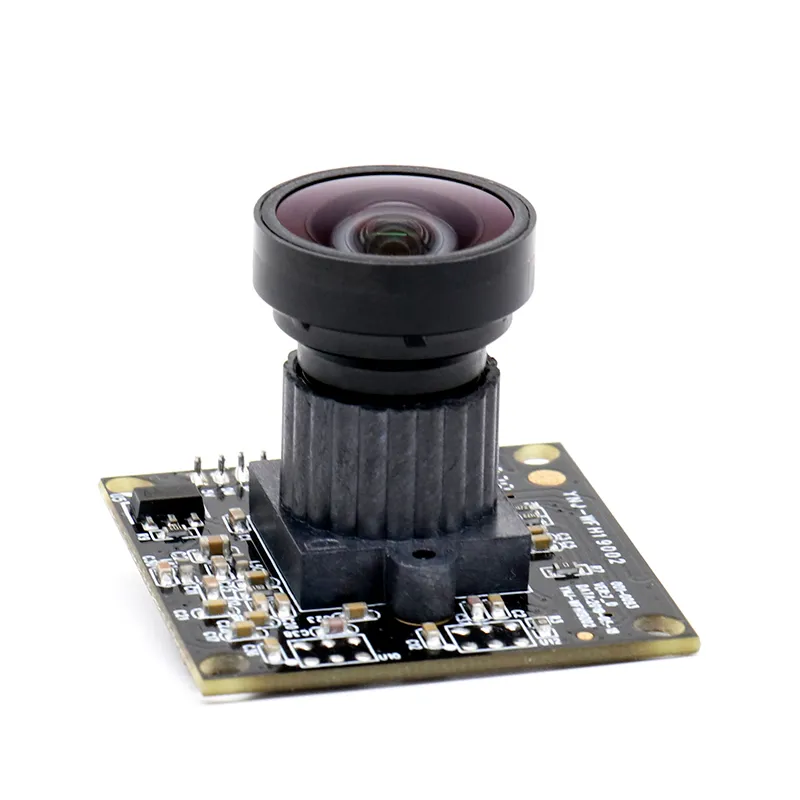

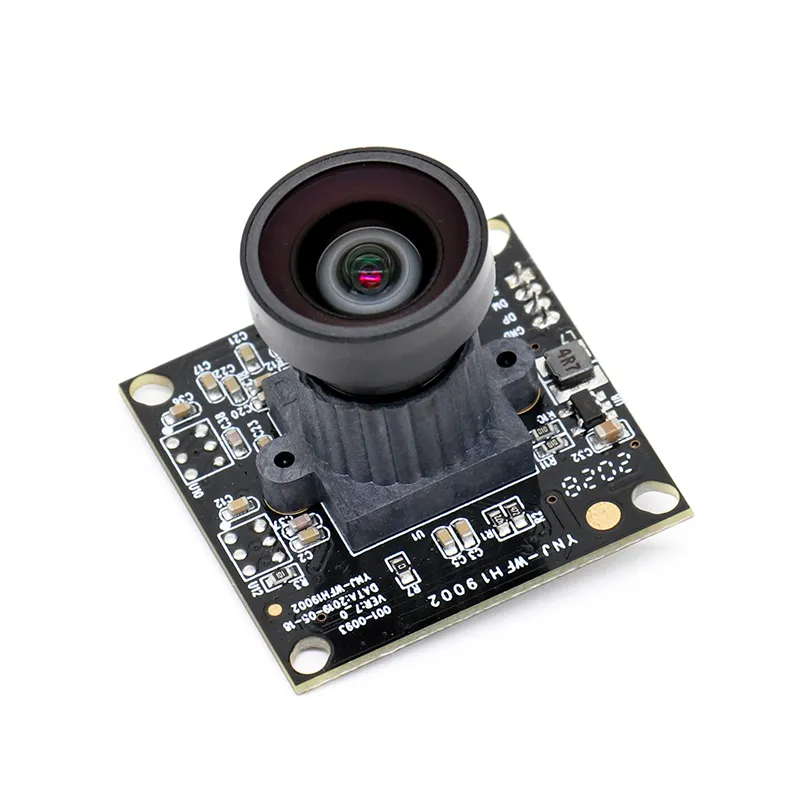

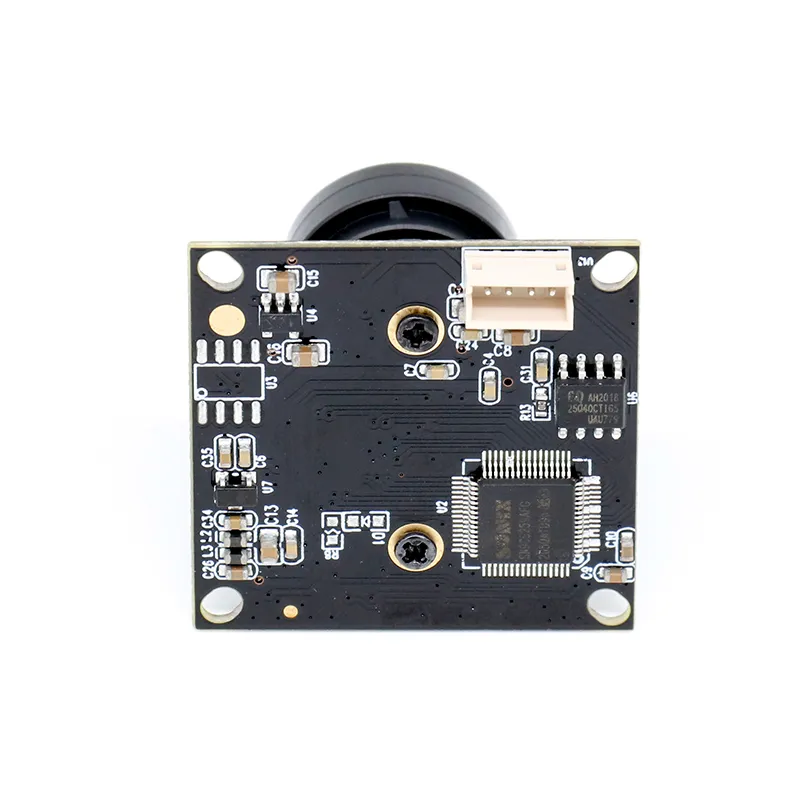

Shutter Color Image 5MP USB Camera Module
Full HD 5Mega Pixels CMOS USB Camera Module:1. 1/2.5 inch MI5100 Cmos camera module2. 5 megapixel high speed 30fps USB camera3. Full HD realtime usb webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB camera module with 55 degree5. 38*38mm mini micro USB board camera......
Send Inquiry
Product Description
Full HD 5Mega Pixels CMOS USB Camera Module:
Pictures Display:

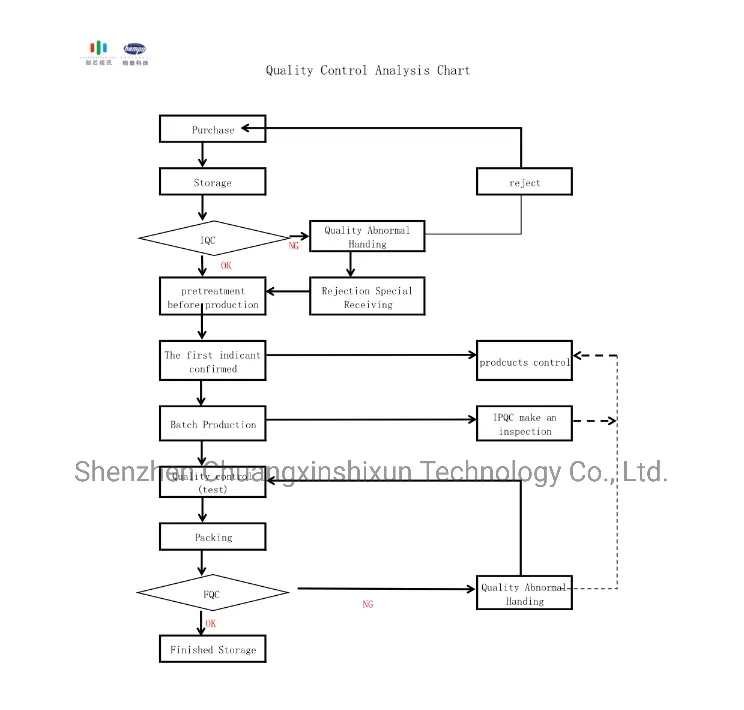

Quality Control:
Company Information:
1. 1/2.5 inch MI5100 Cmos camera module
2. 5 megapixel high speed 30fps USB camera
3. Full HD realtime usb webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB camera module with 55 degree
5. 38*38mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | MI5100 |
| Lens Size | 1/2.5-inch (4:3) |
| Maximum Pixels | 5 mega |
| Maximum Effective Resolution | 2,592H x 1,944V |
| Data Format | MJPG/YUY2 |
| Pixel Size | 2.2µm x 2.2µm |
| Dynamic Range | 70.1dB |
| Lens | FOV :D= 55 |
| Optical length :11.21MM | |
| lens construction:2G2P+IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20C to +70C |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Pictures Display:
Quality Control:
Company Information:
