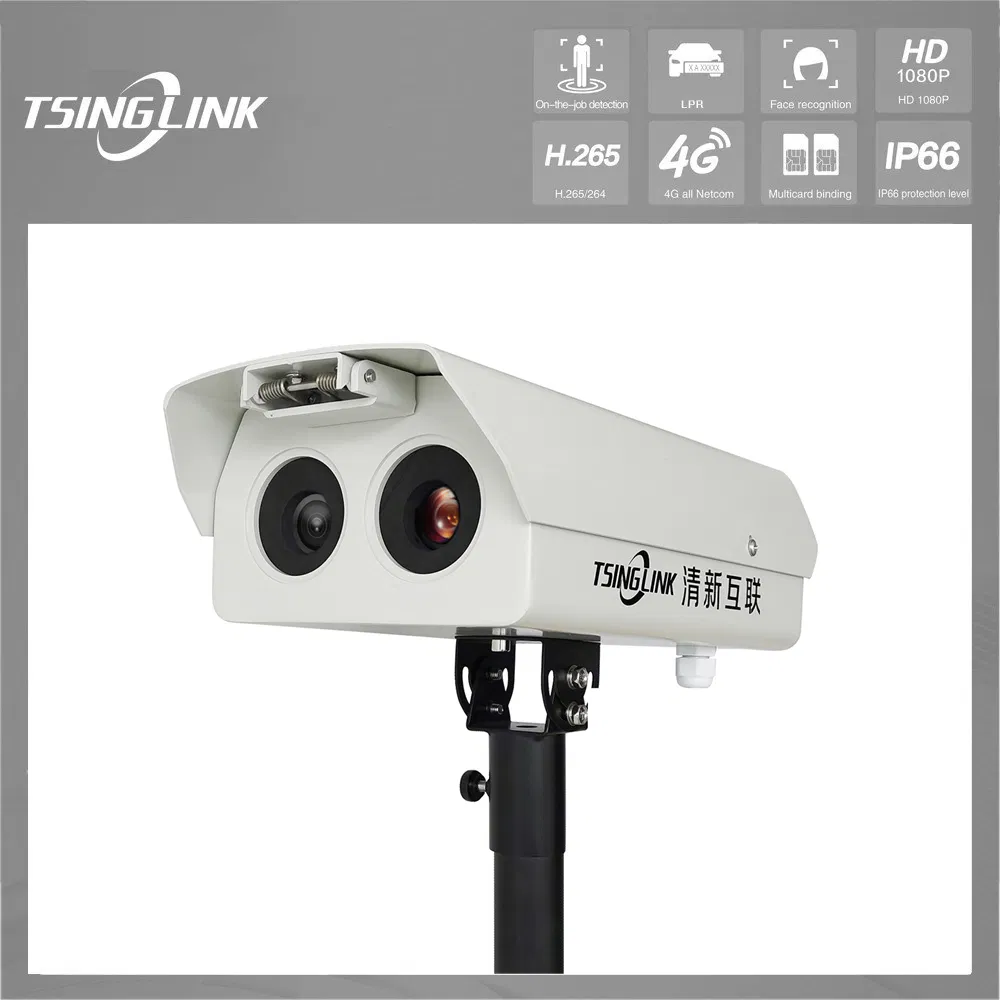

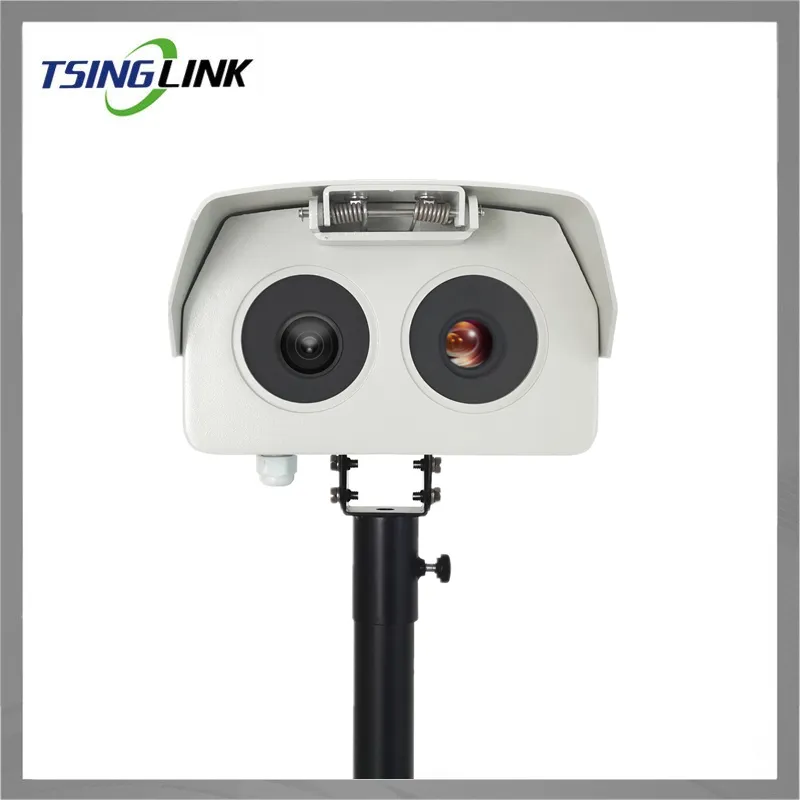

China Station Hospital School Quick Body Temperature Screening Face Recognition Mask Detection Smart Security Surveillance Thermometer Thermal Imaging Camera

Product Description

Dual-spectrum Thermal Imaging Camera is a thermal imaging thermometer for monitoring scenes where multiple people enter and exit at the same time. The product has high precision thermal imaging, multi people temperature measurement, real-time temperature measurement, multi-point abnormal body temperature alarm, visible display temperature measurement and alarm data, continuous recording, automatically capture when alarm, face detection, face recognition, and intelligent detection of mask wearing and other functions, can efficiently complete non-contact personnel temperature rapid screening and human temperature measurement registration in public places with a large flow of people. It is convenient and quick to deploy and has rich application scenarios.

Key features

Non-contact rapid screening, full real-time temperature measurement to avoid cross-infection
Long-distance, large-area detection, accurate and rapid screening
Up to 300 people can be detected per minute
Multi-point abnormal body temperature alarm, visible light display temperature measurement and alarm, high temperature measurement accuracy
Continuous video, historical trace can be checked
Automatically capture when alarm
Support face recognition combined with body temperature reporting to complete body temperature measurement registration
Can detect that the mask is not worn and alarm
Temperature measurement accuracy≤±0.3ºC

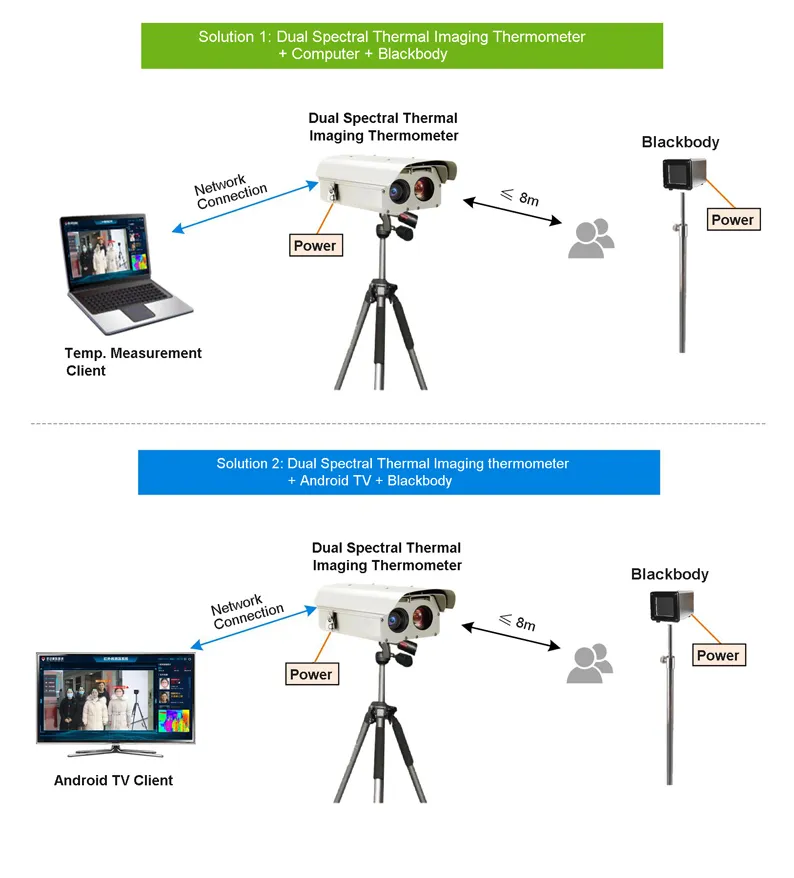

Can be deployed quickly with clients such as computer and TV

Specifications

Item	TSC620-K
Sensor	1/1.8" CMOS 200W
Encoding Resolution	1920×1080,1280×720
Encoding Algorithm	H.264/H.265
Frame Ratio	1~30 fps adjustable
Focus	6mm
Detector Type	Long wave infrared uncooled focal plane array
Thermal Imaging Resolution	640×480
Pixel Size	12μm
NETD	<60mk@25ºC, f1.0
Working Spectrum	8-14μm
Nonuniformity Correction	Shutter
Lens	3.2mm
Temperature Measurement Range	+32ºC~+42ºC
Temperature Measurement Accuracy	±0.3ºC
Temperature Measurement Distance	≤5 meter
Face Detection	Support
Face Recognition	Support
Mask Wearing Detection	Support
Network	10/100M Ethernet, RJ45 female port
5G/4G	5G or 4G network is optional
Power Supply	12V DC power supply, DC5.5*2.1 female port
Power Consumption	Typical power consumption ≤10W
Working Temperature	With black body: 0ºC~+40ºC, Without black body: +10ºC~+30ºC
Total Weight	2.4 Kg
Size	365 mm×216 mm×138 mm

Station Hospital School Quick Body Temperature Screening Face Recognition Mask Detection Smart Security Surveillance Thermometer Thermal Imaging Camera

Our company

Station Hospital School Quick Body Temperature Screening Face Recognition Mask Detection Smart Security Surveillance Thermometer Thermal Imaging Camera

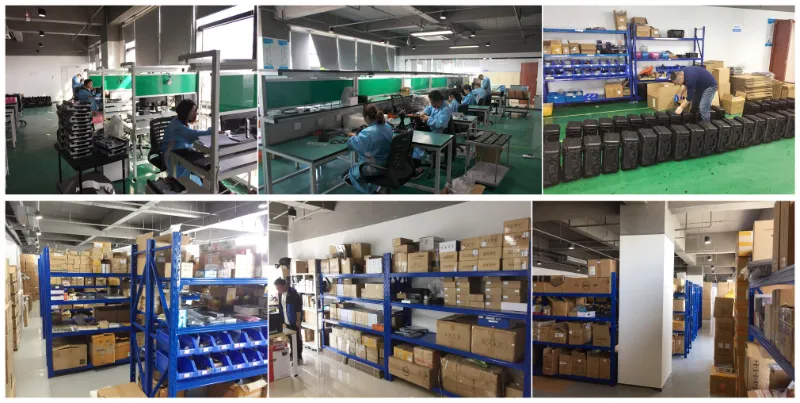

Workshop

Station Hospital School Quick Body Temperature Screening Face Recognition Mask Detection Smart Security Surveillance Thermometer Thermal Imaging Camera

Expo

1. Are you a factory or a trading company?
We are professional factory with nearly two decades experience, with 4000 square meters workshop and over 150 employees. We have the independent right to operate import and export to provide service to overseas customers directly, so there's no need to pay additional commission to agency and we could skip some steps to save more time.
We have our own research and development of terminal and platform software, customization and secondary development is welcomed. Tsinglink has independent brand and provide OEM, ODM production as well.

2. What is your pricing strategy?
Discount will be provided upon large quantity. For overseas markets, we will offer competitive price to support long-standing customers and distributors.

3. What is your minimum order quantity?
Our minimum order quantity is 10 pcs for each model, but we accept small order as trial order.

4. How could I get a sample?
Sample fee and freight charge will be listed on sample PI. Once our finance team confirms received your payment, sample and tracking number will be sent.

5. What's the payment terms?
We accept TT (Telegraphic Transfer), Western Union etc as payment term for small order and L/C for larger order.

6. What's the delivery time?
Usually 7-15 working days after received payment, but it depends on the order quantity. Estimated delivery time will be informed by sales before final payment.

7. What type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea.

8. How about quality control?
ISO systems help our factory improve management level, ERP system can help us control the cost of procurement links effectively, so we can provide competitive price, new test equipments can do uninterrupted fatigue testing to ensure products using life.
Pre-shipment inspection and third-party supervision are available.

9. Do you have agency for after-sales service?
Sure. Our sales will instruct the installation of products and software. Please feel free to contact us if you meet any technical questions, we will help you work it out.

10. How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales to get related files.

Any further questions, welcome to contact our sales.
