Successful Project 1080P Dual Lens USB Camera Module
Successful Project 1080P Dual Lens USB Camera Module:1. 1/2.7 inch AR0230 CMOS Camera Module2. Doule 2Mega Face Recognition CMOS USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 73.5 degree 5. 92*22*17mm mini mic......
Send Inquiry
Product Description
Successful Project 1080P Dual Lens USB Camera Module:
Pictures Display:
Quality Control:
Company Information:
1. 1/2.7 inch AR0230 CMOS Camera Module
2. Doule 2Mega Face Recognition CMOS USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 73.5 degree
5. 92*22*17mm mini micro USB board camera
Specification:
| Items | Parameters | |
| IR Camera | RGB Camera | |
| SENSOR | OV2710, color photosensitive chips | AR0230, wide dynamic color photosensitive chips |
| Lens Size | 1/2.7 inch | 1/2.7 inch |
| Maximum Effective resolution | 1920*1080 | 1928*1088 |
| Data Format | MJPG/YUY2 | MJPG/YUY2 |
| Pixel Size | 1920*1080,1280*720,640*480,320*240 | 1920*1080,1280*720,640*480,320*240 |
| Dynamic Range | Up to 69dB | Up to 105dB |
| Lens | FOV :D= 73.5° | |
| Optical length :8.61MM | ||
| lens construction:4E+IR | ||
| mount :M8*P0.35mm | ||
| Focusing | Fixed focus | |
| Frame Rate | 30fps | |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure | |
| Audio | \ | |
| Voltage | DC 5V | |
| Working Current | MAX 200mA | |
| USB Connector | USB2.0 | |
| Storage Temperature | -20ºC to +70ºC | |
| Working Temperature | 0ºCto +60ºC | |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 | |
| 2,Linux or OS with UVC driver | ||

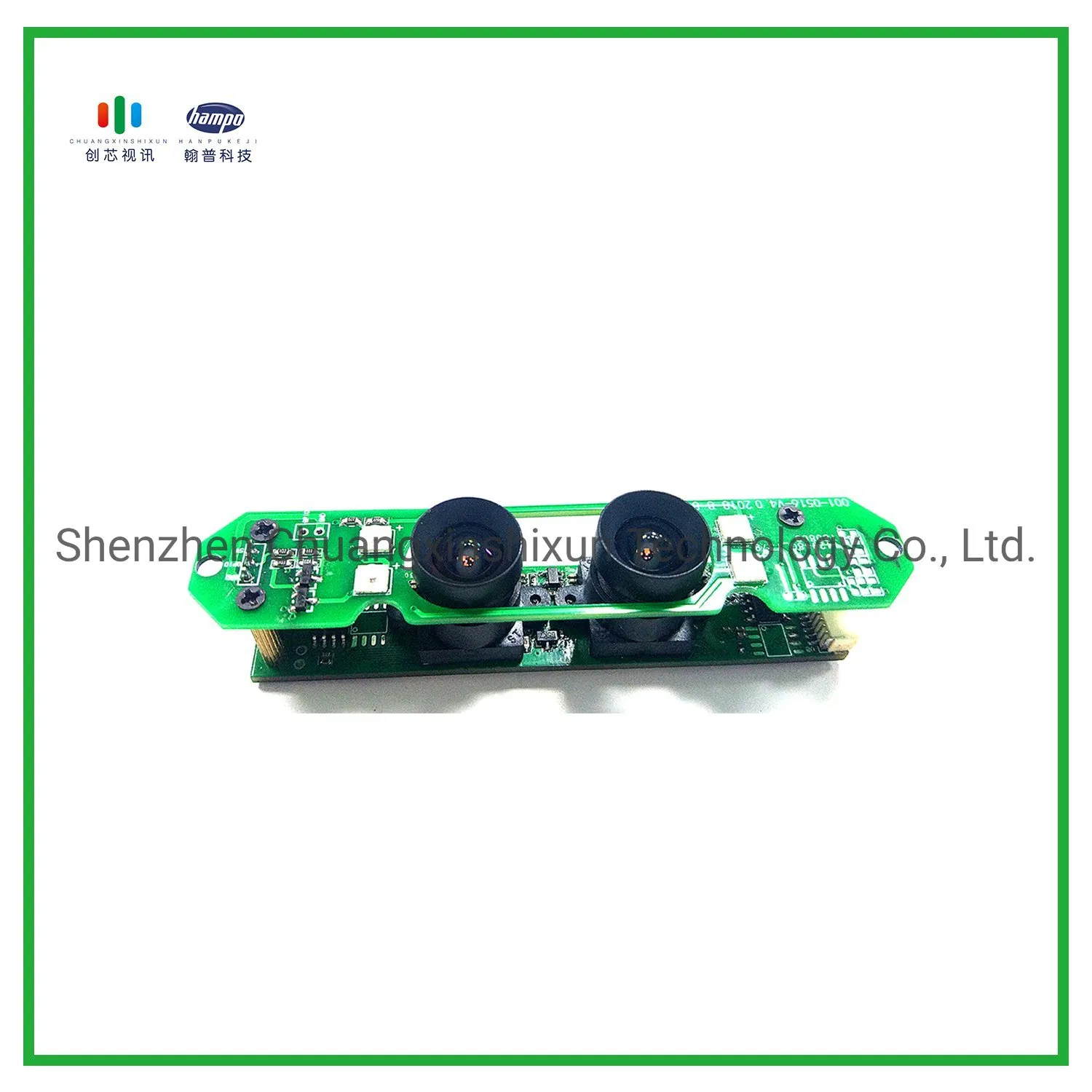

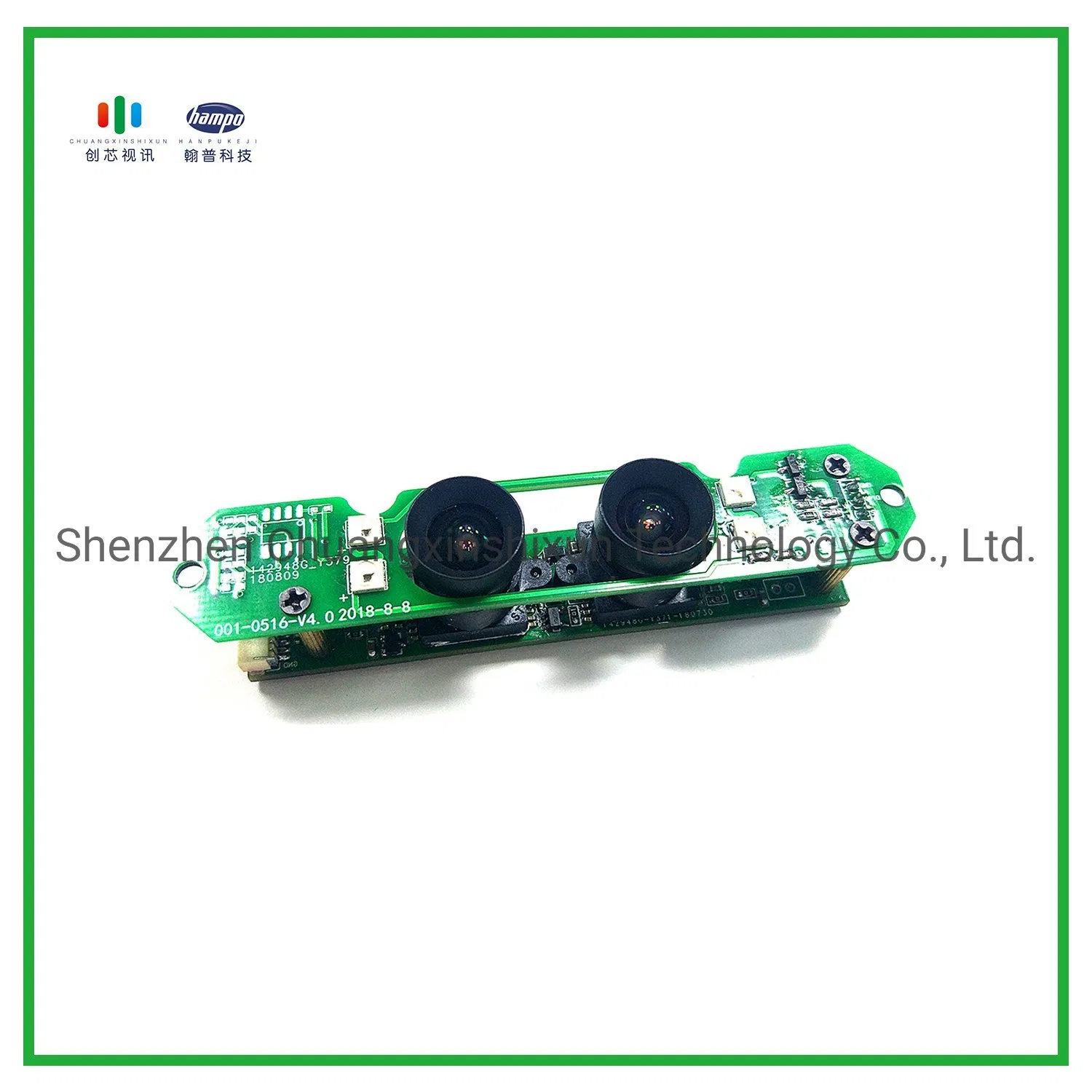

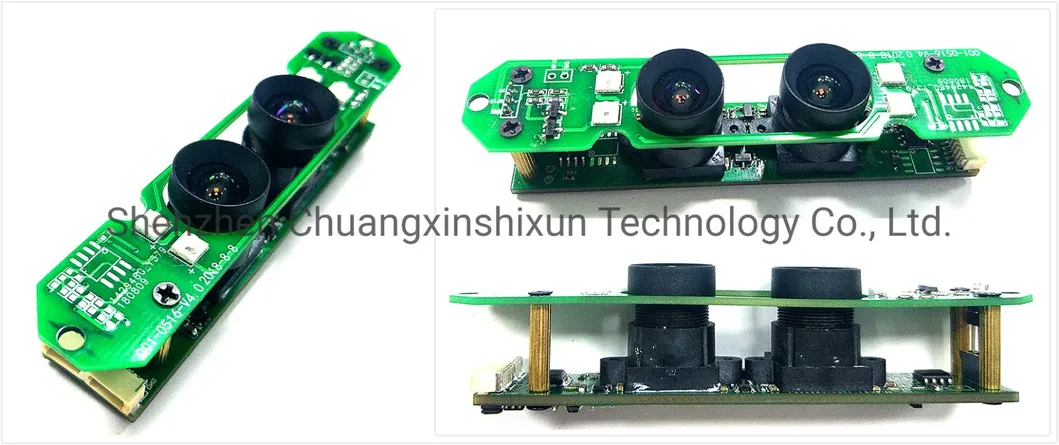

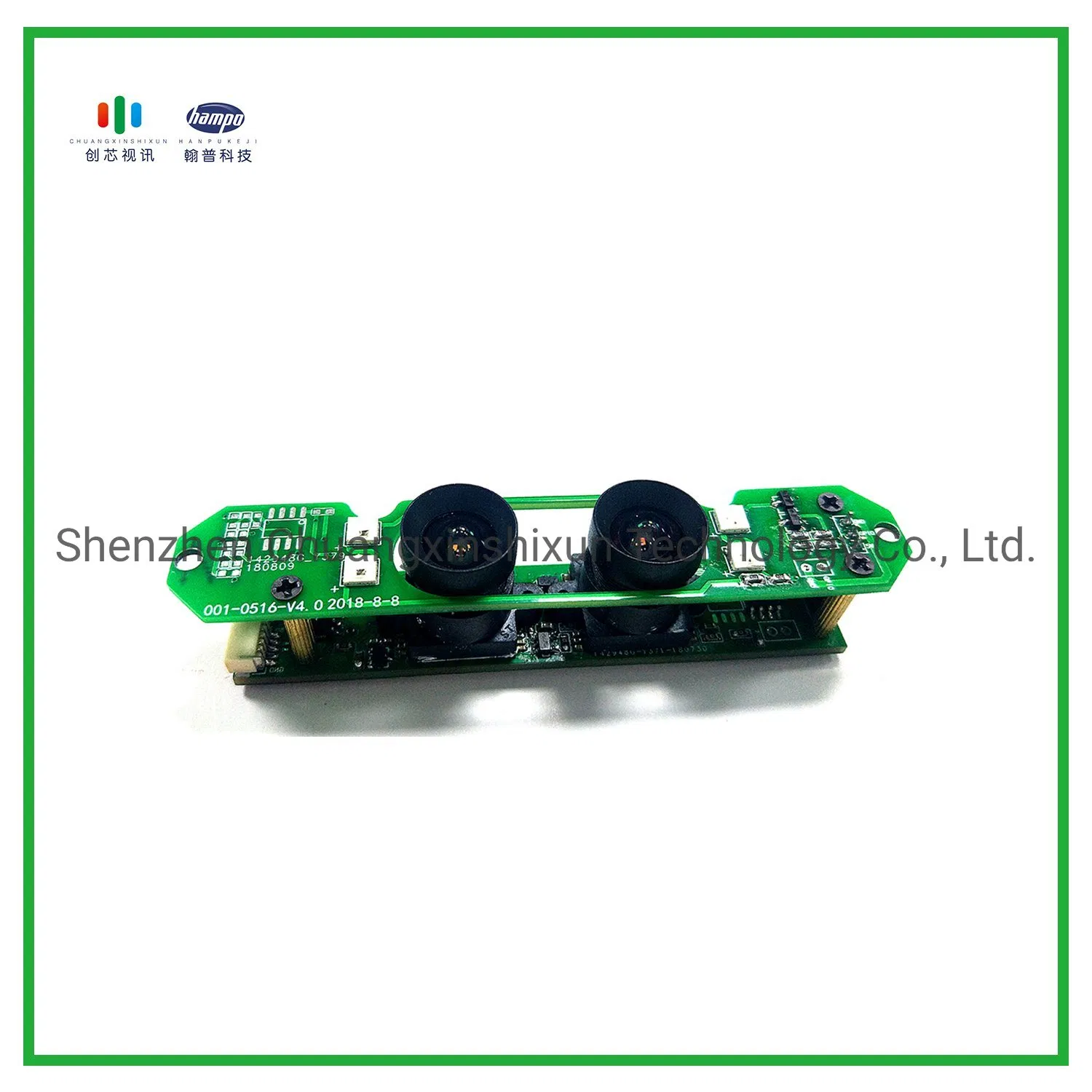

Pictures Display:
Quality Control:
Company Information:
