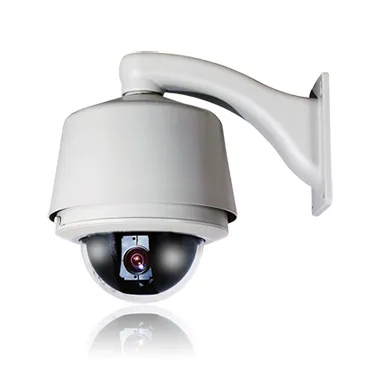

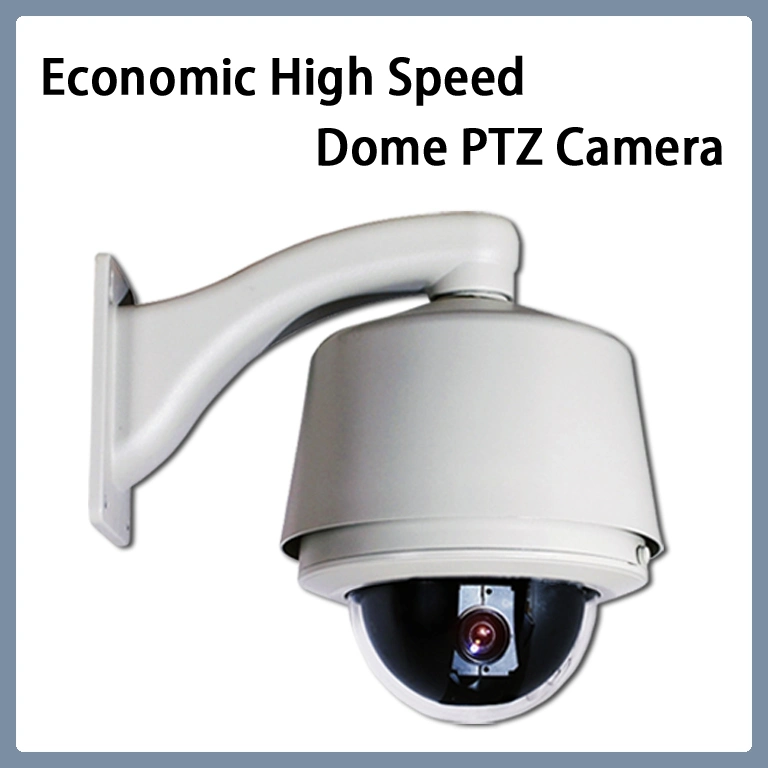

China Surveillance Economic Security IR High Speed Dome PTZ CCTV Camera

Product Description

Features:
1. OSD menu, English, All function and setting executed by OSD
2.360 ° Unlimited rotation position, vertical 0 ° ~ 90 ° , "Auto-flip"
3. Horizontal Speed: 0.1° ~220° /s, Vertical Speed: 0.1° ~150° /s
4. System preheat in low temperature environment
5.255 presets, accuracy ± 0.1 °
6.5 sequence, 16 presets/sequence
7. Power and memory function, Resume running when power on
8. High quality slip ring, bearing & pan/tilt Belt
9. All-metal PTZ structure, better heat dissipation
10. All-day protective cover, built-in low-temperature heating unit
11. IP66 protection grade

Camera Module	China brand module EX530H	CNB ZCN-21Z23F	LG LM-928DA-ii/ LM-928DAN-ii		LG LM-937DA-ii/ LM-937DAN-ii
Optical zoom	23X	23X	28X		37X
CCD	1/3" SONY Exview HAD CCD	1/4" SONY Super HAD CCD II	1/4 inch 960H Dual Scan CCD		1/4 inch 960H Dual Scan CCD
CCD scan	interlace	interlace	interlace	interlace
Resolution	700TVL	580TVL	600TVL	600TVL
Min. Illumination	0.2 LUX(Color), 0.01Lux(B/W)	Night mode 0.25Lux(30IRE), DSS 0.001Lux	0.2 LUX(Color), 0.01Lux(B/W)	0.2 LUX(Color), 0.01Lux(B/W)
Focal length(mm)	f=3.9~85.8mm	F1.6, f=3.6~82.8mm	f=3.5~98mm	f =3.5 ~ 129.5 mm
Digital zoom	10x	10x	12x	12x
IR-CUT	Auto
Focus	Auto/Manual
BLC	ON/OFF
WDR	_	---	yes			yes
White balance	Auto/Manual
AGC	Auto
Signal system	NTSC/PAL
S/N Ratio	≥ 50dB	≥ 50dB	≥ 50dB			≥ 50dB

PTZ
Power supply	AC24± 5V, 50Hz
Power consumption	Indoor speed dome: 15W Outdoor speed dome: 55W
PTZ	Built-in
Synchronous mode	Inner synchronization
Preset	255 Presets
Tour	5
Auto scan	2
Left or right limitation scan	359° adjustable
Automatically control focal length speed Automatic control	Control speed adjust automatically according to the length of focal length
Auto flip	After tilt 90° camera will automatically flip 180°
Pan range	360° Back and forth rotating
Manual pan speed	Medium speed dome series 0.1° _ 120° /s (selectable) High speed dome series 0.1° _ 250° /s (selectable)
Tilt range	Vertical 90°
Tilt speed	Medium speed dome series 0.5-50° /s High speed dome series 0.1-150° /s
Control mode	RS485
Correspondence baud rate	2400/4800/9600/19200bps
Ambient temperature	Indoor: - 10 +50° C, outdoor: - 40 +55° C
Weight of top mount	1.5kg
Weight of ceiling mount	1.7kg
