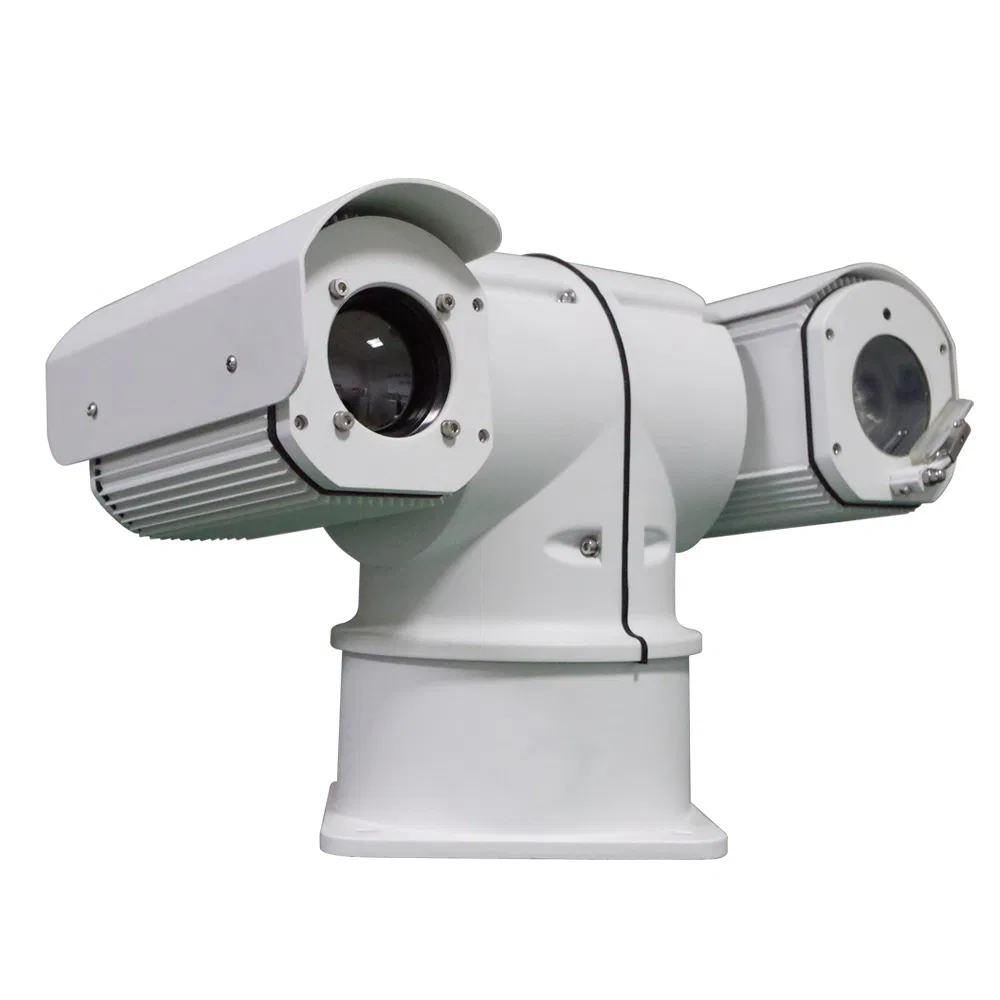

T Shaped Dual Sensor Thermal Security Camera for City Safety
High-end custom intelligent surveillance camera.A multi-function device be combined with thermal imaging camera, visible CCD, precise actuating and gearing unit, digital decoder, high-performance image processing unit and control unit.Application:City safety, oilfield safety, railway security, night......
Send Inquiry
Product Description
High-end custom intelligent surveillance camera.
A multi-function device be combined with thermal imaging camera, visible CCD, precise actuating and gearing unit, digital decoder, high-performance image processing unit and control unit.
Application:
City safety, oilfield safety, railway security, night gathering evidence.
Feature
Technical specification
A multi-function device be combined with thermal imaging camera, visible CCD, precise actuating and gearing unit, digital decoder, high-performance image processing unit and control unit.
Application:
City safety, oilfield safety, railway security, night gathering evidence.
Feature
| 1. 24-hour real time surveilance is ensured with both thermal and visible camera. |
| 2. 50mk thermal sensitivity and SDE digital image enhancement produces clearer image under foggy and rainy days. |
| 3. Anti-lighting, anti-wave, capability to withstand 3000V instantaneous current. |
| 4. Aluminum alloy housing, excellent heat dissipation, IP66 ingress protection. |
Technical specification
| Model | CQ4102IP1930 |
| Detection | Vehicle: 1700m Human: 720m |
| Identification | Vehicle: 420m Human: 180m |
| Thermal sensor | 384*288, UFPA, 7-14um spectral response, 50mk NETD |
| Thermal lens | 20mm F1.0 |
| FOV | 15.5°×11.6° |
| Visible | 2.1mega pixels, auto color to B/W CMOS at 0.01Lux |
| Lens | 4.3mm~129mm, 30X zoom with auto focus |
| Pan | 0° to 360° continuous |
| Tilt | -90°~+90° |
| Pan speed | 0°~100°/s |
| Tilt speed | 0°~60°/s |
| Preset | 128 |
| Scan | 3(user can set the starting and end point; adjustable scanning speed; ) |
| Path | 6(16 points for each path, adjustable duration on each point) |
| Pattern | 3(approx. 2 minutes for each pattern) |
| Menu | English |
| Auto homing | Homing time(1-99mins), homing action(preset/scanning/path/pattern) |
| Protocol | Pelco-D/P and other mainstream protocols |
| Baud rate | 2400/4800/9600/19200bps |
| Heating/defrosting/Wiper | Available |
| Interface | RJ45 |
| Ingress protection | IP66 |
| Working temp. | -35~55ºC |
| Power supply | AC24V/2.5A |
| Weight | 7kg |
 | |||
 |  |  |  |
 | |||
 | |||
 | |||
