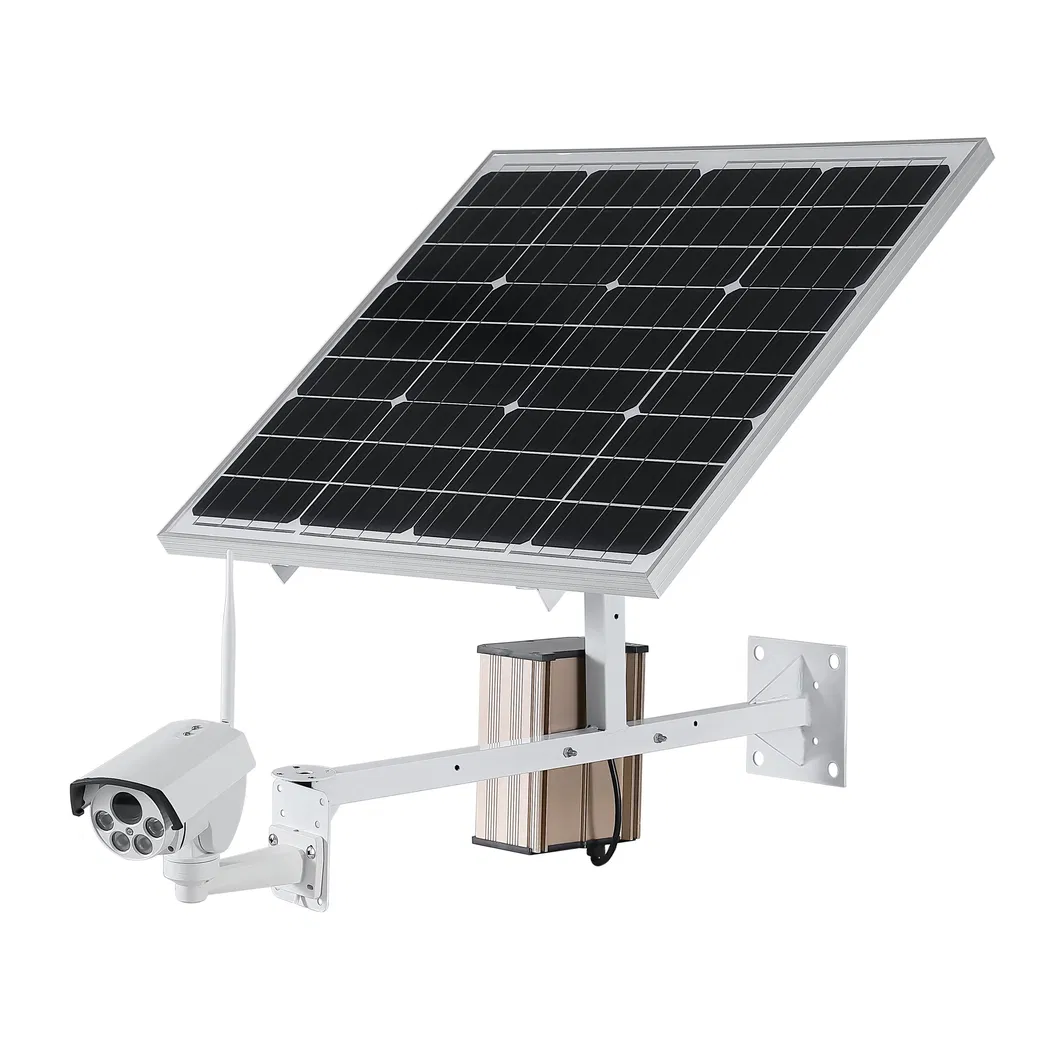

Toesee Brand 2MP Outdoor Waterproof Security Battery Solar Camera with 60W Solar Panel 40ah Battery Complete Packing Camera System
TOESEE Brand 2MP Outdoor Waterproof Security Battery Solar Camera with 60W Solar Panel 40AH Battery Complete Packing Camera System Product introduce:1) 5x optical HD network ball (2.8-12MM) night vision distance: 20--80 meters2) 3 megapixel lens;3) Built-in TF card slot4) Built-in 3G/4G SIM card5) M......
Send Inquiry
Product Description
TOESEE Brand 2MP Outdoor Waterproof Security Battery Solar Camera with 60W Solar Panel 40AH Battery Complete Packing Camera System
Product introduce:
1) 5x optical HD network ball (2.8-12MM) night vision distance: 20--80 meters
2) 3 megapixel lens;
3) Built-in TF card slot
4) Built-in 3G/4G SIM card
5) Mobile APP: Camhi
6) Support up to 128GB TF card, 24 hours video recording (32GB or more need to use FAT32 format to use)

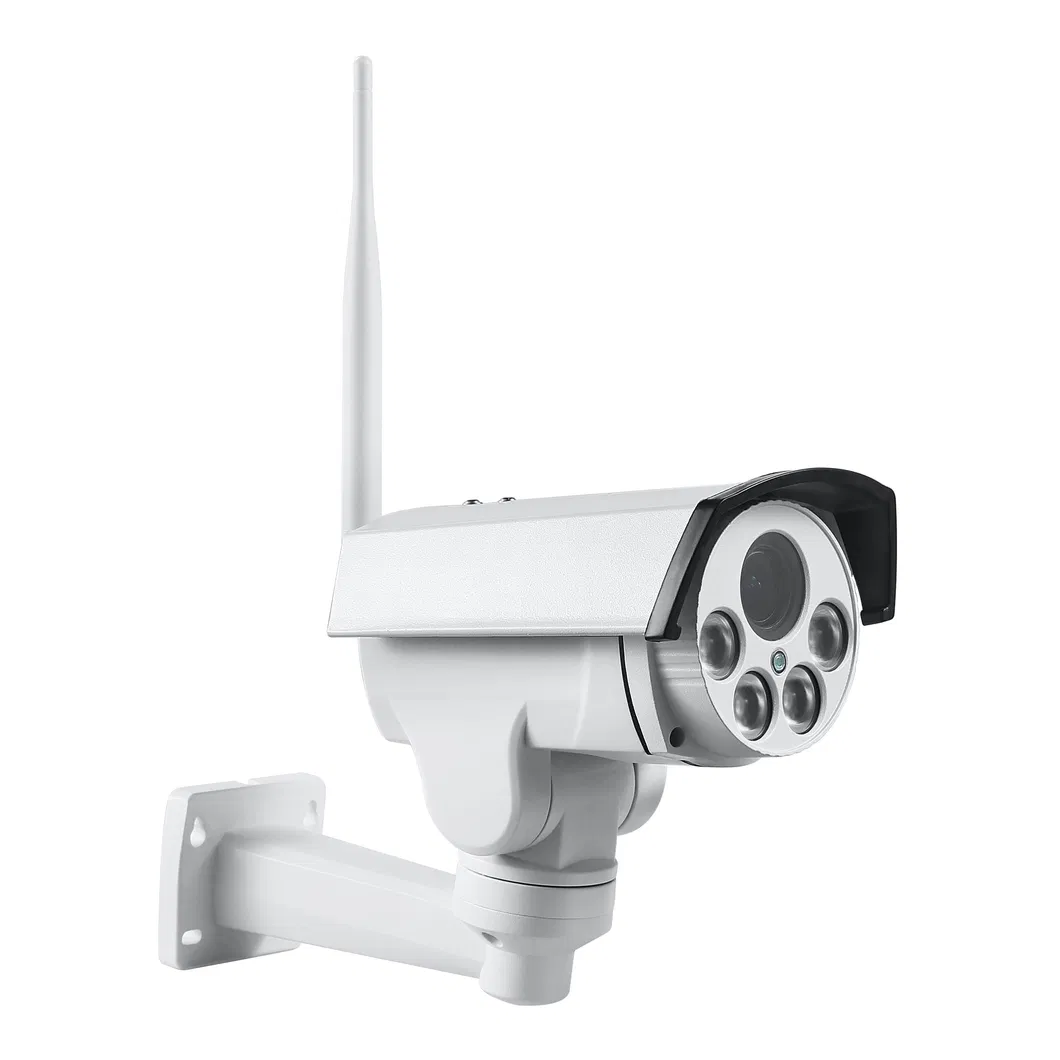

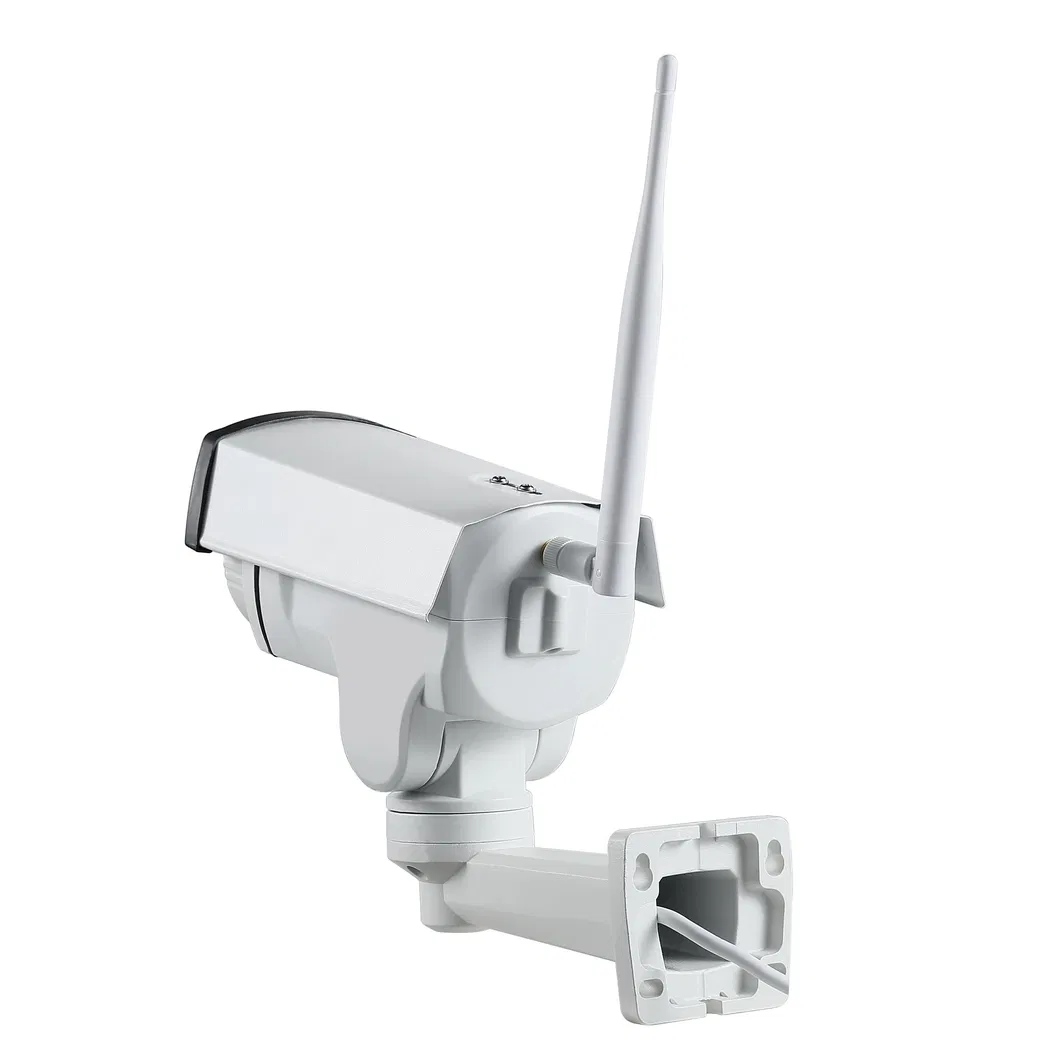

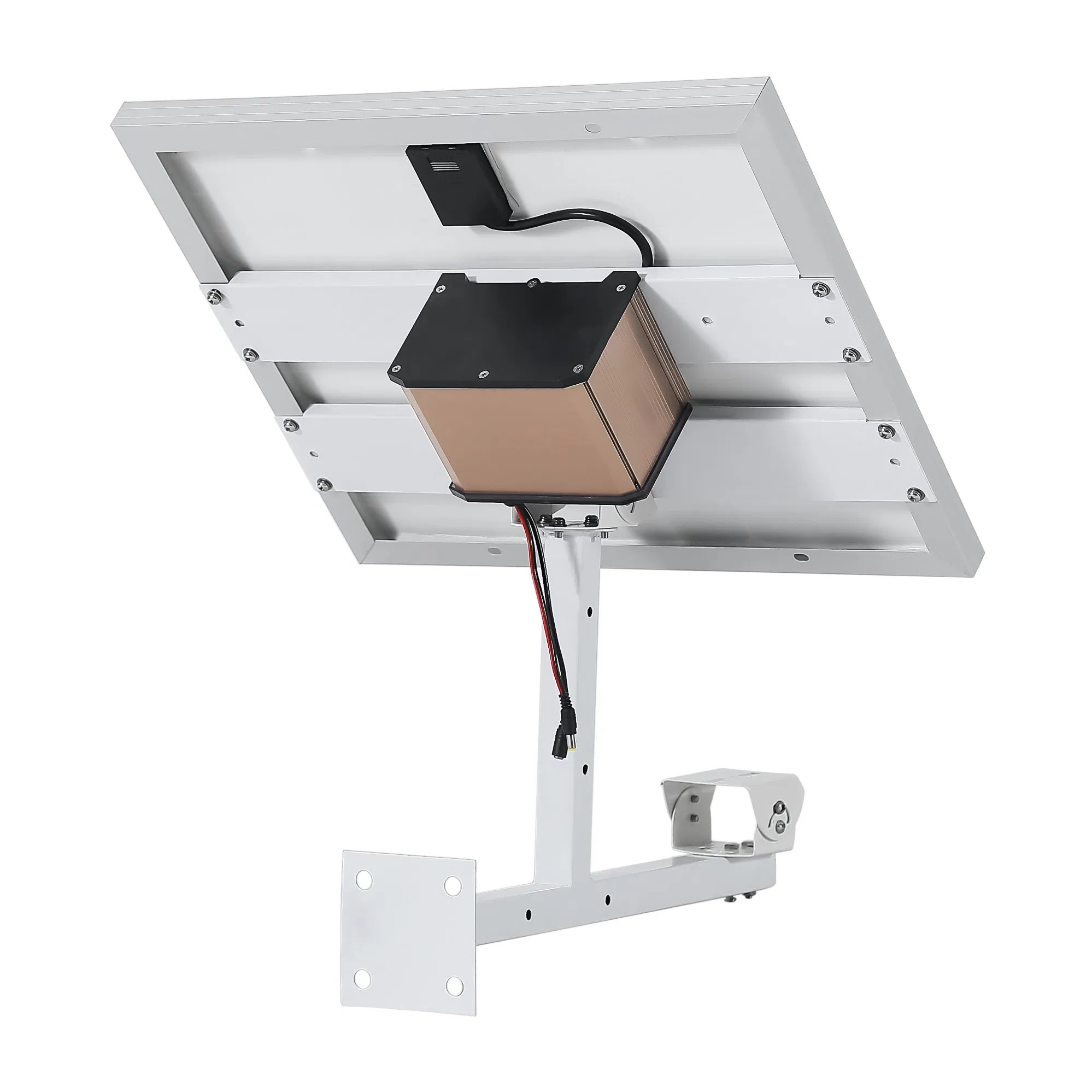

Product picture:
Main function & Specification:
Camera Function:
1. Super craft quality,Beautiful shape design
2. Super CPU operation function.
3. HD CMOS , The big screen view TV beautiful
4. APP and PC easy download , Feature-rich, Stable performance
5. APP and PC support MUL-picture view, return recording, recording,
6. Optics change focus: 4X (2.8-12MM)
7,Rotation Range: 0°~355° Horizontal direction 0°~90° Vertical direction
8,Rotation Speed: 0.1°~40°/S Horizontal dirction 0.1°-40°/S Vertical direction
4G Function:
1.Security standard 38 board
7.Send mobile message: *#02# Close 4G connect internet(uim card support SMS)
8.Send mobile message: *#03# Open WIFI Function(uim card support SMS)
9.Send mobile message: *#04# Close WIFI Function(uim card support SMS)
10.Send mobile message: *#05# Auto restart 4G modem Function(uim card support SMS)

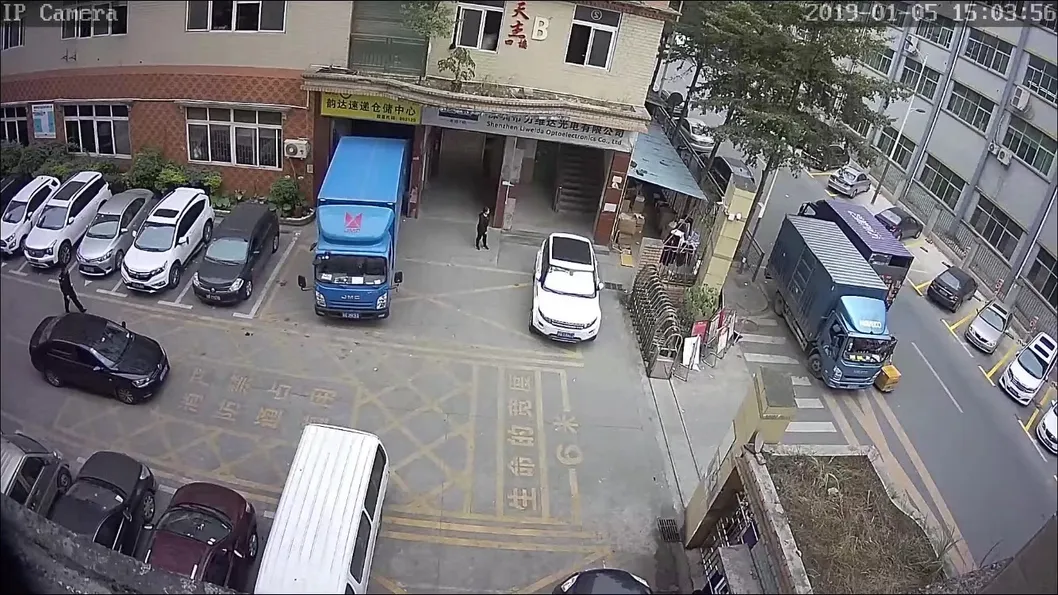

How about the image quality? Remote viewing?

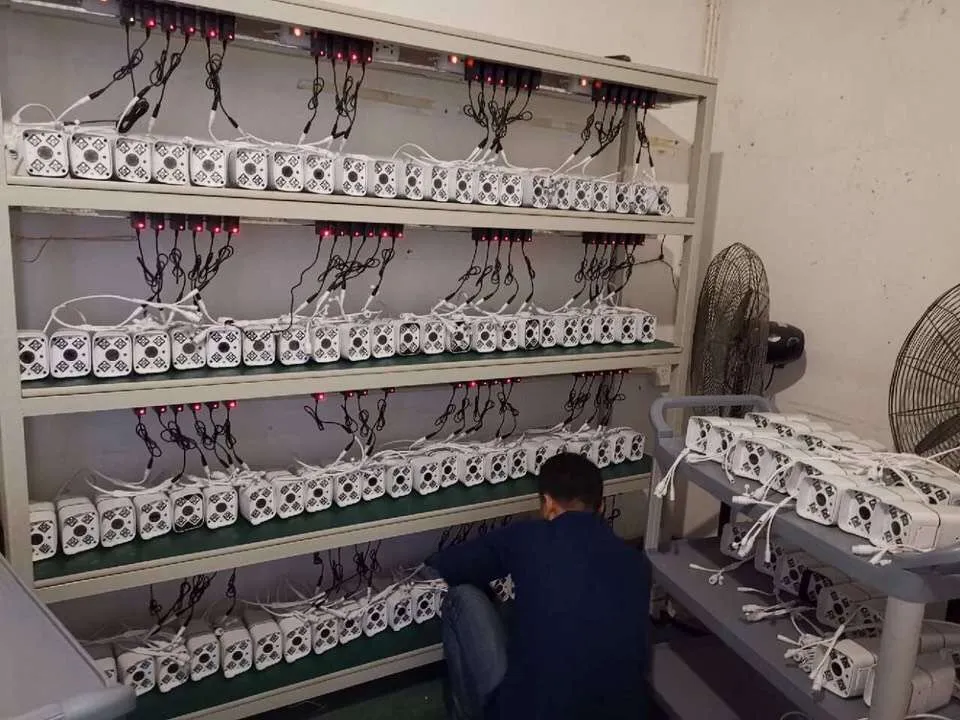

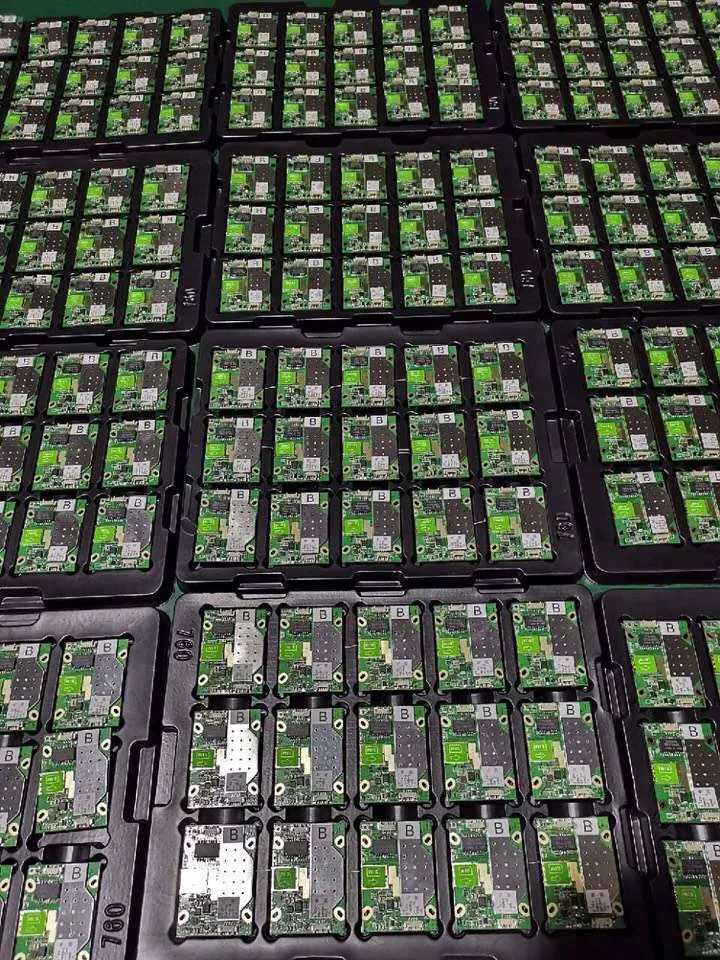

Can I see production picture? Sure!!
How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ:
1. For the sample order, we have no limit for the quantity.
2. From the second order, the MOQ is 30pcs.
3. OEM MOQ is 300pcs/model, Special cases can be negotiated.
Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.
Lead Time:
1. Sample order can be delivered from our company in 3-4 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.
Shipping:
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.
OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!
Warranty Policy:
We provide 1 years warranty for DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 300pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package: Standard Carton, well to protect the cameras during the shipping, good package well to help you selling the products.
1) 5x optical HD network ball (2.8-12MM) night vision distance: 20--80 meters
2) 3 megapixel lens;
3) Built-in TF card slot
4) Built-in 3G/4G SIM card
5) Mobile APP: Camhi
6) Support up to 128GB TF card, 24 hours video recording (32GB or more need to use FAT32 format to use)

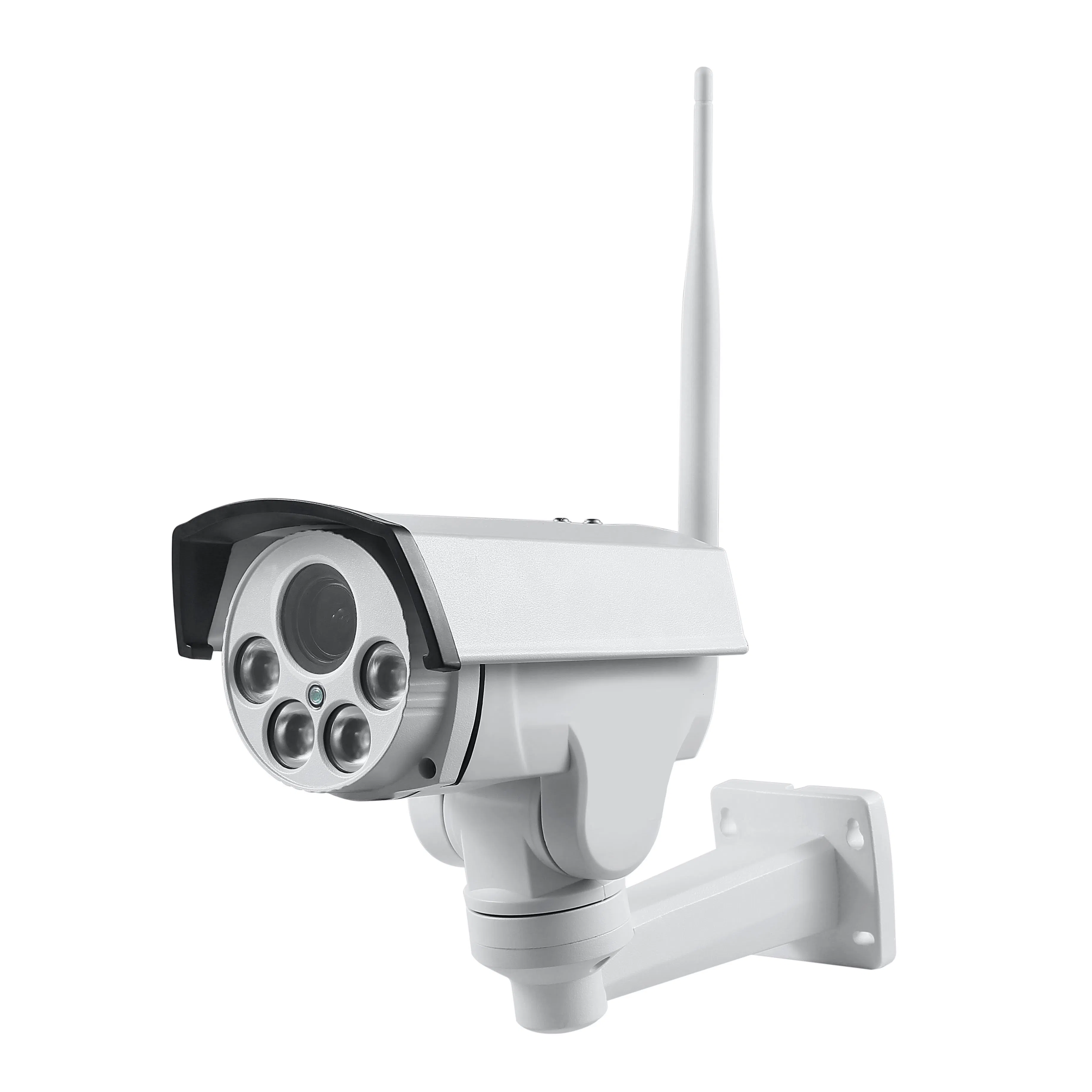

Product picture:
Main function & Specification:
Camera Function:
1. Super craft quality,Beautiful shape design
2. Super CPU operation function.
3. HD CMOS , The big screen view TV beautiful
4. APP and PC easy download , Feature-rich, Stable performance
5. APP and PC support MUL-picture view, return recording, recording,
6. Optics change focus: 4X (2.8-12MM)
7,Rotation Range: 0°~355° Horizontal direction 0°~90° Vertical direction
8,Rotation Speed: 0.1°~40°/S Horizontal dirction 0.1°-40°/S Vertical direction
4G Function:
Industrial grade 4G module
1.Security standard 38 board
2.Support Mobile Network 2G/3G/4G
3.4G wireless transmission rate up to 150m (CAT4)
4.Support up to 10 users access WIFI hotspots.
5.Support WIFI Relay function
6.Send mobile message: *#01# Open 4G connect internet (uim card support SMS)7.Send mobile message: *#02# Close 4G connect internet(uim card support SMS)
8.Send mobile message: *#03# Open WIFI Function(uim card support SMS)
9.Send mobile message: *#04# Close WIFI Function(uim card support SMS)
10.Send mobile message: *#05# Auto restart 4G modem Function(uim card support SMS)
| Model No.s | ES-Q4D-CAM-4G-TYN-2.0MP-WH-60W40AH | |
| Optoelectronic | Main CPU | HISILICON 3518E (1.3M PIX) HISILICON 3516C(2.0M PIX) |
| Sensor | 1/2.8" Progressive Scan CMOS | |
| Sensibility | 0.5 [email protected](colour);0.09[email protected](B/W);Infrared mode OLux | |
| Optics change focus | 4X Auto Focus | |
| Focus distance | 2.8----12MM | |
| View of Field | 81.1°~26.2° | |
| Day/Night Mode | Auto IR-CUT Change | |
| Video zip ALG | Support H.264 Main Profile and H.264 Baseline | |
| Audio zip ALG | G.726/G.711 | |
| ZIP Transfer code | 32Kbps-6144bps, can auto setting,INIT setting:2048Kpbs | |
| Image | Image MAX size | 960P (1280*960) (1.3M PIX) 1080P (1280*1080)(2.0M PIX) |
| Intelligent Function | The first Code rate | 960P (1280*960) 1080P (1280*1080) |
| Second Code rate | VGA(640*480),QVGA(320*240) Optional 960P(1280*960) | |
| Third Code rate | VGA(640*480),QVGA(320*240) Optional | |
| JPEG Code rate | Q720P (640*352),Q720P(320*176) Q720P (640*352),Q720P(320*176)(Mobie view) | |
| Video FREQ | 15fps(50HZ),15fps(60HZ),CBR/VBR Optional 15fps(50HZ),15fps(60HZ),CBR/VBR Optional | |
| Server Parameter | Rotation Speed | 0.1°~40°/S Horizontal direction 0.1°-40°/S Vertical direction |
| Advance Setting Speed | 40°/S Horizontal 40°/S Vertical | |
| ,Rotation Range | 0.1°~40°/S Horizontal direction 0.1°-40°/S Vertical direction | |
| A-B Scanning | ANY Setting | |
| A-B Scanning Speed | Three Stalls Setting | |
| Scan Group Count | 8 Group(Each 8 Groups Advance Position | |
| Advance Position | 128 | |
| Power Action | OK | |
| Advance Warning | OK | |
| Image setting | Bright,Contrast,Saturation,Sensitometry,Up and Down return turn,Lift and Right Image Optional | |
| Storge function | Support SD Card MAX 128G,Save Advance Time video record. Notice:64G,128G need FAT32 format | |
| Voice Function | 1 LINE INPUT,1 LINE OUTPUT (Optional) | |
| Police Function | 1 LINE INPUT,1 LINE OUTPUT (Optional) | |
| Move Object Check | Set 4 Independent check area(legibility 1-100 Optional) | |
| Network CODE | User Management | Support MULti -User Multi-level User rights Management |
| Network Protocol | TCP/IP,HTTP,DDNS,PPOE,NIP,FT | |
| Access Protocol | Onvif Standard | |
| Remote Server | Support Remote Setting, Remote Upgrade | |
| WEB Server | On Webserver,Support IE Exploer | |
| Network Bandwidth | 64 kbps-12Wbps | |
| 4G modem function | Network type | FDD-LTE TDD-LTE WCDMA/HSDPA/TD-SCDMA EDGE/GPRS/EDGE |
| Frequency Scope | LTE B1/B3/B8/B38/B39/B40/B41( B7/B20/B28/B2/B4/) | |
| TD-SCDMA B34/B39 | ||
| WCDMA 2100M/900M GSM 900M/1800M | ||
| Data Rate | LTE FDD/TDD (CAT.4) DL:150Mbps UL:50Mbps | |
| 3G HSDPA+ DL:21Mbps UL:5.76Mbps | ||
| Ethernet Network | A RJ45 Interface 10/100M LAN | |
| USIM/SIM | Micro SIM card slot | |
| WIFI Standard | Protocol: 802.11 b/g/n , up to 72Mbps | |
| WIFI Frequancy | 2412MHZ-2472MHZ | |
| WIFI Security mode | Open, WPA-PSK,WPA2-PSK | |

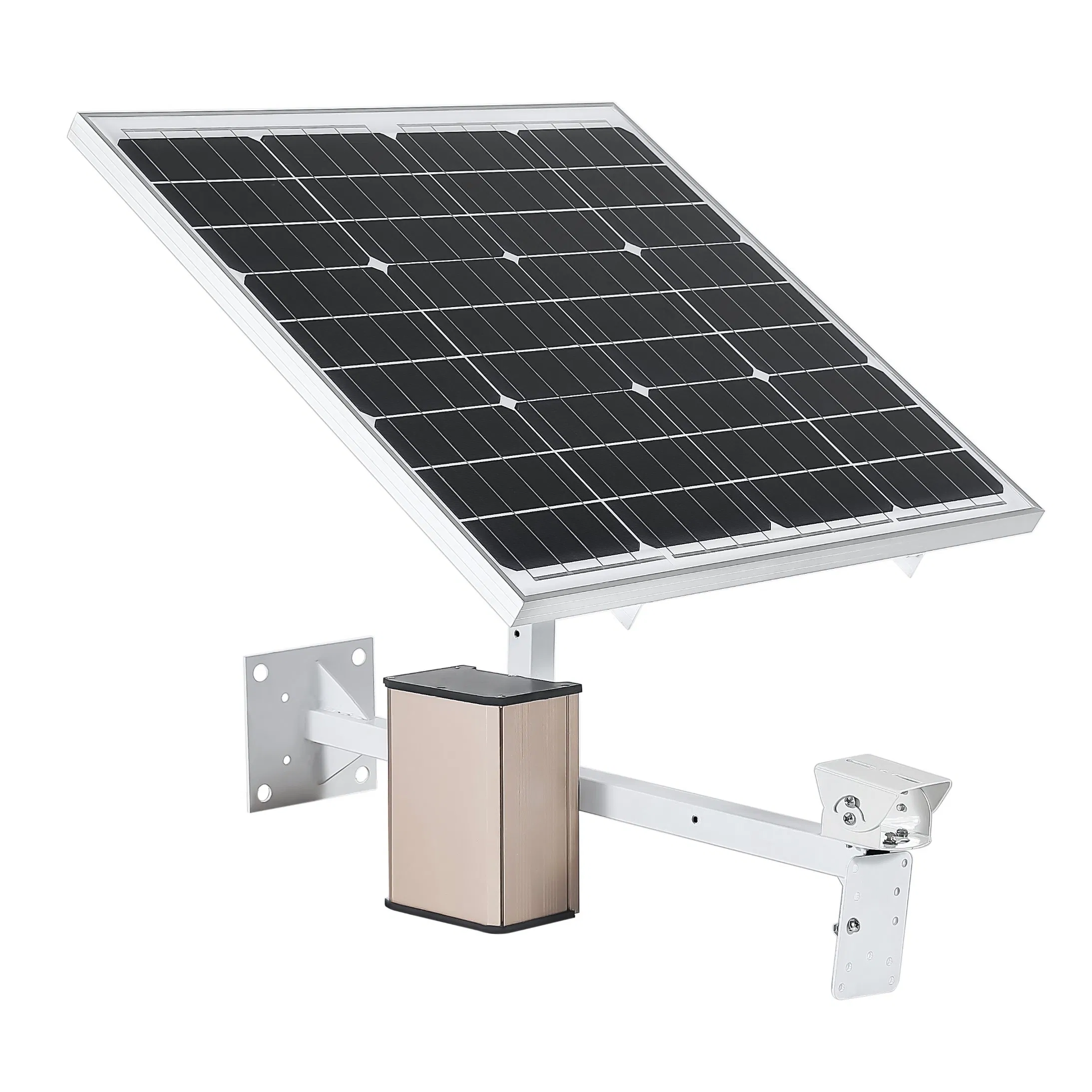

| SOLAR Parameter | Apex Power | 60W |
| Battery $ Size | 125*41.66MM 36pcs 4*9 | |
| Power Range | + -3% | |
| Apex Voltage | 18.17V | |
| Apex Ammeter | 3.30A | |
| Short circuit AMM | 3.7A | |
| System MAX Volt | 1000V | |
| Diode | 0by-pass | |
| Solar panel Size | 670*630*25MM | |
| BAT work time | 30AH, 3-4 days work time | |
| Guarantee | 10 years Guarantee 90% Power, 15 years Guarantee 80% Power | |
| General | Power Supply | DC12V±10%2A |
| Infrared Lamp | Count $ Distance | Ф14=6, Distance MAX 60m |
| Auto Control I.L | Night Auto Correction Focus, Out Lamp/Manual /Far Lamp/Beside Lamp | |
| Power Consumption | 3W(Close night LED) ,8W( Turn on night LED) | |
| Storage Condition | -40 °C~+75 °C@Humidity 10%~ 95% | |
| Housing | PC White | |
| Solar Component | Solar Panel Size | 4 Inch |
| Shell Material | Aluminum Alloy | |
| Stent Material | Aluminum Alloy | |
| Machine Material | Aluminum Alloy | |
| Input Volte | DC12V 2A Standard | |
| Power Consumption | Day: <10W Night:<15w | |
| Work temperature | -40 °C~+80 °C@Humidity 10%~ 95% | |
| Installation method | Wall Assembly /Hoisting Assembly | |
| Whole Product | Peak Size | 72*23.5*76CM |
| Weight | 14Kg | |
| Protection Grade | IP50 | |
| Product Size | 137*239MM |
How about the image quality? Remote viewing?

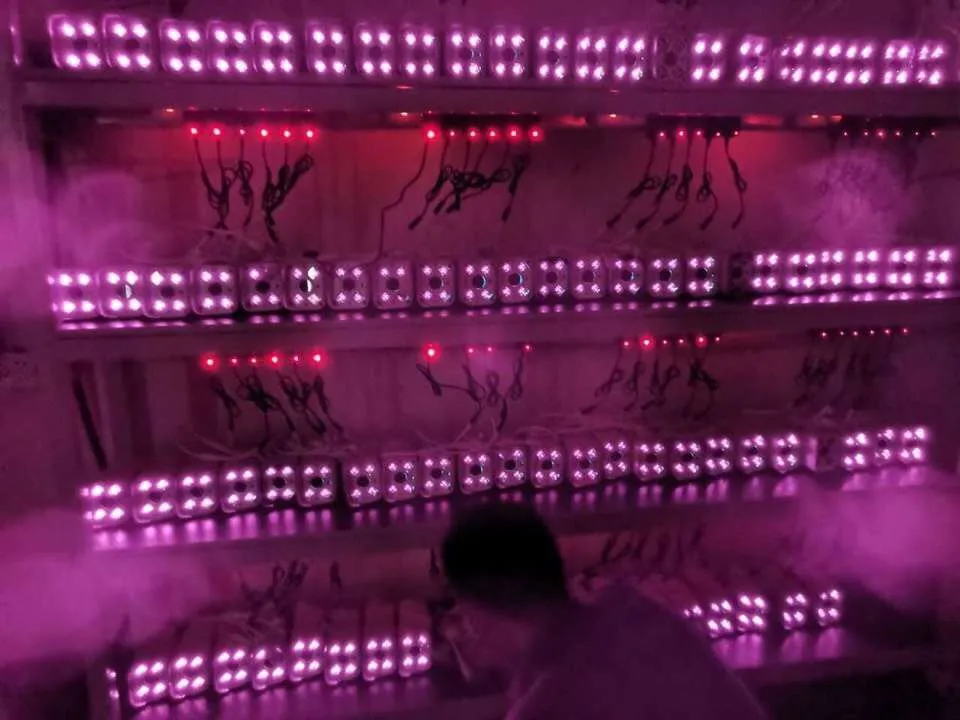

Can I see production picture? Sure!!
