Product Description

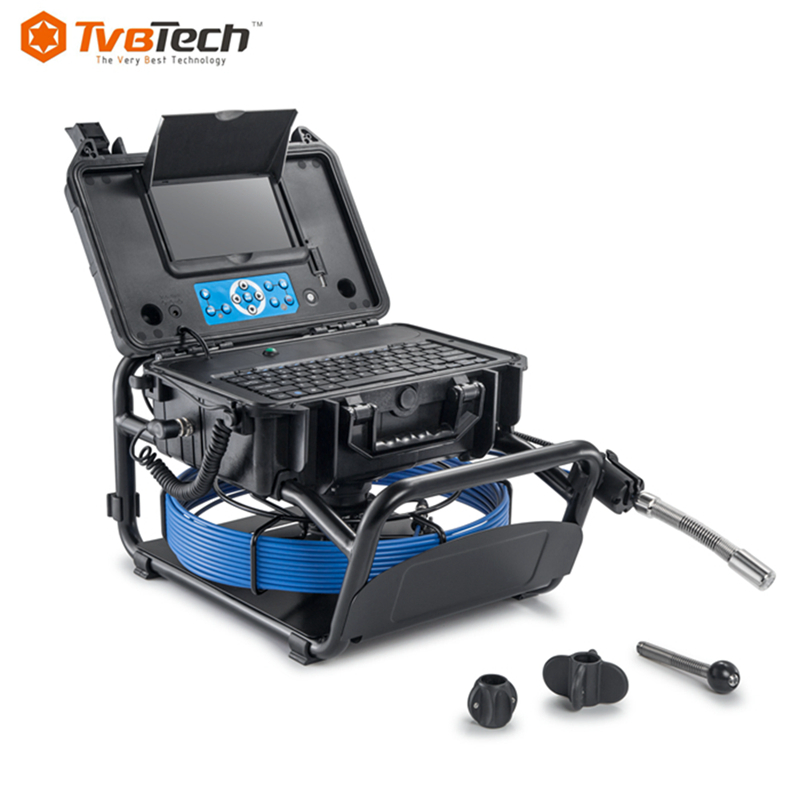

TVBTECH 30M Fiberglass Cable CCTV Inspection Camera With 23mm 512hz Sonde Head
Kindly note: This product has many options regarding the length of cable (20m, 30m, 40m); camera head with built-in 512Hz sonde or self-leveling. Please contact us for detail price.
Key features of this new pipe inspection camera:
1. Unique, professional and compact design.
2. The cable reel is out of the box, easy to clean and won't cause dirty in the box.
3. Easy to carry; convenient transportation.
4. Comes with a smart braking system.
5. The keyboard is very easy to operate, like a laptop.
Specification of this new pipe inspection camera:
| Camera head | 14mm/23mm/38mm camera head |
| Meter counter | available |
| Text input/keyboard | available |
| Cable diameter | φ5.2mm push rod |
| Cable length option | 20m/30m/40m |
| Cable reel | rotatable |
| Monitor size | 7" LCD color monitor, with image rotate button |
| Camera head material | Stainless steel camera head, IP68 waterproof level, Sapphire glass lens cover, 12 high light white LEDs |
| Recoding function | available |
| Battery | rechargeable, work lasts up to 6 hours |
Optional features/parts:
| Camera head features: | With 512hz sonde |
| Or with self-leveling feature | |
| Or with 512hz sonde and self-leveling feature | |
| Optional camera head: | Long spring 23mm camera head |
| Or 38mm camera head for larger pipes | |
| Or 14mm camera head for smaller pipes |
All-in-One Video pipe inspection camera with 20/30/40m fiberglass cable and 7" monitor with DVR feature:
> 1/3 inch Sony CCD camera, 120° wide vision angle
> Stainless steel camera head, IP68 waterproof level
> Sapphire glass lens cover, 12 high light white LEDs
> Diameter of camera: 23 mm
> Two plastic guides for camera head, Φ46mm & 80mm
> 7" LCD color monitor, with image rotate button
> SD Card slot to store still pictures or videos
> One push record button
> LED brightness control buttons
> With microphone for local audio recording
> Rechargeable battery lasts up to 6 hours
> On-Screen date and time
> 20, 30 or 40m fiberglass φ5.2mm push rod
> Rotatable cable reel mounted in case for convenient operation
> Ability to go through 90°bends in Φ45mm pipes
> With smart braking system
> With on-screen distance counter
> With Keyboard for text input (English)
> Whole system waterproof (box closed)

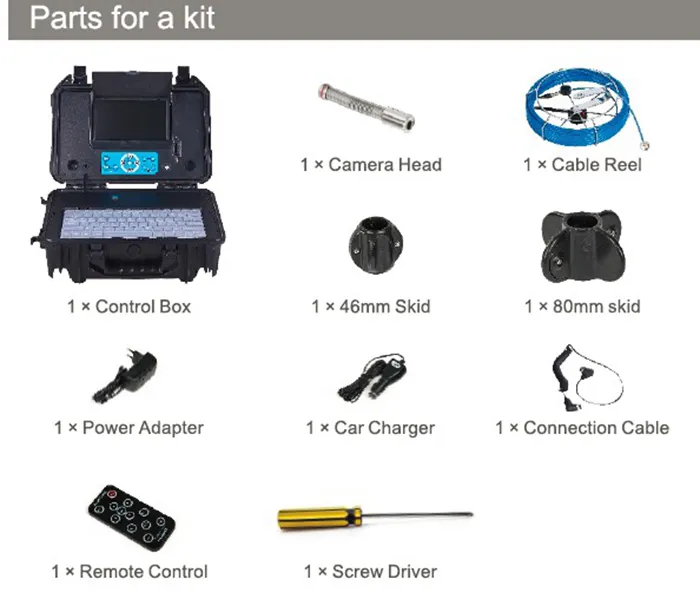

What's included?
- 1 x 23mm Camera head
- 1 x 20/30/40m cable wheel
- 1 x battery pack
- 1 x remote control
- 1 x screw driver
- 1 x power adapter
- 1 x car charger
- 1 x waterproof suit case with monitor mounted
Packing details:
- Each unit in a professional tool case
- 1 unit in one carton
- Carton G.W.: 16-17.1kg (slight different for 20m, 30m and 40m unit)
- Carton Measurement: 37*56*45cm.
Battery Pack
Power Input: DC 9V-12V
Battery Capacity: 7.4V 5200mAh Li-on Battery
Power Output: 6-12V DC, USB 5V
Work/Charge time: 6/8 hours

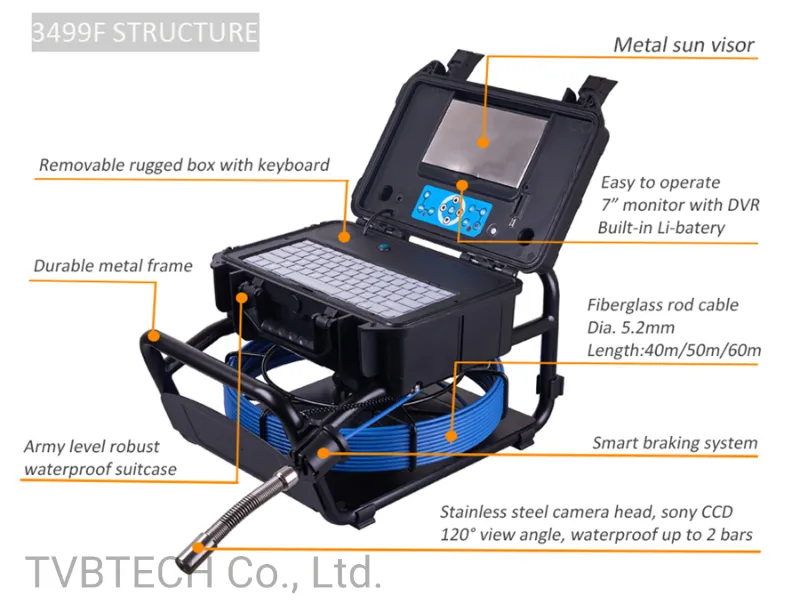

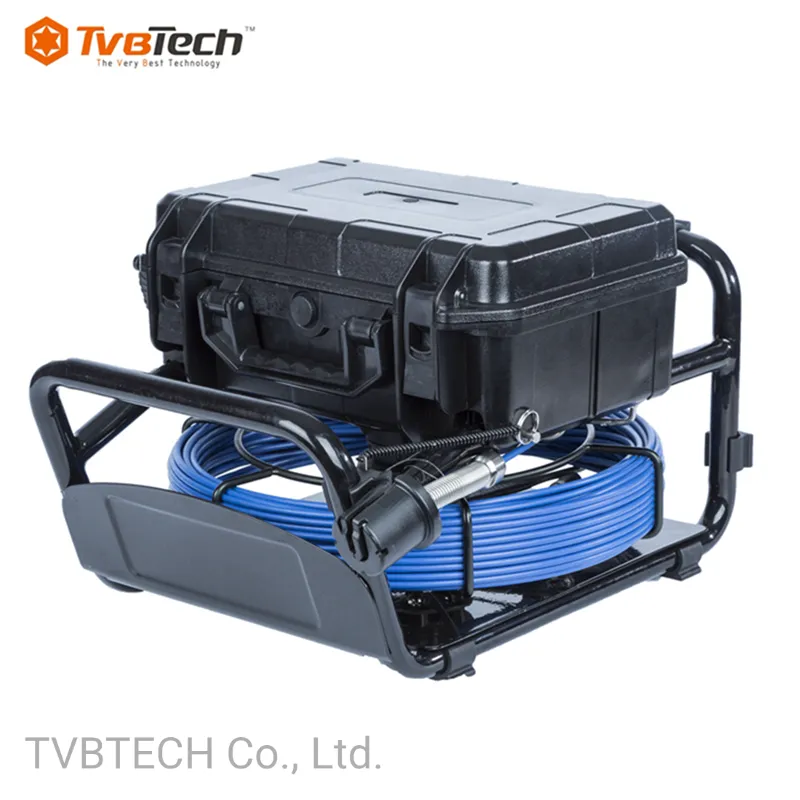

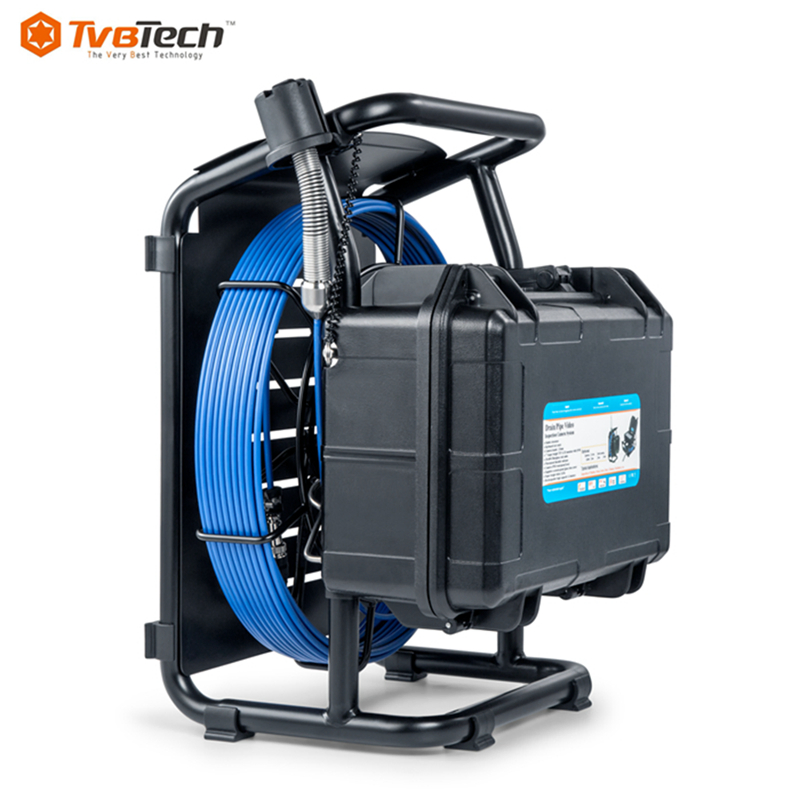

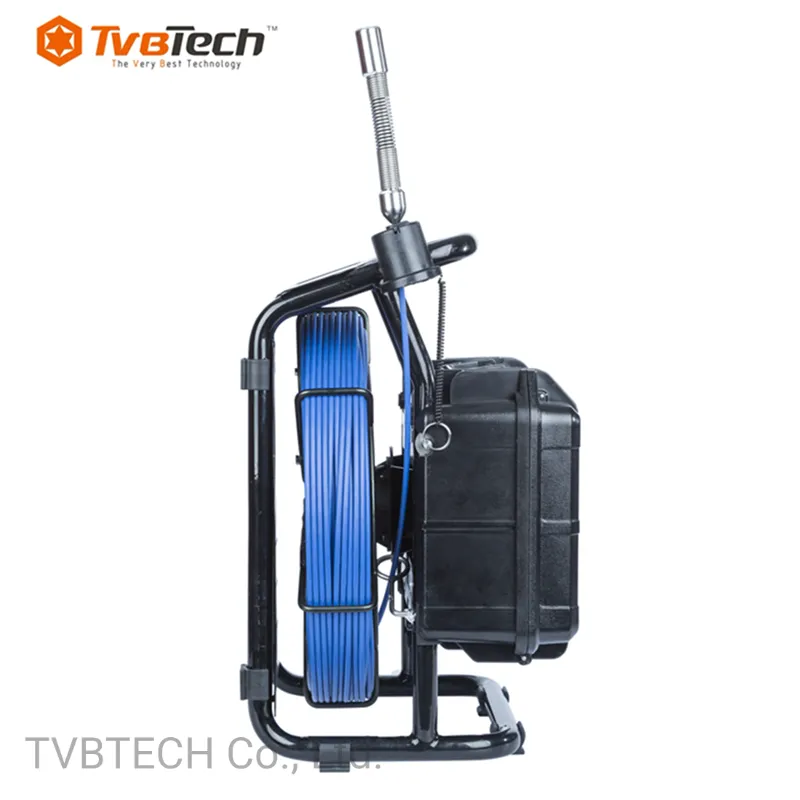

Detail picture of this new pipe inspection camera:

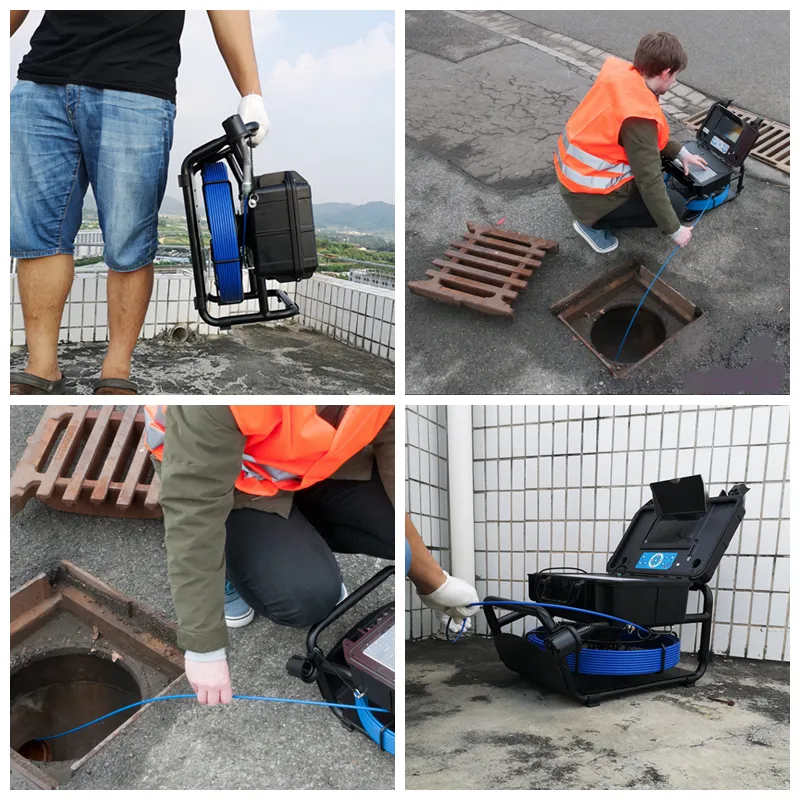

New pipe inspection camera in use:

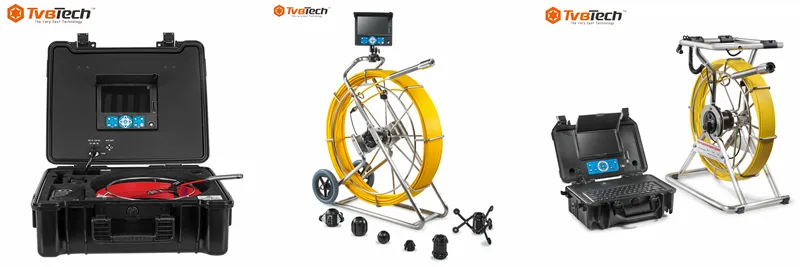

Related products:

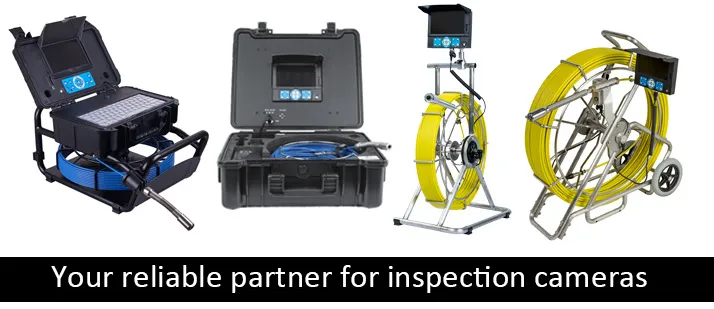

Company information:
Established in 2008, TvbTech Co., Ltd. is specialized in designing, R&D, manufacturing and exporting of Inspection cameras. Our main products are pipe inspection cameras, camera locators, articulating video borescopes, etc. Everything we produce is in compliance with all FCC, CE, and RoHS & WEEE Directives.
As the leading manufacturer in this industry in Mainland China, we operate in a 1500 m2 factory located in Shenzhen. We aim to become a first-class provider of pipe inspection cameras with world-renowned quality and stability products, which strives us to keep investing and focusing on product quality control.
TvbTech has also already been recognized as a strategic partner of many OEM/ODM businesses. We have the highly experienced team to work on your OEM/ODM projects. Our experience and splendid service have won us good business relationships with many international buyers and suppliers.
Our products are sold to many countries across the world including Europe, North America, Japan, Korea, Australia, etc. We welcome you to become our next reseller or agent in your country.
FAQ:
Q: Do you manufacture these inspection cameras yourself?
A: yes, we manufacture these inspection cameras by ourselves. we have our own R&D team and factory, we control all the design and producing procedures by ourselves, so just send us an inquiry, and we will do all the rest of things for you.
Q: Are OEM and ODM accepted?
A: Yes, welcome your OEM and ODM projects!
Q: What testing certificates do you have?
A: We have CE, ROHS, FCC certificates, we will also help to make any other testing certificates if you need.
Q: Are you searching distributors and agents for your inspection cameras?
A: Yes, we are, please contact our sales team for more details. We will protect and support you once you become our distributors and agents.
Q: What's your lead time?
A: Our lead time is one week for order ≤5 units. And two more weeks for a normal bulk order.
Q: What's your warranty for your pipe camera?
A: Our warranty is one year after shipment. Please contact our sales team for repair replacements.
