Uav Eo IR Gimbal with Thermal Camera and Day Light Camera
D240A/240B Lightweight UAV EO/IR GimbalD240A/B EO/IR gimbal camera have been especially designed for UAV and helicopter for search and rescue, observation, tracking, law enforcement. D240A is an affordable gimbal camera which is equipped with single FOV camera and HD CCD sensor for day work; If you ......
Send Inquiry
Product Description

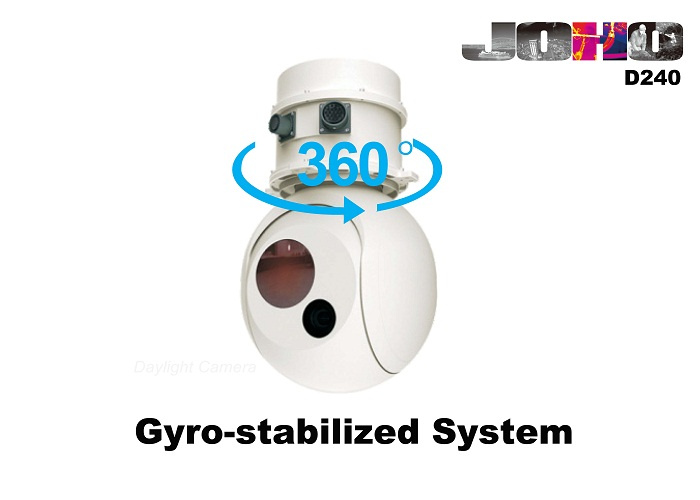

D240A/240B Lightweight UAV EO/IR Gimbal
D240A/B EO/IR gimbal camera have been especially designed for UAV and helicopter for search and rescue, observation, tracking, law enforcement. D240A is an affordable
gimbal camera which is equipped with single FOV camera and HD CCD sensor for day work; If you have to fulfill mission at day and night, D240B is an optimal choice which is
equipped with high resolution infrared thermal camera. Using two-gimbal 2axis mechanism, it ensures high accuracy gyro stabilization.
TECHNICAL DATA
| Model | D240A |
| Image resolution | 1800 Megapixel |
| Video resolution: | 1920 ×1080 |
| Gyro stabilization accuracy | ≤180μ rad |
| Azimuth scope | 360° × n continuous |
| Elevation scope | +20° ~ -110° (forward level is 0°) |
| Record capability | |
| Images | 32G, capable of storage more than 2000pcs image |
| Video | 32G, capable of storage 1080P HD more than 4h |
| Dimension | Φ240×400mm |
| Weight | ≤8Kg |
| Model | D240B |
| detector | LWIR uncooled FPA |
| Resolution | 640×480 |
| Gyro stabilization accuracy | ≤180μ rad |
| Relative temperature measurement accuracy | 1ºC |
| Azimuth scope | 360° × n continuous |
| Elevation scope | +20° ~ -110° (forward level is 0°) |
| Record capability | |
| Images | 32G, capable of storage more than 2000pcs image |
| Video | 32G, capable of storage 1080P HD more than 4h |
| Dimension | Φ240×400mm |
| Weigh | ≤8Kg |
