Ultra-Slim USB 720p Camera Module Mini Camera
Ultra-slim USB 720P Camera Module mini camera:1. 1/9 inch OV9734 Coms USB Camera Module2. 1Mega 720P USB Camera module3. USB webcam with UVC, support windows, linux, Mac with UVC and android system.4. USB camera module with 84 degree 5. 60*9mm mini micro usb board camera Specification: ......
Send Inquiry
Product Description
Ultra-slim USB 720P Camera Module mini camera:

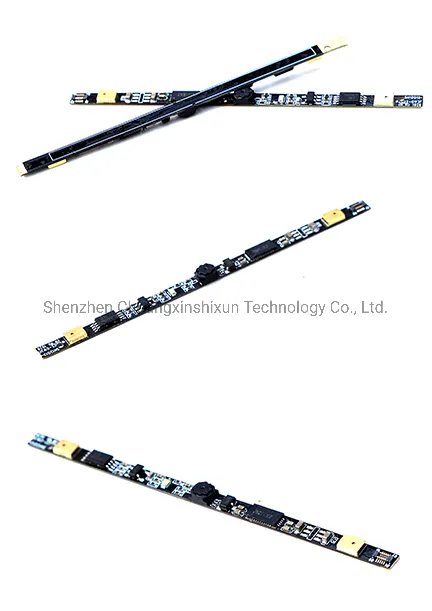

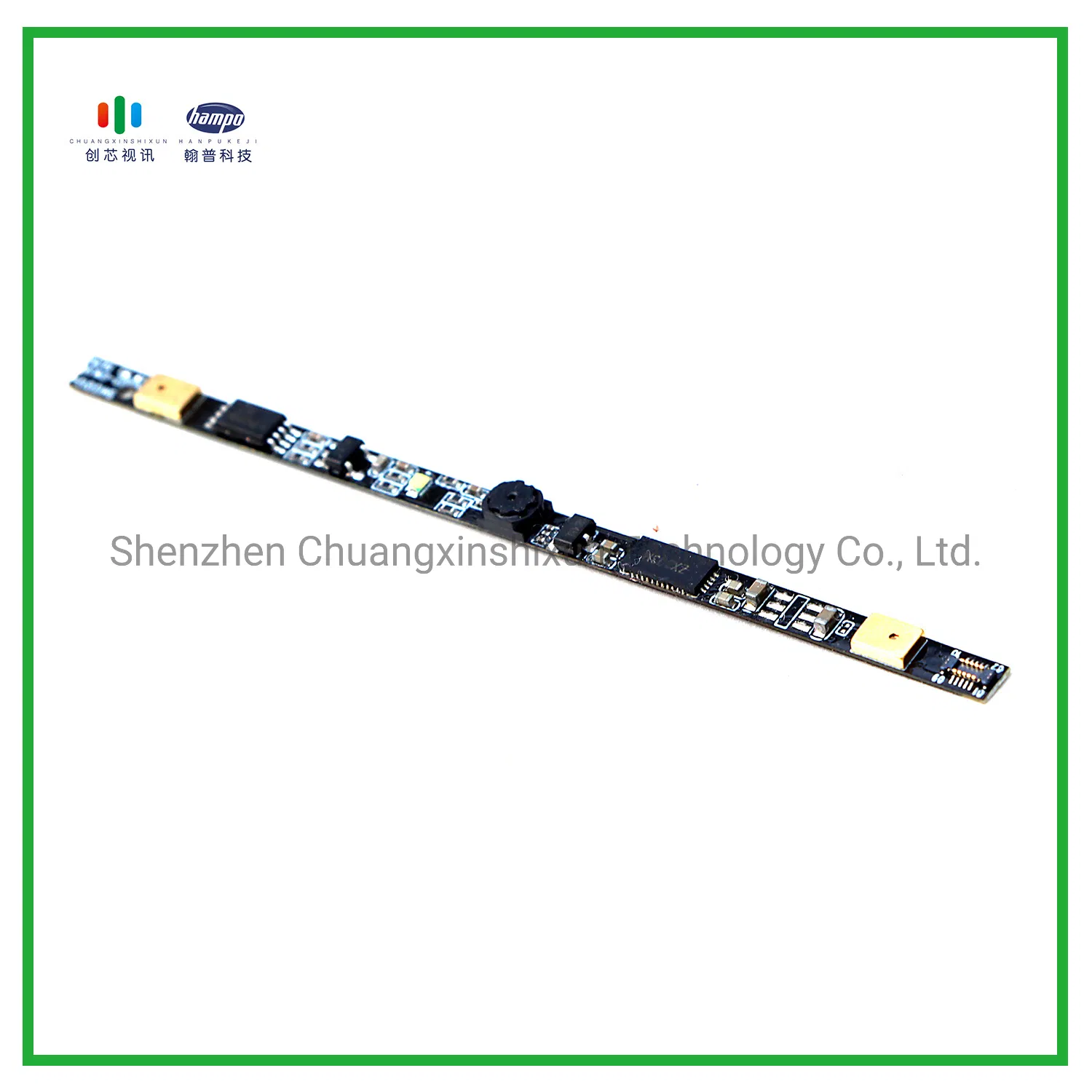

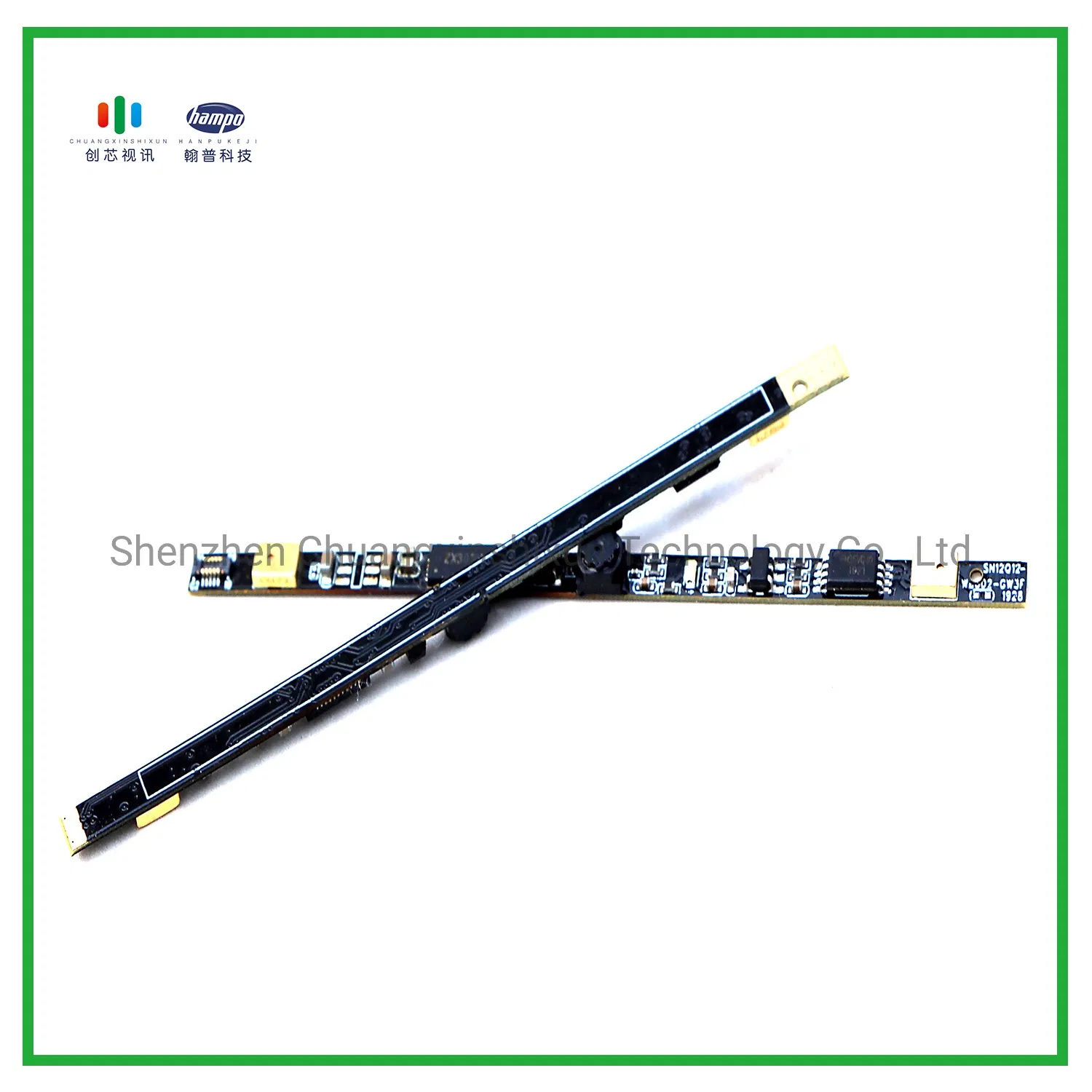

Pictures Display:
Quality Control:
Company information:
1. 1/9 inch OV9734 Coms USB Camera Module
2. 1Mega 720P USB Camera module
3. USB webcam with UVC, support windows, linux, Mac with UVC and android system.
4. USB camera module with 84 degree
5. 60*9mm mini micro usb board camera
Specification:
| Items | Parameters |
| SENSOR | OV9734 |
| Lens Size | 1/9" |
| Maximum Pixels | 1 Mega |
| Maximum Effective Resolution | 1280*720 |
| Data Format | MJPG/YUY2 |
| Pixel Size | 1.4 µm x 1.4 µm |
| Dynamic Range | 67 dB @ 8x gain |
| Lens | FOV :D= 84° |
| F/No:2.6±5%MM | |
| lens construction:6E | |
| mount :M3*P0.25mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | / |
| Voltage | DC 5V |
| Working Current | MAX 200mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20°C to +70°C |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Pictures Display:
Quality Control:
Company information:
