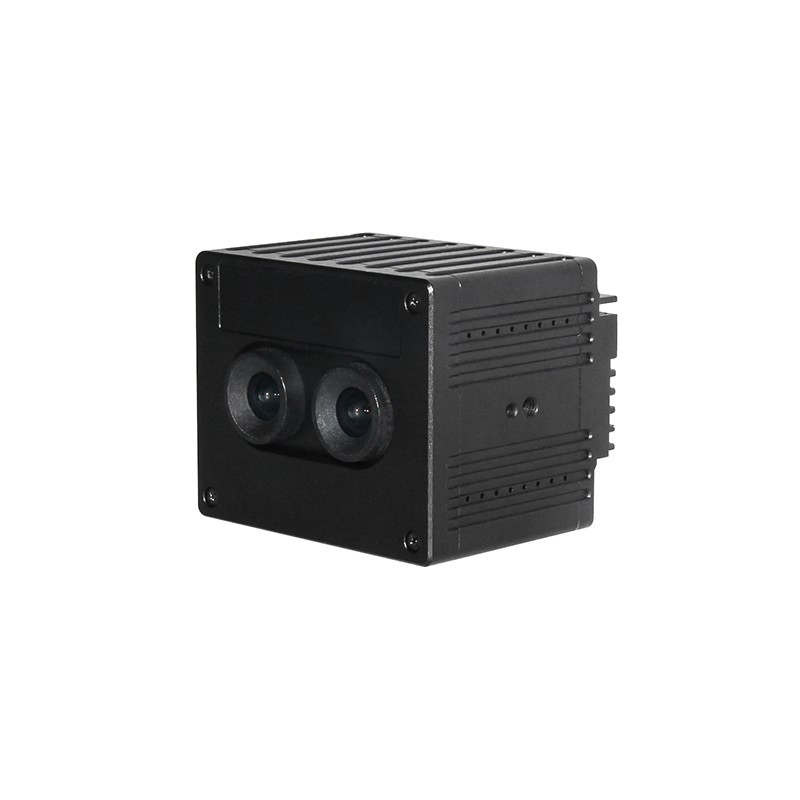

USB Camera HD Face Capture Camera

Product Description

·1920x1080P Resolution 25 frames, no drag and no lag
·Based on deep learning and embedded recognition algorithm, face acquisition speed is 1-5 ms
· Face capture, passenger flow statistics, face tracking and other functions
· Support the linkage function with single chip microcomputer and server
·1/2.8"Industrial grade 2MP HD wide dynamic image sensor
·140DB super wide dynamic, built-in HDR synthesis function, suitable for complex light environment, especially strong backlight environment;
· When the error rate of the vivisection detection algorithm is 0.01%, the pass rate of vivisection detection is 95%.
· Supported data encryption can be associated with business system platforms to realize diversified applications of encryption
· Built-in dedicated ISP image processing module and 3D noise reduction module, capable of output high-definition picture quality
·USB2.0 buckle interface, anti-shedding, easy to use
·0.1lux Low illumination effect
·Complies with professional USB-IF WHQL RoHS CE(4KV/8KV) certification
·-30ºC~+60ºC Wide working temperature range
·UVC structure ,support Windows 10,Window8.1,Window8,Window7,LINUX&Andriod&MAC OS
·Basic:CPU 2GHZ 2GB storage 80GB
·Software configurable: Standard SDK, serial number reading tool

1) Common

Signal	2M HDR	2M B/W		REMARKS
Scanning System()	Progressive scan
Image Sensor()	1/2.8" CMOS
Effective Pixels()	1920*1080
Pixel size()	2.9umx2.9um
Image sensor Data output()	Raw Data 10bits
Video output()	MJPG/YUY2
Maximum Frame Rates ()	1920x1080 at 25 fps 1280x960 at 25 fps 1280x720 at 25 fps 800x600 at 25 fps 480x640 at 25 fps 1080x1920 at 25 fps 960x1280 at 25 fps 720x1280 at 25 fps 600x800 at 25 fps 640x480 at 25 fps 320x240 at 25 fps 240x320 at 25 fps	1920x1080 at 20 fps 1280x960 at 20 fps 1280x720 at 20 fps 800x600 at 20 fps 480x640 at 20 fps 1080x1920 at 20 fps 960x1280 at 20 fps 720x1280 at 20 fps 600x800 at 20 fps 640x480 at 20 fps 320x240 at 20 fps 240x320 at 20 fps		MJPG
Maximum Frame Rates ()	640x480 at 25 fps 480x640 at 25 fps 320x240 at 25 fps 240x320 at 25 fps	640x480 at 20 fps 480x640 at 20 fps 320x240 at 20 fps		YUY2
VID&PID(&)	2C7F&4A82
SNR max()	≥40dB	≥44dB
Dynamic range()	≥140dB	≥83.5dB
Min. Illumination()	≥0.1LUX at F1.2	≥0.01LUX at F1.2

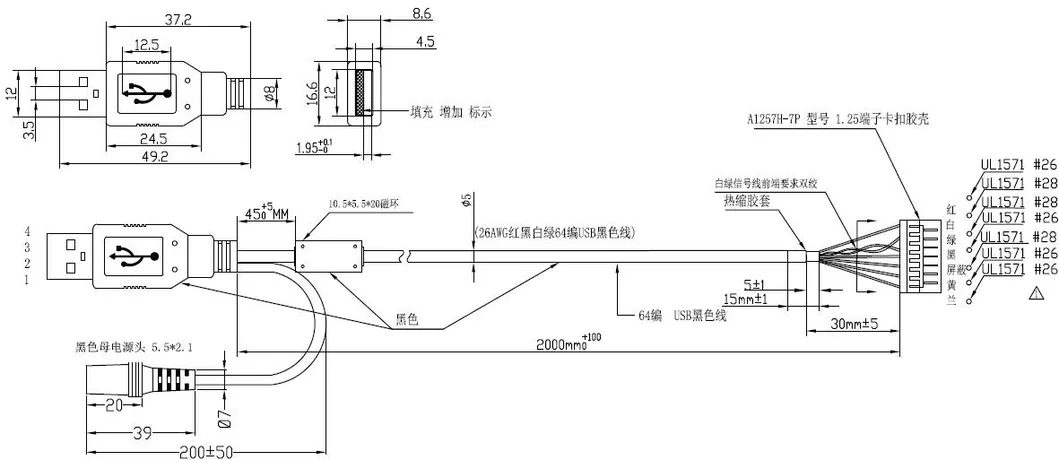

Digital interface()	7-pin 1.25mm USB2.0
Transfer rates()	480Mb/S
Power requirements()	12V±5%
Power Consumption ()	Max 5W
IR-LED Wavelength()	850nm
In vivo detection speed()	500ms		500ms
In vivo FRR rejection rate(FRR)	5%
FAR	0.01%
Adaptive angle of in vivo detection	(pitch)30° (roll)45° (yaw)45°		(pitch)30° (roll)45° (yaw)45°
Dimensions(PCBA)(PCBA)mm	38x38 ±5%
Weight()	TBD
Operating temperature(ºC)()	-30~60 ºC
Storage temperature(ºC)(&)	-40~80 ºC/0~90RH
Compliance()	USB-IF WHQL CE RoHS
Lens Mount()	M12(f=2.5MM)
OS()	Windows 10,Window8.1,Window8,
