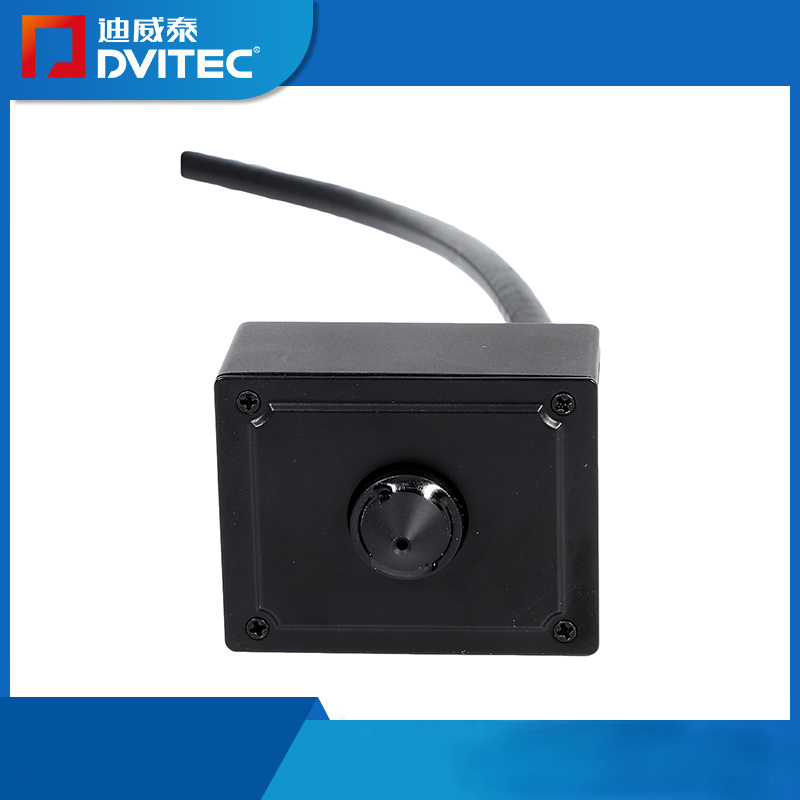

USB Camera Wap Camera HD IP Web Camera
Product Features1920(H)*1080(V) MaxSuper wide dynamic Sony CMOS image sensor, capturing moving images without sawtooth. Wide dynamic and low illumination performance, especially in backlight and low illumination environment.High performance Hisilicon DSP processor is adopted, and the image is clear ......
Send Inquiry
Product Description
- 1920(H)*1080(V) Max
- Super wide dynamic Sony CMOS image sensor, capturing moving images without sawtooth. Wide dynamic and low illumination performance, especially in backlight and low illumination environment.
- High performance Hisilicon DSP processor is adopted, and the image is clear and delicate
- H.265 video compression technology with ultra-low bit rate and high definition image quality
- ONVIF2.6.1 standard perfectly realizes the docking of various large platforms
- Small and exquisite appearance and convenient installation
- Full function output, audio input / output, alarm input / output, CBVS output.
- It can be widely used in finance, government, telecommunications, schools, shopping malls, public security and other fields requiring high-definition image quality and secret installation.
| Model | ||
| Camera | ||
| Main processor | High performance Hisilicon DSP | |
| Sensor | 1/2.8″SONY IMX307 Ultra-wide dynamic progressive scan of the CMOS sensor | |
| Pixels | 1920(H)*1080(V) 2MP | |

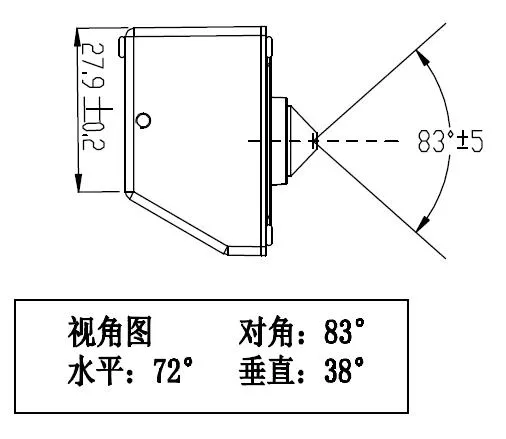

| Lens | 3.7 mm HD Pin-hole Lens | |
| Electronic shutter | 1/5s to 1/20000 s | |
| Signal | PAL(25FPS)/NTSC(30FPS) | |
| SNR max | ≥50dB(AGC OFF) | |
| Dynamic range | ≥120db | |
| Day & Night Convert | Support | |
| LED Light | NC | |
| Min. Illumination | [email protected] | |
| Motion detecting | 4 Areas | |
| Privacy shelter | 4 Areas | |
| Compression standard | ||
| Video compression | H.264 Baseline Main Profile High Profile,MJPEG, H.265 Main Profile | |
| Video bit rate | The video output bit rate is adjustable from 64Kbps to 16000kbps , support CBR/VBR/VBR+ | |
| Image | ||
| Image frame rate | Support frame rate PAL:1~25fps NTSC:1~30fps | |
| Resolution ratio | Main code stream:1920*1080,1280*960,1280*720,800*600,640*480,352*288() Sub-bit stream: 1280*720,800*600,640*480,352*288() | |
| Subtitle overlay | Supports the stacking of channel name, date and time, and bit stream information, and the stacking position can be adjusted | |
| Image setting | Saturation, brightness, contrast, dual stream, etc. can be adjusted through the client or Internet Explorer | |
| Network function | ||
| Support agreement | TCP/IP,SMTP,HTTP,FTP,PPPOE,DNS,DDNS,UPNP,RTP,RTSP | |
| Web browsing /Web | Support Internet Explorer 6.0 or later (embedded Web Server) access, support 16 users concurrent access (MAX) | |
| Data Storage | Video and image files | |
| Storage mode | Manual and automatic (cycle, timing, alarm switching value, movement detection) | |
| Smart alarm | Mobile detection, mail alarm, client alarm | |
| Access protocol | It supports onvif2.6 network video standard protocol and is perfectly compatible with various large NVR platforms | |
| Interface | ||
| Video Interface | 1 BNC video output | |
| Storage Interface | Support TF storage (128GB) | |
| Communication Interface | 1 RJ45 Ethernet Interface and 10/100M adaptive Ethernet Interface | |
| Other Interface | 1 channel audio input / output, 1 channel alarm input | |
| Working Temperature | -20ºC~+60ºC; humidity<90%(No condensation) | |
| Power | DC12V/1A or AC24V/0.5A | |
| Power consumption | 3W(MAX) | |
| Weight | 0.17kg | |

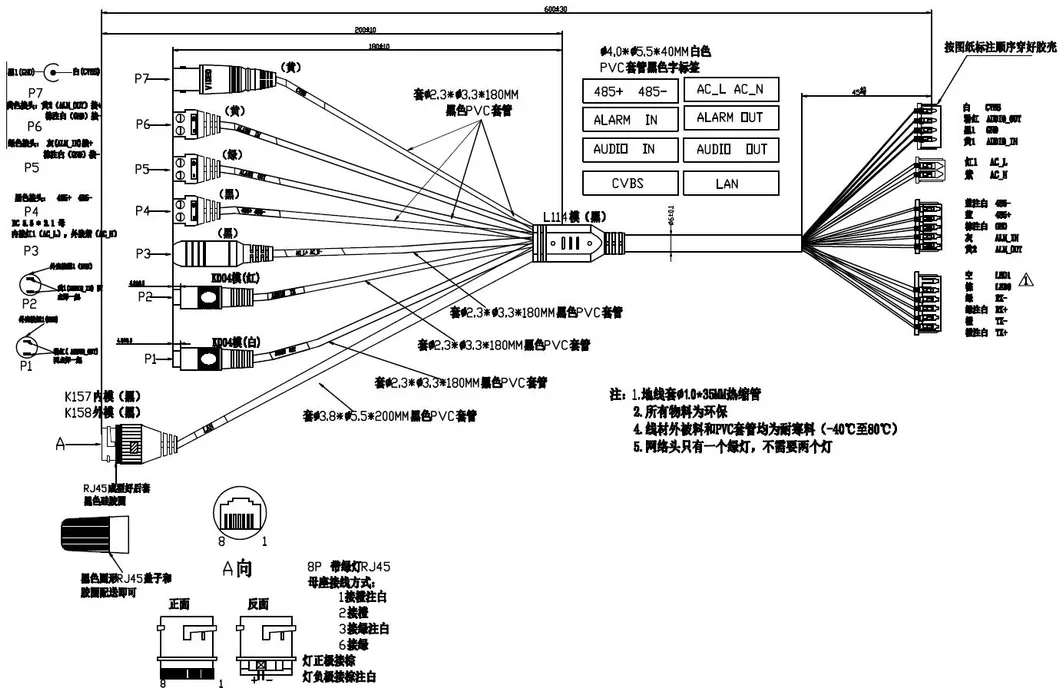

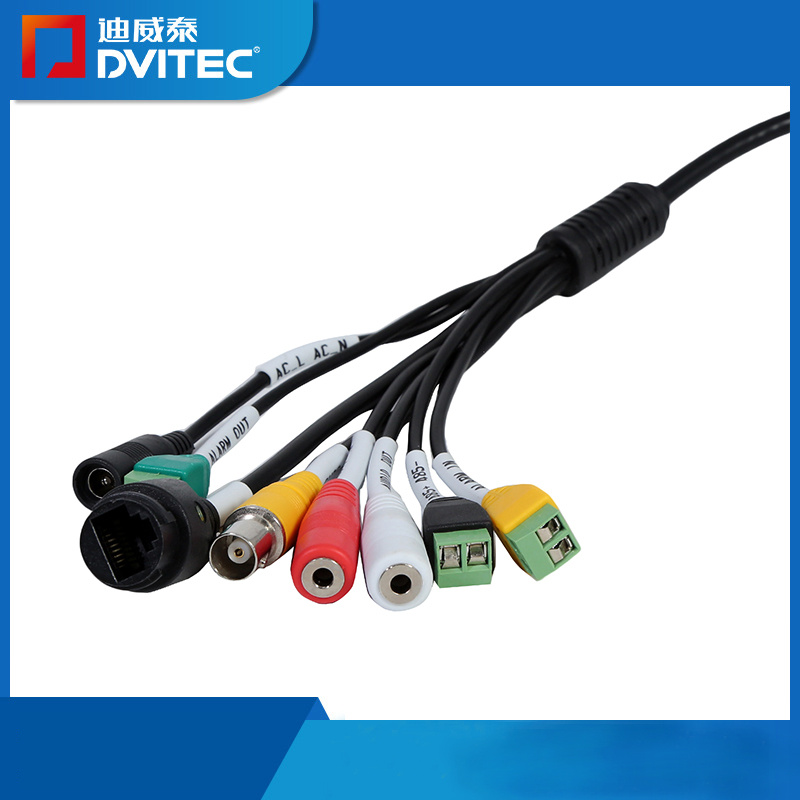

| Hardware interface | ||
| Network interface | RJ45 | |
| Power supply | DC12V/AC24V | |
| Audio output | 3.5mm Lotus female head | |
| Audio input | 3.5mm Lotus female head | |
| Alarm output | 2pin Wiring Terminal | |
| Alarm input | 2pin Wiring Terminal | |
| CVBS | BNC female head | |
Note:
1. Saturation, sharpness, contrast and brightness can be adjusted manually according to the site environment
2. SDK can be provided for secondary development
