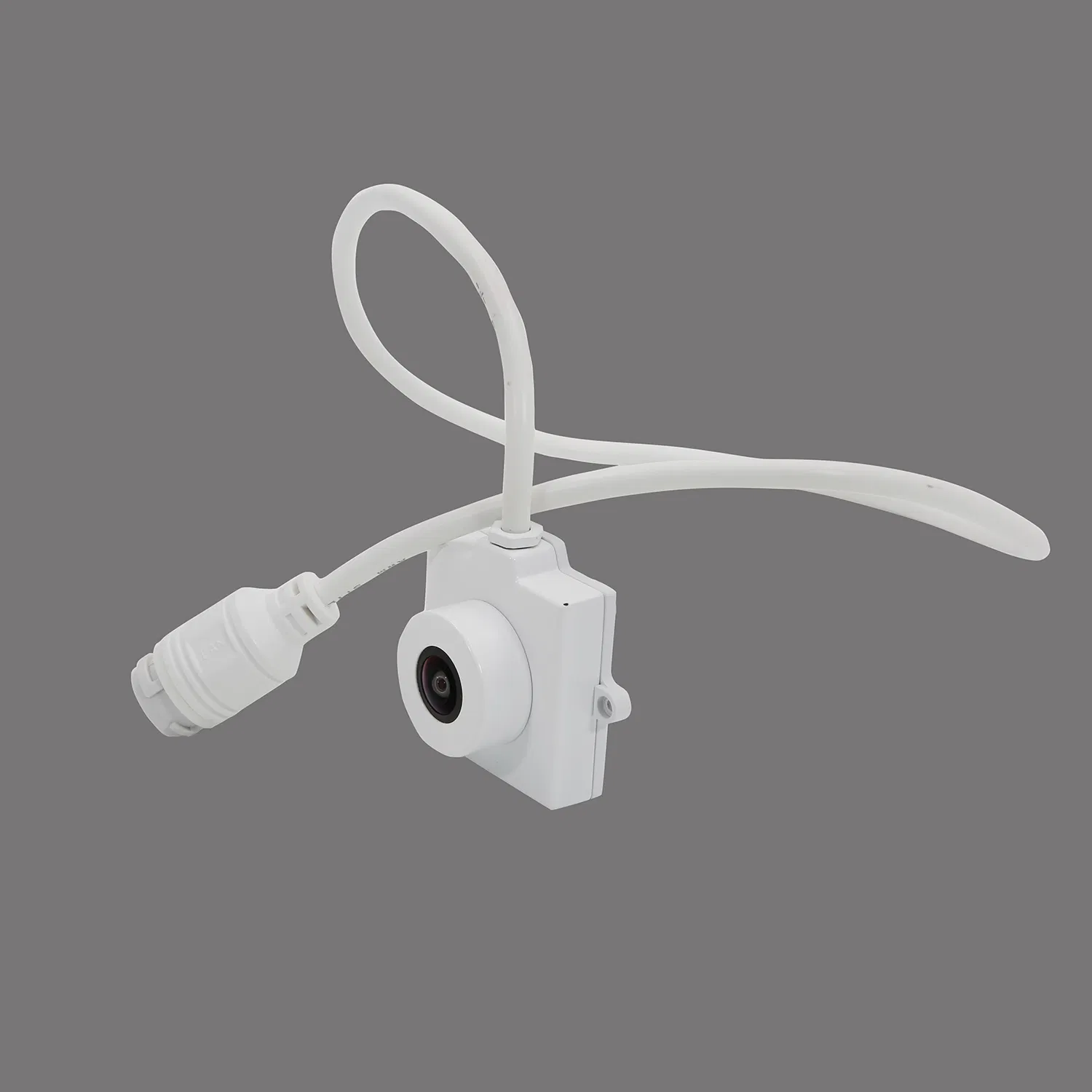

USB Full View Refrigerator Camera

Product Description

1/3" 1.3M Sensor
Max:30fp
Can be placed inside the refrigerator, low temperature with waterproof, anti fog function camera
Singlechip with Electronic Temperature Control
0.5W Low Power Consumptione, Heating 3.5W power consumption
0.1Lux low light performance
-30ºC~+70ºC Wide working temperature range
USB2.0 High Speed
UVC structure (Support Windows XP /7/8.1/10/vista/seven/Mac linux2.6.2(include UVC )
30 thousand hours fault-free life
3 year- warranty period
Zinc magnesium alloy shell
Basic: CPU 1.7GHZ 512MB Storage 40GB XP SP2 OS

Signal	NTSC		PAL		REMARKS
Scanning System()	Progressive scan
Scanning Frequency(H)()	30HZ		30HZ
Scanning Frequency(V)	59.9HZ		50HZ
Image Sensor()	1/3 " CMOS				Aptina
Effective Pixels()	1280x960
Pixel size()	3.75umX3.75um
Image sensor Data output()	Raw Data 10bits
Video Comprossor()	MJPG/YUY2
Maximum Frame Rates ()	1280x960 at 30fps 1280x720 at 30fps 1024x768 at 30fps 800x600 at 30fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 176x144 at 30fps 160x120 at 30fps				MJPG
Maximum Frame Rates ()	1280x960 at 5fps 1280x720 at 8fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 30fps 352x288 at 30fps 320x240 at 30fps 176x144 at 30fps 160x120 at 30fps				YUY2
VID&PID(&)	2C7F&4A20
SNR max()	44dB
Dynamic range()	83.5dB
Min. Illumination()	0. 1LUX at F1.2
Digital interface()	4-pin 1.25mm USB2.0
Transfer rates()	480Mb/S
Power requirements()	12V±5%
Power Consumption ()	0.5W-3.5W
Waterproof level()	IP66

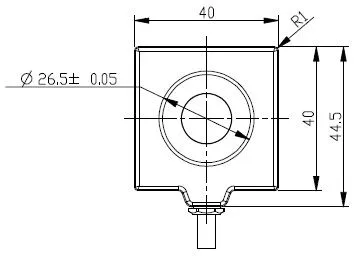

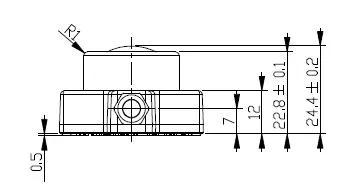

Dimensions(PCBA)(PCBA)mm	32x32 ±5%
Weight()	TBD
Operating temperature(ºC)()	-30~70 ºC
Storage temperature(ºC)(&)	-40~80 ºC/0~90RH
Compliance()	USB-IF WHQL CE RoHS
Lens Mount()	M12

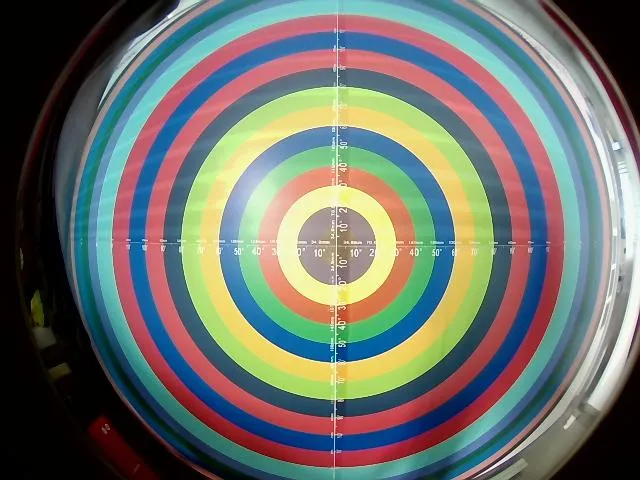

Lens view ()	1.58mm
Warranty()	3 years
OS()	Windows XP /vista/seven/8.1/Mac linux2.6.2(include UVC )

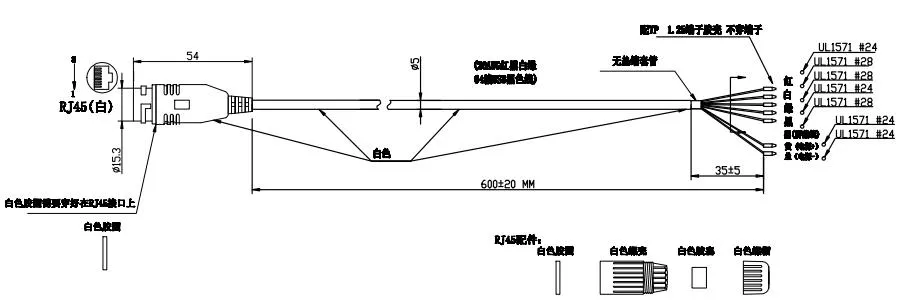

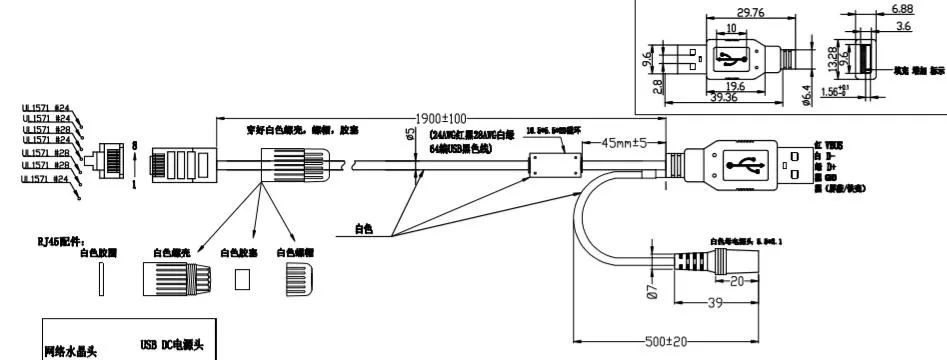

USB CONN(USB)	1	5V		USB POWER	500mA max
	2	DM		-	D-
	3	DP		-	D+
	4	GND		-	DGND
				-	shield
